HuaEn factory top quality hot selling most functional fabric pleating machine cloth pleating machine
- Category: Apparel Machinery >>>
- Supplier: Changzhou Huaen Garment Machinery Factory
Share on (10000008475007):
Product Overview
Description
Our Company
Changzhou HuaEn Garment Machinery Factory
We have been engaged in manufacturing fabric pleating for nearly 15 days. This pleating machine is the most functional for fabric, leather textile, chiffon, nylon with bamboo leaf pleat pattern, tooth pleat pattern, box pleat pattern, double box pleat pattern, side pleat pattern, diamond pattern, wave pleat pattern, vertical pleat pattern at a high efficiency.
Our factory is located in Changzhou city, Jiangsu Province which is just 1 hour from Shanghai by train. You may send us sample to make a trial on our new installed machine before you place the order. We won't persuade you anything without fullfilling your expectation.
Product Paramenters

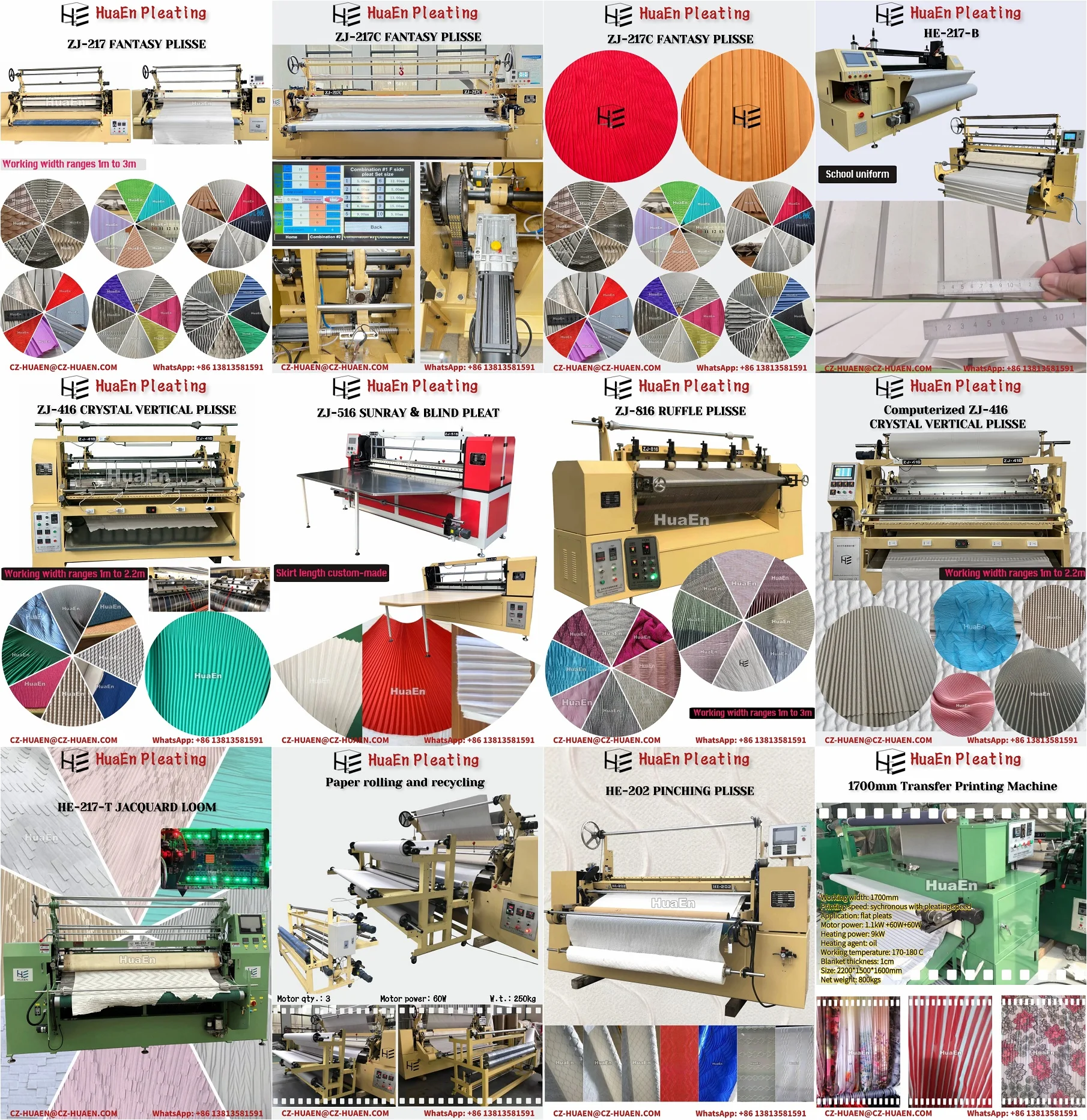

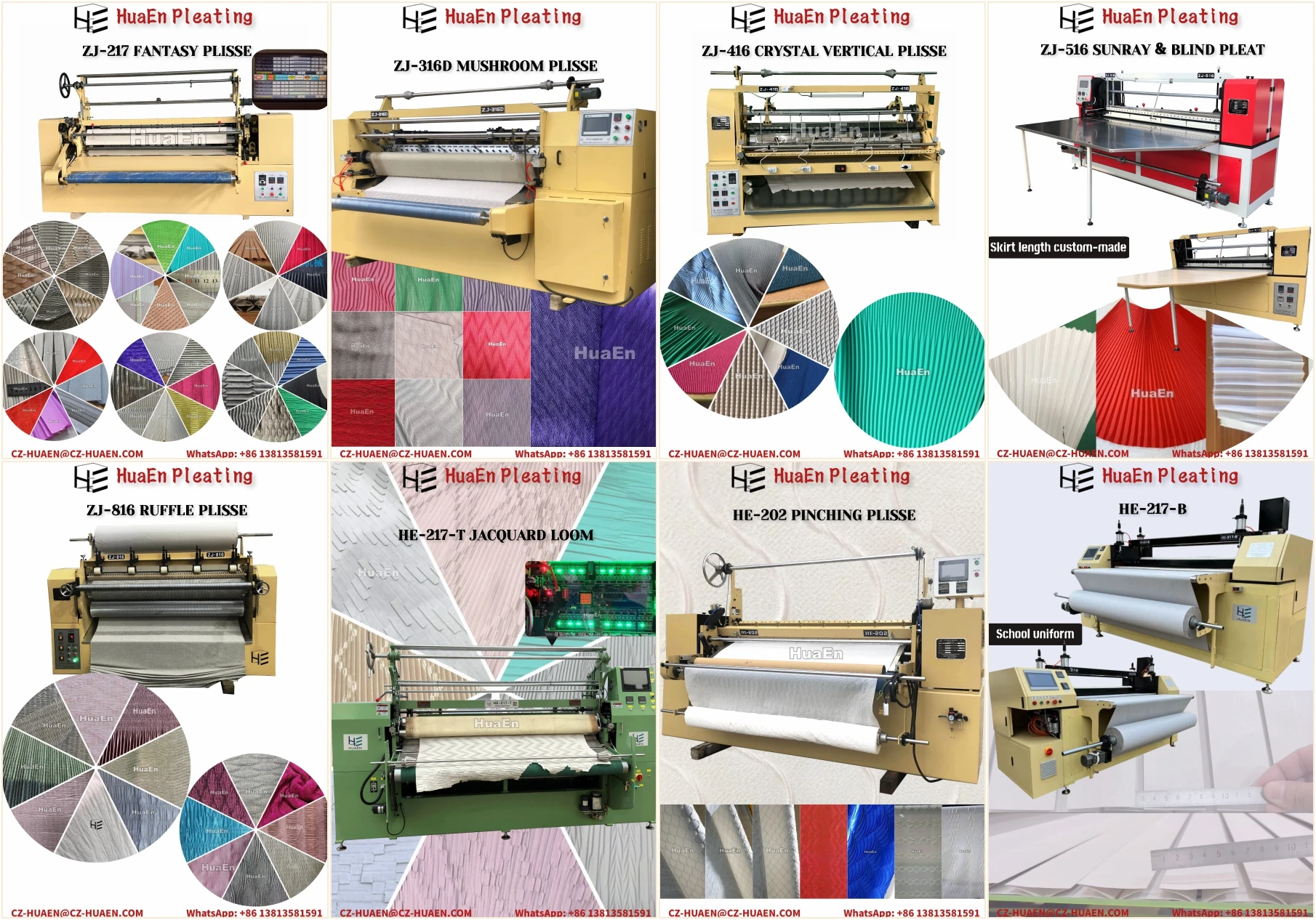

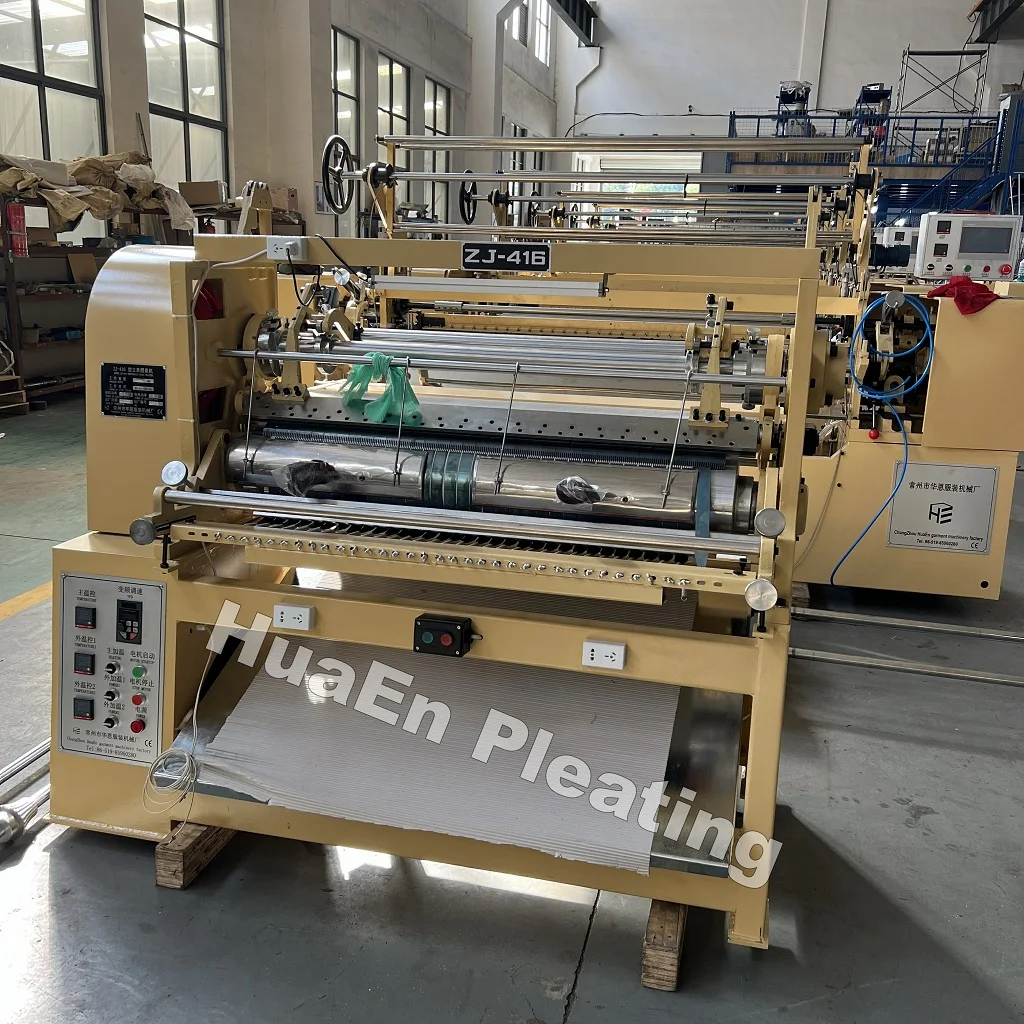

Model-1 | ZJ-217 without computer Fantasy pleating | ZJ-217 with computer Fantasy pleating | ZJ-416 Crystal pleating |
Specification | Max. pleating width: 1700mm Max. speed: 20-150pleat/minutes Consumption 1: wool felt / canvas Consumption 2: paper Pleat width: 1mm-60mm Pleat depth: 2mm-30mm Motor power: 1.1kW Heating power: 1.1kW*9 Size: 3200*1650*1750mm Packing size: 3400*1140*2000mm Net weight: 1300kgs Gross weight: 1650kgs | Max. pleating width: 1700mm Max. speed: 20-150pleat/minutes Consumption 1: wool felt / canvas Consumption 2: paperas Pleat width: 1mm-60mm Pleat depth: 2mm-30mm Motor power: 1.1kW Heating power: 1.1kW*9 Size: 3200*1650*1750mm Packing size: 3400*1140*2000mm Net weight: 1300kgs Gross weight: 1650kgs Compressed air: needed | Max. pleating width: 1600-1700mm Max. pleating speed: 200m/h Pleat height: 2mm-8mm Consumption: paper Motor power: 1.1kW Heating power: 1.5kW*6 + 0.5kW*4 Size: 2600*1450*1600mm Packing size: 2600*1140*1800mm Net weight: 1000kgs Gross weight: 1250kgs |
Quantity of pleat patterns | Basic 3. 3 knives included | Basic 3. 3 knives included | 1 or 2 |
Pleat pattern | Wavy, flat(straight), and bamboo leaf are the basic | Wavy, flat(straight), and bamboo leaf are the basic | Tiny vertical (Toothstick) |
Paper needed | Upper and lower 30g/m2 smooth & 48g/m2 friction paper Fabric is sandwiched | Upper and lower 30g/m2 smooth & 48g/m2 friction paper Fabric is sandwiched | Upper and lower 48g/m2 friction paper Fabric is sandwiched |
Key part | Knife | Knife | Steel comb |
Possible to customize? | Yes One knife, one type | Yes One knife, one type | NO |
Pleating in roll or piece | Both piece and roll | Both piece and roll | Both piece and roll |

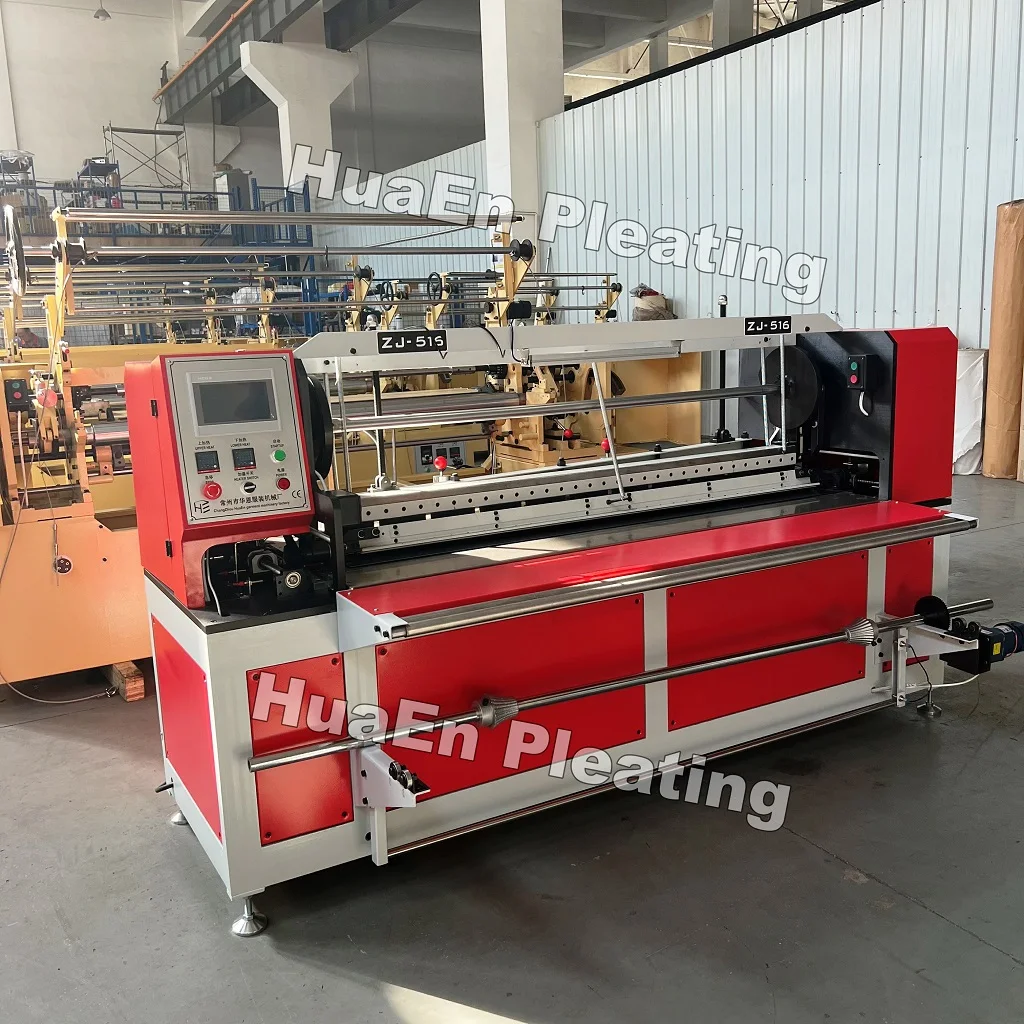

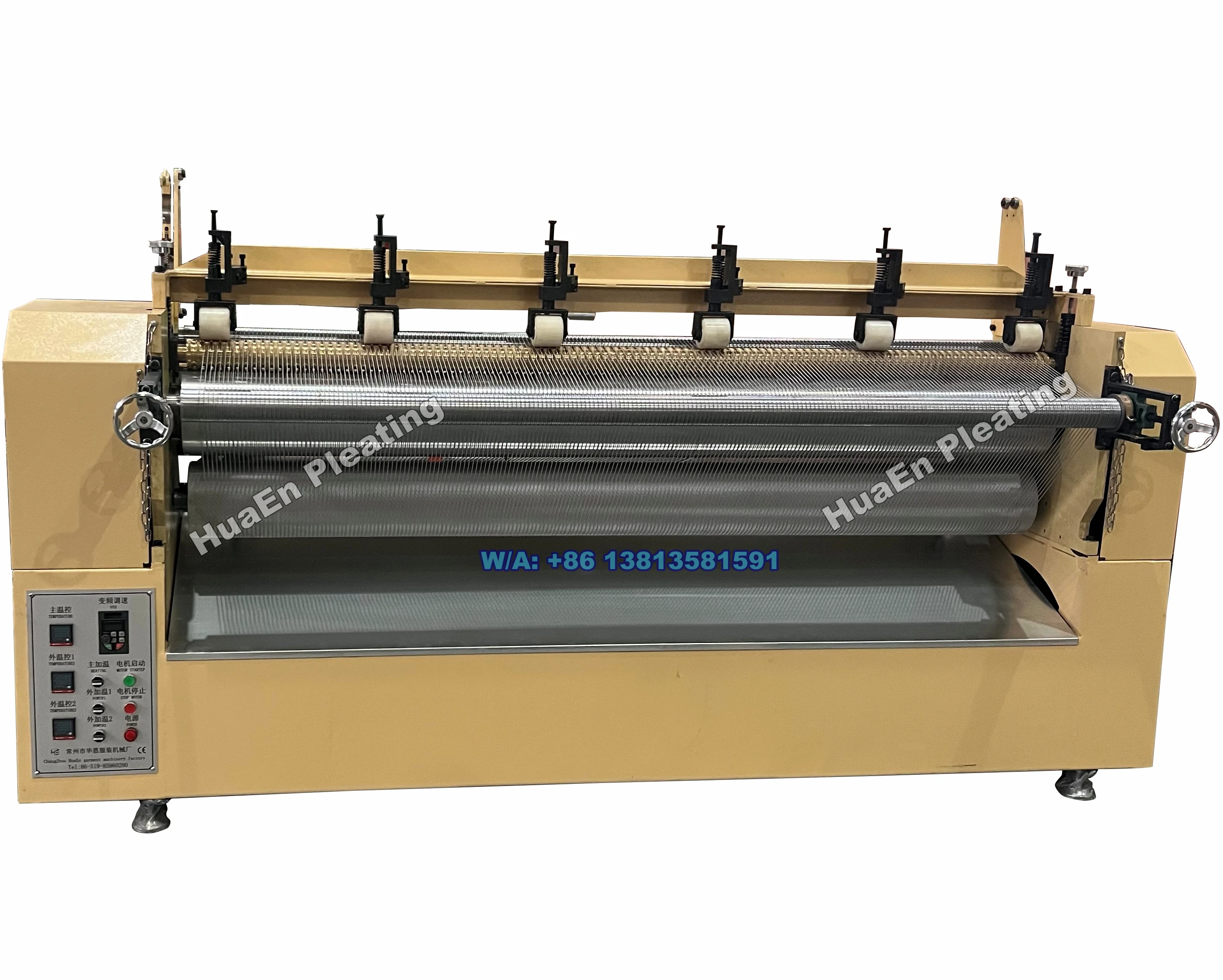

Model | ZJ-516 without computer Sunray pleating | ZJ-516 with computer Sunray & Blind pleating | ZJ-816 Ruffles |
Specification | Max. folding width: 1600mm Pleat size: 0.5cm-5cm Consumption: paper Motor power: 1.1kW Heating power: 1.2kW*6 Size: 2600*1400*1600mm Packing size:2600*1140*1800mm Net weight: 800kgs Gross weight: 1000kgs | Max. Press width: 1600mm Pleat size: 0.5cm-5cm Consumption: paper Motor power: 0.75kW+60W Servo motor power: 0.75kW*2 Heating power: 1.2kW*6 Size: 2600*1400*1600mm Packing size: 2600*1140*1800mm Net weight: 800kgs Gross weight: 1000kgs | Max. pleating width: 1600mm Max. pleating speed: 200m/h Consumption: paper Motor power: 1.1kW Heating power: 10kW Size: 2600*1450*1650mm Packing size: 2600*1140*1800mm Net weight: 1000kgs Gross weight: 1250kgs |
Quantity of pleat patterns | 1 | >3 | Single 1 roller included |
Pleat pattern | Vertical Sunrise | Vertical Sunrise and accordion | Wavy or Ruffle are basic |
Paper needed | Depends on fabric 30g/m2 smooth paper | Depends on fabric 30g/m2 smooth paper | Upper and lower 48g/m2 friction paper Fabric is sandwiched |
Key part | Knife | Knife | Roller/cylinder |
Possible to customize? | NO | NO | Yes One roller, one type |
Pleating in roll or piece | Only piece | Both piece and roll | Both piece and roll |
Model | HE-202 Pinch machine | HE-217-T Jacquard machine | ZJ-316D |
Specification | Max. pleating width: 1700mm Pleating speed: min.40m/h Motor power: 1.5kW Heating power: 3kW*3 Size: 2800x1400x1850mm Packing size: 2900x1500x2100mm Net weight: 1250kgs Gross weight: 1450kgs Compressed air: needed | Max. pleating width: 1700mm Max. pleating speed: 20-80 pleats/minute Pleat depth: 2-5mm Motor power: 1.5kW Heating power: 1.1kW*9 Qty. of piston: 100 pcs Knife thickness: 2mm Size: 3*1.5*1.8m Packing size: 3.1*1.55*2m Net weight: 1700kgs Gross weight: 2000kgs Compressed air: needed | Max. pleating width: 1600mm Max. pleating speed: 100m/h Consumption 1: wool felt Consumption 2: paper Pleat width: 1mm-100mm Motor power: 1.5kW+1.1kW Heating power: 10kW Heating agent: oil Size: 3150*1600*1800mm Packing size: 3300*1150*2000mm Net weight: 1350kgs Gross weight: 1650kgs Compressed air: needed |
Quantity of pleat patterns | 3 moulds included | 100 pcs of knives included | Basic 3. 3 knives included |
Pleat pattern | Please see below knife | Please see below knife | Please see below knife |
Paper needed | Lower paper needed only 30g/m2 friction paper. Less gsm is better | Depends on fabric 30g/m2 smooth paper | Depends on fabric 36g/m2 friction paper |
Key part | Moulds | Knife | Knife |
Possible to customize? | Yes One mould, one type | Yes One knife, one type | |
Pleating in roll or piece | Both piece and roll | Both piece and roll | Both piece and roll |
Product Description
Product Application for fabric pleating machine cloth pleating machine
Fabric before cloth decorated with flat/double side/fir/wave/Harlequin/Kingussie/combined/Space pleat are more popular.
Certifications
Packing & Delivery
Packaging | ||
Size | 3400 (L) * 1750 (W) * 2000 (D) | |
Weight | 1.6 T | |
Packaging Details | The normal package is ply-wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tight,we will use PE film for packing or pack it according to customers special request. | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Custom-Engineered
Your particular requirement is accepted.
Working width can be custom-engineered from 0.5m to 3m.
Heating technology can be custom-engineered.
Auto./Manu. paper feeding is custom-engineered.
