Pp резки и швейная машина фабрика тканый мешок делая машину

Product Overview

Description

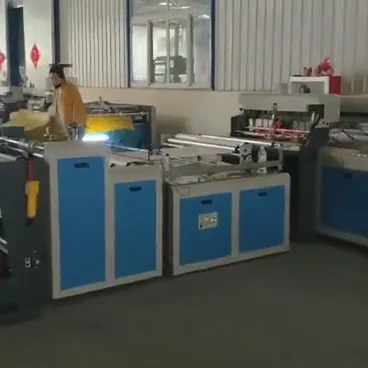

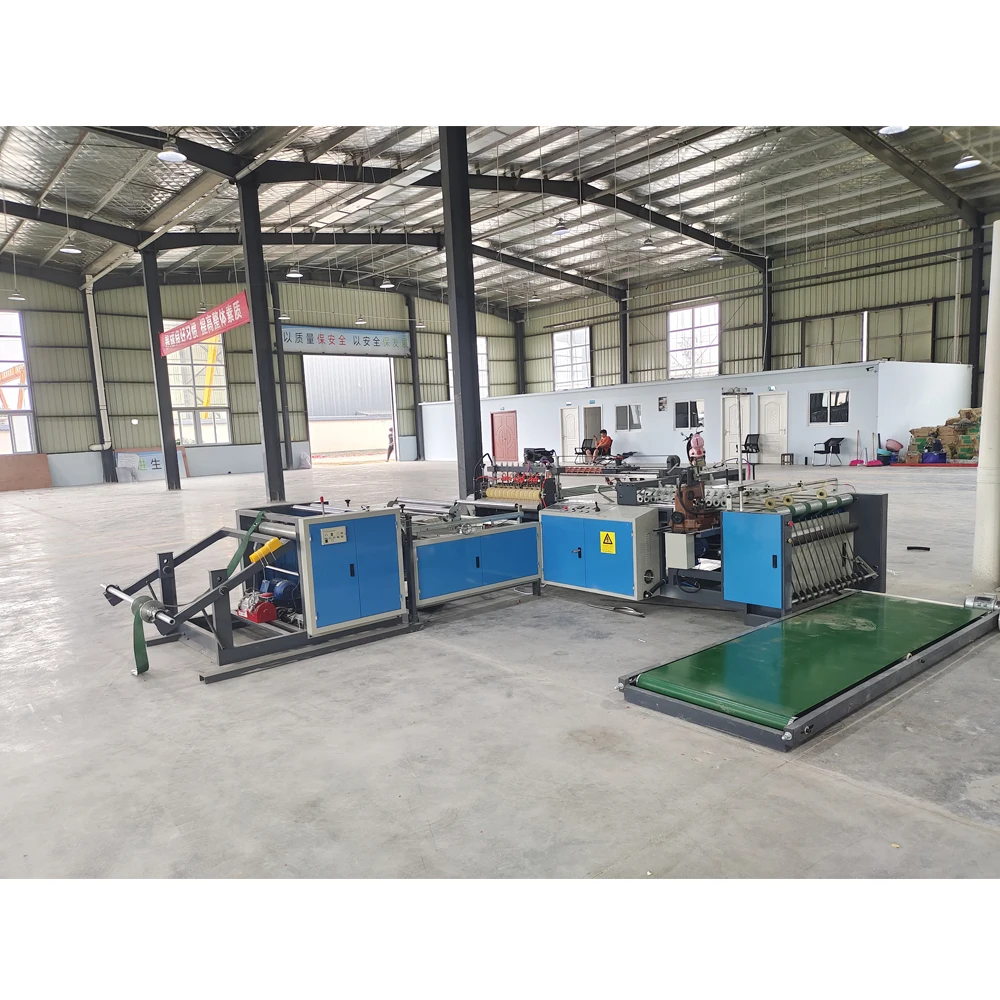

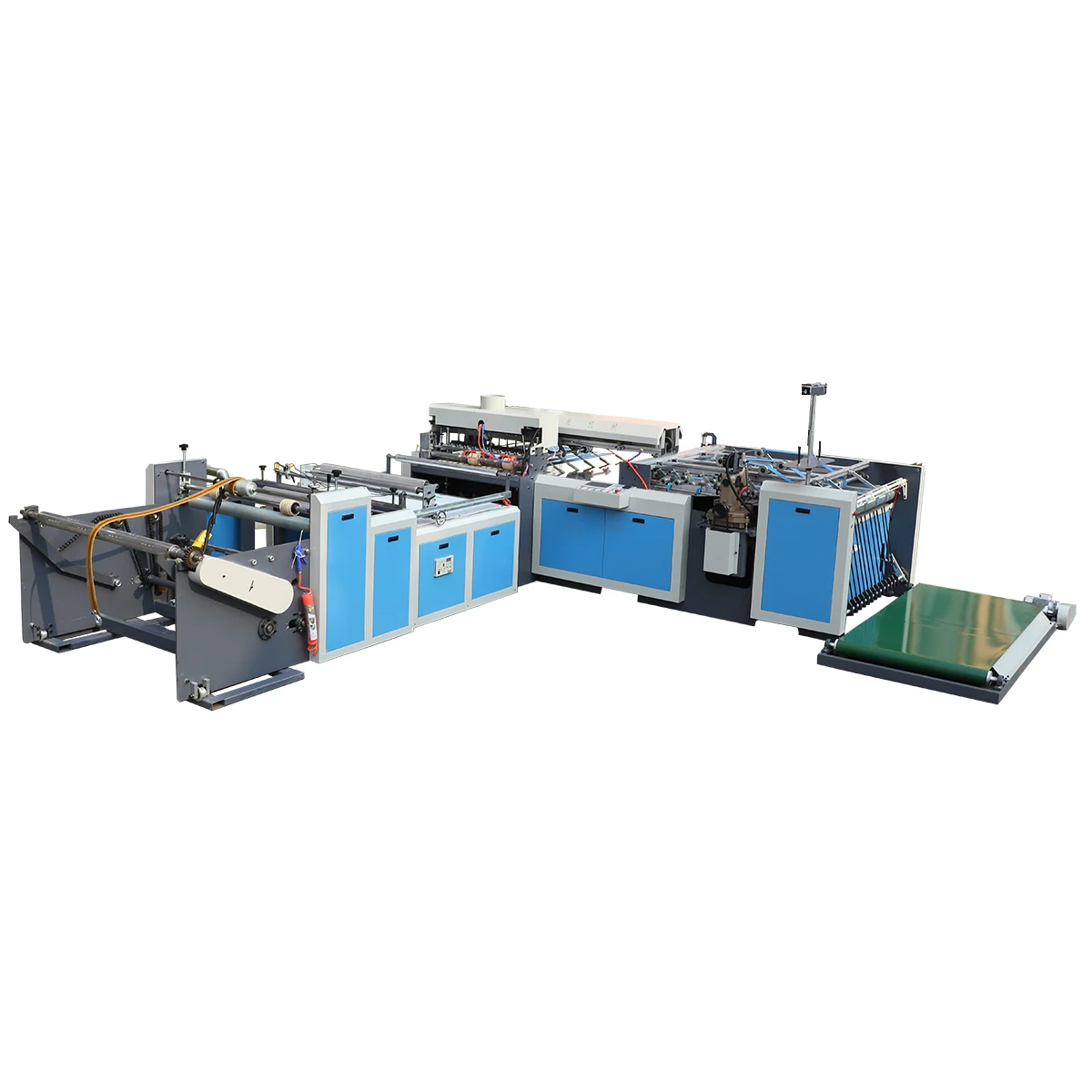

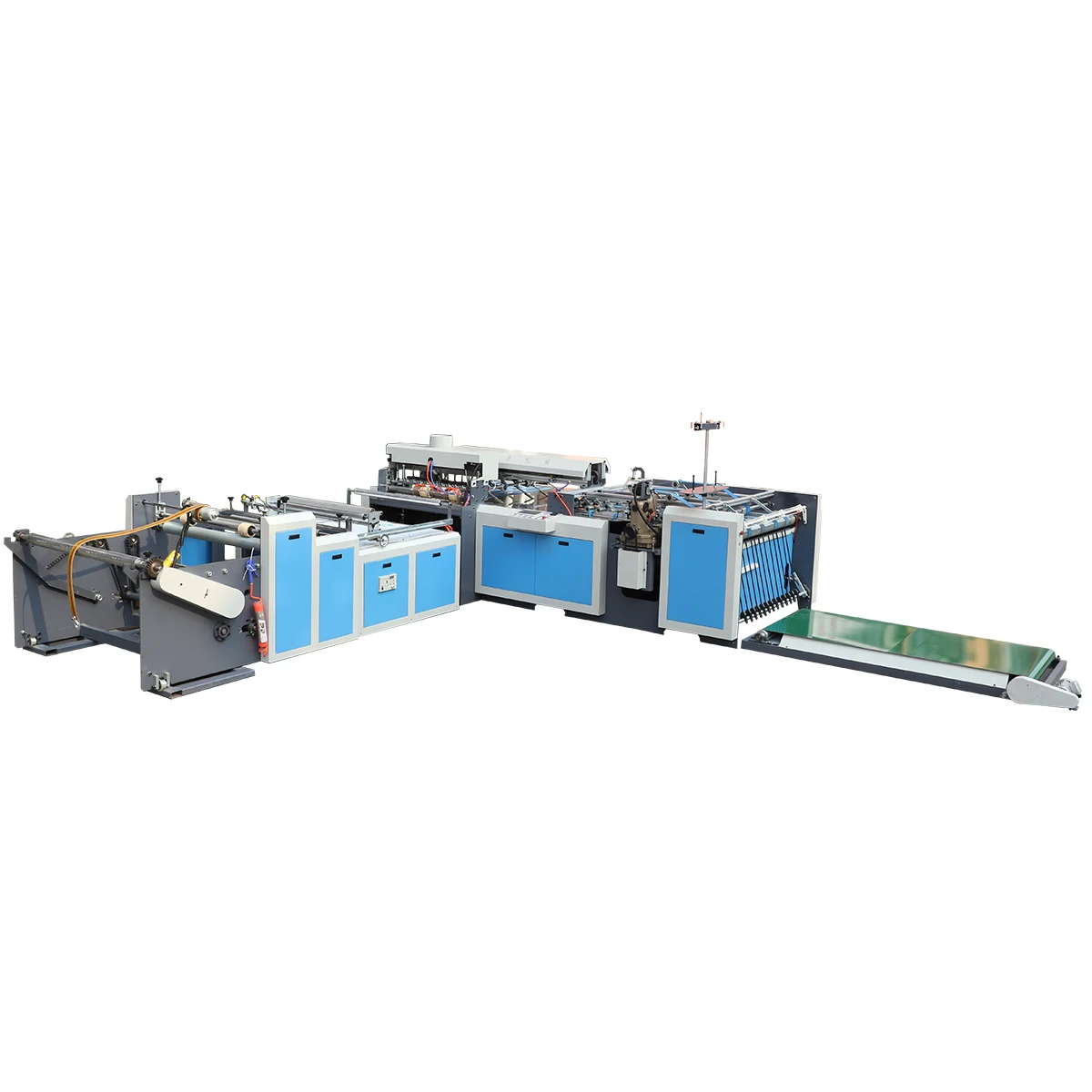

pp woven bag cutting and sewing machine

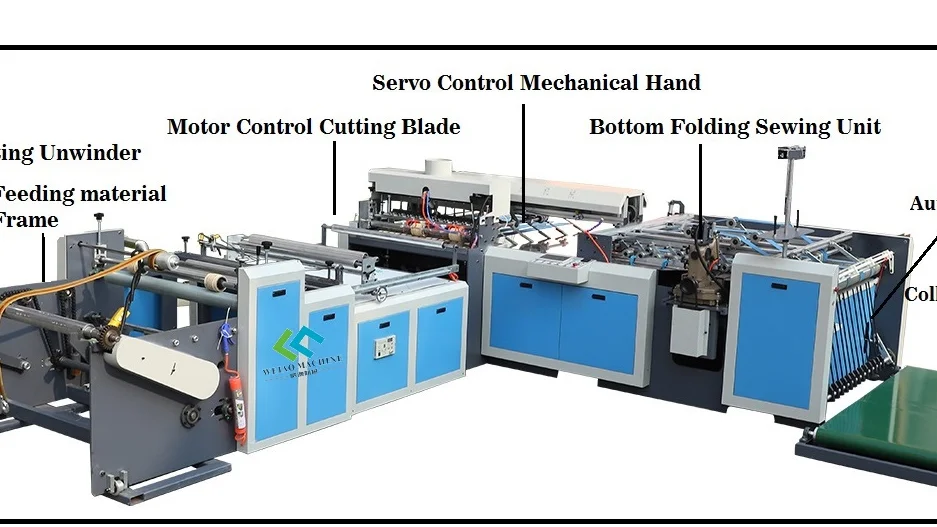

1.1 Machine Introduction:

This new designed PP woven bag cutting sewing machine adopt manipulator bag transfer, is suitable for all kinds PP woven bags without lamination, such as fertilizer bag, rice bag, feed bag, cement bag etc. This machine with fabric cutting, bottom folding, sewing, collecting intergrated. It saves labor, with fast speed and easy operate.



1.2 Performance Feature

1) Whole machine auto work, one person can finish the woven roll feeding, transfer, folding, sewing, thread cutting,bag collect, bag counting.

2) Adopt Manipulator transfer bag, much stable, speed can reach 40-50pcs/min.

3) Whole machine use Q235 steel, strong and reliable, running stable.

4) Heating cutter adopt H13 die  steel, cutter life durable, no need to change cutter frequently and less smoke.

5) Can install both heating cutter and cold cutter according to customer requirement,one button change the cutter, easy and convenient.

6) With smoke absorb device, its much environmental.

7) With EPC system,bag feeding stable, cutting stable.

8) Bag feeing with air auxiliary, both thin bag and thick bag feeding stable.

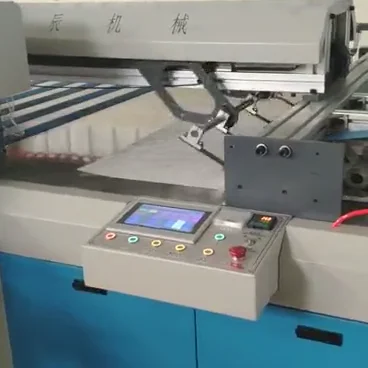

9) Adopt Japan Omron PLC control,much reliable



1.3 Main Technical Parameters

Model	ARQF-800
Speed	40-50pcs/min
Max cutting width	800mm
Max cutting length	1300mm
Cutting precision	±2mm
Folding method	Single or double folding
Sewing machine speed	2200r/min
Max sewing thickness	8mm
Adjustable length of stitch length	8-15mm
Unwinding motor	0.75kw
Feeding motor	3.5kw
Air need	0.4m³/min
Installation size	5.5*4.5*1.3m
Machine weight	4500kg
Power supply	380V,3 phase (can be custom made)
