High technology square bottom kraft paper bag making machine with handle online making china factory
- Category: Packaging Machines >>>
- Supplier: Zhejiang Allwell Intelligent Technology Co. Ltd.
Share on (10000008821734):
Product Overview
Description
Oyang 16- A Series Paper Bag Making Machine With Handle
NEW WORLD-A220 full automatic square bottom paper bag machine is used for the production of a paper bag with a twisted handle loop. Real realization of full automation production, can effectively save labor costs.
The whole machine adopts the servo-electric control system imported from Japan, which ensures the whole machine can run quickly and stably and effectively reduces the time of paper bag size adjustment. The finished bags produced are of high accuracy, strong stability, simple maintenance, and efficient production, which is the ideal equipment for major printing plants and paper bag manufacturers.
MODEL | New world -A220 | New world -A330 | New world -A400 | New world -A460 | New world -A550 |
Paper roll width | 290-710mm | 490/590-1050mm | 510/610-1230mm | 650/690-1470mm | 770-1670mm |
Paper diameter | ≤1500mm | ≤1500mm | ≤1500mm | ≤1500mm | ≤1500mm |
Core inner diameter | Φ76mm | Φ76mm | Φ76mm | Φ76mm | Φ76mm |
Paper weight | 70-140g/m2 | 80-140g/m2 | 80-140g/m2 | 80-140g/m2 | 80-140g/m2 |
Paper bag width | 120-220mm with handle | 200-330mm with handle | 200-400mm with handle | 240-460mm with handle | 280-560mm with handle |
80-220mm without handle | 150-330mm without handle | 150-400mm without handle | 220-460mm without handle | 280-560mm without handle | |
Paper tube length | 190-350mm With handle | 280-430mm With handle | 280-550mm With handle | 320-650mm With handle | 320-650mm With handle |
190-430mm Without handle | 280-530mm Without handle | 280-600mm Without handle | 320-770mm Without handle | 320-770mm Without handle | |
Bottom width of paper bag | 50-120mm | 80-180mm | 90-200mm | 90-260mm | 90-260mm |
Machine speed | 150pcs/min | 150pcs/min | 150pcs/min | 130pcs/min | 130pcs/min |
Total power | 32KW | 35KW | 34KW | 34KW | 34KW |
Machine weight | 13000KG | 18000KG | 18000KG | 21000KG | 21000KG |
Machine dimensions | 12000*5000*3200mm | 16000*6000*3500mm | 15000*6000*3500mm | 17000*6000*3500mm | 17000*6000*3500mm |
HANDLE MODEL | 2HD | 5HD | 6HD | ||
Handle rope height | 90-110mm | 95-115mm | 100-120mm | ||
Handle patch width | 40-50mm | 45-50mm | 45-50mm | ||
Handle patch length | 95mm | 152.4mm | 190mm | ||
Handle rope diameter | Φ3-5mm | Φ4-6mm | Φ4-6mm | ||
Diameter of handle patch paper roll | Φ1200mm | Φ1200mm | Φ1200mm | ||
Handle patch paper roll width | 80-100mm | 90-100mm | 90-100mm | ||
Handle patch weight | 100-140g | 100-140g | 100-140g | ||
Distance of the handle | 47mm | 76mm | 95mm |
Details Images
PRODUCT CONFIGURATION

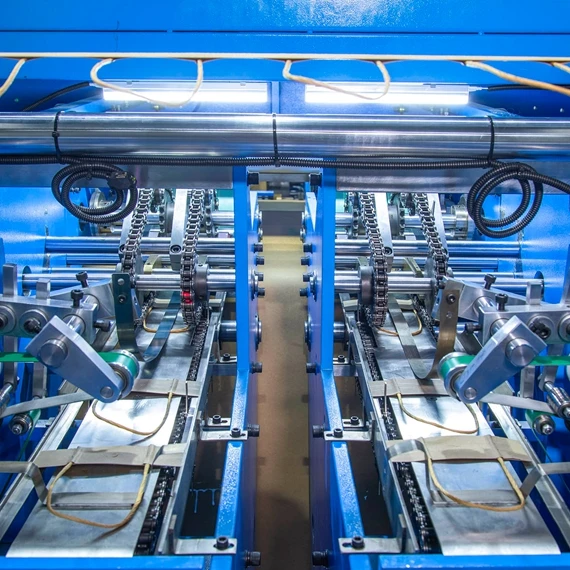

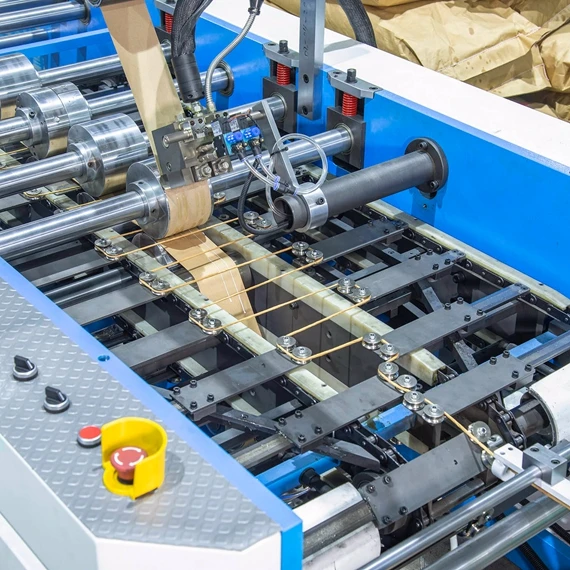

Handle Making Unit
Bag Cutting And Sealing Unit
Collecting Unit
Company Profile
Q1. How long will your engineer reach our factory?
Our After-sales Specialist would contact with you, confirm the final scheduling according to your reasonable request.
Q2. How many days will you finish installing?
We will finish installation and training within 7-10 days.
Q3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets,SIM card, hotel, food, and also their salary 100-150 USD one day per person.
Q4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
Q5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
Q7. Does your engineer understand English?
Our engineers understand a little English. All of our engineer have more than five years machine installation experience. In
addition, they can use body language to communicate with customer.
Q8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our after
sales specialist at any time.Our after-sales department with 30 engineers.Our engineers will take a solution video according your description.
Q9. How many workers do we need running those machines?
1-2 stuffs, depends on machine model
