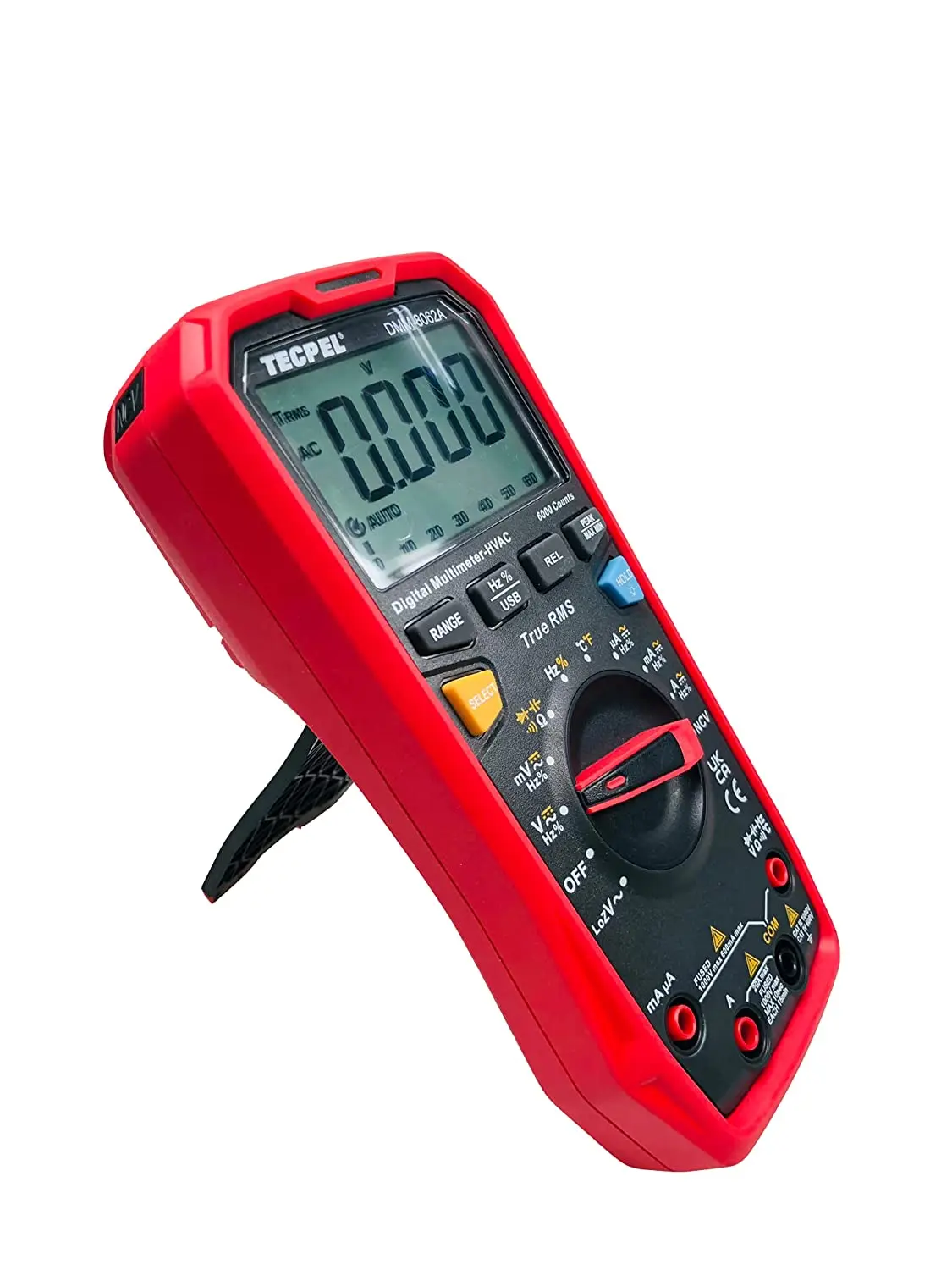

TECPEL DMM 8062A PRO цифровой мультиметр True RMS
- Category: Multimeters >>>
- Supplier: TECPEL CO. LTD.
Share on (10000008875750):
Product Overview
Description
Specifications Range
AC voltage (V) 1000V ±(1%+3)
DC voltage (V) 1000V ±(0.5%+3)
AC current (A) 10A
20A ±(1.2%+5)
DC current (A) 10A
20A ±(1%+2)
Resistance (Ω) 60MΩ ±(1%+2)
220MΩ
Capacitance (F) 60mF ±(3%+5)
220mF
Frequency (Hz) 10MHz ±(0.1%+4)
220MHz
Duty cycle (%) 0.1%~99.9% ±(2%+5)
Temperature (℃/℉) -40℃~1000℃ ±(1%+3)
-40℉~1832℉ ±(1%+6)
Display count 6000
Bandwidth (Hz) 40Hz~1kHz
LPF ACV
LoZ ACV √
ACV+DCV
Transistor hFE
Peak Hold √
Analog bar 31
General Characteristics

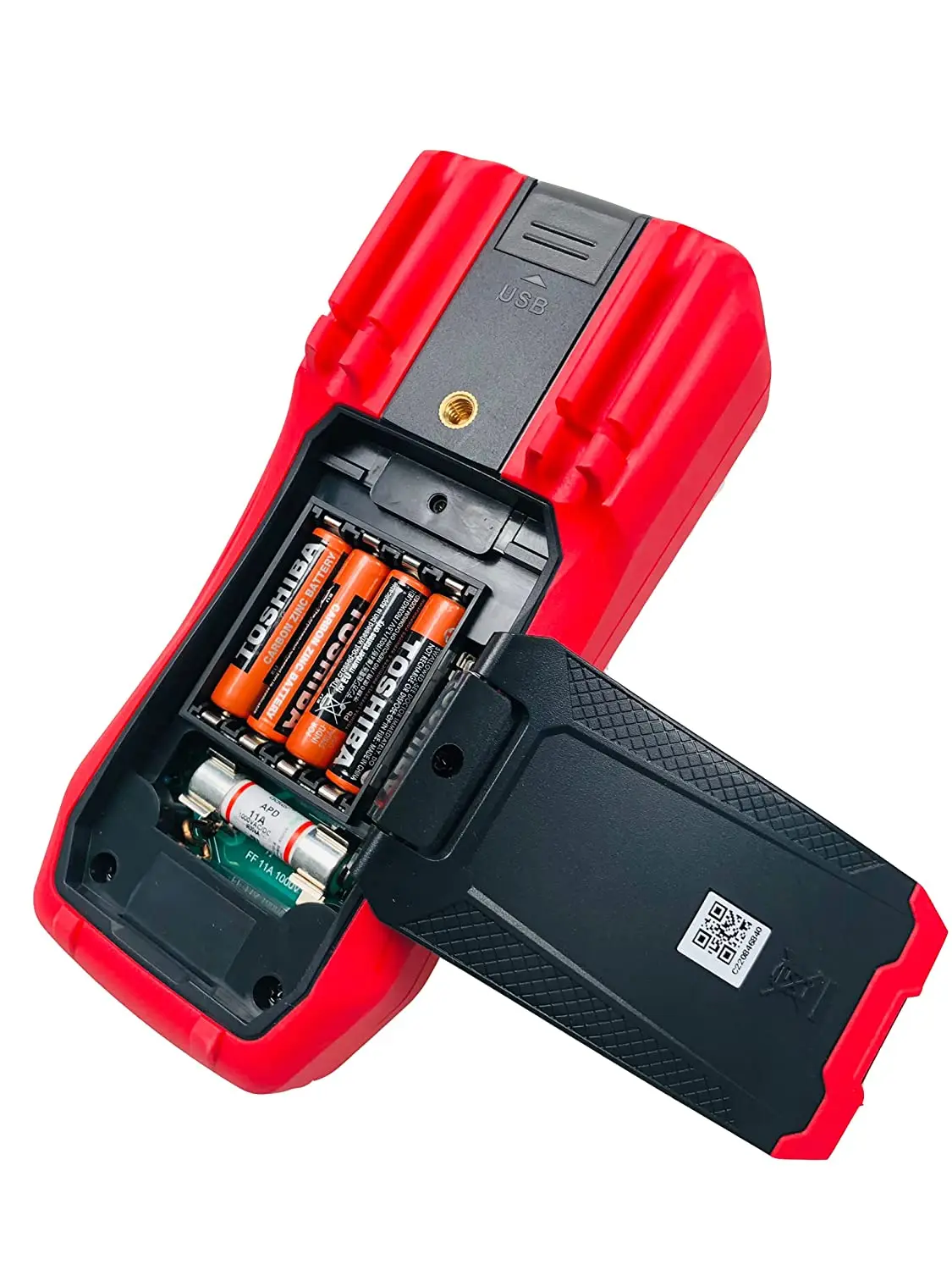

Power 1.5V battery (R03) x 4
Product net weight 350g
Product size 190mm x 90mm x 50mm

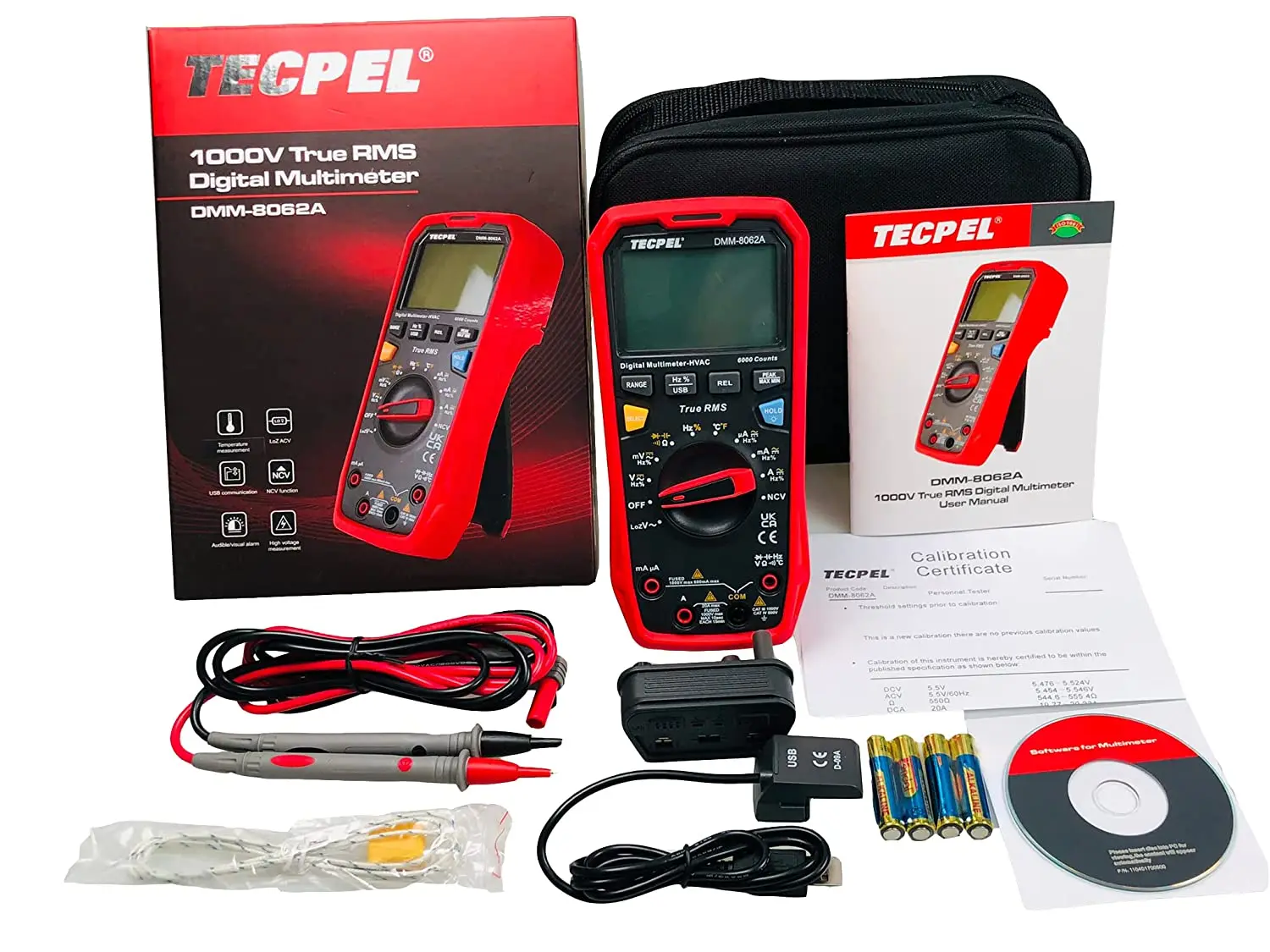

Standard accessories Battery, gold plated test leads, USB cable, temperature probe,
Standard accessories Battery, gold plated test leads, USB cable, temperature probe,
multi-purpose socket (161E), English manual
Standard individual packing Gift box, cloth bag
Standard quantity per carton 20pcs
Standard carton measurement 480mm x 370mm x 325mm
Standard carton gross weight: 17.8kg
Introduce the special features of DMM-8062A
Foreword :
What is Ghost Voltage
The usual digital multimeter is high matching impedance, and the theoretical value is infinite.
When energized and non-energized circuits are close to each other, such as in the same conduit or pipe,
Phantom voltages (stray voltages) commonly known as ghost voltages may occur.
This condition creates a capacitor and allows energization between live wiring and adjacent unused wiring
Capacitive coupling. (From Internet encyclopedia)
What is low matched impedance measurement?
Master electricians know that voltages often appear when you measure electrical installations, even if you know the wires
All are not powered.
This is caused by stray capacitance or ghost voltages and capacitance between wires as mentioned above. due to very high
The impedance of the input meter,
This stray voltage has nowhere to go and is causing an incorrect reading on the meter. This is because in the highly matched impedance capacitance
It is easy to absorb environmental noise so that many multimeters will see unstable voltage jumps unstably in mV under the DC voltage gear.
This digital multimeter DMM-8062a adds a Noncontact voltage detector and low matching impedance
Check out and make sure there is a low impedance across the meter's input terminals.
This product is a new generation product
Higher specification! Safer!
DMM-8062A is the 2022 version, the European CE-certified version (using higher-level safety regulations and environmental protection regulations).
The model DMM-8062A sold by our company is the international export version
Foreword :
What is Ghost Voltage
The usual digital multimeter is high matching impedance, and the theoretical value is infinite.
When energized and non-energized circuits are close to each other, such as in the same conduit or pipe,
Phantom voltages (stray voltages) commonly known as ghost voltages may occur.
This condition creates a capacitor and allows energization between live wiring and adjacent unused wiring
Capacitive coupling. (From Internet encyclopedia)
What is low matched impedance measurement?
Master electricians know that voltages often appear when you measure electrical installations, even if you know the wires
All are not powered.
This is caused by stray capacitance or ghost voltages and capacitance between wires as mentioned above. due to very high
The impedance of the input meter,
This stray voltage has nowhere to go and is causing an incorrect reading on the meter. This is because in the highly matched impedance capacitance
It is easy to absorb environmental noise so that many multimeters will see unstable voltage jumps unstably in mV under the DC voltage gear.
This digital multimeter DMM-8062a adds a Noncontact voltage detector and low matching impedance
Check out and make sure there is a low impedance across the meter's input terminals.
This product is a new generation product
Higher specification! Safer!
DMM-8062A is the 2022 version, the European CE-certified version (using higher-level safety regulations and environmental protection regulations).
The model DMM-8062A sold by our company is the international export version
