SUNWA 4000 Count Auto Range Digital Multimeter CD 800A
- Category: Multimeters >>>
- Supplier: Zhangzhou KASUN Electronic Technology Co. Ltd.
Share on (60374285868):
Product Overview
Description

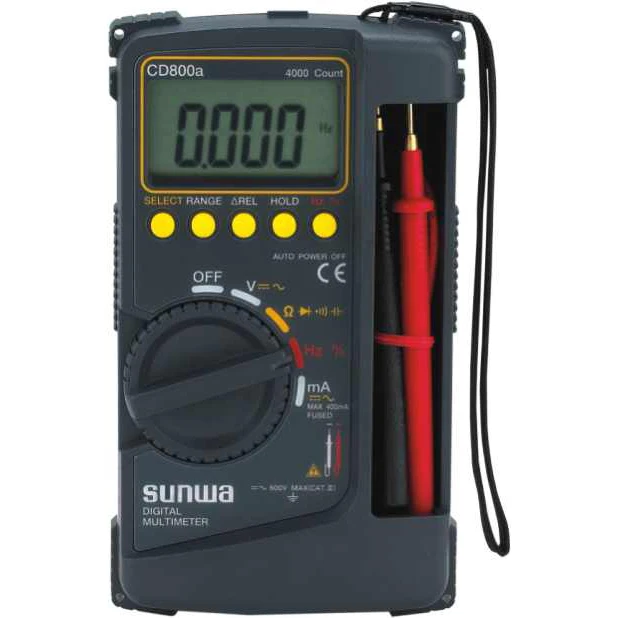

SUNWA 4000 Count Auto Range Digital Multimeter CD-800A
Product Description
General Information of CD800a
3-3/4 digits 4000 count
Auto power off (Enable or Disable)
Relative Function
Body cover can also be used as a stand
Specification of CD800a
Function | Measuring Range | Accuracy | Resolution | Input Impedance |
DCV | 400m/4/40/400/600V | ±(0.7%+3) | 0.1mv | DC:10M-100MΩ AC:10M-11MΩ |
ACV
| 4/40/400/600V | ±(1.6%+9) | 0.001v | |
DCA | 40m/400mA | ±(2.2%+5) | 0.01mA | |
ACA | 40m/400mA | ±(2.8%+5) | 0.01mA | |
Resistance | 400/4K/40K/400K/4M/40MΩ | ±(1.5%+5) | 0.1Ω | |
Capacitance | 50n/500n/5μ/50μ/100μF | ±(5%+10) | 0.01nF | |
Frequency | 5HZ-100KHZ | ±(0.5%+3) |
| |
Duty Cycle | 20%-80% | ±(0.5%+5) |
| |
Continuity | Buzzer sounds at between 10Ω and120Ω.Open Voltage:Approx.0.4V | |||
Diode Test | Open voltage:Approx.1.5V | |||
Bandwidth | 40-400HZ (sine) | |||
Fuse/ Battery | 0.5A/250V ø5.2*20mm ceramic | R6P*2 | ||
Size/Weight | H176*W104*D46mm/340g | |||
