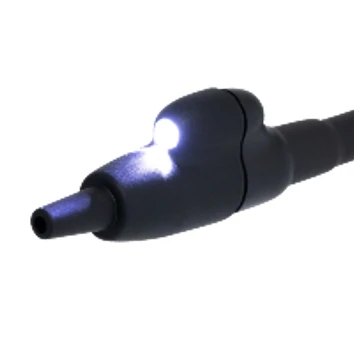

Air conditioner refrigerant Gas Leak detector
Air conditioner refrigerant Gas Leak detector
Air conditioner refrigerant Gas Leak detector

Air conditioner refrigerant Gas Leak detector

Share on (10000008919339):


Price:

Quantity:


Product Overview

Description



Product Description











 Air conditioner refrigerant Gas Leak detector



































































































ModelST312
SensorSemiconductor
RefrigerantsR-22, R-134a, R-404a, R-410a and all CFCs, HCFCs, HFCs
Sensitivity LevelsHigh 0.15 oz. / year (4 g/ year)
Medium 0.25oz. / year (7 g/ year)
Low 0.50oz. / year (14 g/ year)(Compatible with SAE J2791 )
ResetAutomatically reset to background level
Selectable Refrigerants-
DisplayLED
Response TimeLess than 0.5 second
Warm Up TimeApprox. 45 seconds
Battery TypeDC 3.7 V, 800 mAh rechargeable lithium battery
Battery LifeApprox. 2.5 hours continuous use when fully charged
Charging Time3 hours in all @ 400 mA, 0~45°C(32~113°F)
Audio AlarmYes (Buzzer)
Pump SystemYes
Auto Power Off10 minutes of idle
Low Battery IndicatorYes
LED Tip LightYes
Flexible Probe Length450 mm (17.22")
Operating Temperature and %RH0~50°C (32~122°F), < 80% RH
Storage Temperature and %RH-10~60°C (14~140°F), < 70% RH
Dimensions184x70x40 mm(7.24"x2.76"x1.57")
Weight300 g(10.7 oz.)
AccessoriesInstruction manual, Carring case, AC adapter, Leak test bottle, Holster




















































































































































ModelST318ST310ST316
SensorInfraredSemiconductorInfrared
RefrigerantsR-12, R-22, R32, R-134a, R-1234yf, R-404a, R-407c, R-410a, R-507(AZ-50) and all CFCs, HCFCs, HFCs and HFOsR-22, R-134a, R-404a, R-410a and all CFCs, HCFCs, HFCsR-22, R-134a, R-404a, R-410a, R-507(AZ-50) and all CFCs, HCFCs, HFCs
Sensitivity LevelsCM 0.10 oz. / year (3 g/ year)      High 0.15 oz. / year (4 g/ year)    Medium 0.25 oz. / year (7 g/ year)
Low 0.50oz. / year (14 g/ year)
(Compatible with SAE J2791 / SAE J2913)		High 0.25 oz. / year (7 g/ year)                                  Medium 0.50 oz. / year (14 g/ year)
Low 0.99 oz. / year (28 g/ year) 		High 0.15 oz. / year (4 g/ year) Medium 0.25 oz. / year (7 g/ year)
Low 0.50 oz. / year (14 g/ year)(Compatible with SAE J2791 / SAE J2913)
ResetAutomatically reset to background levelManually reset to background levelAutomatically reset to background level
Selectable RefrigerantsR-22, R32, R-134a, R-1234yf, R-404a, R-407c, R-410a and other-N/A
DisplayColor LCDLEDLED
Response TimeLess than 1 secondN/ALess than 1 second
Warm Up Time30 secondsApprox. 90 seconds30 seconds
Battery TypeDC 3.7 V, 1800 mAh rechargeable lithium battery9V batteryDC 3.7 V, 1960 mAh rechargeable lithium battery
Battery LifeApprox. 5 hours continuous use when fully chargedApprox. 13 hours continuous use when fully chargedApprox. 5 hours continuous use when fully charged
Charging Time6 hours in all @ 400 mA, 0~45°C(32~113°F)N/A6 hours in all @ 400 mA, 0~45°C(32~113°F)
Audio AlarmYes (Buzzer)Yes (Buzzer)Yes (Buzzer)
Pump SystemYesN/AYes
Auto Power Off10 minutes of idle10 minutes of idle10 minutes of idle
Low Battery IndicatorYesYesYes
LED Tip LightYesYesYes
Flexible Probe Length450 mm (17.22")450 mm (17.22")450 mm (17.22")
Operating Temperature and %RH0~50°C (32~122°F), < 80% RH0~50°C (32~122°F), < 80% RH0~50°C (32~122°F), < 80% RH
Storage Temperature and %RH'-10~60°C (14~140°F), < 70% RH'-10~60°C (14~140°F), < 70% RH'-10~60°C (14~140°F), < 70% RH
Dimensions184x70x40 mm(7.24"x2.76"x1.57")184x70x40 mm(7.24"x2.76"x1.57")184x70x40 mm(7.24"x2.76"x1.57")
Weight435 g(15.34 oz.)280 g(10.0 oz.)300 g(10.7 oz.)
AccessoriesInstruction manual, Carring case, AC adapter, Leak test bottle, Holster, Porex Filters(2pcs), Car chargerInstruction manual, Carring case,Leak test bottle, HolsterInstruction manual, Carring case, AC adapter, Leak test bottle, Holster, Porex Filters(2pcs)
