OIML flowmeter certification high reliable electromagnetic flow meter (ISO 17025 / iLAC)

Product Overview

Description

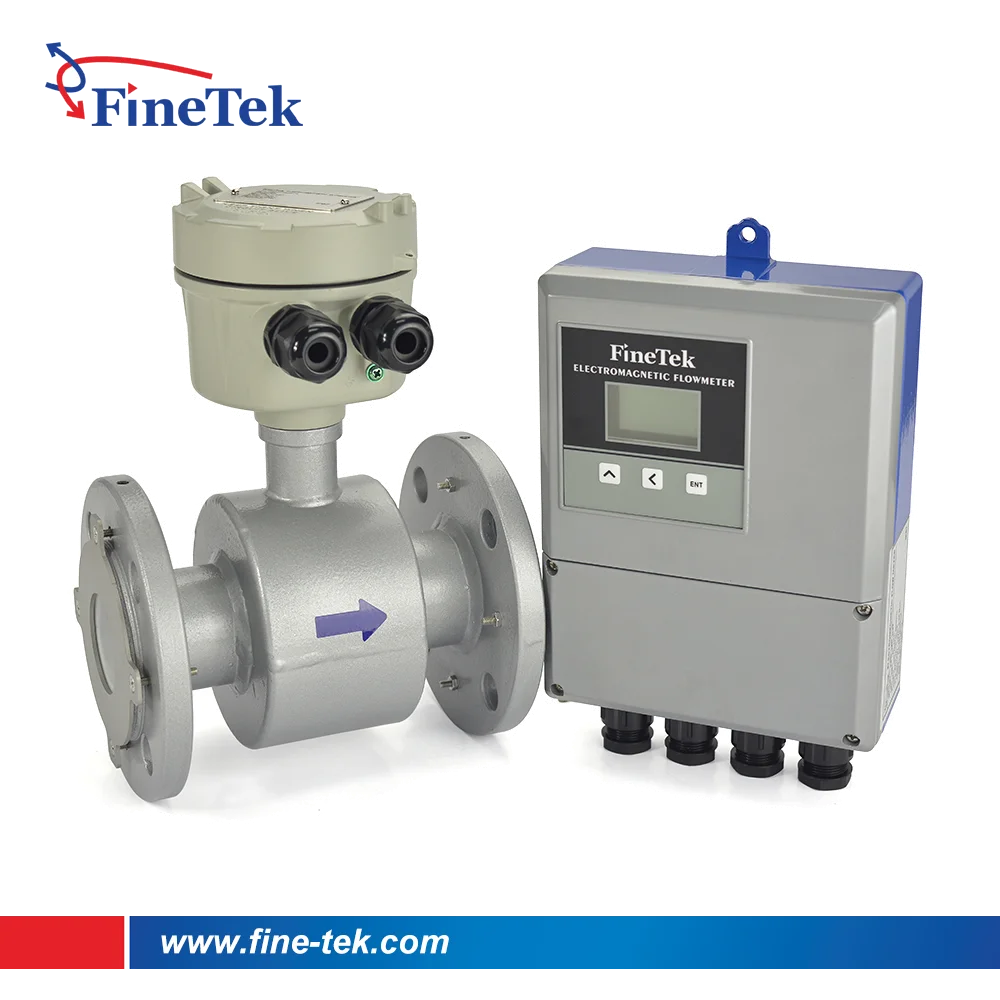

OIML certification High Reliable Electromagnetic water flow meter sensor Magnetic flowmeter



Electromagnetic water Flow meter sensor offers the industry’s widest range of liners, electrodes and sizes to meet the needs of even the most demanding process applications in sectors as diverse as chemical, power, oil & gas and metals & mining. The powerful transmitter is easy to use and provides the output signal that meets your needs. With EPD30 you get a versatile, reasonably priced, most accurate flow meter tailored for your applications. A flowmeter with base functionality, short delivery and a simple and clearly understandable documentation.



• Measurement is virtually independent of density, viscosity, temperature, pressure and conductivity.


• Two measuring points inside tube and no moving parts to prevent pressure losses and pipe blockage.


• Electric conductive liquid and fluids with low solid contents can also be measured.


• Simple piping design: straight zone of the pipe for installation requests upstream 5D and downstream 2D.


• With self diagnosis function to check magnetizing signal, empty pipe and contaminated electrode.

• Accuracy: 0.3%,0.5%,1.0%


• Flow range: 0.1~10 m/s


• Current output: 4-20mA/700Ω


• Pulse output: NPN / 200mA/32Vdc maximum


• Alarm output: NPN / 50mA/32Vdc maximum


• Communication Interface: RS-485 Modbus


• Measurable flow range

• Waste water treatment


• Tapped water purification


• Sewerage


• Sea water desalination module


• Dyeing machines


• Solar energy and PCB wet processing


• Food manufacturing


• Pharmaceutical machines
