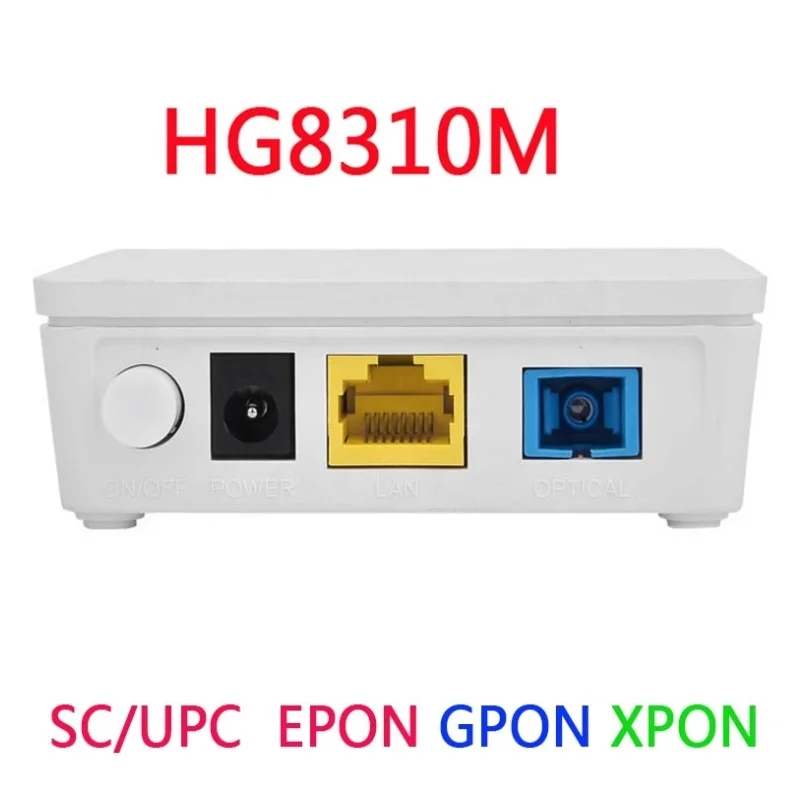

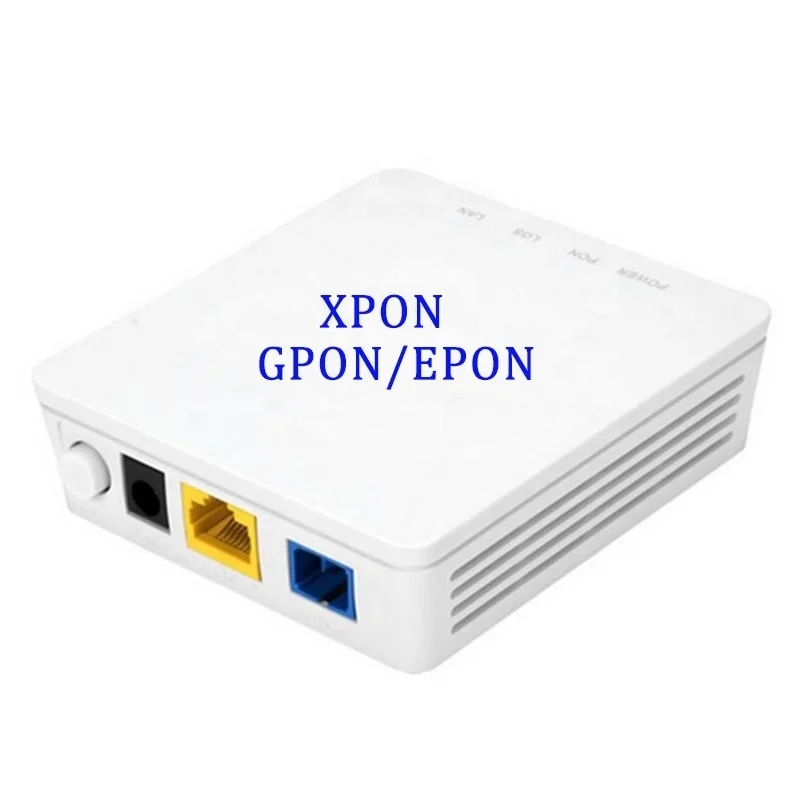

100% Original New Gpon ONU HG8310M ftth Fiber Optic HG8010H epon ont Router HG8310 Xpon Onu
Products in stock and adequate! best price and fast shipping!
The Echo Life HG8310 is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8310 provides one GE Ethernet port. The HG8310 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
Quality assurance:
1.Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
2.Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
Item | Parameter | |
Interface | PON Interface | 1 EPON optical interface Meet Class B+ standard Upstream 1.244Gbps; downstream its 1.244Gbps split ratio:1:64 Transmission distance 20KM |
| User Ethernet | 1*10/100/1000Mauto-negotiation |
| Power Interface | 12V DC Power supply |
Performance Parameters | PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power:0.5~+5dBm Rx Sensitivity: -27dBm Saturation Optical Power: -8dBm Connector Type: SC Optical Fiber: 9/125um single-mode fiber |
| Data Transmission | PON Throughput: Downstream 2300Mbps; Upstream 1110Mbps, Packet Loss Ratio:<1*10E-12 |
| Business | Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast |
Network Management | Management Mode | Support ITU-T G.984 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
| Management | Status monitor, Configuration management, Alarm management, |
Indicator | LED Indicator | PWR: Power up or down SYS: System instructions LOS: Optical Link Status PON:ONU Registered LINK/ACT: Link Status of Ethernet Interface |
Physical Features | Shell | Plastic casing |
| Power | External 12V 0.5A AC/DC power supply adapter Power consumption: <2W(FD101HC),<2.3W(FD111HC) |
| Physical | Item Dimension:120mm(L) x 80mm(W) x 26mm (H) Item weight:0.1kg |
| Environmental | Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) |
Payment
Certifications
Customer Evaluation
FAQ
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.
4.Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.
5.Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
If you have any interested in fiber optical products, please feel free to contact me!
