Epon Olt 4 port Gigabit Uplink Port Mini 4Pon Ftth Olt Supply any brand epon onu without pon sfp MODUELS (1600196074635)

Share on (1600196074635):


Price:$99.00 - $215.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

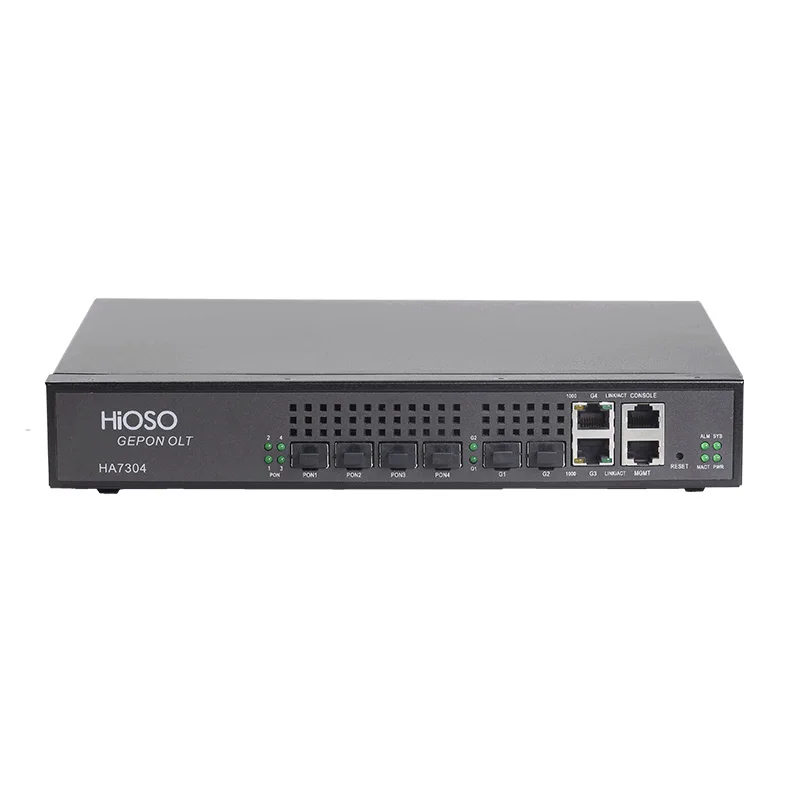

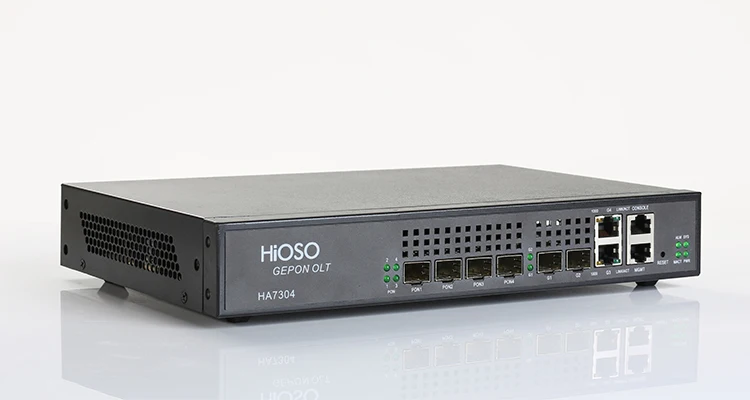

HA7304 4pon epon olt

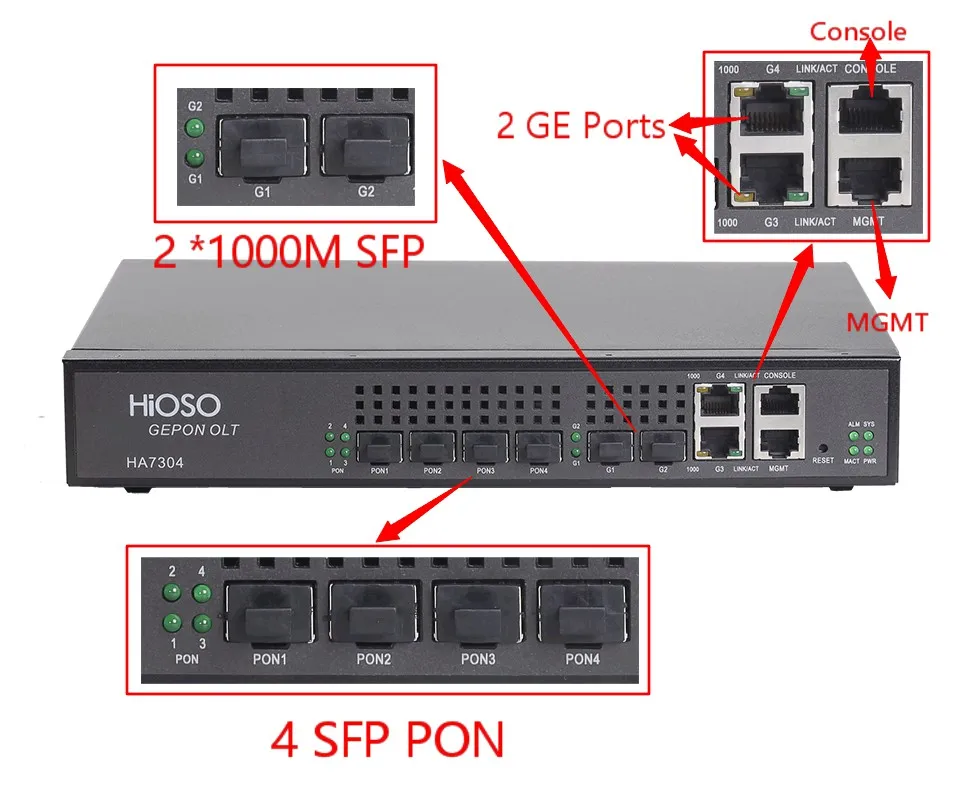

Supply 4 SFP PON ports, 2 1000M SFP ports, 2 1000M RJ45 uplink ports
Each PON port support 1:64 split ratio, total 256 ONUs access
Distance can reach 20km under 1:32 split ratio
Support to work with HA400/HA7200 series ONUs to establish passive network
Support other brands EPON XPON ONUs, such as HUAWEI, ZTE, FIBER HOME etc
Support WEB CLI SNMP management
With Wall mount to hang on 1u rack, inside fan, better for heat dissipating and reliability operating
Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,
IPTV and other IP services access


Parameter
Specification
Operating wavelength
1310(RX) /1490(TX)
Optical power
+2.5 ~ +7dBm
Receiving sensitivity
-30dBm
Max distance
20km
Max splitter ratio
1:64
Capacity
4 PON, maximum 256pcs ONU
MAC
8k
Uplink port
2 SFP ports + 2 TP ports
PON port
4 SFP PON ports


Control port
1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device
1 USB port
MTBF
100,000 hours


EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)


Protocols supported
Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree
Support IEEE 802.1P QoS、IEEE802.3X Flow Control
Support IEEE802.3ad Trunk、IEEE802.1W RSTP

Network management
Support GUI management based on SNMP
Support WEB and Telnet GUI management based on CLI


Other functions
Support 1GMPv1/v2 protocol report, query and leave message mouse
Support ONU remote configure and upgrade
Support real-time alarm detection, accurate fault location
Support the alarm information sent to the mailbox, support SMS alarm
