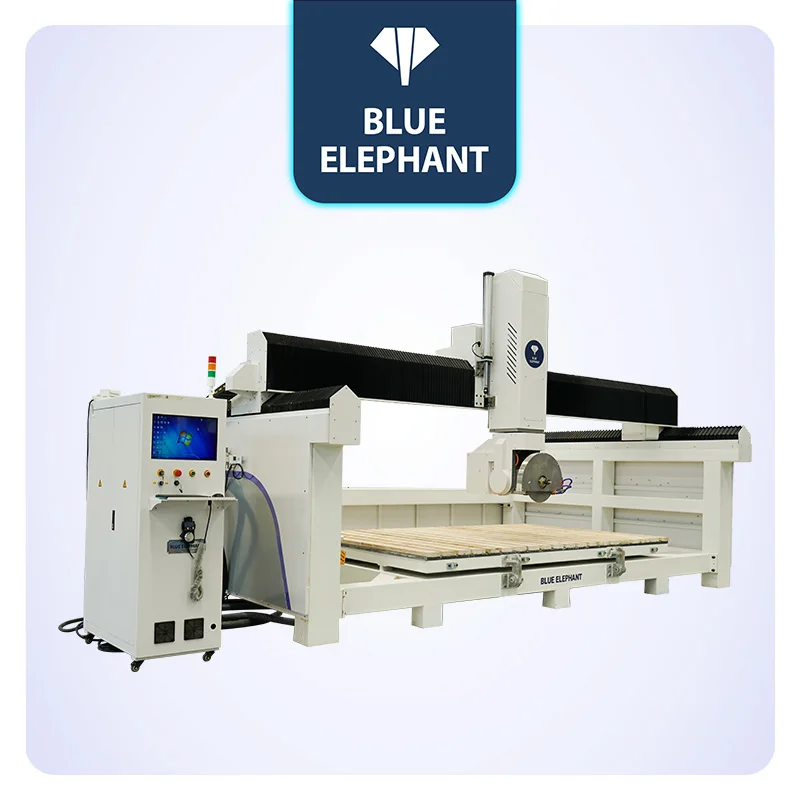

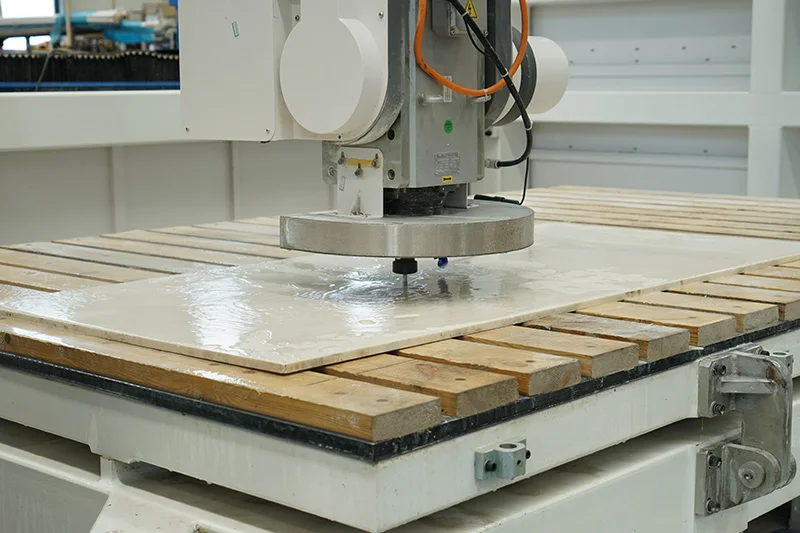

5 Axis Cnc Stone Bridge Saw Cnc Stone Cutting Machine For 3D Carving And Cutting Quartz, Granite And Marble
- Category: >>>
- Supplier: Jinan Blue Elephant Cnc Machinery Co. Ltd.
Share on (10000009750227):
Product Overview
Description
Product Description
5 Axis Cnc Stone Bridge Saw Cnc Stone Cutting Machine For 3D Carving And Cutting Quartz,
Granite And Marble

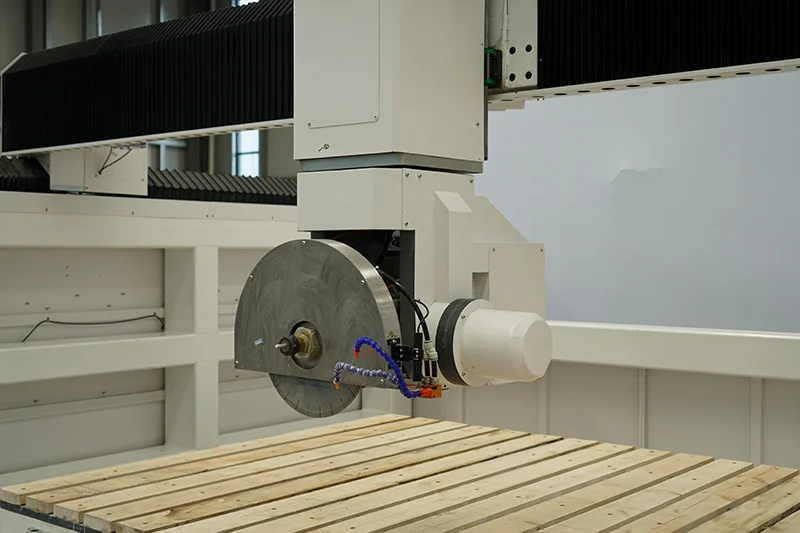

1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation. 2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.
3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.
4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.

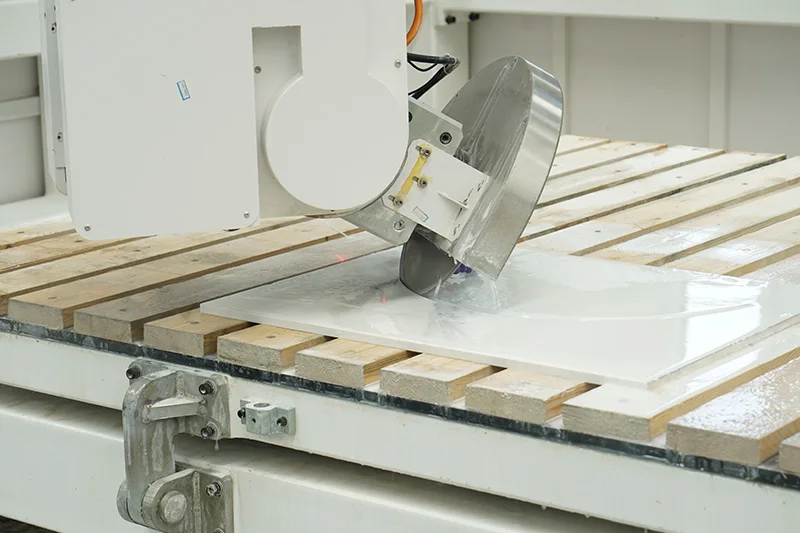

5. This bridge saw is ideal for cutting slabs of quartz, marble, granite and stone.
Technical Parameters
Maximum working size | X Axis: 3200mm Y Axis: 2000mm Z Axis: 400mm |
Maximum working size | C Axis: ±360 degree |
Maximum working size | A axis: 0-90 degree |
X,Y, Z Structure | Taiwan φ30mm linear guide and rails; Z axis Taiwan TBI ball screw (Model 3210 ), Screw lead 10mm, more precision and stable |
Control system | Blue Elephant customized system (built-in CAM software) |
Saw | Dimension 450mm Max. cutting thickness 100mm 11KW motor, Rated: 3000r/min |
Reducer | Japan Shimpo reducer |
Motor and driver | X Y and Z axis 1300W absolute servo motor, Z axis with brake A and C axis 1000W absolute servo motor |
Working Voltage | AC380V, 3phase, 50HZ |
Turning angle | 0-80° |
Maximum Turning Weight | 800KGS |
Command | G code |
Lubrication system | Automatic oil lubrication system |
Overall Dimension | 5.85x4.5x3.3m |
Gross weight | 5500kgs |
Product Details
Water cooling spindle
Water cooling spindle from Italy, with strong cutting ability, low noise, it can ensure the machine working for long time.
T-slot table and aluminum table
Adopting the T-slot working table, it can use the clips to fix the small-scale materials, which can save the vacuum pump electricity.
Carousel automatic tool changer
Equipped with linear tool changer, it can greatly improve the production efficiency.
Control system
This machine adopts Taiwan SYNTEC control system With an open PLC program , customers can plan according to processing needs.
Servo motor
Japan YASKAWA Servo motors & drivers from Japan, which ensures the machine’s stronger strength and high accuracy.
Frame and gantry
Heavy duty welded steel frame and gantry can be for maximum straightness and rigidity.
Related Product
Customer video feedback
Customer Feedback
Sample & Application
Company Information
Exhibition
Packaging & Delivery
FAQ
1. I need a CNC router, can you give me some suggestions?
4. How should I pay for my order?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2.Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
