5 Axis stone CNC bridge saw cutter machine for marble granite
- Category: Stone Machinery >>>
- Supplier: Jinan,Ludiao,Cnc,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

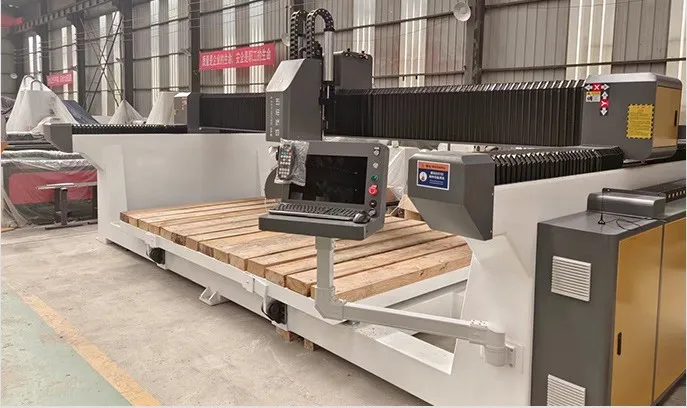

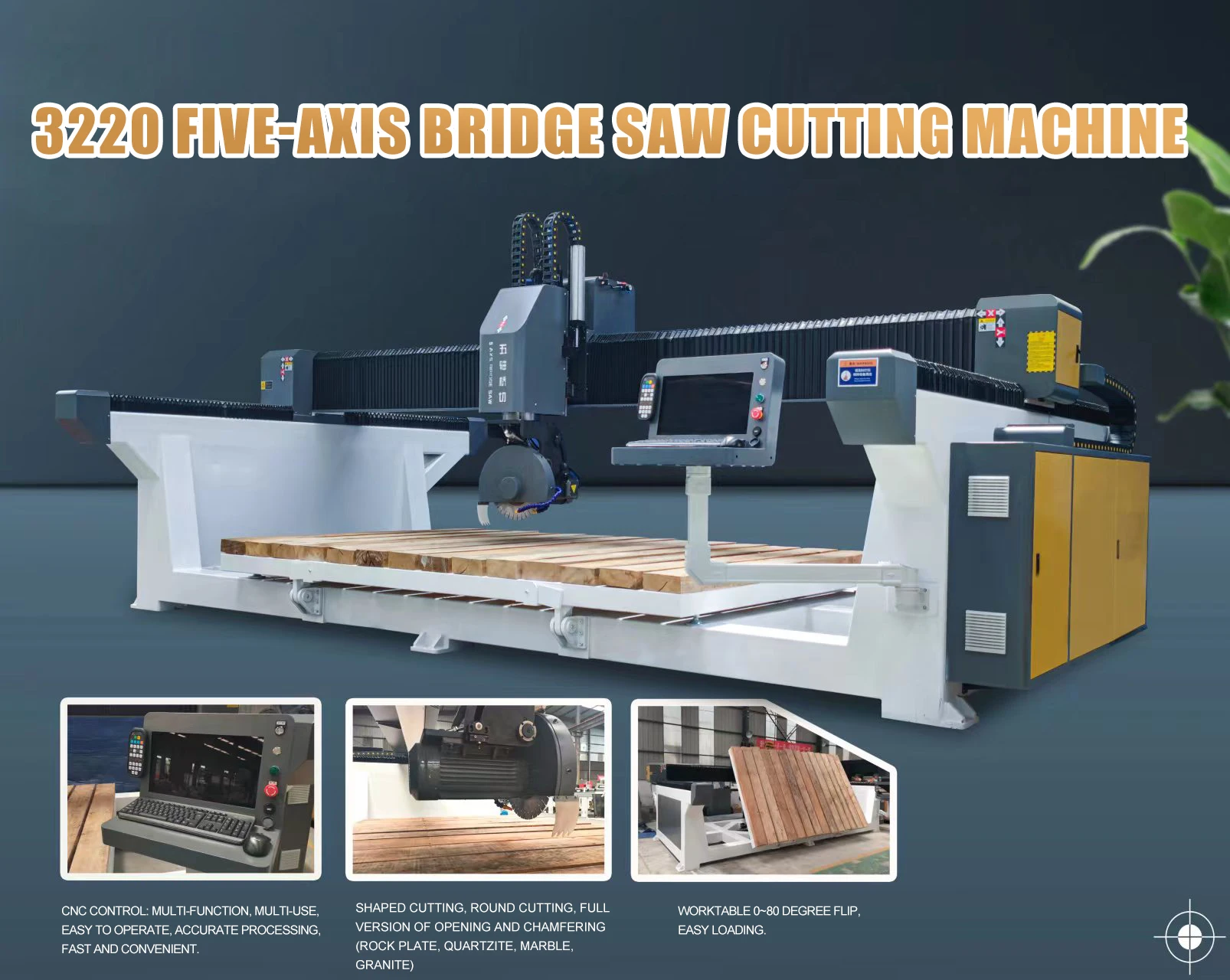

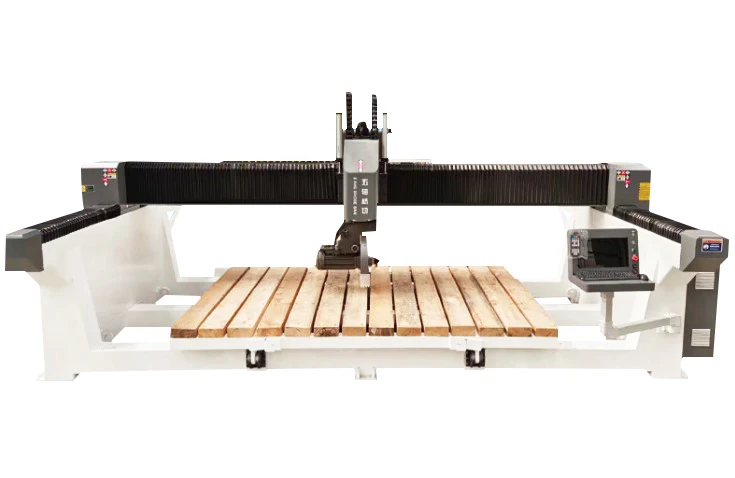

3220 Five Axis Bridge Saw Cutting Machine
CNC five axis bridge cutting machine is a cost-effective tool tailored for the majority of
stone enterprises to meet the diversified processing needs of the market.
stone enterprises to meet the diversified processing needs of the market.
Technical Parameters
Model | 3220 |
Working Area | 3200*2000mm |
Spindle Motor | 11KW, |
Blade Diameter | 350mm-450mm |
Control System | Bridge saw Cutter Machine used, |
driving motor | 1.5kw servo motor |
Transmission | High precision guide rack 30 Heavy linear bearing 30 |
Reducer | Japan Shimpo reducer |
Gear | Taiwan YYC |
Infrared Ray | Equipped with laser infrared probe to show cutting route |
Overall Dimension | 3450*5820*2300mm |
Working Voltage | 380V/50HZ |
Max cutting thickness | 80mm |

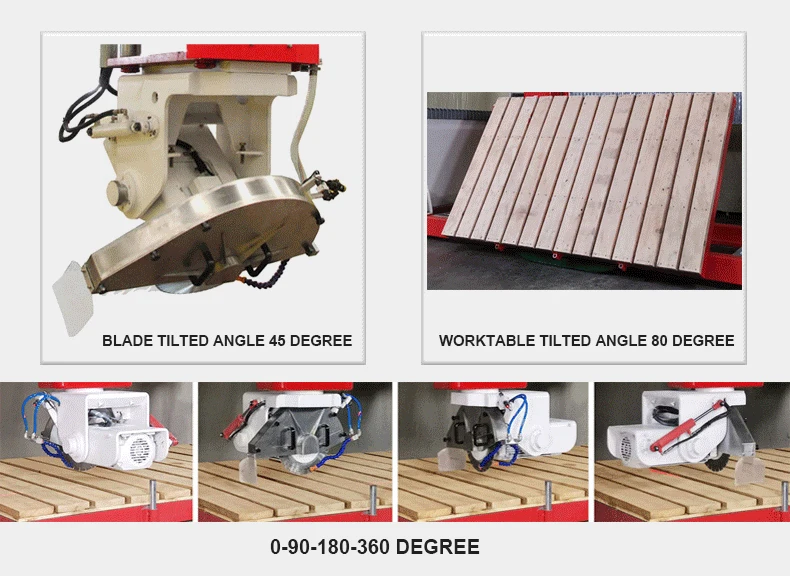

worktable tilted angle | 0-80 degree |
Blade rotated angle | 90/180/270/360 degree |
Blade tilted angle | 0-45 degree |
Product Details
Applicable material:
Quartz stone, Granite, Marble,. Ceramic plate, Artificial stone, Dekton, sinter stone, and all stone products.
Feature:
Multi-functions, small area, simple operation, accurate processing, fast conversion of different functions,
CNC control, special-shaped cutting, circular cutting, whole plate cutting, chamfering (rock plate, quartz stone, marble and granite)
Company Profile
Exhibition

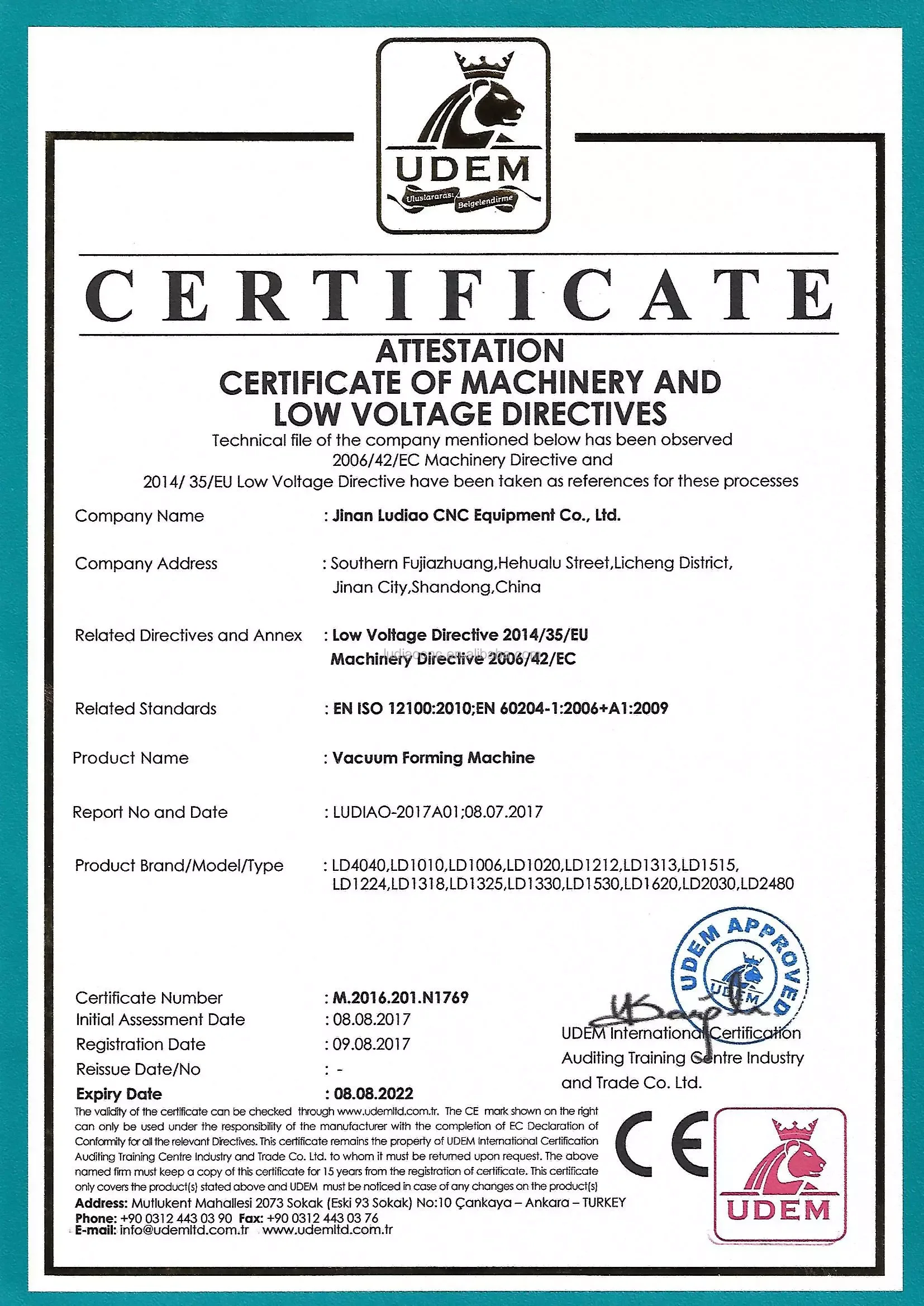

Certifications
