QihangRAS Hot 2021 New rotary drum filter ras fish farming equipment koi pond filter system
- Category: Aquaculture Equipment >>>
- Supplier: Guangzhou Qihang Imp&exp Co. Ltd.
Share on (10000009877213):
Product Overview
Description
Product Description
New upgrade version
Model: | Water flow: | Working Power: | Media Capacity | Screen: | Size: | Inlet /Outlet |
YCM-01 | 15m3/h = 3962 gallon/h | 175W | K5 media 105.33 L | Materials: SS 316 Mesh Size: 70μm | 1200*600*750 (mm) | 4.33 inch = 110mm |
YCM-02 | 18m3/h = 4755 gallon/h | 175W | K5 media 119.67 L | 1300*620*770(mm) | 4.33 inch = 110mm | |
YCM-03 | 23m3/h = 6075 gallon/h | 215W | K5 media 135.11L | 1400*640*790 (mm) | 4.33 inch = 110mm | |
YCM-04 | 27m3/h = 7132 gallon/h | 215W | K5 media 151.70L | 1500*660*810 (mm) | 4.33 inch = 110mm | |
YCM-05 | 32m3/h = 8453 gallon/h | 275W | K5 media 169.46L | 1600*680*830 (mm) | 4.33 inch = 110mm | |
YCM-06 | 37m3/h = 9774 gallon/h | 275W | K5 media 213.56 L | 1600*680*830 (mm) | 4.33 inch = 110mm |
* If you need to customize or more details, please send an inquiry to us

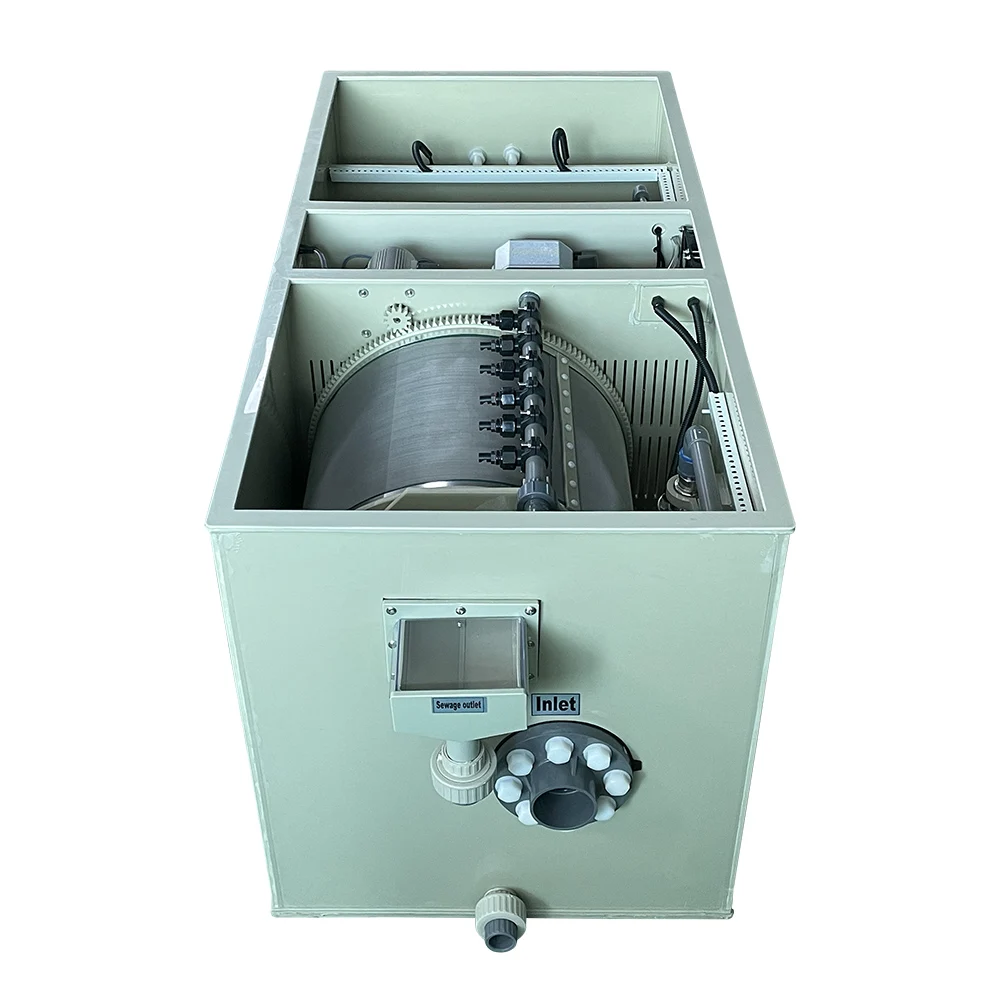

Swage outlet
Our design allows particulate matter to be removed more smoothly.

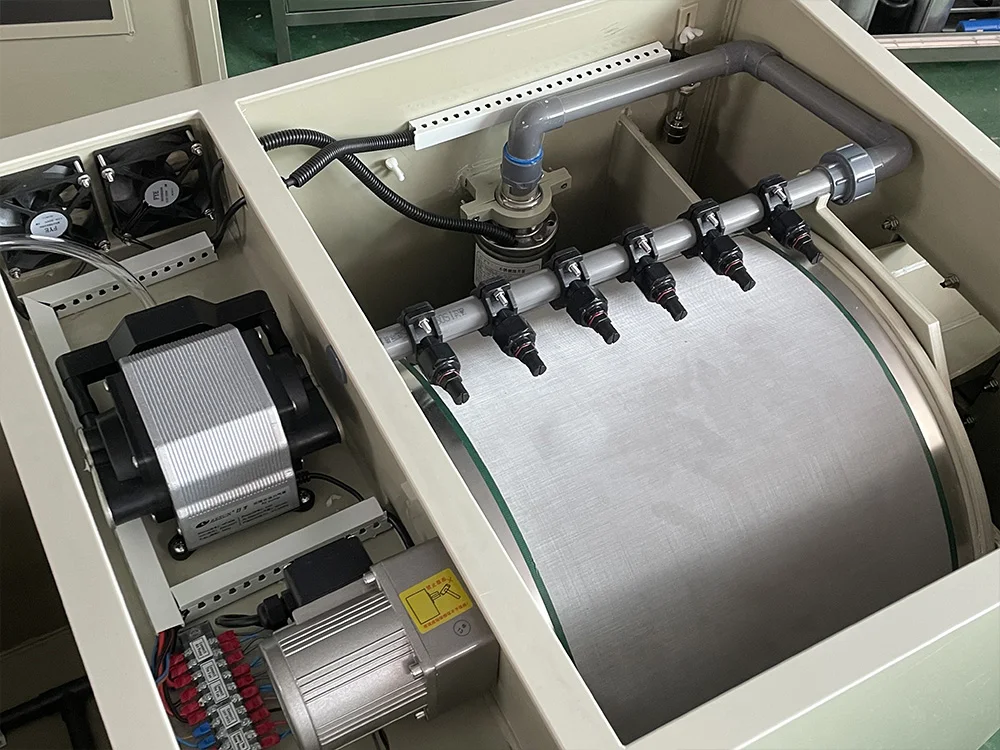

SS 316 Rotary Drum Filter
SS 316 material Screen and roller are more durable
UV Lamp
15 W UV Lamp removes some harmful algae
Bio Tank with K5 Media.
We fill each one with enough K5 media in the bio-filter section
Motor
We use a good quality motor, the normal working condition of the service life can reach 3 years
Control Box with Aviatioin Plug
In order for you to install it, we also provide you with an electric control box with aviation plug.
Customer Photos
One Month Change：
Installation Instructions
How to install?
Gravity system:
We always recommend setting up the filter in gravity. The filter is placed at water level and will then protrude approximately
11-14 cm above the water level. Due to the effect of gravity, your filter fills up with water. A pond pump moves the water from
your filter back to the pond.
Feding-Pump system:
If you choose feeding-pump system, you need to consider these things. First, feeding-pump system will reduce the capacity of Combi Drum Filter. Take a loss of 30% into account.For example,a YCM-03 can handle a maximum of 16.1m3 per hour in gravity setup, and a feeding-pump system a maximum of 16.1m3.There is also a reduction in the capacity of the biological filter section, for example, the YCM-03 will be reduced to 95.5L from 135.11 L of K5 media biological material.
Recommend Products
Packing&Shipping
Company Introduction
Packing&Shipping
FAQ
Q: Are you manufacturer or trader?
Q: What’s the warranty?
A: Warranty is 12 months, life time technical support. If any quality problem occur during this period,which due to our
responsibility, we’ll take care of it, or send more new spare parts to replace.
Q: What’ the MOQ?
A: One piece each model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Can we print our logo and have our own package
A: Yes, you can, OEM&ODM orders are acceptable.
Q: Is there any discount?
A: Of course, more quantities, more discount.
Q: Can I get a catalog?
A: Yes, you can download on our website.
Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, finishings are checked carefully by QC. Every machine will
be strictly tested and aged for several days before delivery.
A: We’re professional manufacturer focus on aquaculture equipment, located in Baiyun District,Guangzhou City, China. Welcome to visit us.
Q: What’s the warranty?
A: Warranty is 12 months, life time technical support. If any quality problem occur during this period,which due to our
responsibility, we’ll take care of it, or send more new spare parts to replace.
Q: What’ the MOQ?
A: One piece each model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Can we print our logo and have our own package
A: Yes, you can, OEM&ODM orders are acceptable.
Q: Is there any discount?
A: Of course, more quantities, more discount.
Q: Can I get a catalog?
A: Yes, you can download on our website.
Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, finishings are checked carefully by QC. Every machine will
be strictly tested and aged for several days before delivery.
