Product Overview
Description
Product Description

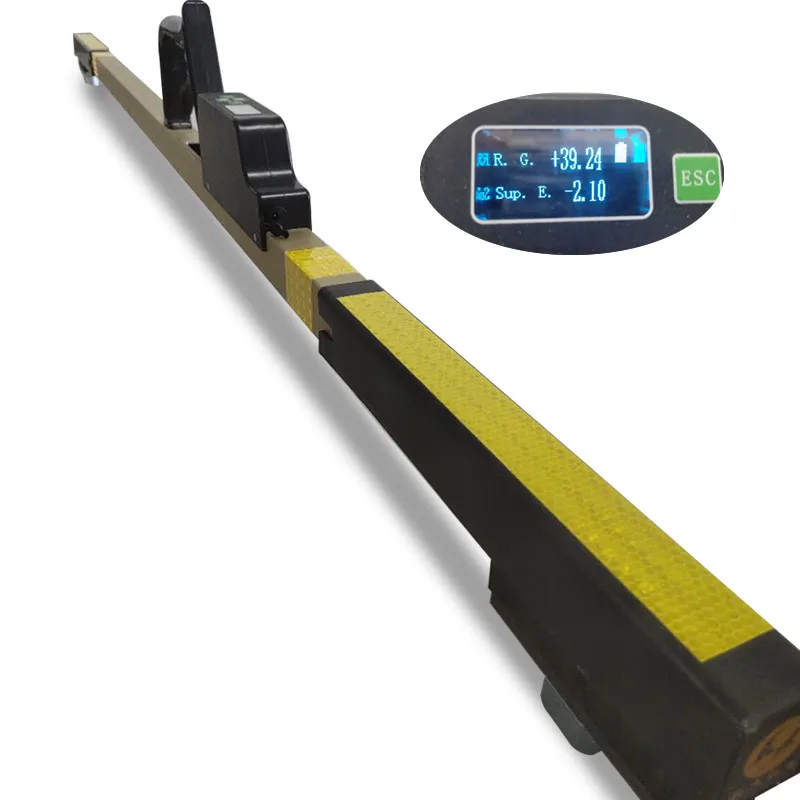

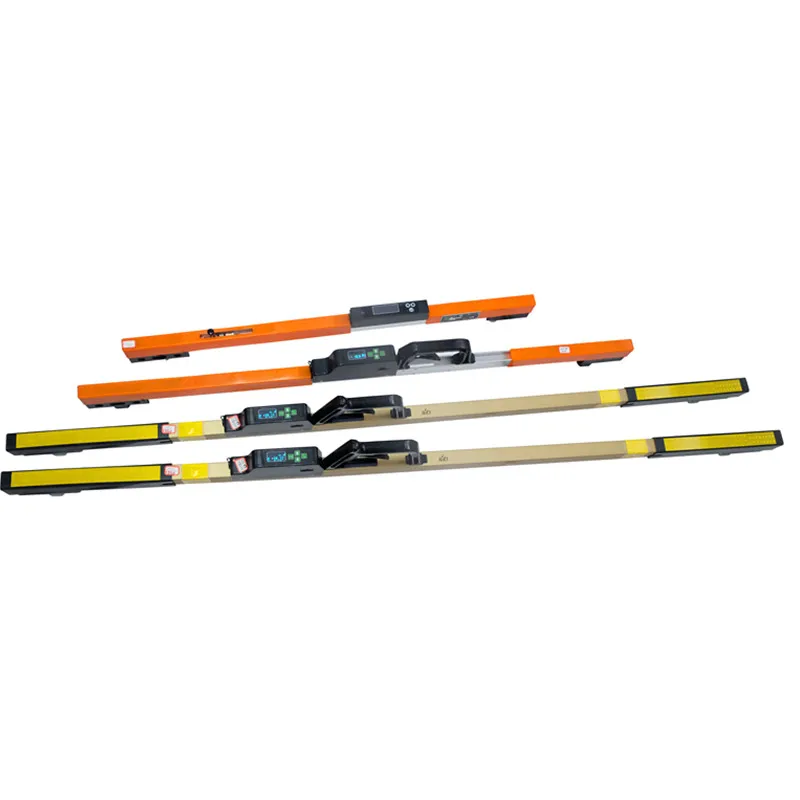

Digital Track Gauge
Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge and back to back distance through microelectronics, embedded and sensor technologies and OLED display screen.
Features
1. Large LED backlit display: especially suitable for day outside and dark night
2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
10. Approval by CRCC , CE certificate.
2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
10. Approval by CRCC , CE certificate.
Specification
Model(1435mm) | GJC-TJG1 |
Track gauge(mm) | 1384-1470 |
Gauge rail check gauge(mm) | 1364-1450 |
Guard rail face gauge(mm) | 1344-1430 |
Superelevation measuring range(mm) | -200~+200 |
Flangeway Clearance(mm) | 20-107 |
Superelevation division value(mm) | 0.10 |
Track gauge division value(mm) | 0.1 |
Track gauge max indication error(mm) | ±0.25 |
Superelevation error(mm) | ±0.45 |
Application rail line | railway speed less than 250km/h |
Details Images

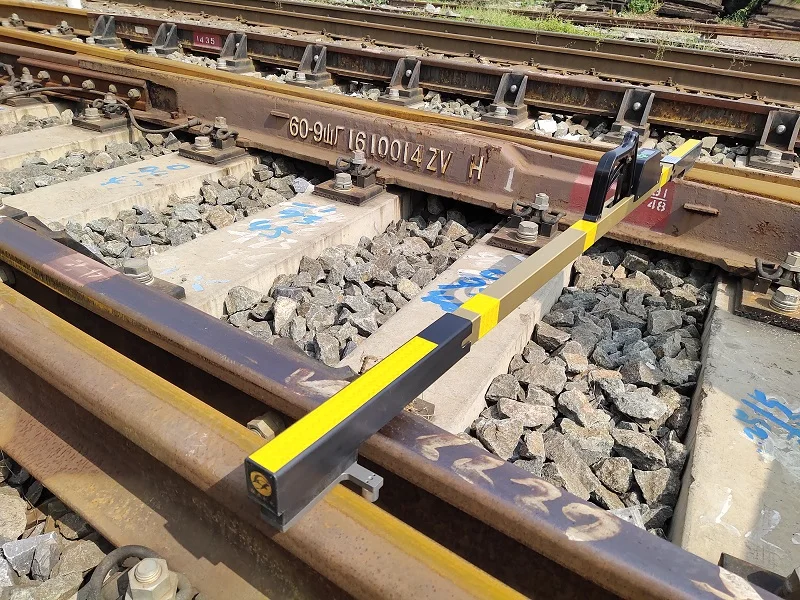

Digital track gauge for maintenance
Digital track gauge for measuring rail turnout ,the railworker still working in the rainy day.Lianjie digital track gauge best
choose for rail maintenance
choose for rail maintenance
Track gauge for railway measurement
Harbin railway maintenance department are using Lianjie digital track gauge for normal rail inspection. Digital type is more
convenient to use in cold weather.
convenient to use in cold weather.
Show digital track gauge for customer
Show our digital track gauge to our customer in Xiangyang railway maintenance department. Compare to analogue track gauge,digital
track gauge with high precious.
track gauge with high precious.

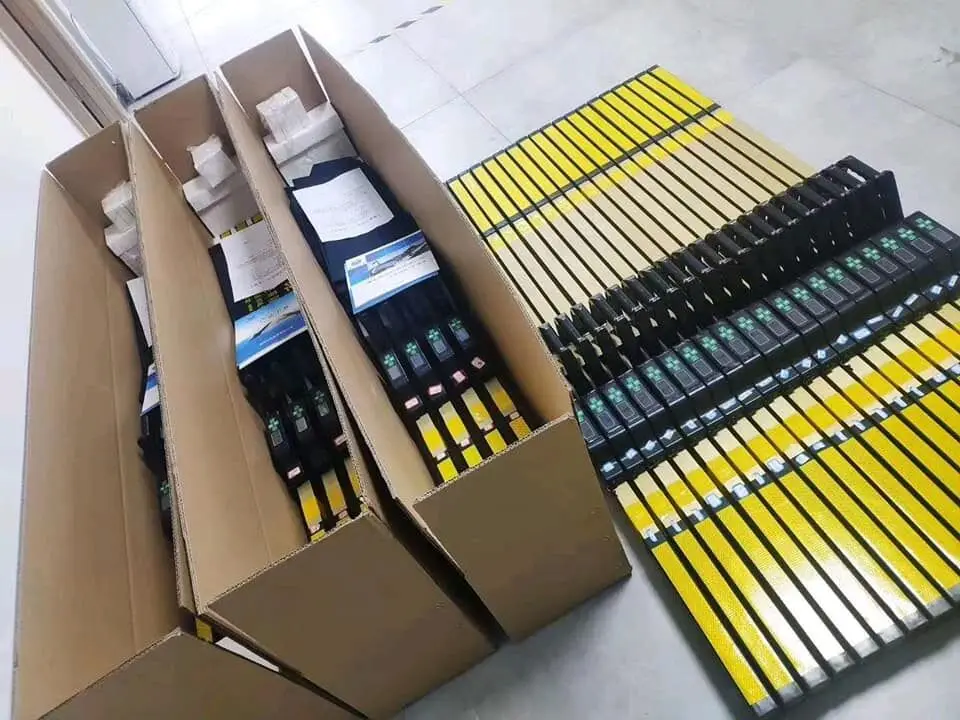

Packing & Delivery
pe bag+pe foam+paper carton, 5units/carton , carton size:168*26*28mm G.W: 18KG
Company Profile
Wuhan Linkage Track Equipment Co.,Ltd Established in 2022,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
