High Precision Track Gauge Rule to Measure the Turnout Switches and Crossings
- Category: Railway Parts & Accessories >>>
- Supplier: Hanzi Industrial Shanghai Co. Ltd
Share on (1600745540319):
Product Overview
Description
Product Description

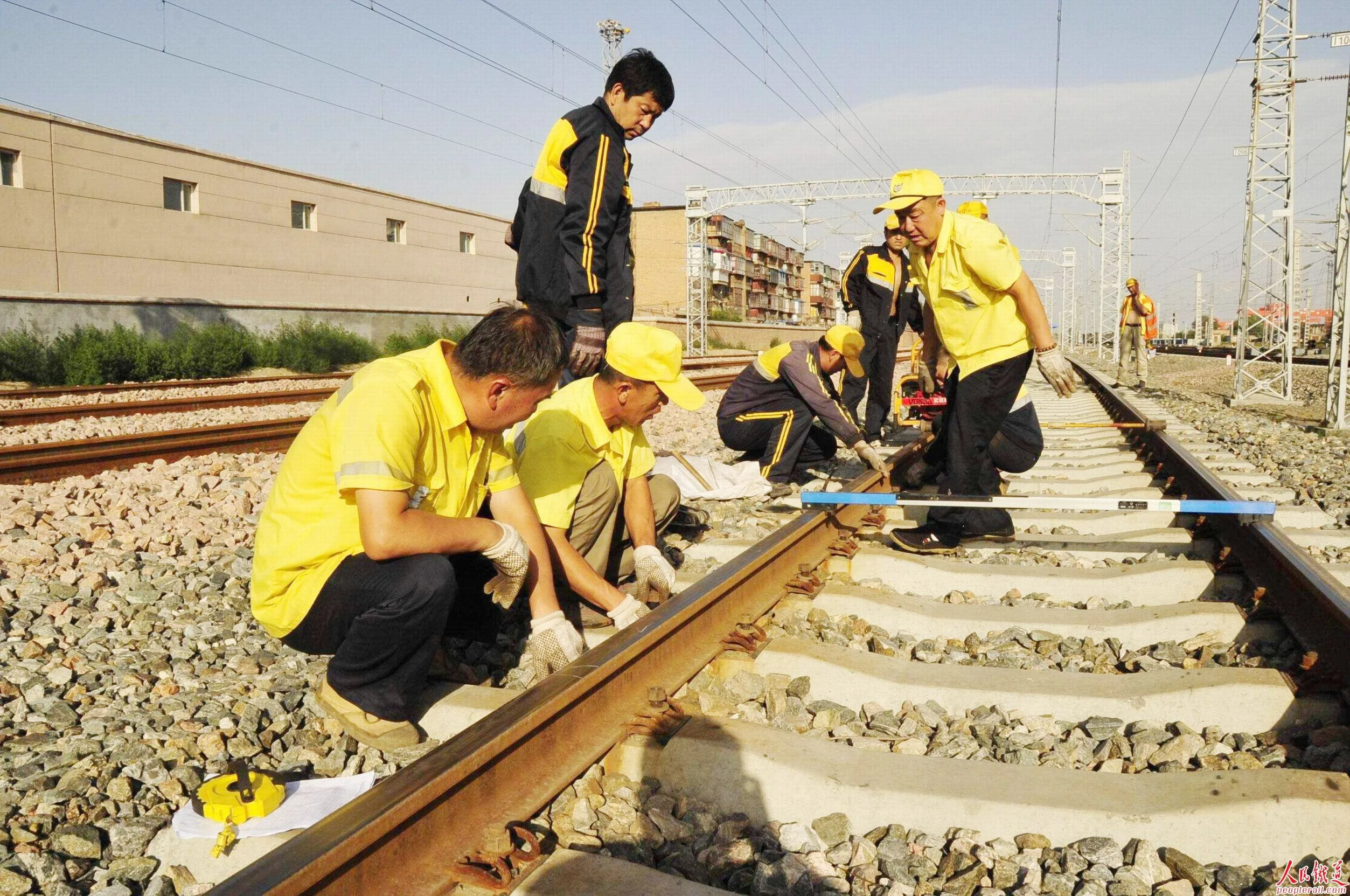

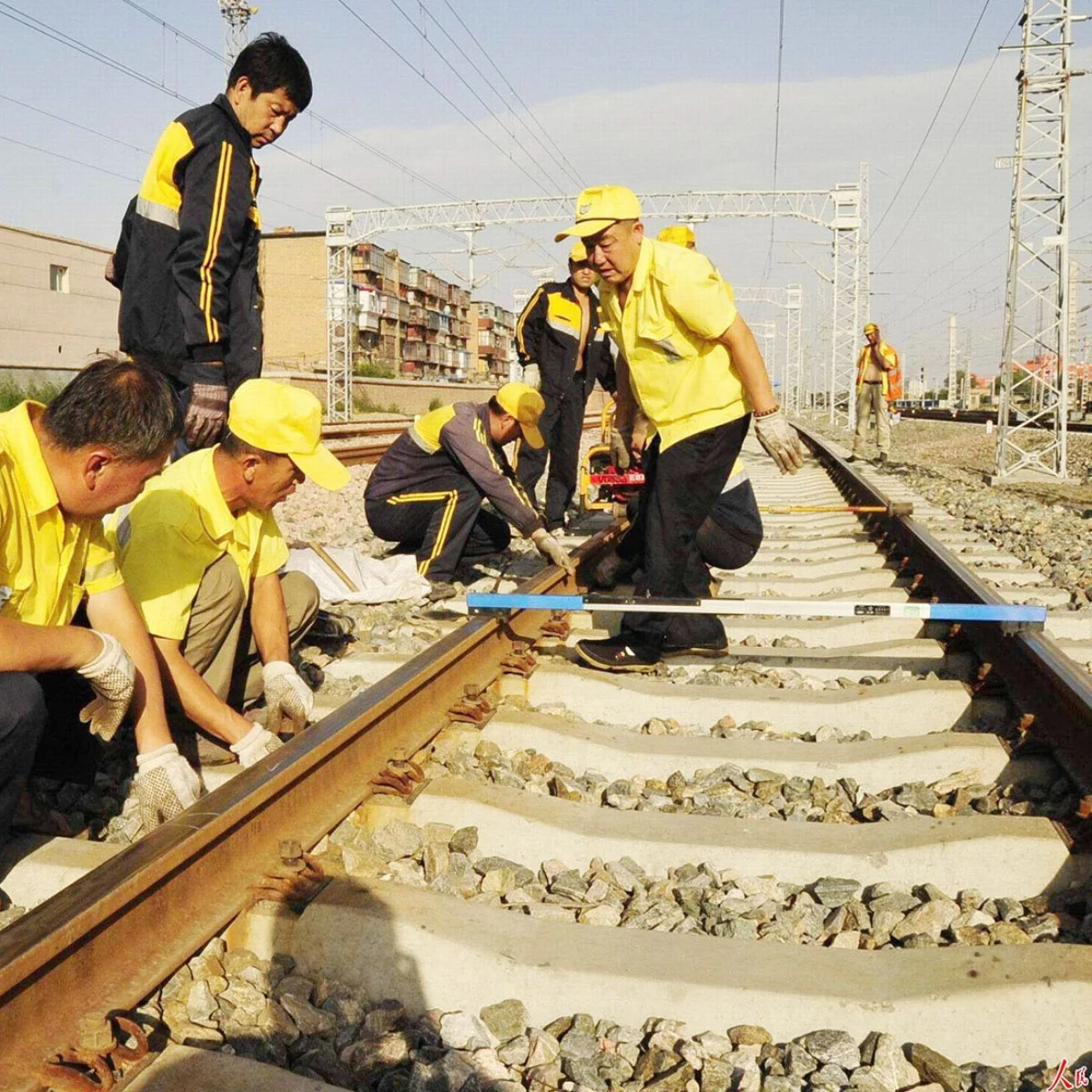

High-precision measure to check the track gauge and superelevation for tracks renewal and maintenance. It is a hand-held measuring device for the determination of level and line faults of the track. Lightweight from Aluminum body – integrated adjustable bubble level. We can supply theses Track Gauges Rules for different rail gauges.

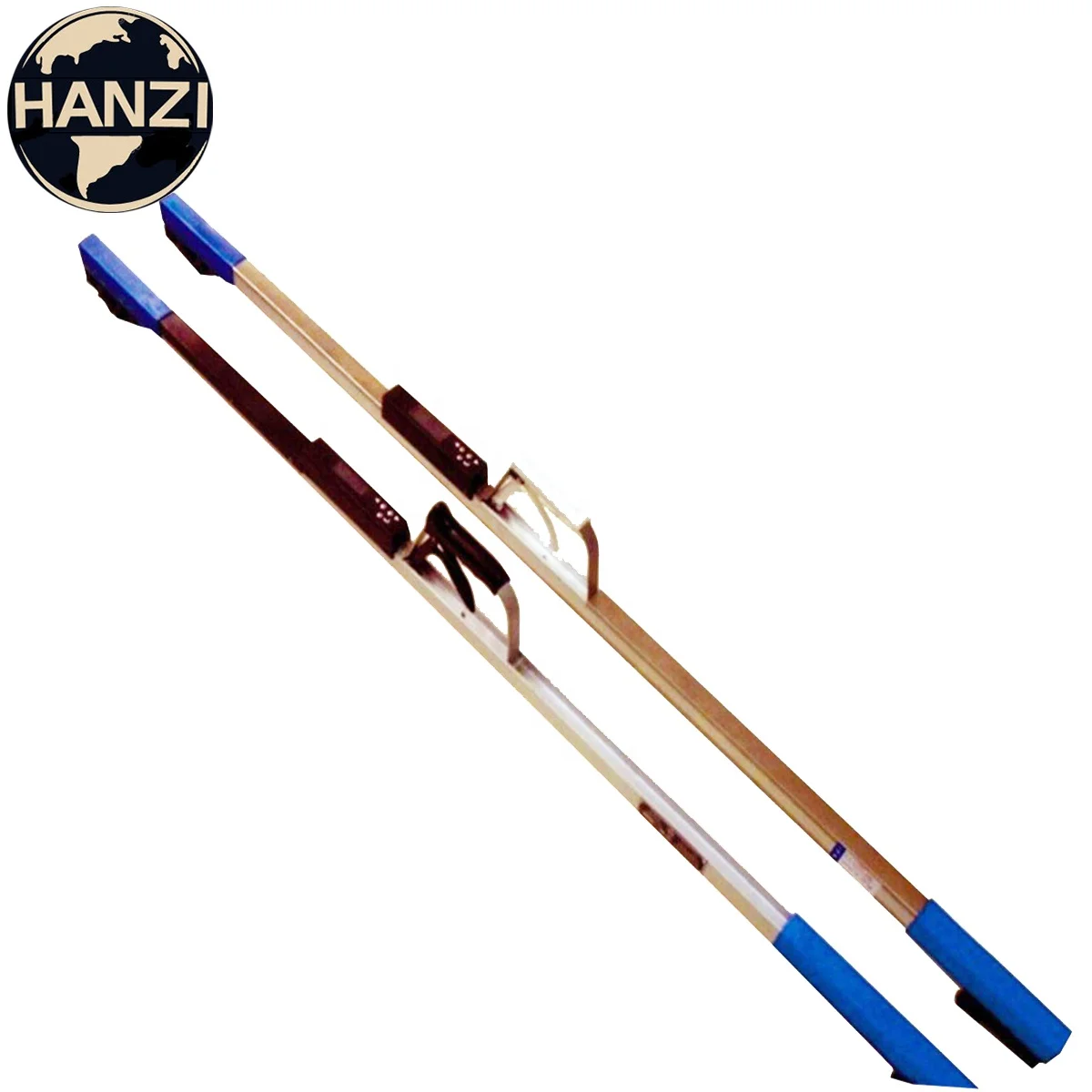

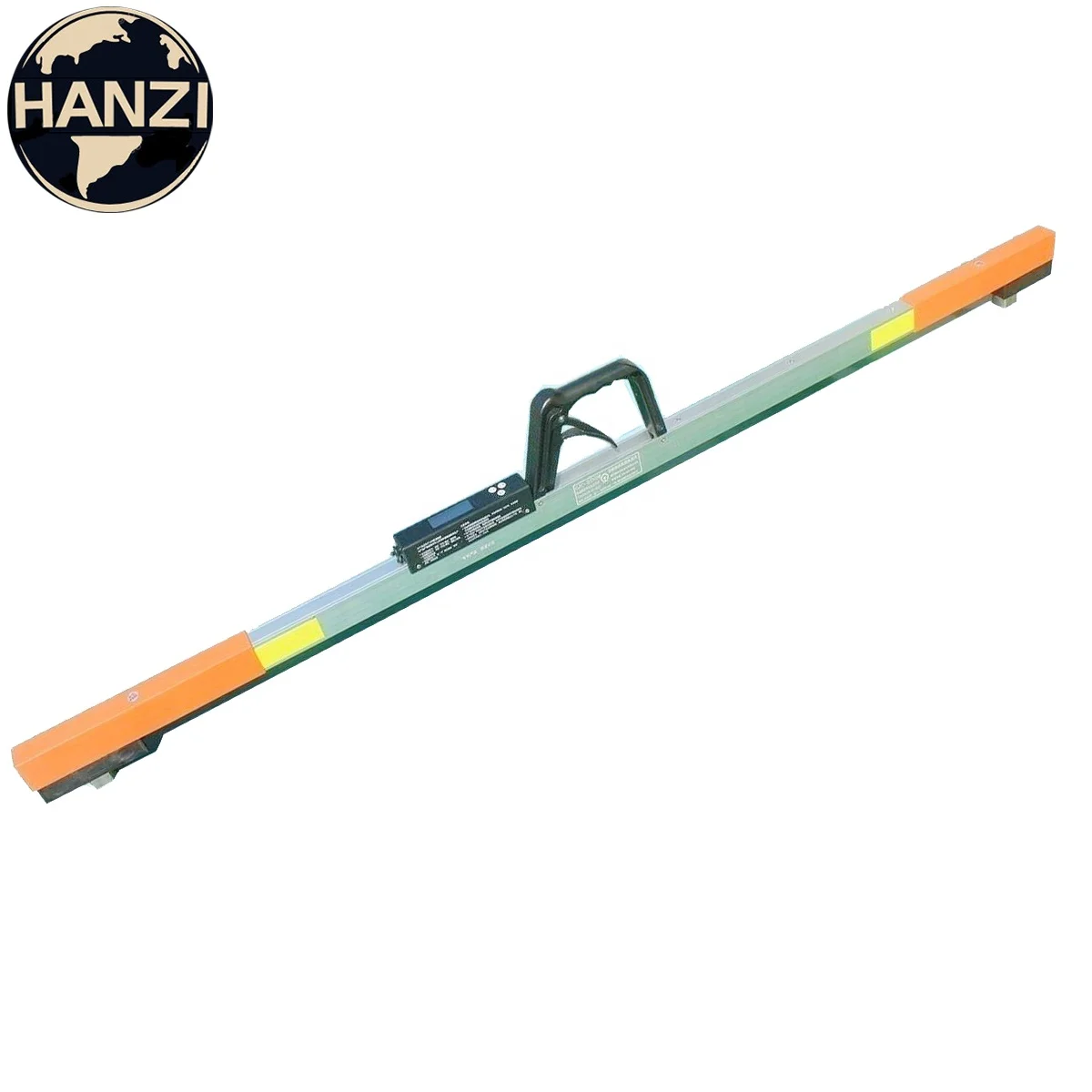

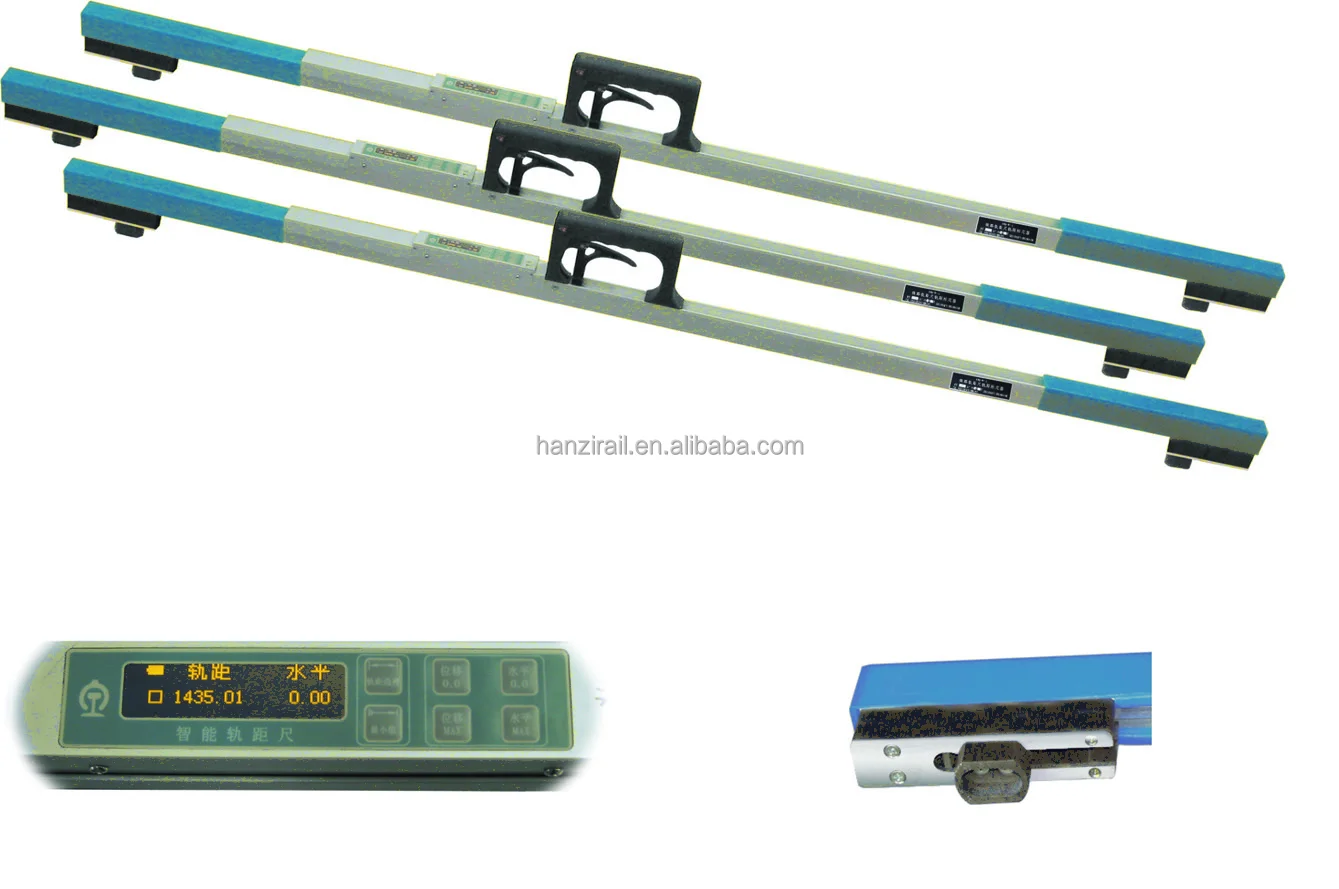

Digital Rai Gauge Ruler
This is an entirely digital hand operated track geometry measuring equipment. Its preparation is light, stabile and insulated. The measuring data can be seen in real time on the display. It can measure the following parameters: gauge, cant, check-rail gauge. The parameter to be measured can be selected easily and the result can be read out on the display together with the result of the cant parameter.
1.Display mode: OLED screen large font display, the data is clear and intuitive;
2.Values can be saved and uploaded to the computer to do fault diagnosis in the form of a curve.
3.With temperature compensation, can automatically correct the impact of environmental temperature, reduce detection error;
4.Humanized design, fewer buttons, quick operation, improve work efficiency;
5.Long Standby: large capacity battery, can work continuously for 7 working days.
6. Applicable working environment: -40° C ~ +60 ° C。
Grade of Accuracy | Suitable Train Speed | ||||||||
Grade 0 | Measurement allowable speed is≤350km/h | ||||||||
Grade 1 | Measurement allowable speed is≤250km/h | ||||||||
Grade 2 | Measurement allowable speed is≤160km/h | ||||||||
Gauge Measurement Range and Tolerance | |||||||||
Items | Measurement Range (mm) | Maximum Tolerance | |||||||
Rail Gauge | 1410~1470 | ±0.25 | |||||||
Super-elevation measurement range | -185~ + 185 | --- | |||||||
Guard Rail Check Gauge | 1381~1401 | ±0.30 | |||||||
Guard Rail Face Gauge | 1338~1358 | ±0.30 | |||||||
Rail Parallelism and Over-height Tolerance | |||||||||
Level of Accuracy | Rail Parallelism | Over-height Maximum Allowable Tolerance at Zero | Over-height Display Number Maximum Allowable Tolerance | Over-height Turn Round Tolerance | Over-height display number Repeatability | ||||
Grade 0 | ≤0.10 | ±0.15 | ±0.30 | ≤0.30 | ≤0.10 | ||||
Grade 1 | ≤0.15 | ±0.20 | ±0.45 | ≤0.40 | ≤0.15 | ||||
Grade 2 | ≤0.20 | ±0.60 | ±1.20 | ≤1.2 | ≤0.40 | ||||

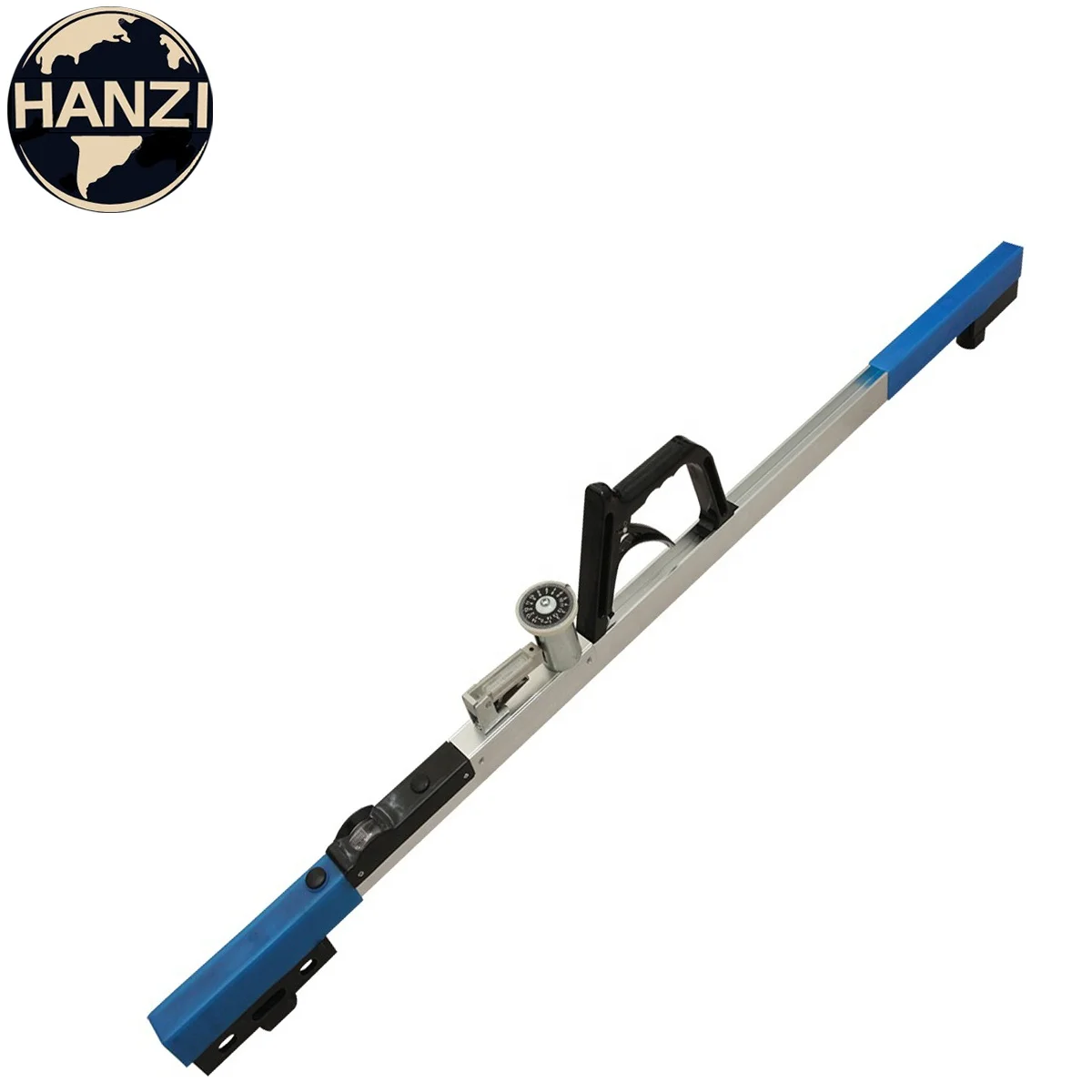

Mechanical Rail Gauge Ruler
The railway gauge ruler is used to measure the gauge, level and super height of straight lines, curves, and turnouts of standard gauge railways. The accuracy of the mechanical gauge gauge currently provided by our company is divided into two grades: Level 1 and Level 2. Level 1 gauge ruler is used to measure railway lines with allowable speed not exceeding 250km/h. Level 2 gauge ruler is used to allow measurement railway lines with a speed not exceeding 160km/h。This manual is suitable for Level 2 railway gauge ruler. Weight of the gauge ruler is about 2.8kg.
TGC-W-I/TGC-W-II/TGC-W-III Measuring Range: | ||||||
Rail Gauge | 1410 - 1470mm | Maximum allowable zero error | ±0.2mm | |||
Guard Rail Check Gauge | 1381 - 1401mm | Guard Rail Face Gauge | 1338 - 1358mm | |||
Maximum allowable error of indication | ±0.25mm | The allowable error of the super-high zero position | ±0.6mm | |||
Parallelism of the railing surface | ≤±0.2 mm | Ultra-high indication repeatability | ≤0.4 | |||
Horizontal (super high) | ±150 mm | Ultra-high U-turn error | ≤1.2mm | |||
Super high indication value allows maximum error: ±1.2mm | ||||||
GTGC-I-B2 Measuring Range | ||||||
Gauge | 1410～1470 mm | Maximum allowable error of indication | ±0.2mm | |||
Guard Rail Check Gauge | 1381～1401 mm | Guard Rail Face Gauge | 1338～1358 mm | |||
Maximum allowable error of indication | ±0.25mm | Parallelism of railing surface | ≤±0.15 mm | |||
Allowable error of super high zero | ±0.2mm | Horizontal (super high) | ±185 mm | |||
Ultra-high turning error | ≤0.4mm | Repeat-ability of ultra-high indication | ≤0.15 | |||
Maximum allowable error of ultra-high indication: ±0.45mm | ||||||
