Perfluoroelastomers FFKM rubber raw gum high temperature resistant fluoroelastomer compound O ring sealing parts rubber material
- Category: Fluorocarbon Rubber >>>
- Supplier: Sichuan Fudi New Energy Co. Ltd.
Share on (10000010048149):
Product Overview
Description
Product Description
Perfluorelastomers (FFKM) is fully fluorinated elastomers which has the best ability to against extreme environments. FFKM contains fluorine in 70-76% whitch help FFKM to work between -30 to 290 °C and can survive well at transient 330°C working environment. FFKM have been designed for the most aggressive conditions, such as hot acids, alkalis, esters, ketone, alcohols and fuels; which leads to its application in semiconducting,fuel and aerospace industry.
FD PF series FFKM offers competitive price as an alternative to Dupont® Kalrez® and Solvay® Tecnoflon®.
FD PF1030 | FD PF1060 | FD PF1090 | ||||
Mooney Viscosity ML(1+10)121ºC | 15~45 | 46~75 | 76~120 | |||
Density 23ºC (g/cm³) | 2.04 | 2.04 | 2.04 | |||
MDR 15 min at 155 °C arc 0.5° | ||||||
Min torque (N*m) | 0.7 | 0.9 | 1.5 | |||
Max torque (N*m) | 26.3 | 27.5 | 28.6 | |||
Ts2 | 1′10″ | 1′13″ | 1′20″ | |||
T90 | 6′40″ | 6′43″ | 6′52″ | |||
Press cure: 10 min at 170 °C, post cure: 24 h at 230 °C | ||||||
Tensile strength (Mpa) | 18.9 | 19.1 | 19 | |||
Elongation at break (%) | 143 | 141 | 138 | |||
Hardness ShoreA | 72±2 | 73±2 | 74±2 | |||
compression set (%) 200ºC 70H Compressibility 25% | 28 | 28 | 27 | |||
Please contact our customer service get detailed spec
Mailbox: metal@fudichem.com
Application
Because of the outstanding performance FKM were widely used in different area, including the following:
* Chemical process and petroleum refining, where they are used for seals, pumps, gaskets and so on, due to their resistance to chemicals;
* Analysis and process instruments: diaphragms, cylindrical fittings, hoops, gaskets, etc.
* Semiconductor manufacturing;
* Food and pharmaceutical, because of their low degradation, also in contact with fluids;
* Chemical process and petroleum refining, where they are used for seals, pumps, gaskets and so on, due to their resistance to chemicals;
* Analysis and process instruments: diaphragms, cylindrical fittings, hoops, gaskets, etc.
* Semiconductor manufacturing;
* Food and pharmaceutical, because of their low degradation, also in contact with fluids;
Advantage

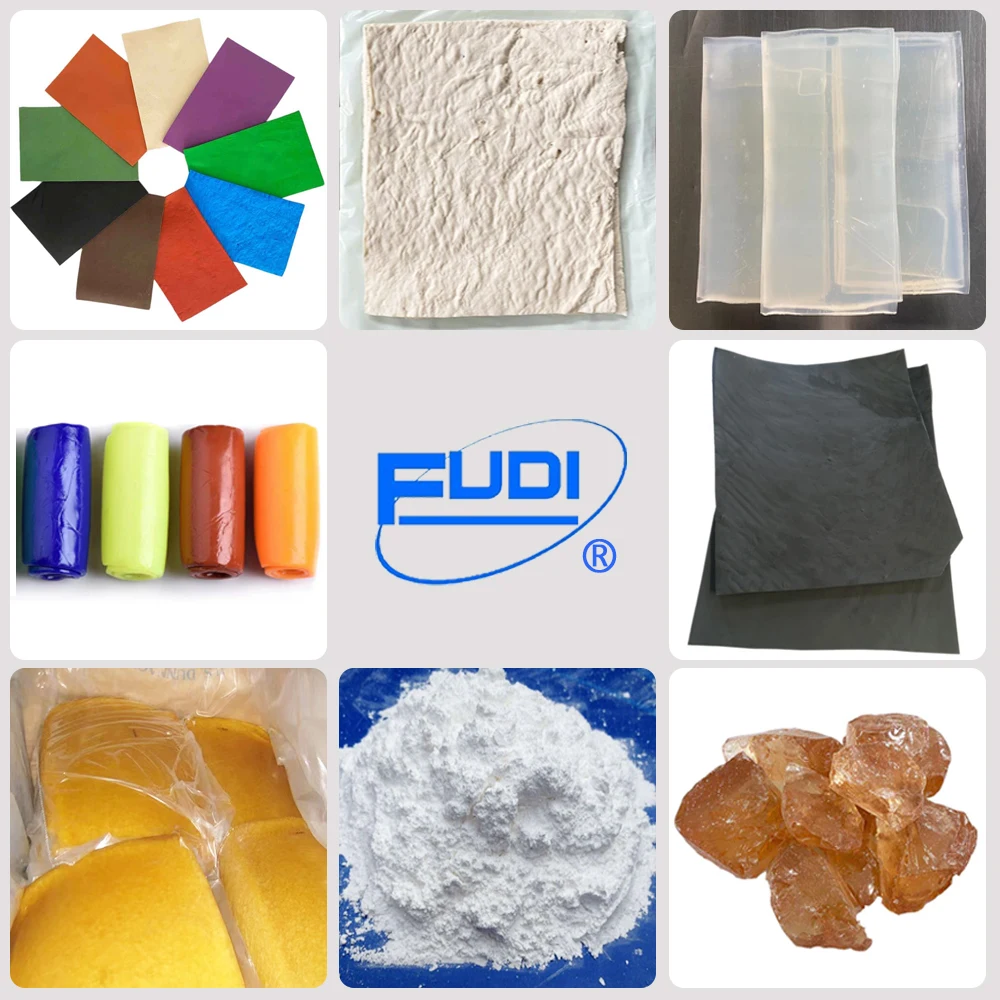

FUDI dedicate in fluorine material solutions for more than 20 years.Our product ranging from basic chemical material to fluorine product, such as FKM FVMQ FFKM PTFE HNBR AEM and different kind of processing chemical.
We focused on continuous improvement on four sectors to deliver competitive products.
We focused on continuous improvement on four sectors to deliver competitive products.

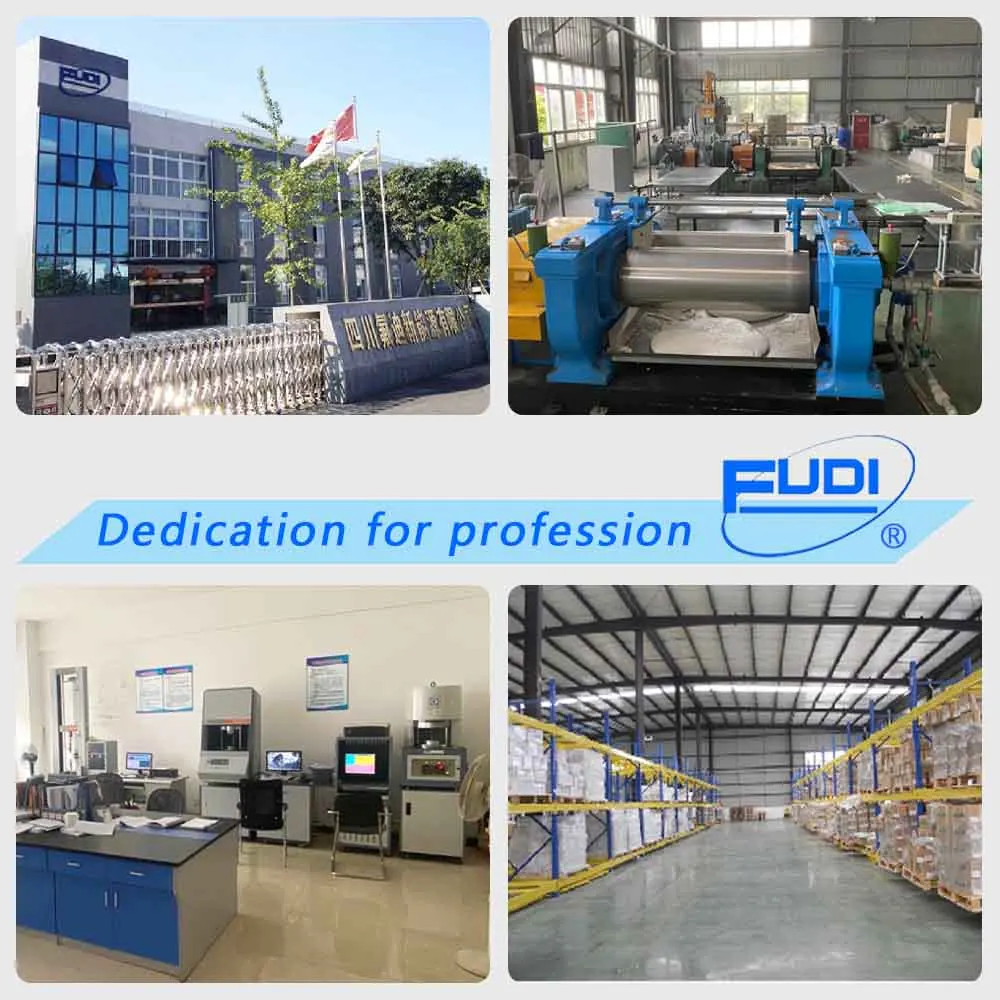

About FUDI
Sichuan Fudi New Energy Co., Ltd was found in 2001.FUDI dedicate in fluorine material solutions for more than 20 years.Our product ranging from basic chemical material to fluorine product, such as FKM FVMQ FFKM PTFE HNBR AEM and different kind of processing
chemical.
Our factory located in Chengdu,Sichuan, China. Covering over 30000 square meters.More than 50 technician and experienced employee were served in FUDI.We have 1000T capacity of different kind of fluorine material.
chemical.
Our factory located in Chengdu,Sichuan, China. Covering over 30000 square meters.More than 50 technician and experienced employee were served in FUDI.We have 1000T capacity of different kind of fluorine material.
Packing & Shipping
FUDI cooperate with professional logistic company shipping our good world wide.
