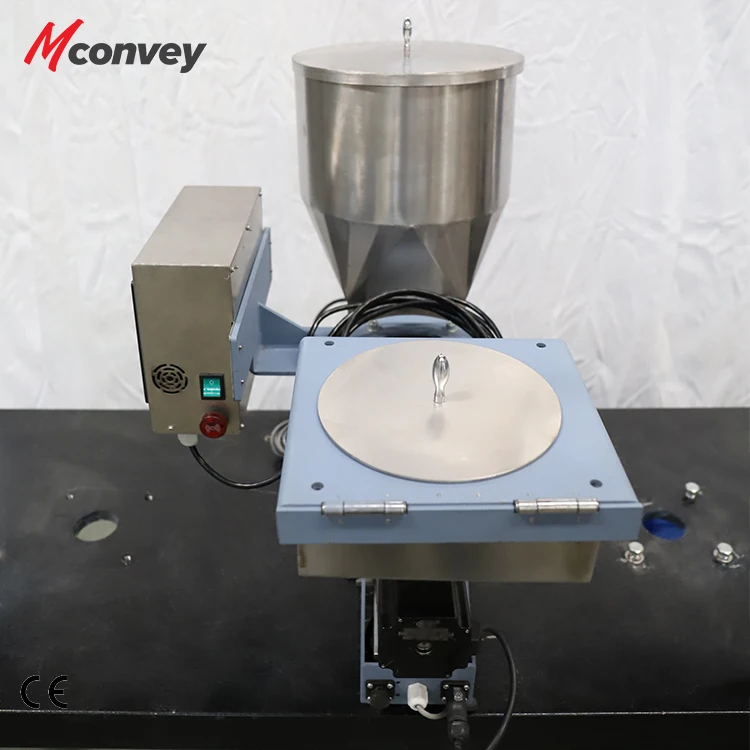

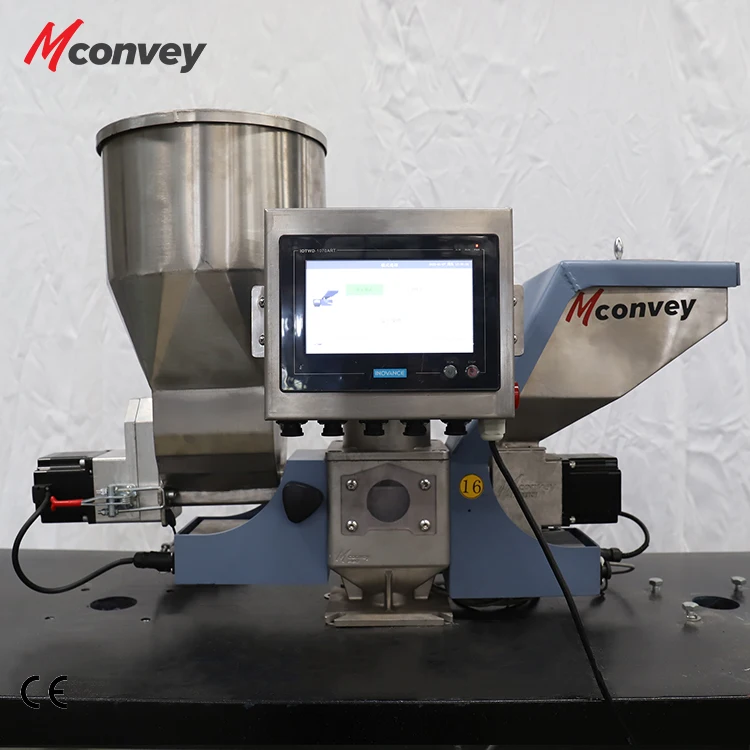

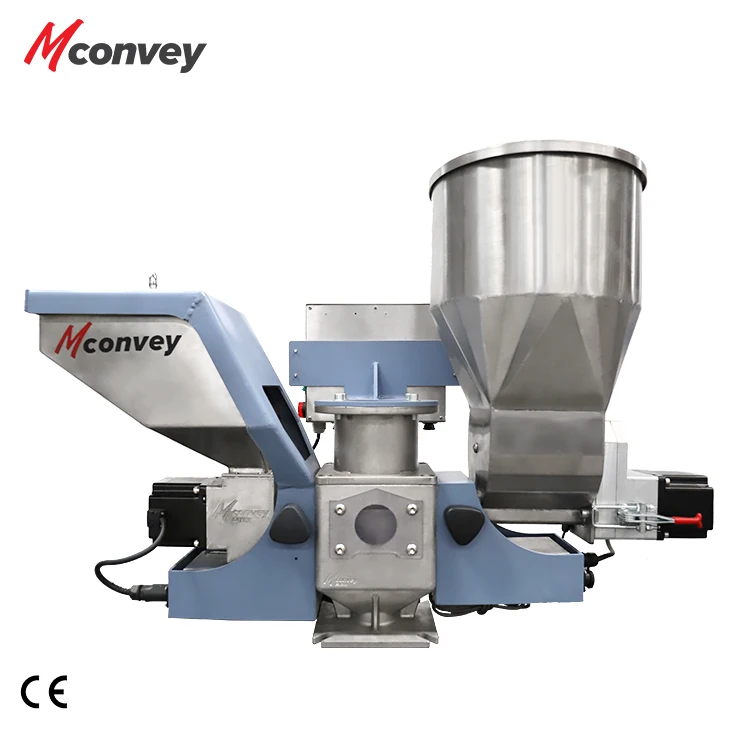

Cable production color masterbatch doser density volumetric feeder plastic volumetric powder doser for injection machine
- Category: Plastic Raw Material Machinery >>>
- Supplier: Guangdong Liansu Machinery Manufacturing Co. Ltd.
Share on (10000012178803):
Product Overview
Description
Products Description
Specification table:
Model | output (kg/hr) | Stepping motor power (w) | Storage bucket (L) | Screw rod outer diameter (mm) | plastic granule (mm) | Color master ratio accuracy | ||||||
LSCM-8 | 0.1-6 | 60 | 6 | 8 | 3-5 | ±0.3-1% | ||||||
LSCM-10 | 0.2-10 | 60 | 6 | 10 | 3-5 | ±0.3-1% | ||||||
LSCM-12 | 0.5-15 | 60 | 6 | 12 | 3-5 | ±0.3-1% | ||||||
LSCM-16 | 3-40 | 60 | 6 | 16 | 3-5 | ±0.3-1% | ||||||
LSCM-20 | 5-50 | 60 | 6 | 20 | 3-5 | ±0.3-1% | ||||||
LSCM-30 | 8-70 | 60 | 6 | 30 | 3-5 | ±0.3-1% | ||||||
Voltage | 1￠,400V，50HZ | |||||||||||
Note: A main raw material hopper is optional for the above models; batch hopper loader (6U) + adapter flange; PLC control, touch screen display. | ||||||||||||
Features:
* PLC control, touch screen display, and easy to operate and understand;Weight-per-meter measuring device for main material Modular assembly structure, convenient disassembly and assembly, easy to clean and exchange;
* It meets the external signal input requirements, and records the current operation mode, and it is not affected by power failure, operating in the same mode after power restoration;Volumetric doser There are two feeding modes: feeding based on the volume of the main machine and feeding in a fixed ratio;
* The main hopper is the standard equipment of the two-color doser, and optional for the single-color doser;
* Optional stirrer to break up additives with poor fluidity;
* 50 groups of parameter formulas, recording of the discharge time and finished product weight (maximum output per minute for the extruder), and maintenance-free step motor;
* Detection of batch blocking and overload, automatic shutdown for protection and alarm;
* Based on the use conditions, set a certain number of mold cycles to add batch once to meet the micro-metering requirements;
* Equipped with 485 communication function.
* It meets the external signal input requirements, and records the current operation mode, and it is not affected by power failure, operating in the same mode after power restoration;Volumetric doser There are two feeding modes: feeding based on the volume of the main machine and feeding in a fixed ratio;
* The main hopper is the standard equipment of the two-color doser, and optional for the single-color doser;
* Optional stirrer to break up additives with poor fluidity;
* 50 groups of parameter formulas, recording of the discharge time and finished product weight (maximum output per minute for the extruder), and maintenance-free step motor;
* Detection of batch blocking and overload, automatic shutdown for protection and alarm;
* Based on the use conditions, set a certain number of mold cycles to add batch once to meet the micro-metering requirements;
* Equipped with 485 communication function.
Mconvey provides overall solution for plastic material handling system：
1.Material storage system
2.Material drying&dehumitifing sytem
3.Dosing& weighing system
4.Compound & mixing system
5.Control system
2.Material drying&dehumitifing sytem
3.Dosing& weighing system
4.Compound & mixing system
5.Control system
If you want more details, please contact us

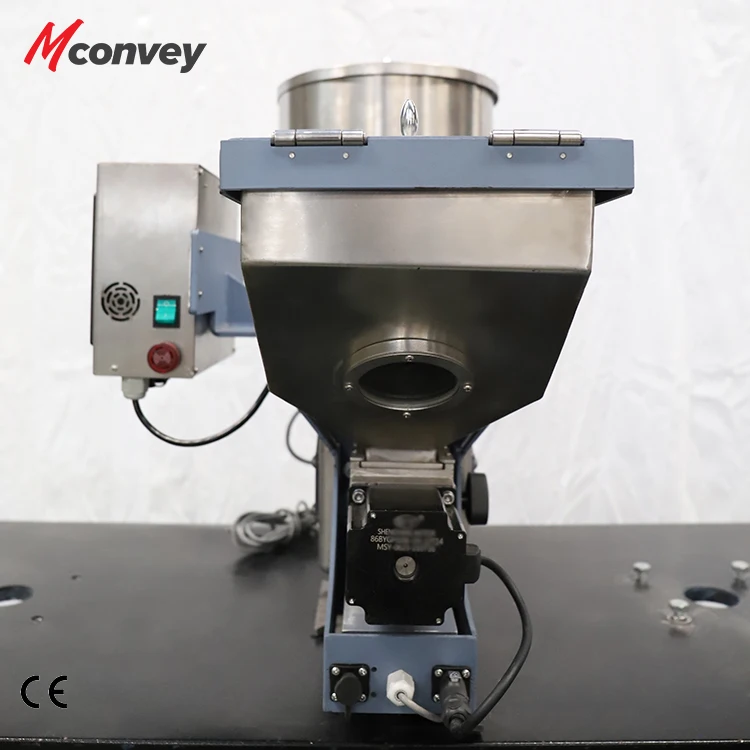

Details Images
Production Detail
Motor
1.The motor is a stepping motor designed by ourselves. It has sufficient torque at low speed, not easy to get stuck, and is stable at high speed. Its failure rate is further lower than reducer+brushless DC motor which is widely used by other suppliers.

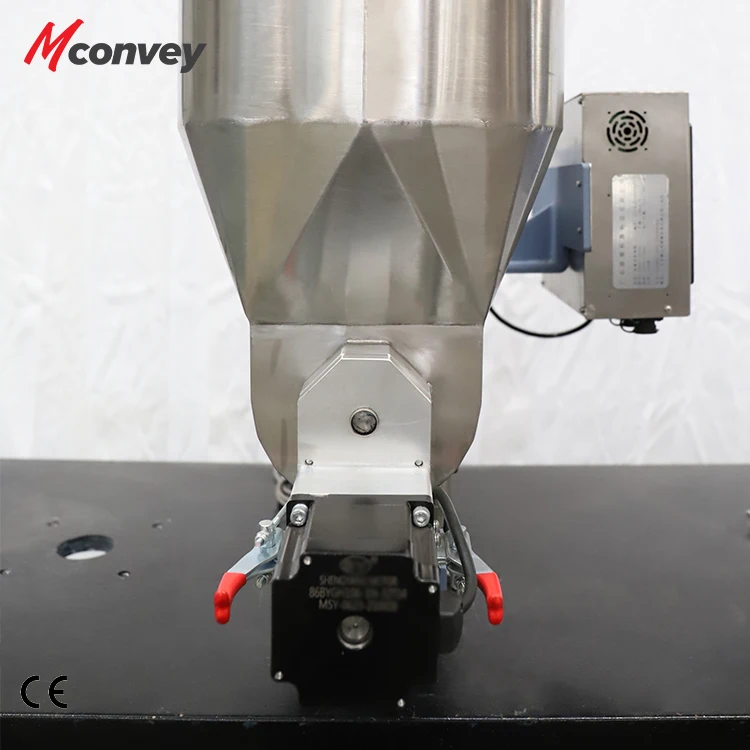

Screw
1.Materail:SUS304 stainless steel screw, more durable.
2.The screw and motor are directly connected by ingenious clamping mode, no connecting component between them, which makes them more stable in cooperation and operation, and there is almost no jamming or idling.

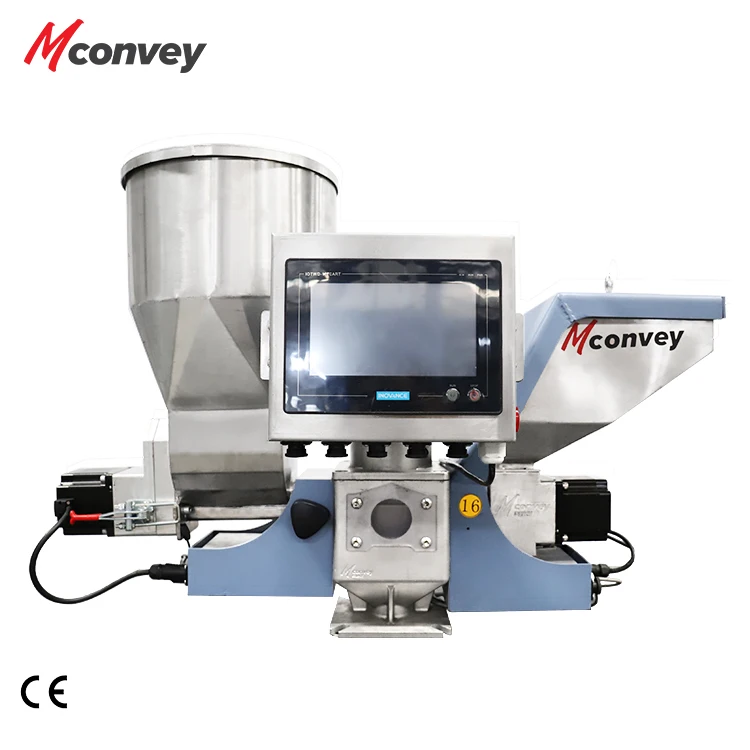

PLC Controller
1.PLC control, touch screen display, and easy to operate and understand.
2.With Ethernet communication function, data can be transmitted, and the amount of material recovered from the doser on the day can be recorded and stored;

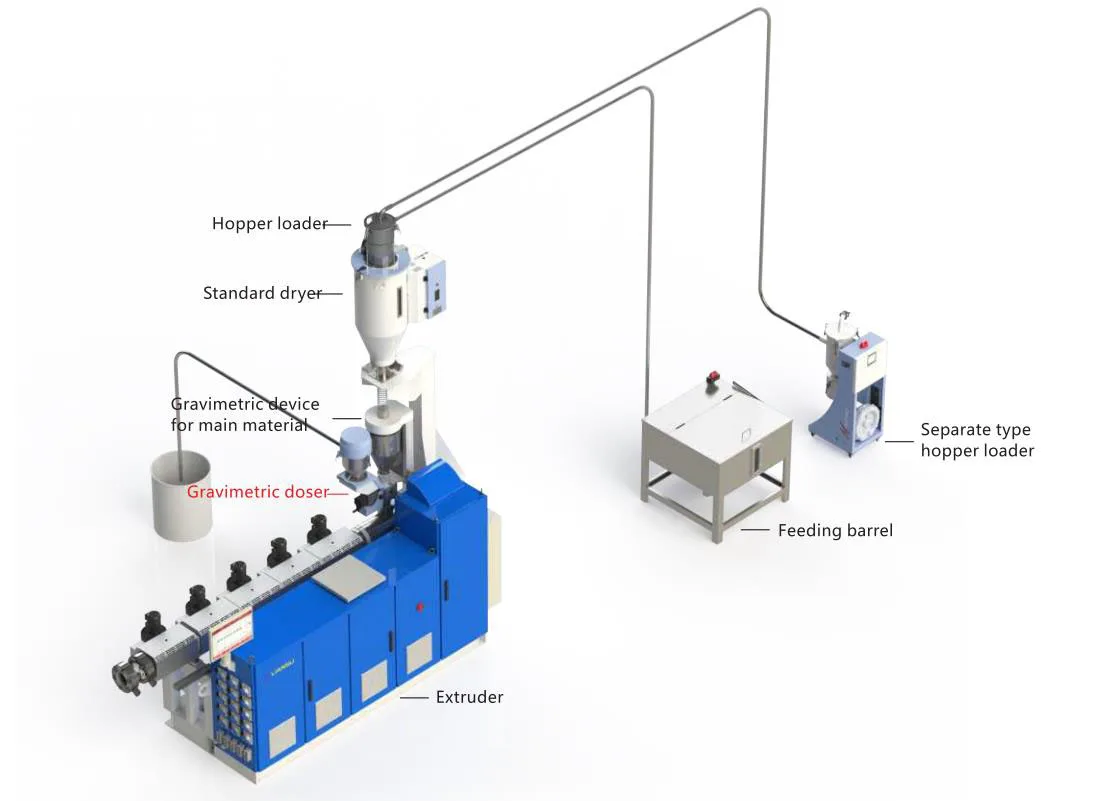

Product Schematic diagram
Working principle:
* The signal from the control box is transmitted to the motor, and the motor starts operation to drive the screw rod to rotate through the coupling.The batch in the hopper falls into the screw rod, and then is squeezed by the screw rod, and conveyed to the base by the screw rod, so as to achieve the purpose of accurately metering and conveying the batch.
Scope of application:
* Suitable for automatic proportioning and mixing of new materials, secondary materials, batches or additive materials;
* The screw diameters include 12mm, 16mm and 20mm, and there are four models that provide different output of 0.1-50kg/h;
* Suitable for extruder and injection molding machine, and its rotation speed is automatically adjusted with the processing speed of the extruder to maintain a fixed batch ratio.
* The screw diameters include 12mm, 16mm and 20mm, and there are four models that provide different output of 0.1-50kg/h;
* Suitable for extruder and injection molding machine, and its rotation speed is automatically adjusted with the processing speed of the extruder to maintain a fixed batch ratio.

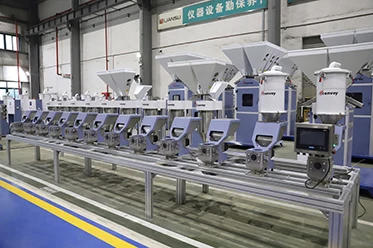

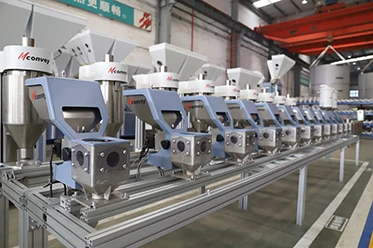

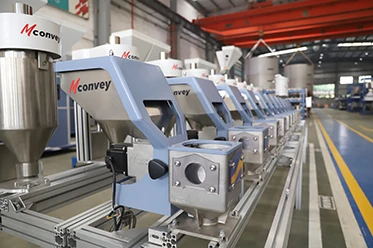

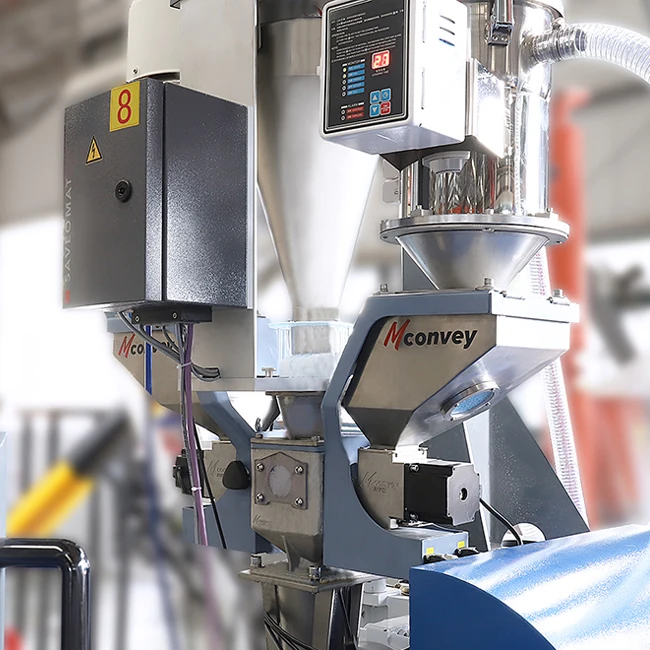

Product display
