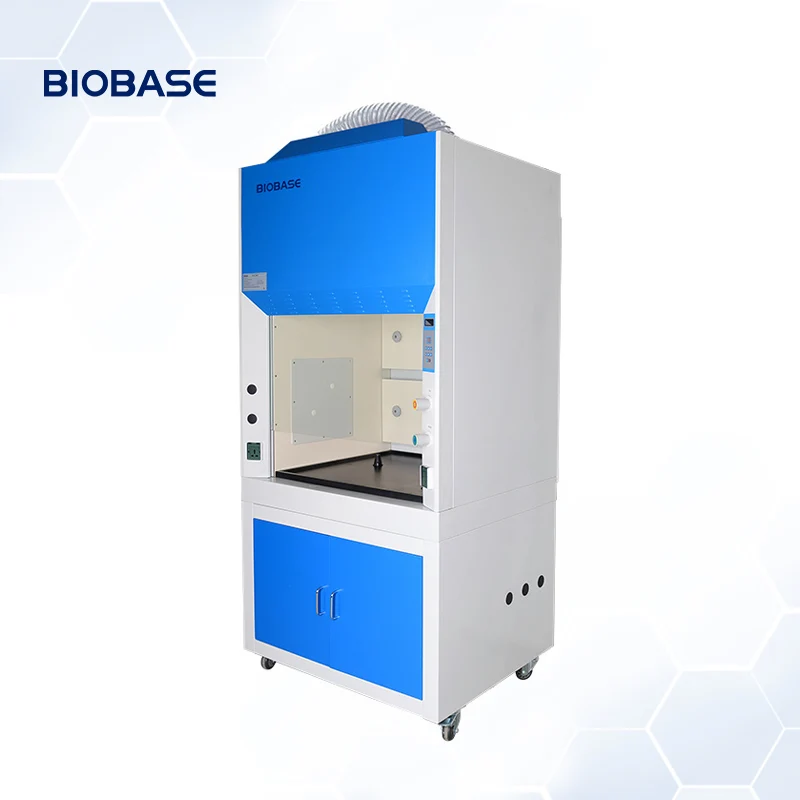

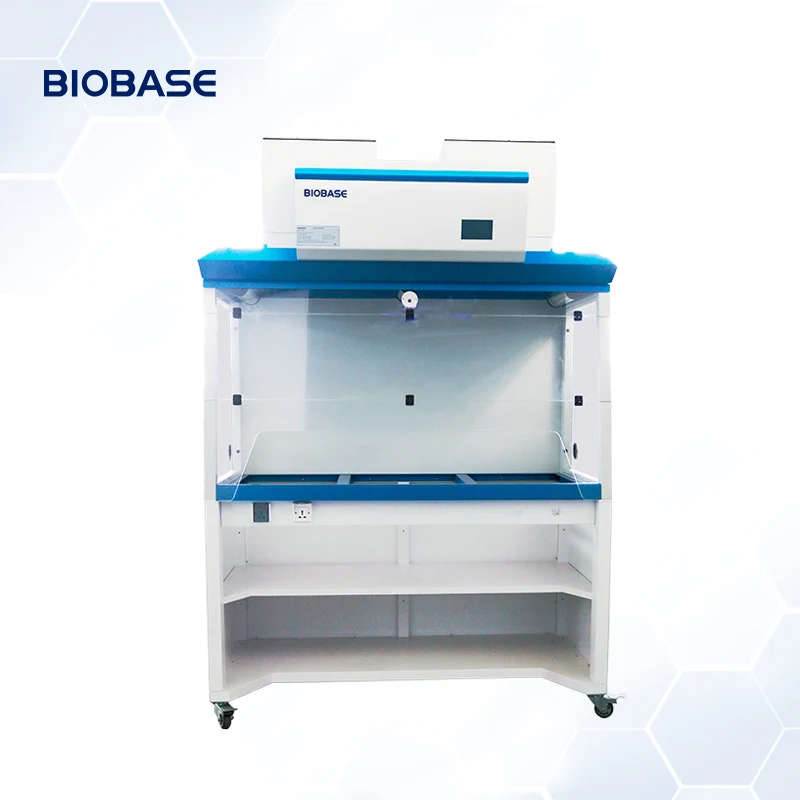

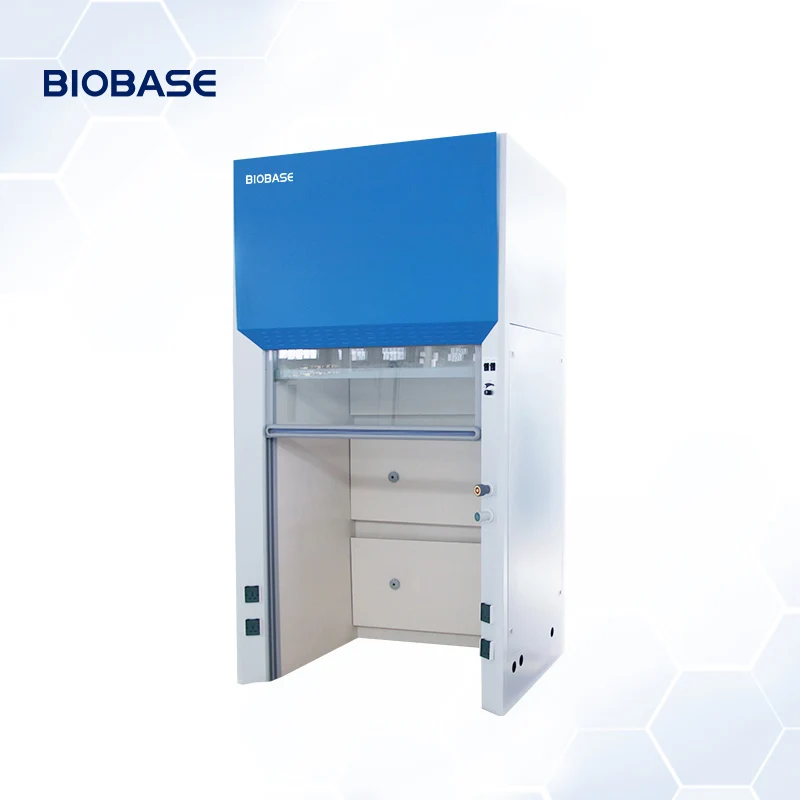

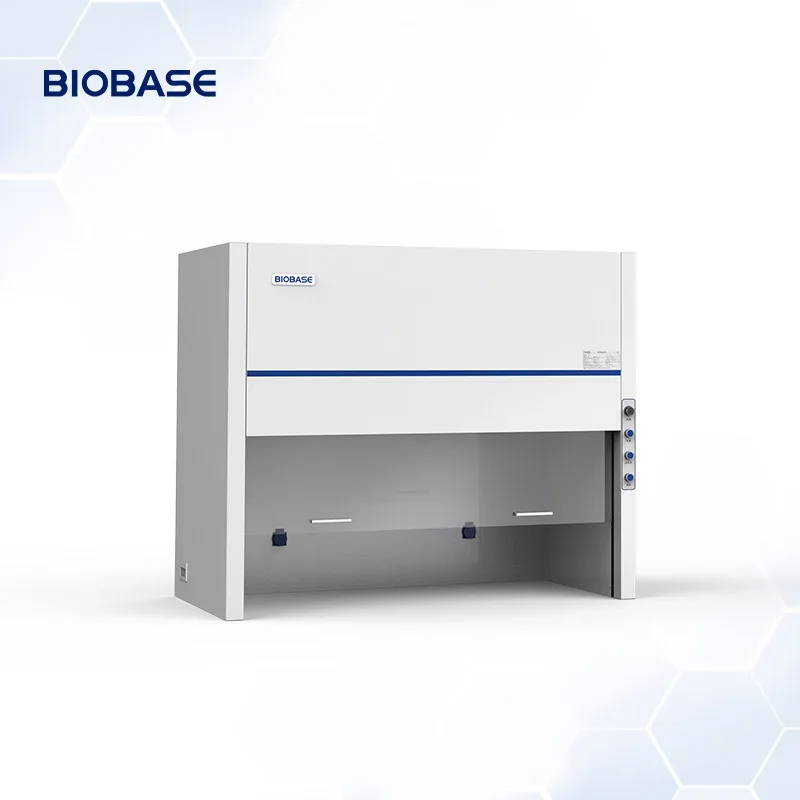

BIOBASE PP Spray Fume Hood Resistant to strong acid a custom made fume hood for perchloric acid
- Category: >>>
- Supplier: Biobase Biotech Co. Ltd.
Share on (10000012597261):
Product Overview
Description
Product Introduction
Advantage：
1. Made of PP material, integrally welded
2. Resistant to strong acid, alkali and strong corrosion
3.Solid core physical and chemical board, PP board, ceramic board and other countertop materials are optional
4.The inside of the deflector is equipped with a spray system, which can neutralize the acid gas in the exhaust gas and then
discharge it
5.The control panel can control the lighting system, circuit system, and air volume adjustment system
6.Circulating water dilution system includes acid and alkali resistant circulating pump, water tank, water inlet and outlet
structure, and complete circulating water circuit
1. Made of PP material, integrally welded
2. Resistant to strong acid, alkali and strong corrosion
3.Solid core physical and chemical board, PP board, ceramic board and other countertop materials are optional
4.The inside of the deflector is equipped with a spray system, which can neutralize the acid gas in the exhaust gas and then
discharge it
5.The control panel can control the lighting system, circuit system, and air volume adjustment system
6.Circulating water dilution system includes acid and alkali resistant circulating pump, water tank, water inlet and outlet
structure, and complete circulating water circuit
Product Paramenters
Model | FH1000PL | FH1200PL | FH1500PL | FH1800PL | |||
External Size (W*D*H) | 1047*800*2450mm； | 1247*800*2450mm | 1547*800*2450mm | 1847*800*2450mm | |||
Internal Size (W*D*H) | 787*500*700mm | 987*500*700mm | 1287*500*700mm | 1587*500*700mm | |||
Work Surface Height | 820mm | ||||||
Max. Opening | 740mm | ||||||
Material | Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. Work Table: Solid core physical and chemical board | ||||||
Airflow Velocity | 0.3～0.8m/s | ||||||
Exhaust volume | 560 m³/h | 700 m³/h | 920 m³/h | 1130 m³/h | |||
Consumption | 400 W+370W(Pump) | 500 W + 370(Pump) | 700 W +370(Pump) | ||||
Waterproof Socket | Two, total load≤500W | ||||||
Noise | ≤68dB（A） | ||||||
Illumination | ≥400lx | ||||||
LED Lamp | 24W | 30W | 38w | ||||
Blower | Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300W | ||||||
Front Window | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable. | ||||||
Operators | 1~2 | 1~2 | 2~3 | 2~3 | |||
Standard Accessory | LED light; Work table: Chemical resistant phenolic resin; 4.3 meters PVC duct (2 pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm; Pipe strap*2(4 pcs for FH1800(P) only); Base cabinet; Waterproof socked*2; Water tap(PP); Gas tap(PP); Water Sink; PP centrifugal blower*1(2 for FH1800(P) only) | ||||||
Optional Accessory | PP work table, epoxy resin board or ceramic board; UV lamp; Electric glass door | ||||||
Power Supply | 220V,50/60Hz(Standard); 110V,60Hz(Optional) | ||||||
Package Size (W*D*H) | Main Body:1188*938*1612mm Base Cabinet:1188*888*1000mm | Main Body:1388*938*1612mm Base Cabinet:1388*888*1000mm | Main Body:1688*938*1612mm Base Cabinet:1688*888*1000mm | Main Body:1988*938*1612mm Base Cabinet:1988*888*1000mm | |||
Gross Weight | 235kg | 268kg | 308kg | 360kg | |||
Company Introduction

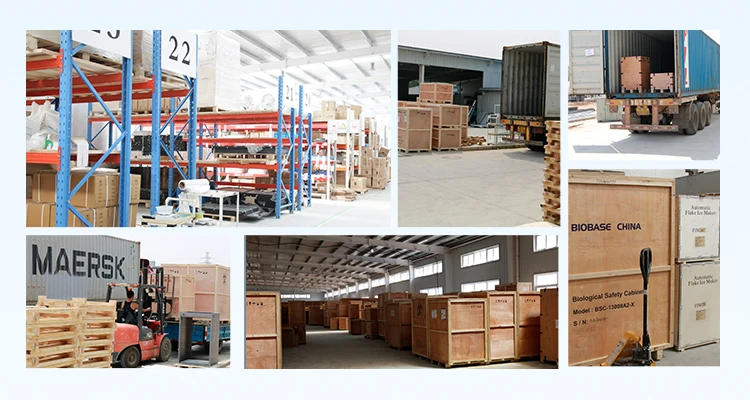

Packaging & Shipping

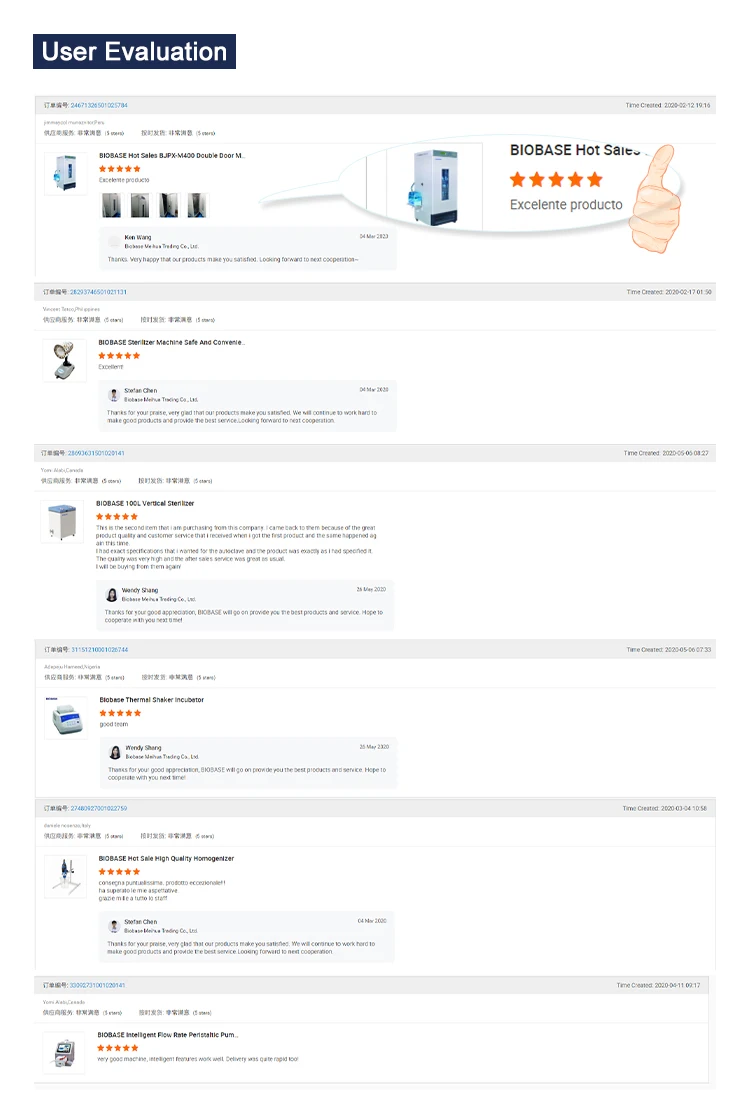

Feedback From Customer
