Product Overview

Description



Product Overview

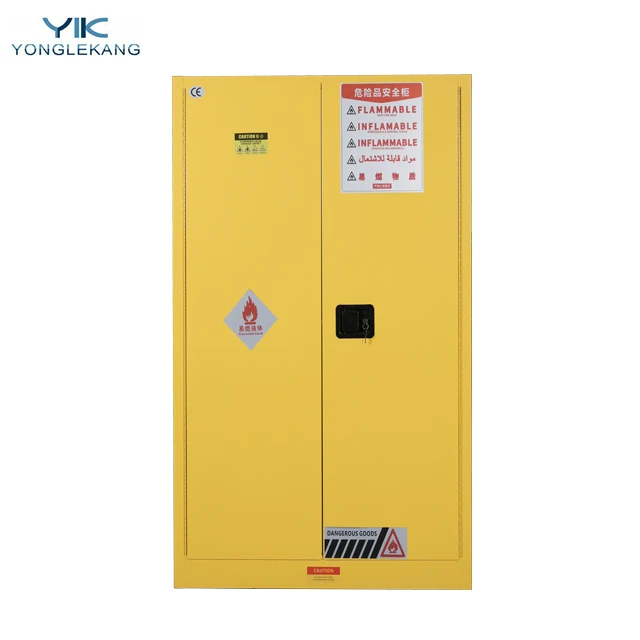

Chemical Safety Cabinet
YLK chemical safety cabinet is made of high-quality cold-rolled steel plate, and the whole body is electrostatically sprayed with resin. An anti-leakage tank is installed in the cabinet, and an electrostatic grounding wire is provided to prevent the corrosion and explosion of the cabinet caused by liquid and static electricity. The cabinet is equipped with a microcomputer control system to collect and process unorganized volatile gases. The appearance of the product is affixed with a standard warning label, which meets the national standard requirements. It can be optional equipped with an IoT remote control module to realize remote query and monitoring functions.
It owns the functions of intelligent remote control,exhaust gas purification, anti-corrosion and fire prevention.



Application Area


Yellow Cabinet
It is used for storing various flammable items, which the flashing point is below 45°C.For example: gasoline, alcohol, kerosene, formaldehyde, ethanol, etc.


Red Cabinet
It is used for storing various combustible items, which the flashing point is above 45°C.For example: diesel oil, engine oil, lubricating oil, tung oil, etc.


Blue Cabinet
It is used for storing all kinds of weak corrosive items or weak acids and bases.For example: acetic acid, carbonic acid, phosphoric acid, silicic acid, etc.


PRODUCT SPECIFICATIONS


Purification System Type
Model
YPD-45B
YPR-45B
YPK-45B
Function
Toxic Storage
Flammable Storage
Combustible Storage
Color
Blue
Yellow
Red
Cabinet Dimension
H1910 x W1090 x D460mm
125Ton
Plate Dimension
H1000 x W350 x D20mm
96kN
Plate Quantity
3pcs
96kN
Fan
Centrifugal fan
60kN
Lock Type
Double GA mechanical lock
6750ml
Display Screen
7-inch LCD screen
500N.m
Filter
1pc primary air filter, 2pcs activated carbon filters
Control System
VOC, temperature and humidity control alarm system
Storage Capacity
45gallon
Optional
PP Liner + IoT


Model
YPD-45A
YPR-45A
YPK-45A
Function
Toxic Storage
Flammable Storage
Combustible Storage
Color
Blue
Yellow
Red
Cabinet Dimension
H1650 x W1090 x D460mm
Plate Dimension
H1000 x W350 x D20mm
Plate Quantity
3pcs
Lock Type
Double GA mechanical lock
Storage Capacity
45gallon
Optional
PP Liner


Access Instructions for Hazardous Chemicals
1. The cabinet cannot be storaged for a long time.
2. The safety cabinet should be dedicated, and non-hazardous chemicals cannot be storaged in it.
3. The storage container should be in good condition.
4. The volatile corrosive gas should be tightly sealed with corks and placed on the upper layer in order to discharge.
5. It should be storaged in different layer or cabinet according to the chemical properties of oxidizing agent, reducing agent, strong acid, strong base, etc.
6. The hazardous chemicals with different characters should be stored separately.
7. It is strictly forbidden to store toxic cabinet together with inorganic oxidants and strong acids (such as sulfuric acid, nitric acid, etc.).
8. The safety cabinet must be kept by two person, including accessing, using and locking. It should be recorded truthly the access with real-name registration.
9. The hazardous chemicals that is stored for long time and must be scrapped, as well as the waste liquid in the liquid pan at the bottom of cabinet must be cleaned up in timely and destroyed at appointed location according to the hazardous chemical by a particular person. It can not directly poured into the sewer or ordinary trash cans.
10. In principle, flammable safety cabinet and toxic safety cabinet is only suitbale for short-term storage chemicals. If mixed storage, please be sure there is no chemical reaction between them. In order to ensure the safety cabinet working life, during the long holiday (more than 7 days), please keep ventilating, if not, please empty the cabinet.


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Package and Delivery




Company Profile


Changsha Yonglekang Medical Equipment Co., ltd was founded in 2006, specialized in researching & manufacturing varies laboratory equipments. The members of YLK researching & technical support team are all with bachelor above degree & 5 years above working experience. And all the products are with independent intellectual property, including 2 patents and 45 utility models. We always insist on the management principle of "Human Based, Quality First". By being specialized in researching & manufacturing laboratory instrument with great innovation, YLK cares every customer a lot and makes all the best to show our sincerity from heart.








FAQ


1. Are you a trade company or factory?
We are a direct factory with certificates ISO9001, ISO45001, ISO14001, with more than 40 patents.

2. What does your product applications?
Widely applied in the related industries of Environmental monitoring, Scientific research institution, University laboratory,Third party test company, Metallurgy & Mineral etc.

3.What's your warranty?
One-year warranty period is provided.

4. How to deliver?
The shipping service is provided at customers' option. including courier services, air freight services and sea freight services.

5. What should I do if I don't know how to use?
Please do not worry, manual user will be sent together, you can also contact us with more technological support.
