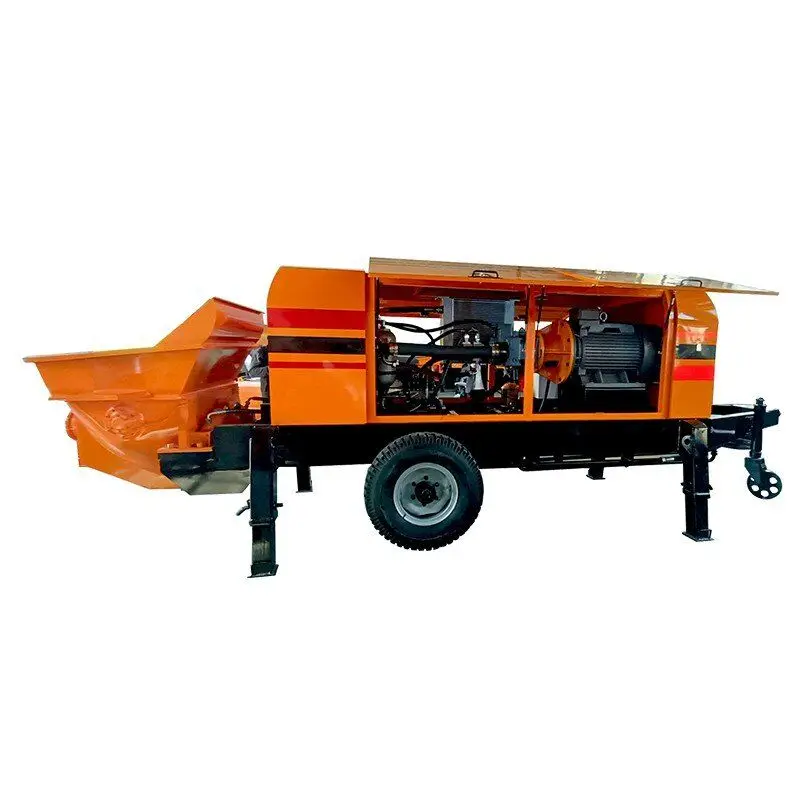

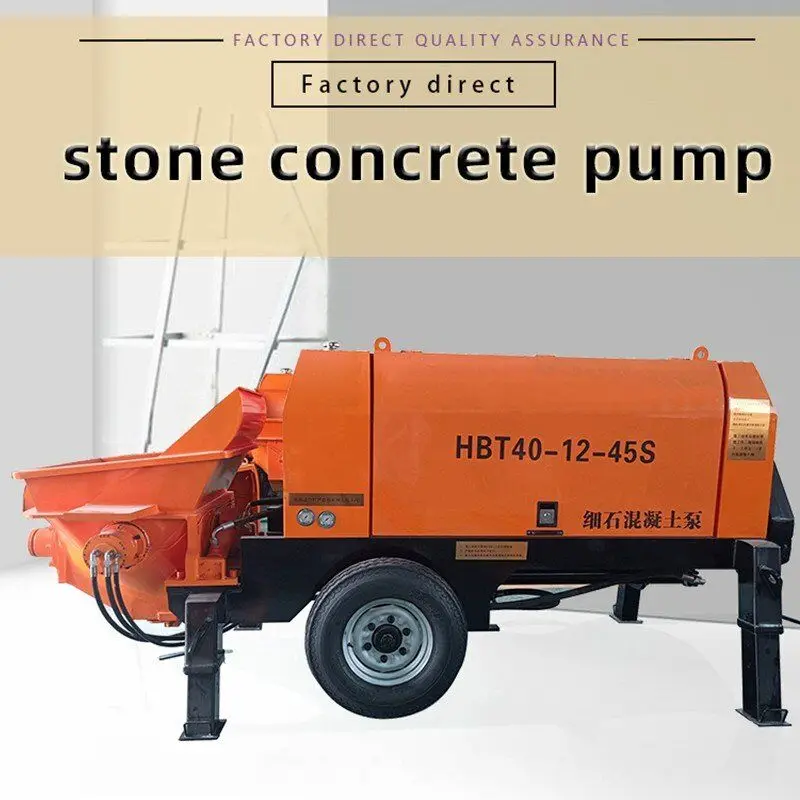

widely used in the civil construction industry concrete pumps with high conveying capacity
- Category: >>>
- Supplier: Xingtai Penghao Machinery Manufacturing Co. Ltd.
Share on (10000013336071):
Product Overview
Description
Product Description
Advantages
1. Adopting advanced S tube valve to change, meet the need of the transportation of fine stone concrete.
2. The glasses plate and cutting ring are made of high hardness wear-resistant alloy material, and the service life is longer.
3. High export pressure can meet the requirements of high rise building and long distance construction.
4. Hydraulic oil cooling using water cooling system, the cooling effect is good, easy to use.
5. With anti pump function, minimize the pipeline blockage.
6. Equipped with manual centralized lubrication system, ensure the life of the rotating parts.
7. Electrical box equipped with wired remote control handle, easy to operate.
Technical parameters
Penghao machinery concrete pump | ||||||||||||
Model | HBT28 | HBT30 | HBT40 | HBT50 | HBT60 | HBT80 | ||||||
Output | 10-15m³/h | 15-20 m³/h | 18-20 m³/h | 25-30 m³/h | 40-45 m³/h | 60 m³/h | ||||||
Outlet pressure | 10Mpa | 10Mpa | 12Mpa | 13 Mpa | 16 Mpa | 16 Mpa | ||||||
Max aggregate size | 40mm | 20mm | 40mm | 30mm | 35mm | 40mm | ||||||
Max conveying distance (level) | 70m | 350m | 400m | 260m | 450m | 450m | ||||||
Max conveying distance (vertical) | 30m | 120m | 100m | 150m | 150m | 150m | ||||||
Feeding height | 1000mm | 1000mm | 1100mm | 1200mm | 1300mm | 1300mm | ||||||
Pipe diameter | 100/125 | 80 | 80/100/125 | 80/100/125 | 125 | 125 | ||||||
Motor power | 22/30kw | 37kw | 45kw | 55kw | 90kw | 110kw | ||||||
Weight | 1800kg | 1950kg | 2600kg | 3000kg | 4000kg | 6000kg | ||||||
Size (L*W*H)(m) | 2.8*1.5*1.5 | 4.0*1.5*1.5 | 4.1*1.7*1.6 | 4.2*1.8*1.7 | 5.5*2.5*2.1 | 6.2*2.5*2.2 | ||||||

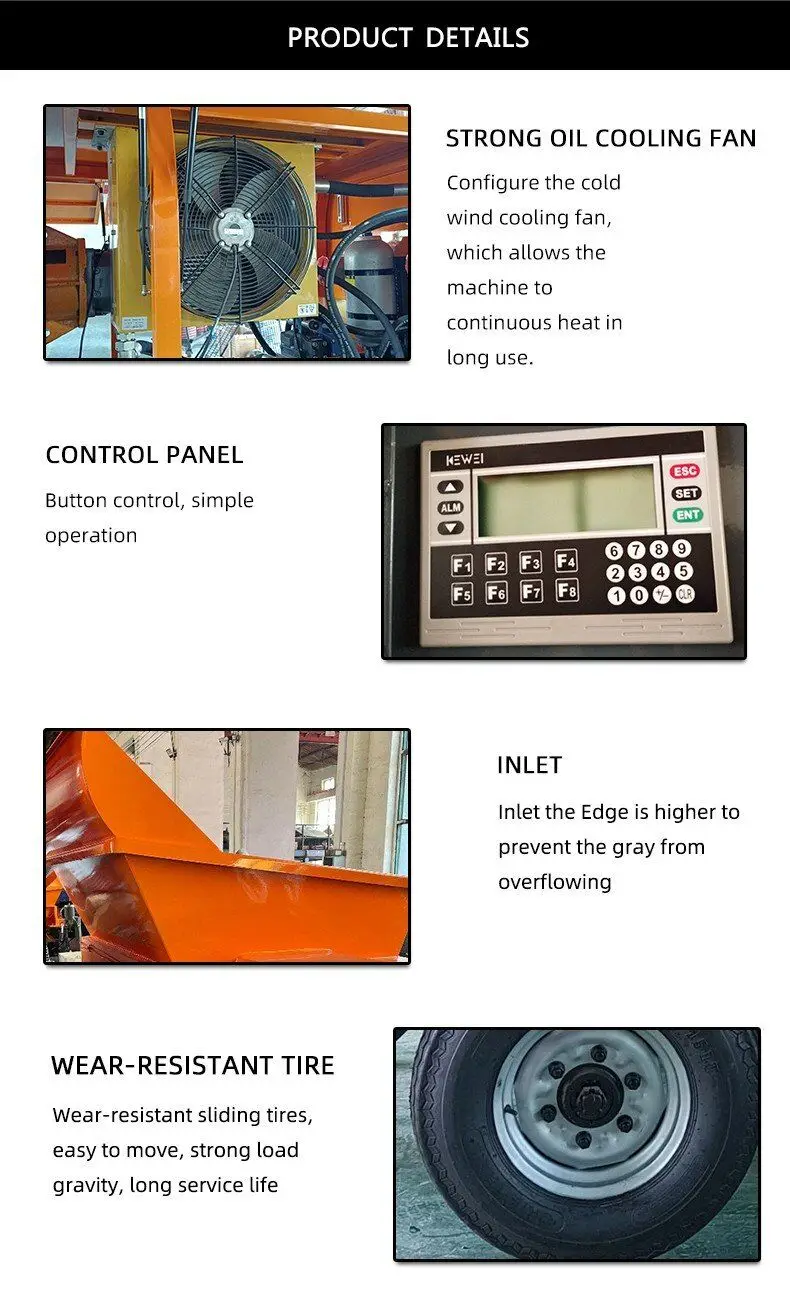

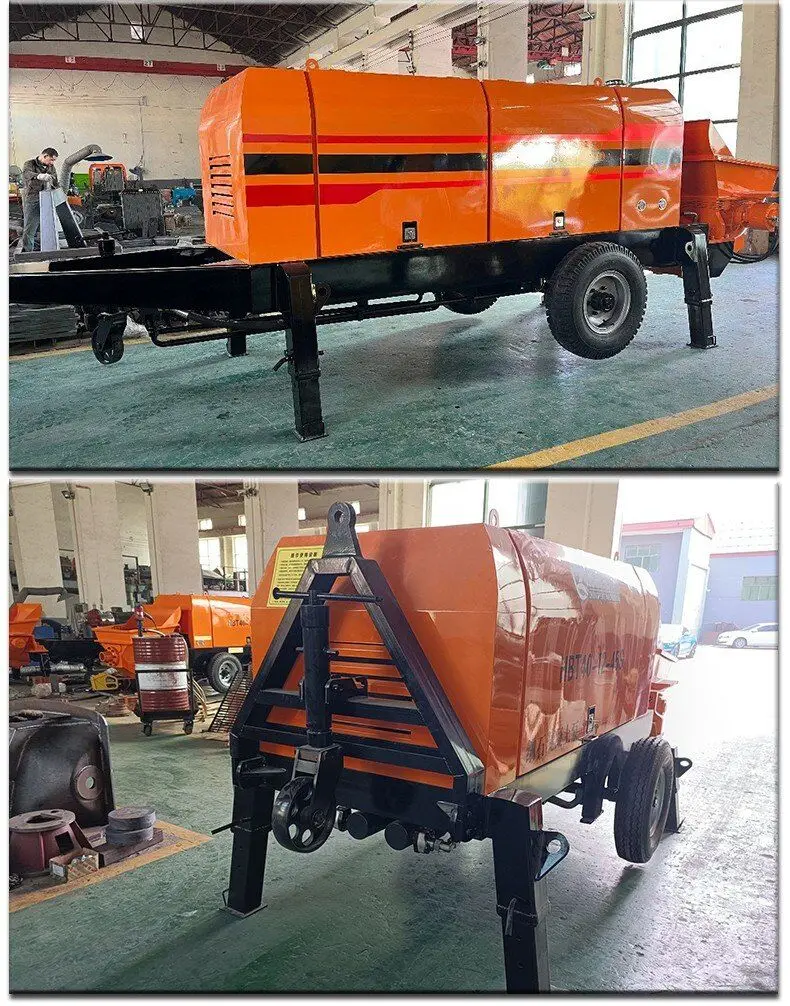

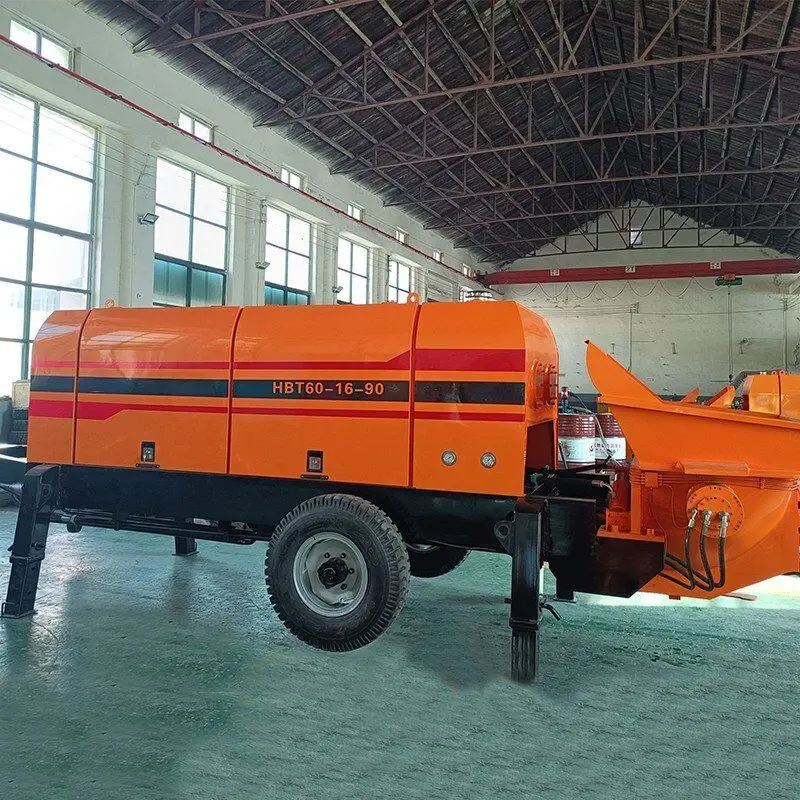

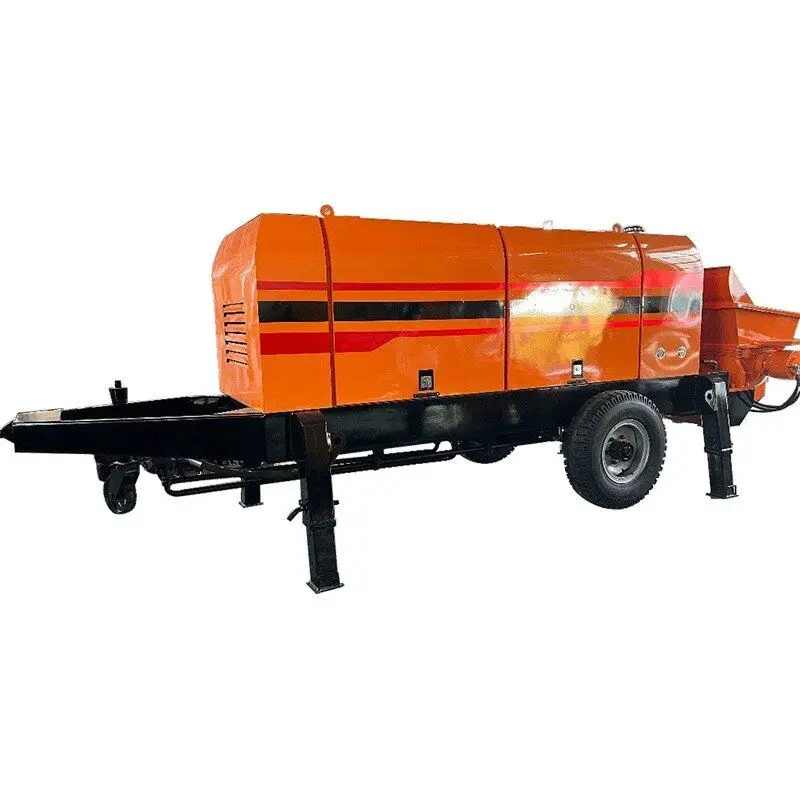

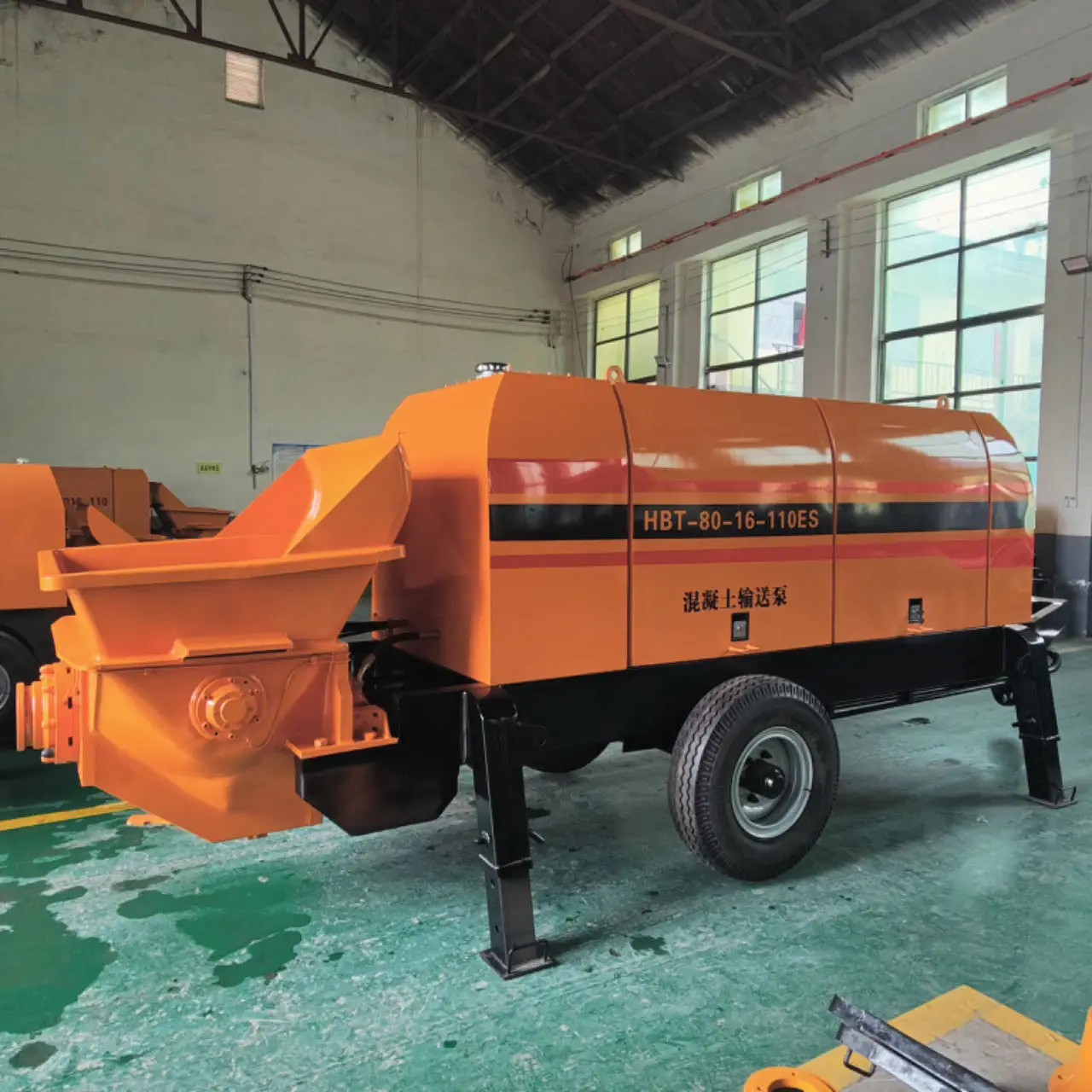

Detailed Images

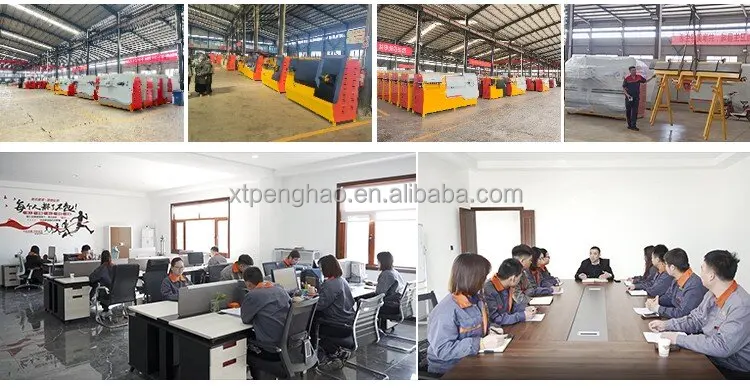

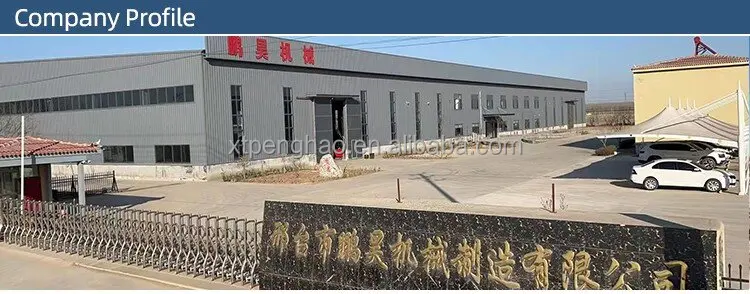

Company Profile
Xingtai Penghao Machinery Manufacturing Co.LTD was founded in 2006, located in Fuyang high tech industrial development zone, Xingtai city, Hebei province, China. PHMTOOLS is a professional steel processing equipment manufacturer integrating R&D, production, sales and service, focusing on the field of steel processing for many years.
Over the years, PHMTOOLS has cooperated with China Railway Construction Group, China Communications Construction Group and other large construction units for many times, successfully providing satisfactory reinforcement processing solutions for the project and accomplishing the task excellently.
With the development of the times, PHMTOOLS is not only well-known in China, but also recognized by customers in the international steel processing market. Our products are exported to Southeast Asia, Europe, Africa, North America, South America, Oceania and many other countries.
Over the years, PHMTOOLS has cooperated with China Railway Construction Group, China Communications Construction Group and other large construction units for many times, successfully providing satisfactory reinforcement processing solutions for the project and accomplishing the task excellently.
With the development of the times, PHMTOOLS is not only well-known in China, but also recognized by customers in the international steel processing market. Our products are exported to Southeast Asia, Europe, Africa, North America, South America, Oceania and many other countries.
Packing & Delivery
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* One year warranty for whole machine (not including wearing parts), life-long maintenance and technical support.
* All the machines sold in the country shipped with user-friendly English operation video and instruction.
* Training how to instal the machine, training how to use the machine.
Certifications
Penghao Machinery, since its inception, has strictly demanded itself from a high starting point and high quality. Quality of product is reliable. Design and manufacturing of products are all in accordance with international standards. In accordance with the ISO9001 quality control system, PHMTOOLS strictly implements the high quality management system in the whole manufacturing process. And all products of PHMTOOLS are all with CE Certificates.
FAQ
1. You are the manufacturer or the trading company?
We are professional manufacture, we are in this area for more than 18 years, with rich experience.
2. Can you do the color for the customers as customers'requests?
Yes, we are factory, we can customize the machine depend your request.
3. What is the delivery time?
If we have stock of it, we can deliver it in 3 days; if we do not have stock, it will take about one week to deliver.
4. Can your technician come to our country to install and adjust the machine?
Yes, our technician can go to your country to help you install and adjust machine.
5. How long is the warranty?
Warranty 12 months. We provide technical support for long-life.
If the machine has a problem, we will provide solutions within 24 hours.
