Diamond PDC Drill bits 1308 1613 PDC cutter insert for oil well Gas mine rock drilling mining pdc cutters for coal mining
- Category: >>>
- Supplier: Zhengzhou Ruizuan Diamond Tool Co. Ltd.
Share on (10000014761105):
Product Overview
Description
Related Products
Products Description

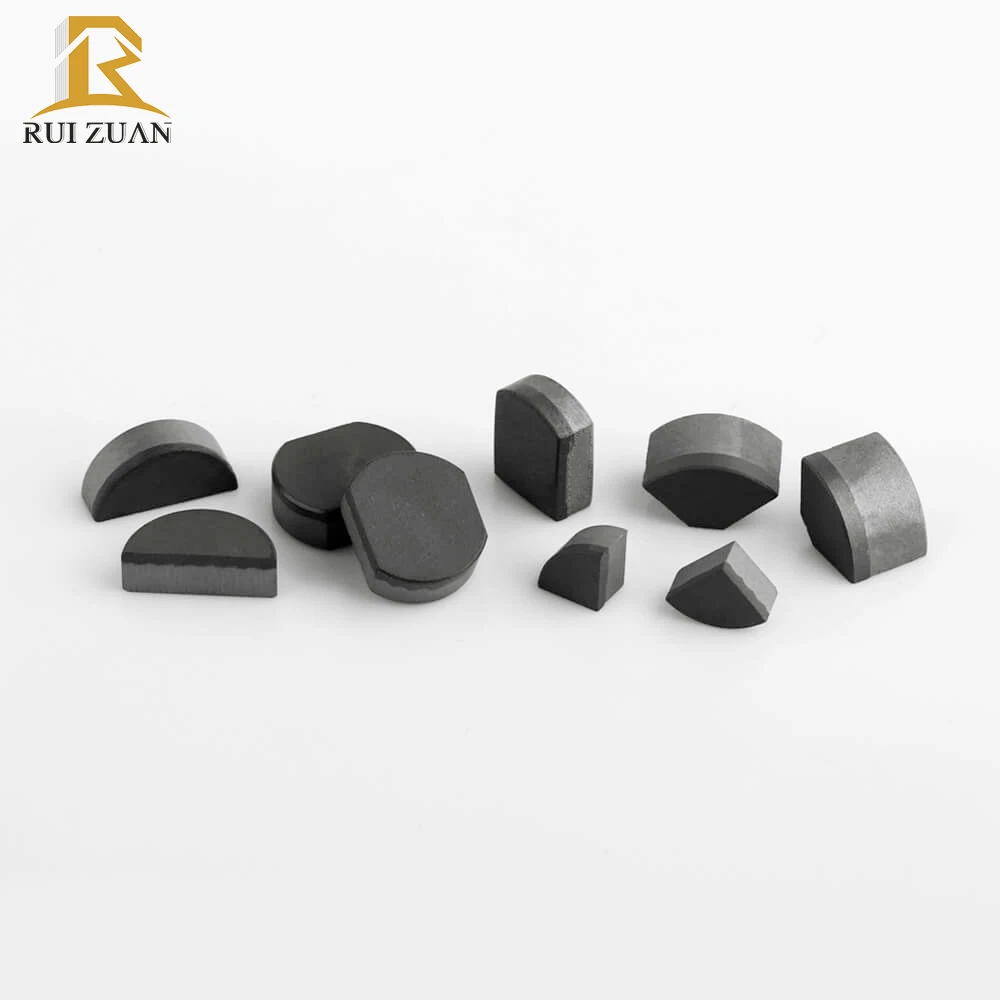

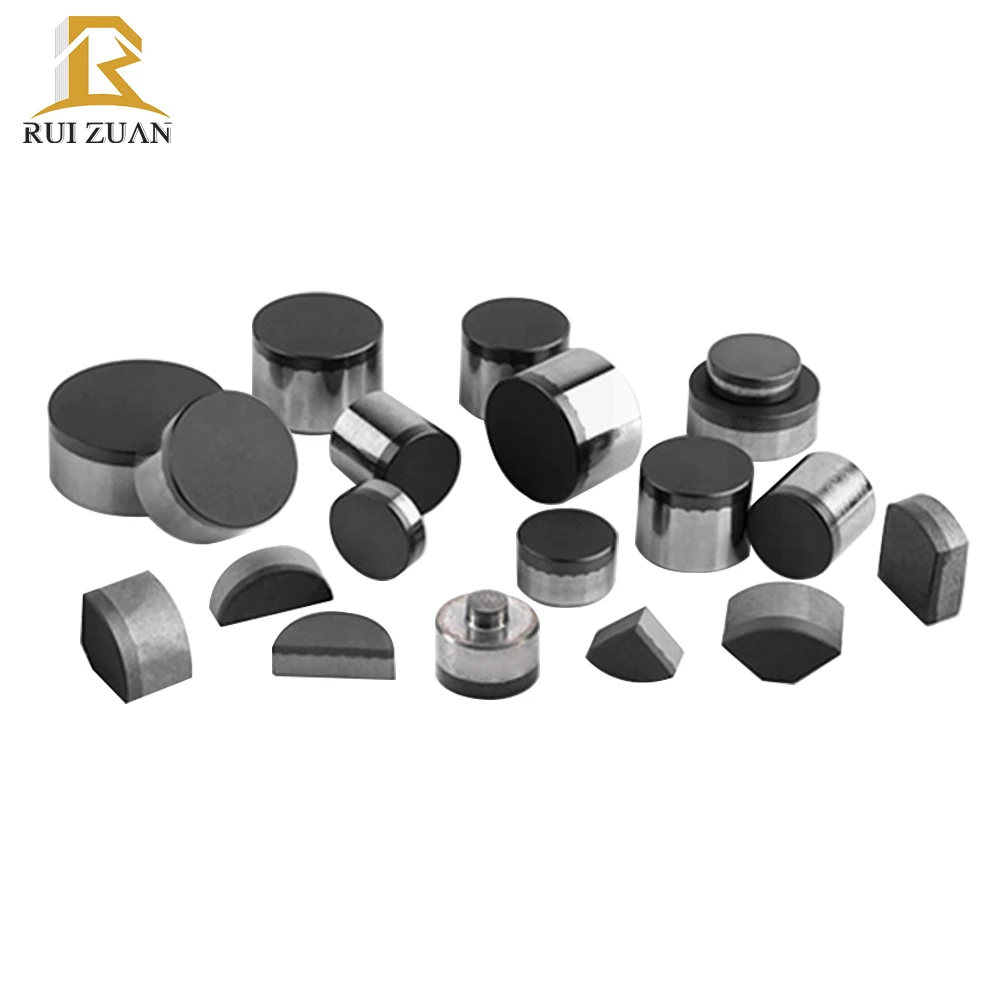

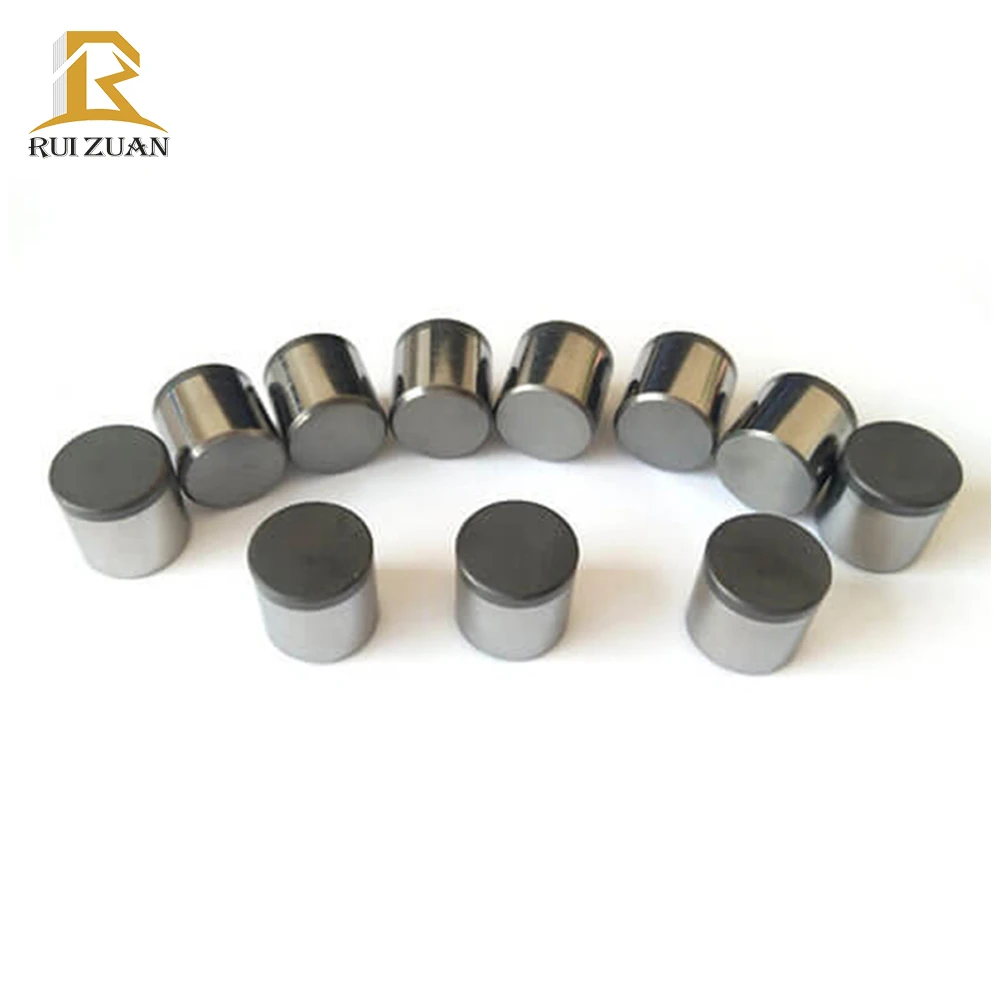

PDC cutters for quarry mining
PDC cutter is made of diamond powder and high-impact tungsten carbide. Because of its superior performance, it is widely used in stone cutting and grinding, coal mining, water well drilling, geological drilling, etc. Our PDC cutter adopts a state-of-the-art manufacturing process and raw material has been accepted by many customers. Bestselling depends on high quality and competitive price.

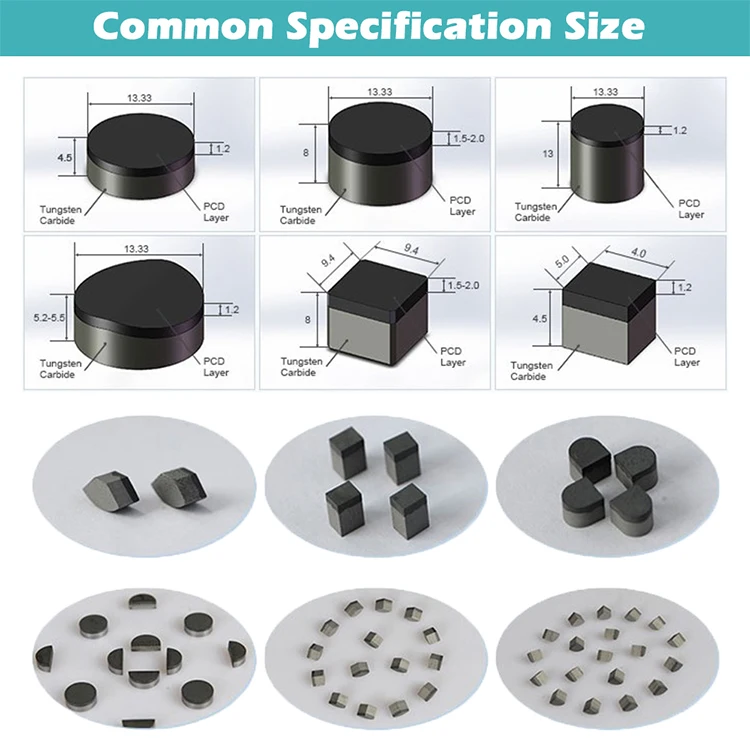

Code | Diameter(mm) | Total Height(mm) | PCD Thickness (mm) | Shape |

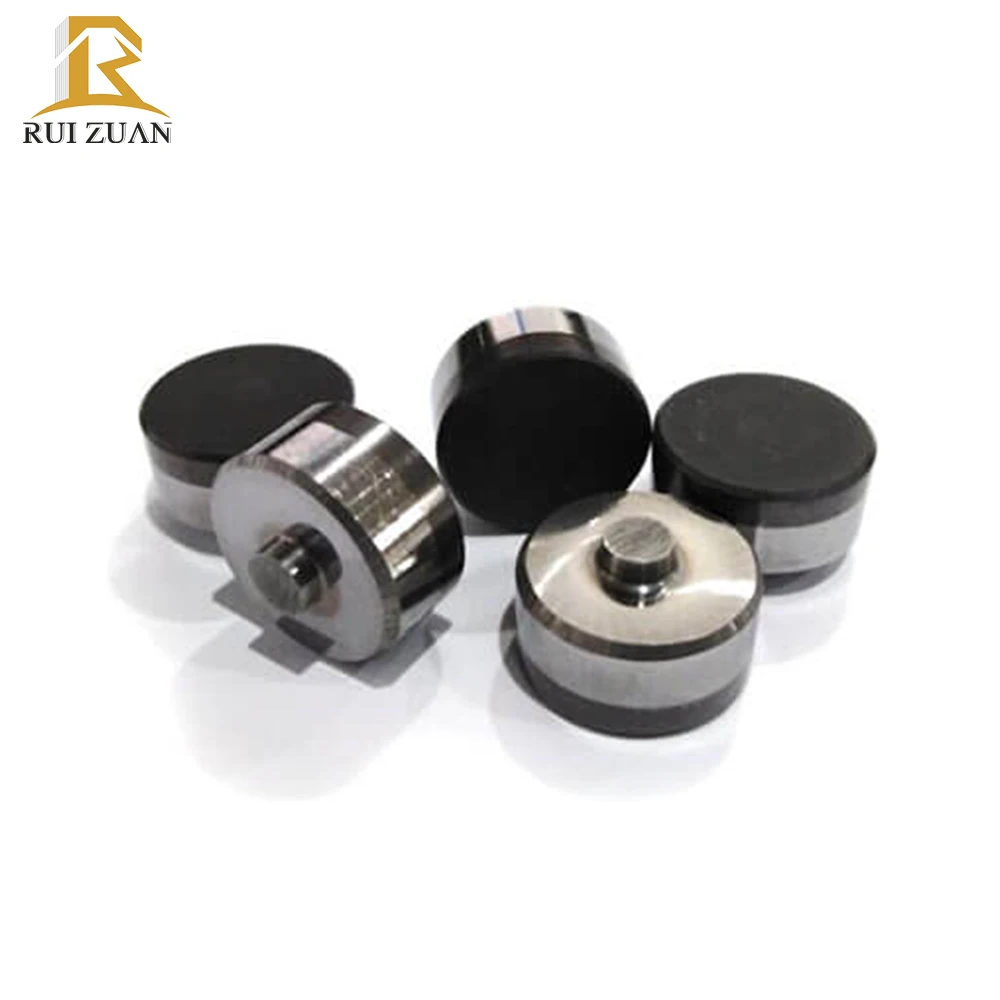

1313 | 13.44 | 13.2(8.2+5.0) | 1.5-2.5 | Round with tip |
1308 | 13.44 | 8.0(4.0+3.0) | 1.5-2.5 | Round with tip |
808 | 8 | 8 | 1.5-2.0 | Round with tip |
1313 | 13.44 | 13.2 | 1.5-2.0 | Round |
1308 | 13.44 | 8 | 1.5-2.0 | Round |
1304 | 13.44 | 4 | 1.2-1.5 | Round |
1008 | 10 | 10 | 1.5-2.0 | Round |
808 | 8 | 8 | 1.5-2.0 | Round |
1/2 1308 | 1/2 1308 | 8 | 1.2-1.5 | Cutted |
1/4 1308 | 1/4 1308 | 8 | 1.2-1.5 | Cutted/Fan shape |
Other sizes：
Code | L(mm) | W(mm) | Total Height(mm) | PCD Thickness (mm) | Shape |
12.7*12.7*8 | 12.7 | 12.7 | 8.0(4.5+3.5) | 1.5-2.0 | Square with tip |
9.4*9.4*8 | 9.4 | 9.4 | 8.0(4.5+3.5) | 1.5-2.0 | Square with tip |
12.7*12.7*8 | 12.7 | 12.7 | 8 | 1.5-2.0 | Square |
9.4*9.4*8 | 9.4 | 9.4 | 8 | 1.5-2.0 | Square |
12*12*1.6 | 13.44 | 8 | 1.6 | 1.5-2.0 | Square |
10*10*3.2 | 13.44 | 4 | 3.2 | 1.2-1.5 | Square |
12*12*5.0 | 10 | 10 | 5 | 1.5-2.0 | Square |

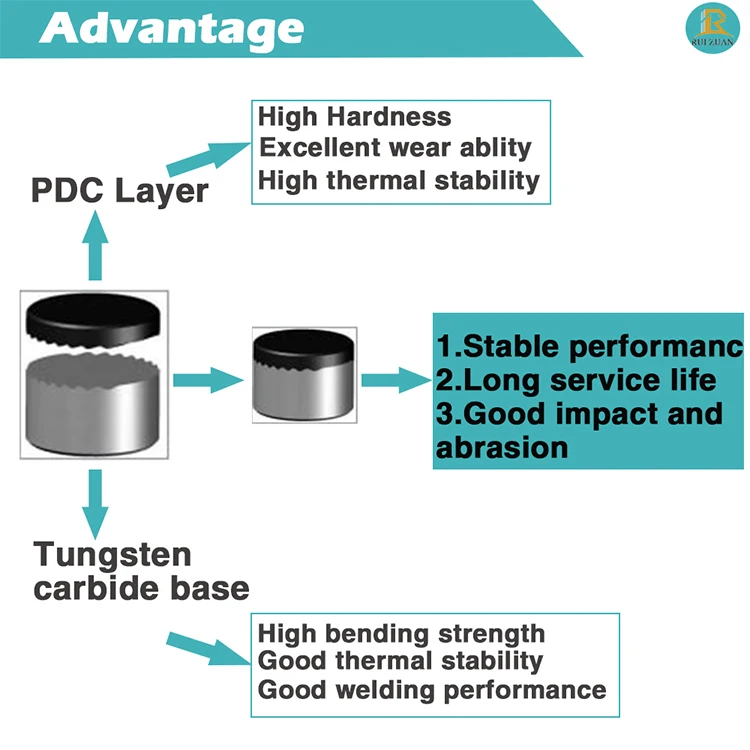

Advantage
2. Stable performance, long service life, good impact and abrasion.
3. Easy to replace inserts on drillers or chain saw machines.
4. Strict quality control: all our PDC cutters will be tested before shipping, and the products you received are all of high quality.
5. Fast delivery: the normal and popular models are always in stock, shipment will be made very soon after your payment is made.
6. OEM & ODM accepted: we can produce PDC cutters as per your drawing.

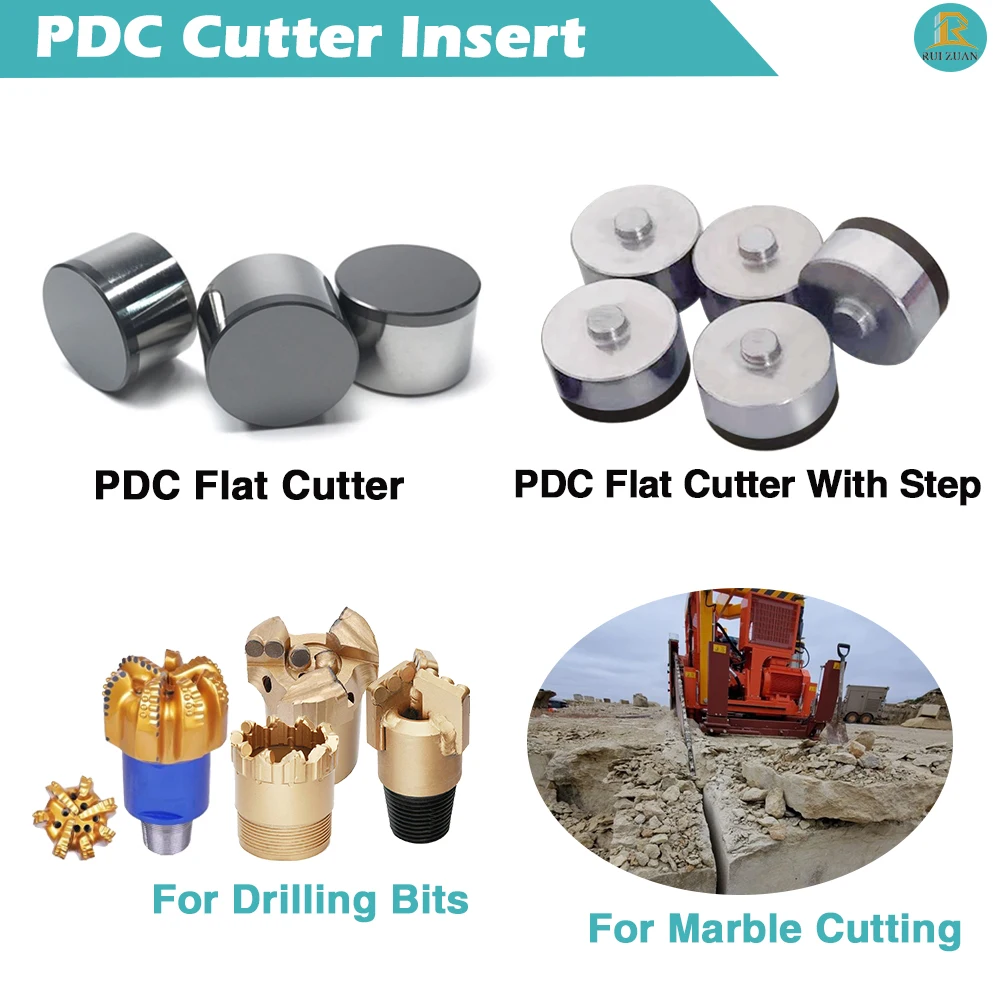

Applications

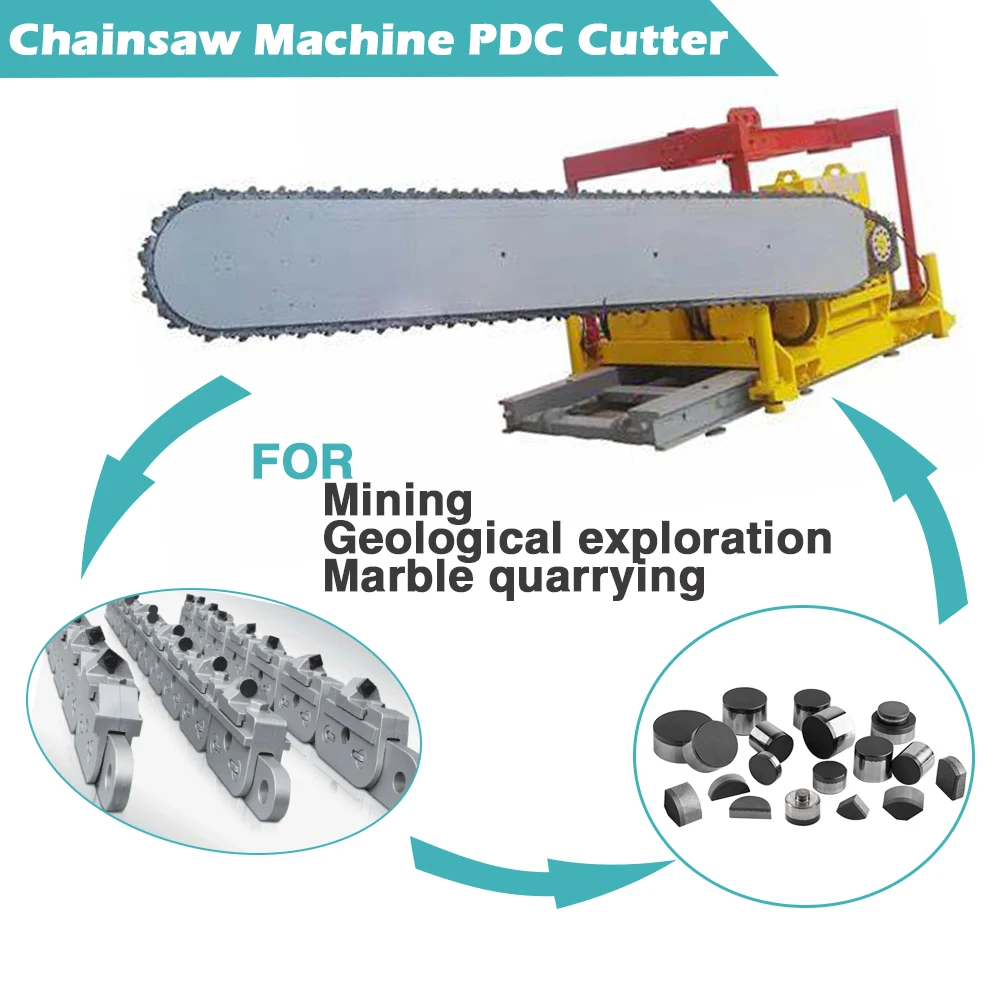

Mainly used for chain saw machine of cutting stone with marble quarry machine and other wear resistant parts.Also can be used for diamond tools for cutting, grinding, and polishing.
used in stone cutting and grinding, coal mining, water well drilling, geological drilling, etc.
For Chain Saw Machine such as FANTINI, GARRONE, BENETTI, DAZZINI, etc., Diamond Wire-saw, Floor Flattening Equipment to process marble, granite, limestone, etc.
Why Choose Us

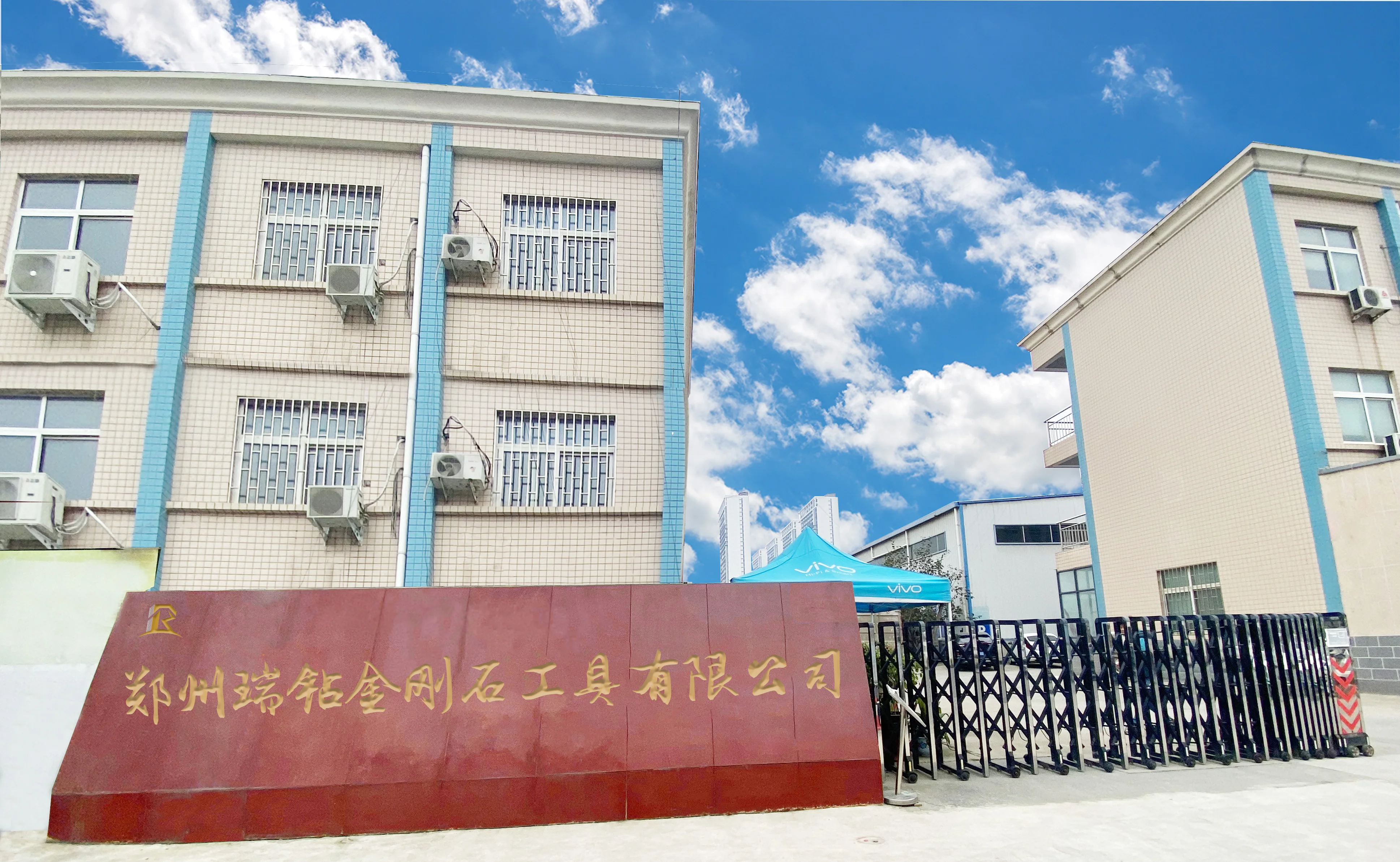

Company Profile
Zhengzhou Ruizuan Diamond Tools Co..Ltd. is committed to providing customers with tools for
grinding,cutting,turning,millingdrilling,and reaming.It includes abrasive tools&wheelsdiamond/CBN wheels
&toolsPCD/PCBNinserts&toolstungsten carbide inserts &toolsand HSS steeltools &cutters. Our tools are applied in many different
industries.Our customers find good applications in woodworking, metalworking,AutomotiveStoneGlassesgemstonesIndustrial ceramic,
oil & Gas drilling and Constructions industries. In these industriesour products are performing well on long
lifetimehigh-efficiency and lessunit-cost.
grinding,cutting,turning,millingdrilling,and reaming.It includes abrasive tools&wheelsdiamond/CBN wheels
&toolsPCD/PCBNinserts&toolstungsten carbide inserts &toolsand HSS steeltools &cutters. Our tools are applied in many different
industries.Our customers find good applications in woodworking, metalworking,AutomotiveStoneGlassesgemstonesIndustrial ceramic,
oil & Gas drilling and Constructions industries. In these industriesour products are performing well on long
lifetimehigh-efficiency and lessunit-cost.
Packing & Delivery
PACKAGE:
SINGLE BOX PER WHEEL,
10 to 20 WHEELS PER CARTON
DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
SINGLE BOX PER WHEEL,
10 to 20 WHEELS PER CARTON
DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
