High Quality 180 Moulds Copper Ingot Machine Advanced Technology Reasonable Price Metal Casting Machinery

Ingot casting conveyor and stacking machine

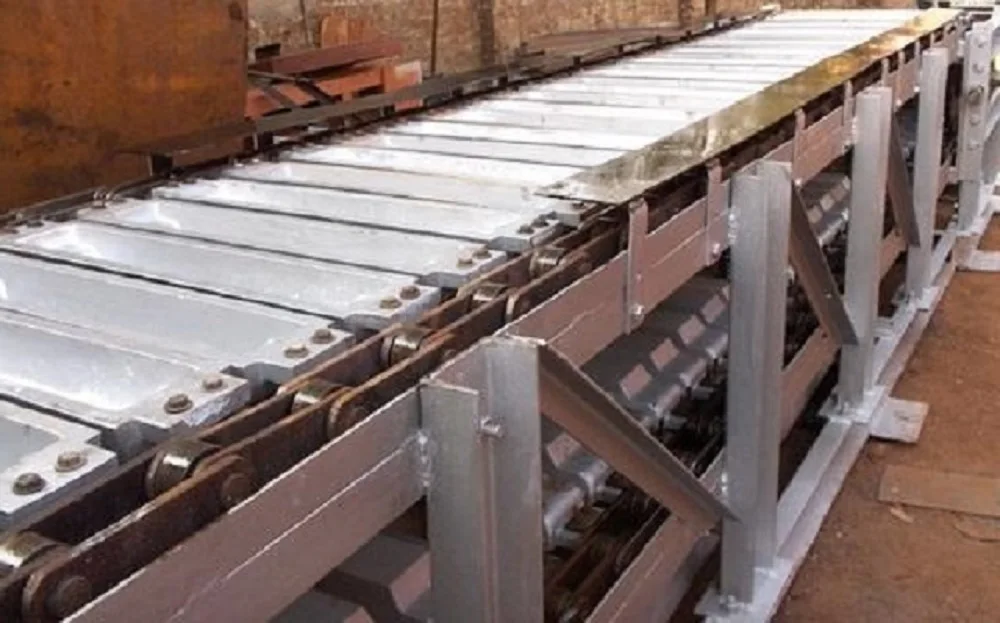

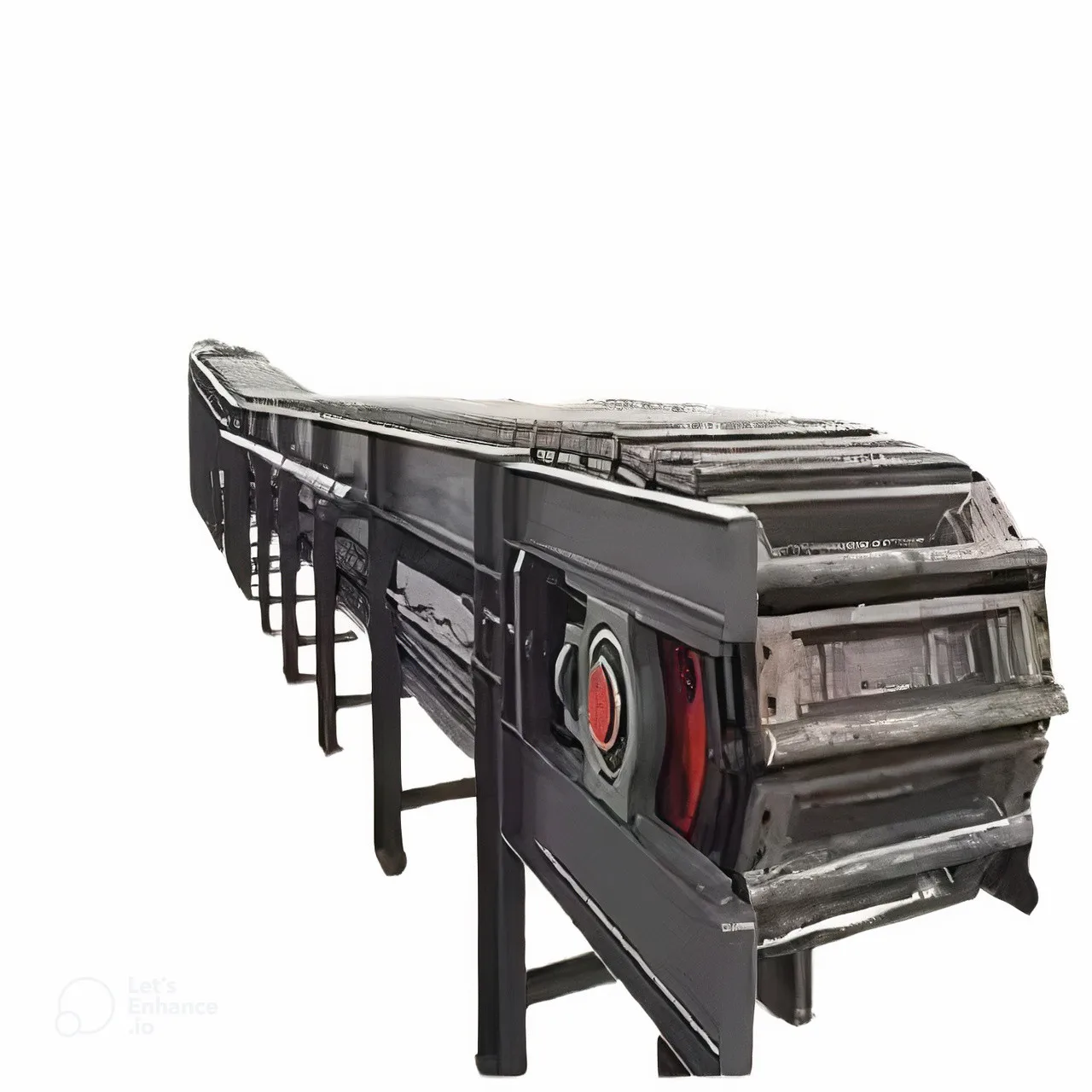

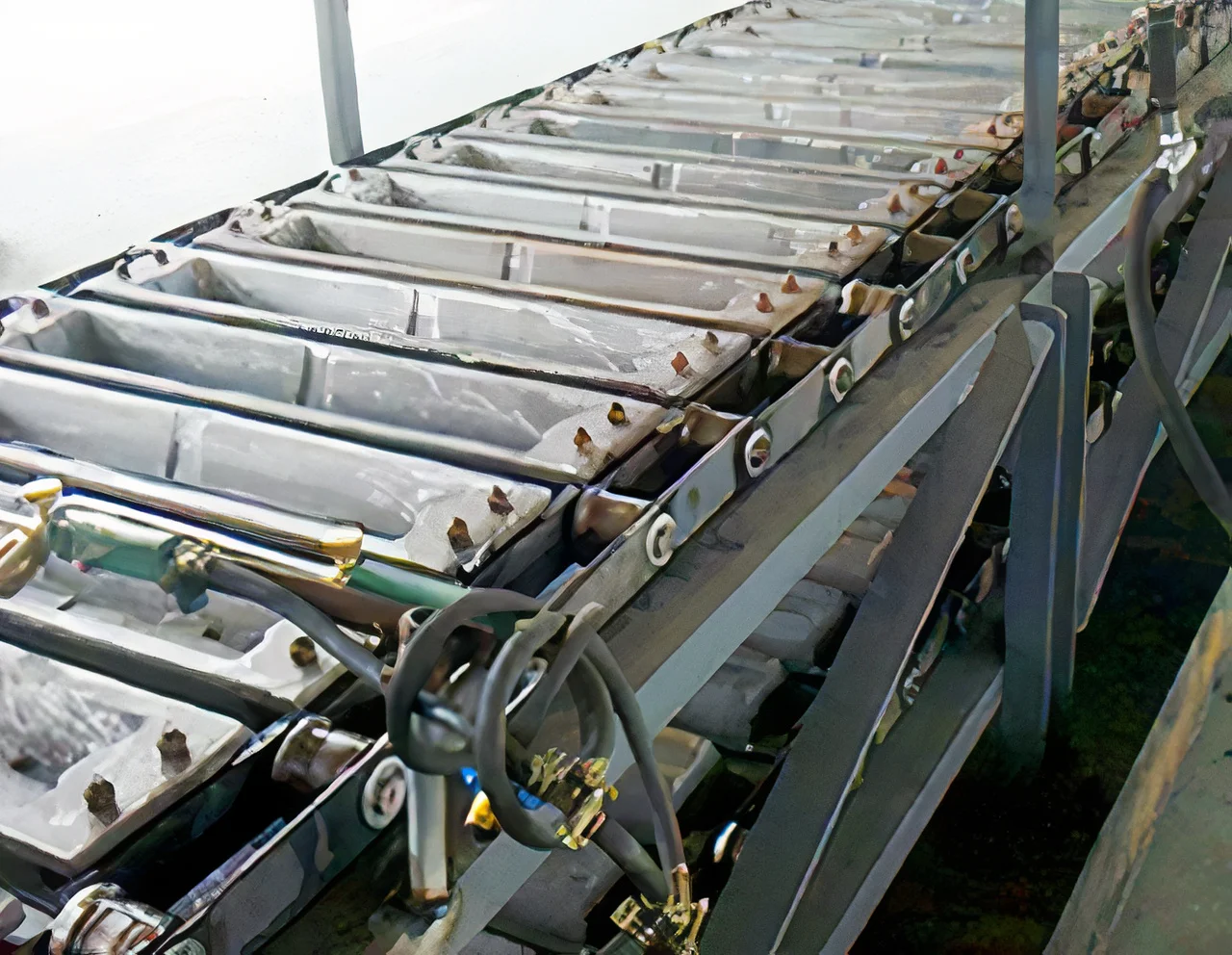

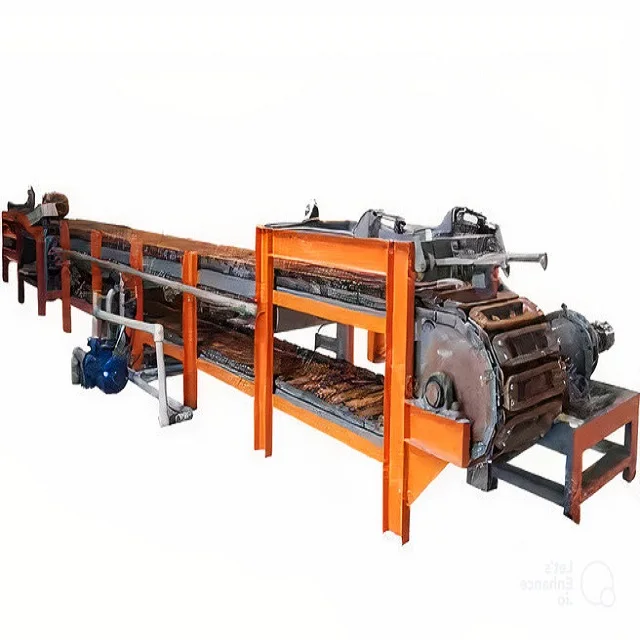

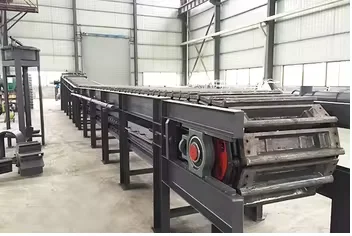

Indotherm Made Ingot Casting machine has been developed to give trouble free production of Aluminum /Lead/Zinc and its alloy. Metal is poured from the furnace in to the casting wheel/Tundish and the system accurately controls the volume of metal in to each mould. The filled moulds travel up the incline , where hey are water cooled. As the molds pass around the head sprocket , they invert , allowing the ingots to fall by gravity- assisted by two knock out hammer.

Data and Specification

 Safety feature - Emergency stop on both side.

Ingot stacking machine

Combining our technical expertise with latest technological development, we offer ingot stacking line work in conjunction with our widest range of ingot casting machine.

We offer stacking system to suit your stacking and space requirement, included in this leaflet are some possible design.

Ingot stacking line

Overhead Gantry Type stacking machine

The stacking machine is suitable to receive ingots from the casting conveyor. It can be arranged in various different configurations from in-line to right angle system.

• It is a PLC control and compressed air power system.


• The configurations are as follows


• A chain-type ingot receiving and accumulation conveyor and selective ingot turnover system.


• An overhead gantry type automatic stacking machine comprising of carriage mounted stacking grab.


• A six-position stack storage conveyor of either twin chain, chain, and slat & stillage type according to stack type.


• The stacker will build single square stacks of nested –cross-layered ingots, on either precast or wooden pallet bases or regular foot ingots.


• An automatic weighing machine and strapping machine is also available at extra cost.

Salient features

• Less complicated design


• Suitable for hot and dusty atmosphere


• The maintenance is easier and less time consuming


• The layout is more versatile


• Spare parts and consumables are cheaper


• It is easier to re–program.

 Combination of ingot casting machine and stacking system

To remove the need for external control of the ingots , each ingot is partially ejected from the mold using a synchronized hammer action connected to the movement of the mold conveyor.

A fixed guide is place below the mold ejection system to remove the ingot from the ingot casting line and guide it to the take away conveyor in an inverted position.

Lay out option

Different lay out option is available to suit customer requirement.

The most common layouts are.

• Straight line layout where ingots are stacked only at one end of the chain conveyor


• Cross over layout where ingots are stacked at both the end of the Conveyor.

Turn over collator

Ingots will be presented from the out feed of the cooling conveyor generally cross wise on the conveyor having been pushed onto the short conveyor by a pusher bar mounted above the end of the cooling conveyor with a drive to the side out of the way of the heat build up.

• Positioning stop will ensure that each ingot is stopped briefly to it straighten up.


• The first ingot will be released from the stops and travel along the short conveyor. The next ingot will stop against the stops behind the first ingot.


• Two grippers will locate on the ends of the next ingots and rotate about a horizontal axis lifting the ingot over the stops and placing it face down after the stop. The sequence will than be repeated.


• The conveyor will be narrower than the length of the billets so that the gripper of the palletiser can pick a layer of billets by lifting under the exposed ends of the billets.
