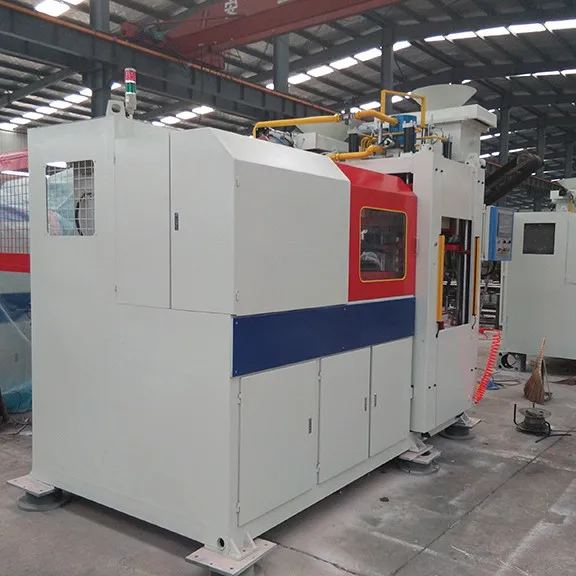

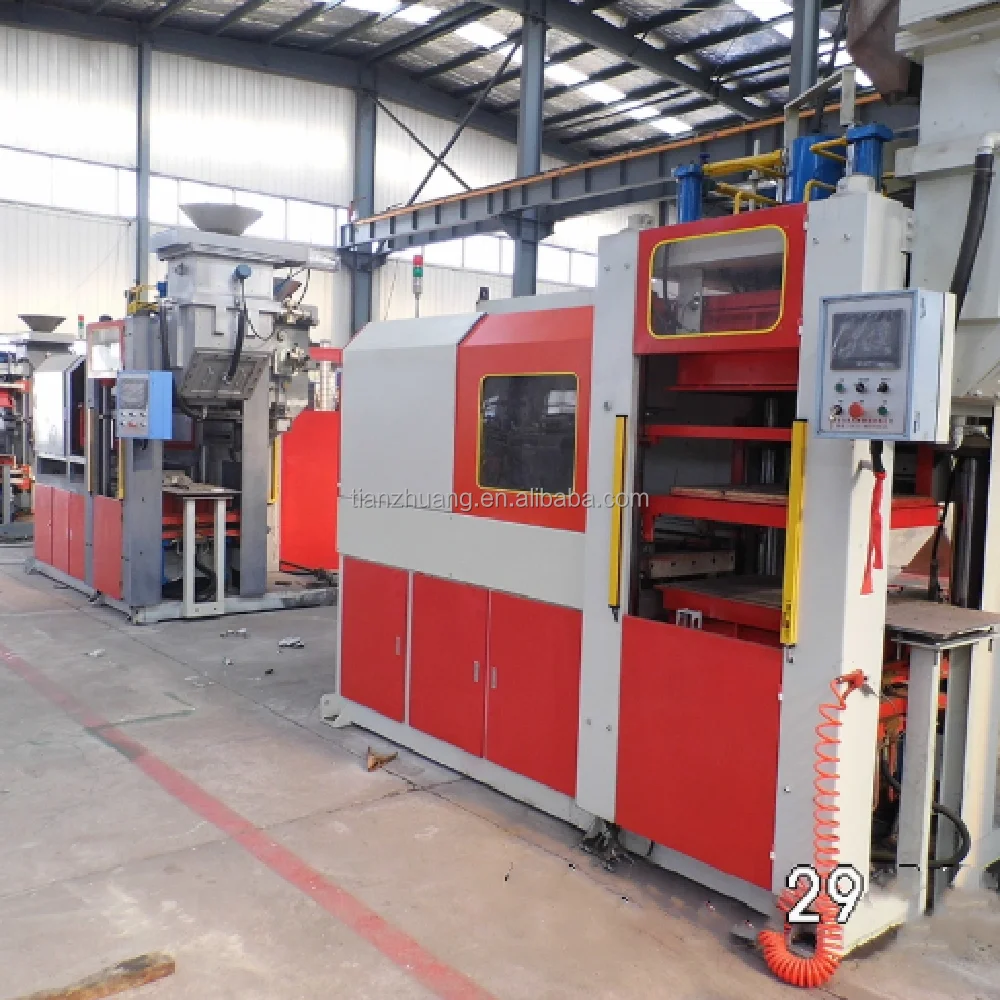

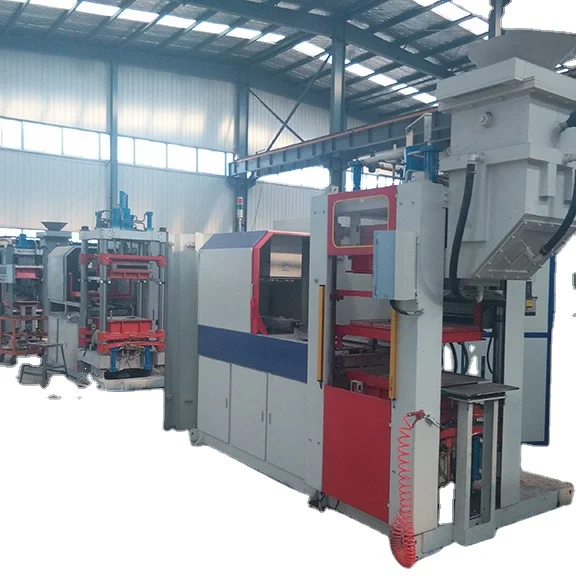

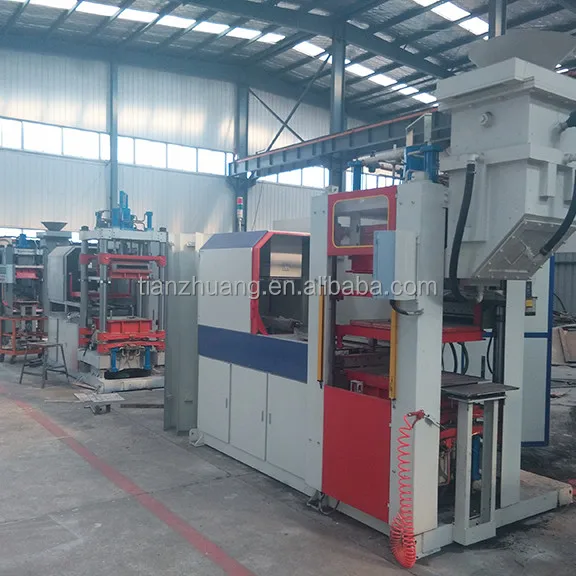

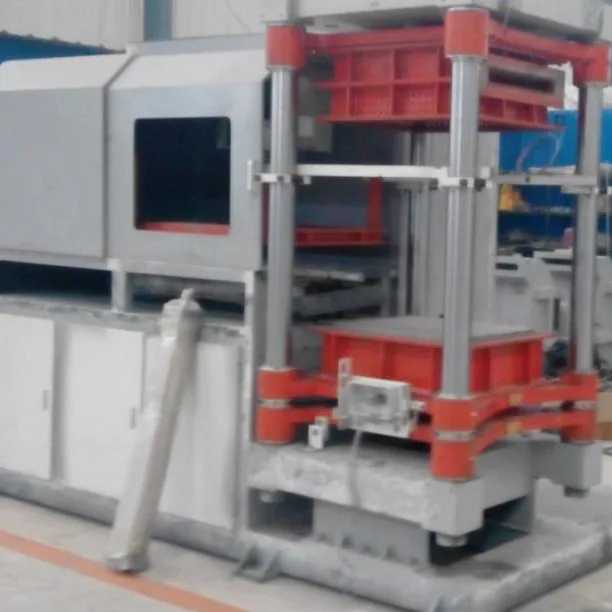

Automatic Horizontal Parting Flaskless Molding Casting Machine
1. The equipment has good stability, high production efficiency, long service life and low energy consumption.
2. Integrated design, simple and convenient operation, quick installation, much safer.
3. Fully sealing, more environmentally friendly, simple operation, easy fault check, low maintenance cost.
4.Imported servo hydraulic system, stable operation, high precision, low noise, own oil temperature function system, energy saving and environmental protection.
5. Flexibly adjust sand shooting pressure and sand gas flow according to the product. Can be customized according to customer product requirements for sand box size, sand mold height to increase multi-contact and bidirectional compaction and other personalized customization.
2. Integrated design, simple and convenient operation, quick installation, much safer.
3. Fully sealing, more environmentally friendly, simple operation, easy fault check, low maintenance cost.
4.Imported servo hydraulic system, stable operation, high precision, low noise, own oil temperature function system, energy saving and environmental protection.
5. Flexibly adjust sand shooting pressure and sand gas flow according to the product. Can be customized according to customer product requirements for sand box size, sand mold height to increase multi-contact and bidirectional compaction and other personalized customization.
FEATURES AT A GLANCE
Casting machine it's main function：
Sand filling, the loose molding sand into the sand box; Compacting molding sand, through shaking, compaction, shaking pressure, shooting pressure and other different methods to compact the loose molding sand in the sand box, so that the sand has the necessary strength in the process of handling and pouring; Mold, using different mechanisms to remove the shape from the compacted sand mold.
Machine features:
1. Adopting the most advanced technology in the German molding machine industry, supporting future cloud controlled production programs, the control system adopts Siemens PLC, touch screen, and remote control interface.
2. The cylinder and solenoid valve of the motion system adopt Airtac (Taiwan Yadeke) international standard solenoid valves, with large flow rate, longer service life, and strong international universality
3. The solenoid valve and pressure switch of the turbocharging system adopt SMC (Japanese brand)
4. The proximity sensor adopts German Yifu Gate, which is a top brand manufacturer specializing in the production of sensors in the world, with a quality guarantee of five years.
5. The key sealing components adopt the British brand CEI, which is not brittle at low temperatures and resistant to aging at high temperatures.
6. The workbench is made of high-quality 16 manganese carbon structural steel, which has high strength and good fatigue resistance.
7. The turbocharging system adopts a Taiwanese brand, with fast turbocharging speed, no leakage, and low operating cost.
8. French Schneider is used for operating electrical appliances,
9. The production process and process strictly follow the ISO9001 quality management system standard, ensuring that every step of production is dedicated to providing customers with satisfactory equipment.
2. The cylinder and solenoid valve of the motion system adopt Airtac (Taiwan Yadeke) international standard solenoid valves, with large flow rate, longer service life, and strong international universality
3. The solenoid valve and pressure switch of the turbocharging system adopt SMC (Japanese brand)
4. The proximity sensor adopts German Yifu Gate, which is a top brand manufacturer specializing in the production of sensors in the world, with a quality guarantee of five years.
5. The key sealing components adopt the British brand CEI, which is not brittle at low temperatures and resistant to aging at high temperatures.
6. The workbench is made of high-quality 16 manganese carbon structural steel, which has high strength and good fatigue resistance.
7. The turbocharging system adopts a Taiwanese brand, with fast turbocharging speed, no leakage, and low operating cost.
8. French Schneider is used for operating electrical appliances,
9. The production process and process strictly follow the ISO9001 quality management system standard, ensuring that every step of production is dedicated to providing customers with satisfactory equipment.
The variable frequency hydraulic system adopts the Japanese original hydraulic assembly and Inwittens motor and frequency converter, which saves 20%-40% power compared with the variable frequency motor.
Pneumatic system using Taiwan Yadeke cylinder, solenoid valve, pneumatic components.
The electric control system adopts Omron PLC controller. Multi-touch screen, encoder, etc.
Operation advantages of automatic molding machine
1. Shooting sand without dead ends.
2. Horizontal shooting sand,leading technology.
3. Air enter in from three sides,shooting sand evenly.
4. Air enter in from three sides,shooting sand evenly.
5. Higher compactness.
6. Full sealing,more Eco-friendly.
7. Adjustable variable frequency and speed.
8. Integrated design,quick installation,easy to use,much safer.
9. High precision components, redyuce wear,increase using life.
PRODUCT SPECIFICATIONS
Model | TZZJ-550*450 | TZZJ-600*500 | TZZJ-650*550 | TZZJ-710*610 | |||
Size of Sand Mold (mm×mm) | 550*450mm | 600*500mm | 650*550mm | 710*610mm | |||
Sand Mold Thickness (mm) | Up 120-180 Down 120-180 | Up 120-220 Down 120-220 | Up 120-220 Down 120-220 | Up 120-220 Down 120-220 | |||
Molding | Sand shooting squeeze molding | ||||||
Moulding speed (Sec/mMoulding speed (Sec/mold)old) | 32(Without the time of putting sand core) | 36(Without the time of putting sand core) | 38(Without the time of putting sand core) | 38(Without the time of putting sand core) | |||
Compaction pressure | 0.6Mpa 2 segment conversion mode | 0.7Mpa 2 segment conversion mode | 0.7Mpa 2 segment conversion mode | 0.7Mpa 2 segment conversion mode | |||
Drive mode | Hydraumatic-pneumatic | ||||||
Air consumption | 1.1m3(Normal/mold) | 1.2m3(Normal/mold) | 1.2m3(Normal/mold) | 1.3m3(Normal/mold) | |||
Power supply | AC220-380V (Operation DC24V) | ||||||
Sand mold weight | 85kg | 130kg | 150kg | 210kg | |||
Motor power | 24KW | 28KW | 28KW | 36KW | |||

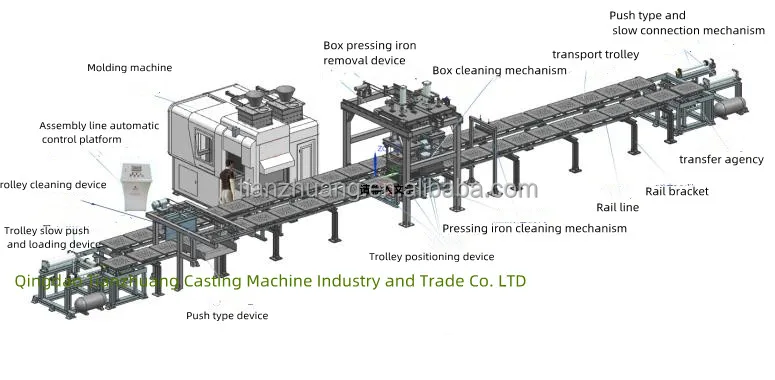

PRODUCT CONFIGURATION

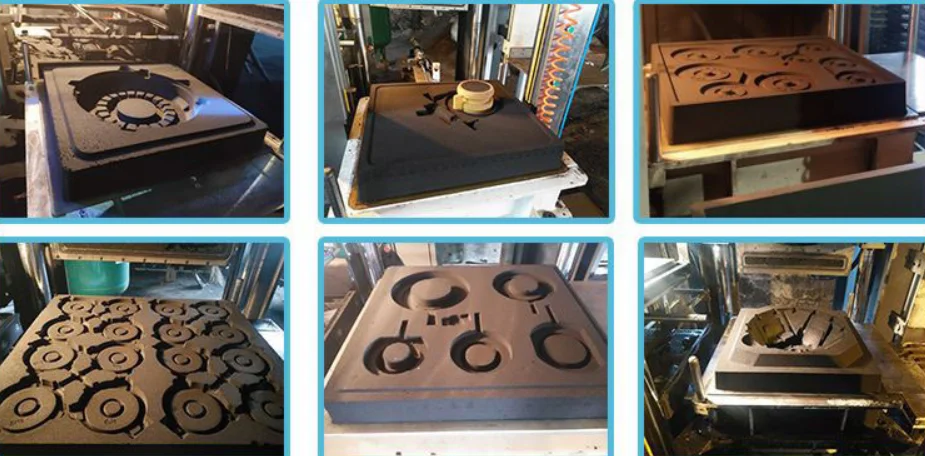

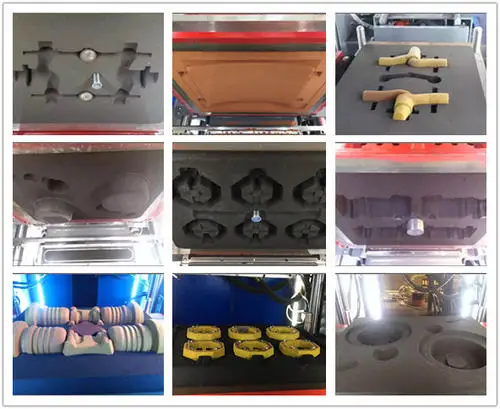

Pump body casting, composite core
The gearbox cover is filled evenly and fully

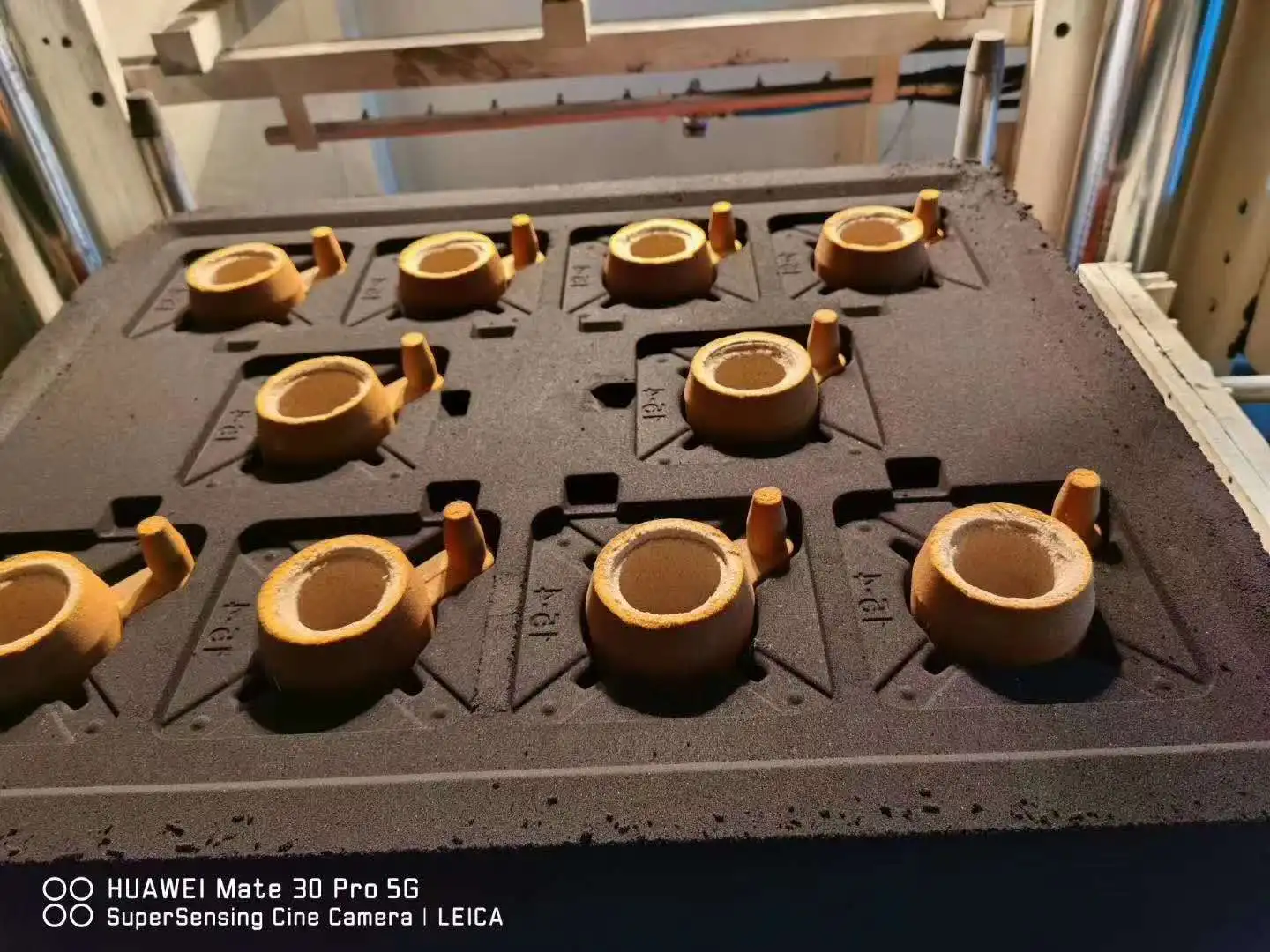

Automotive parts castings

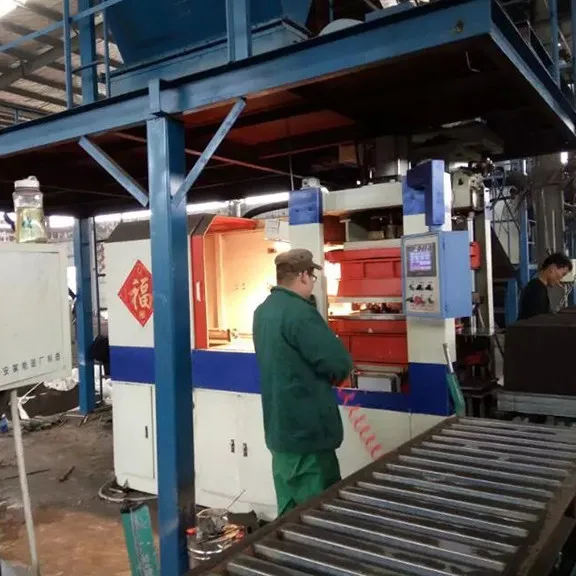

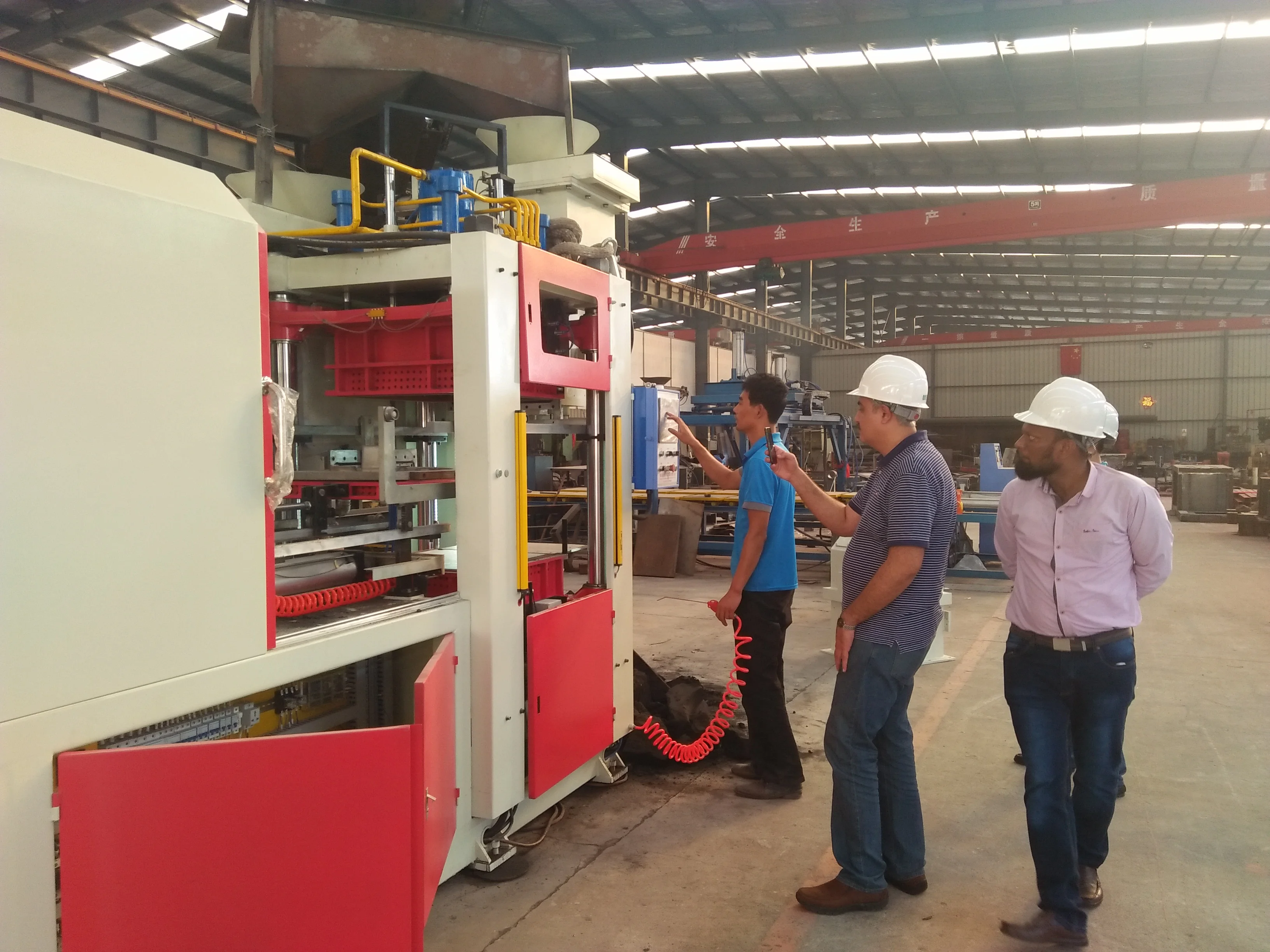

Successful Project

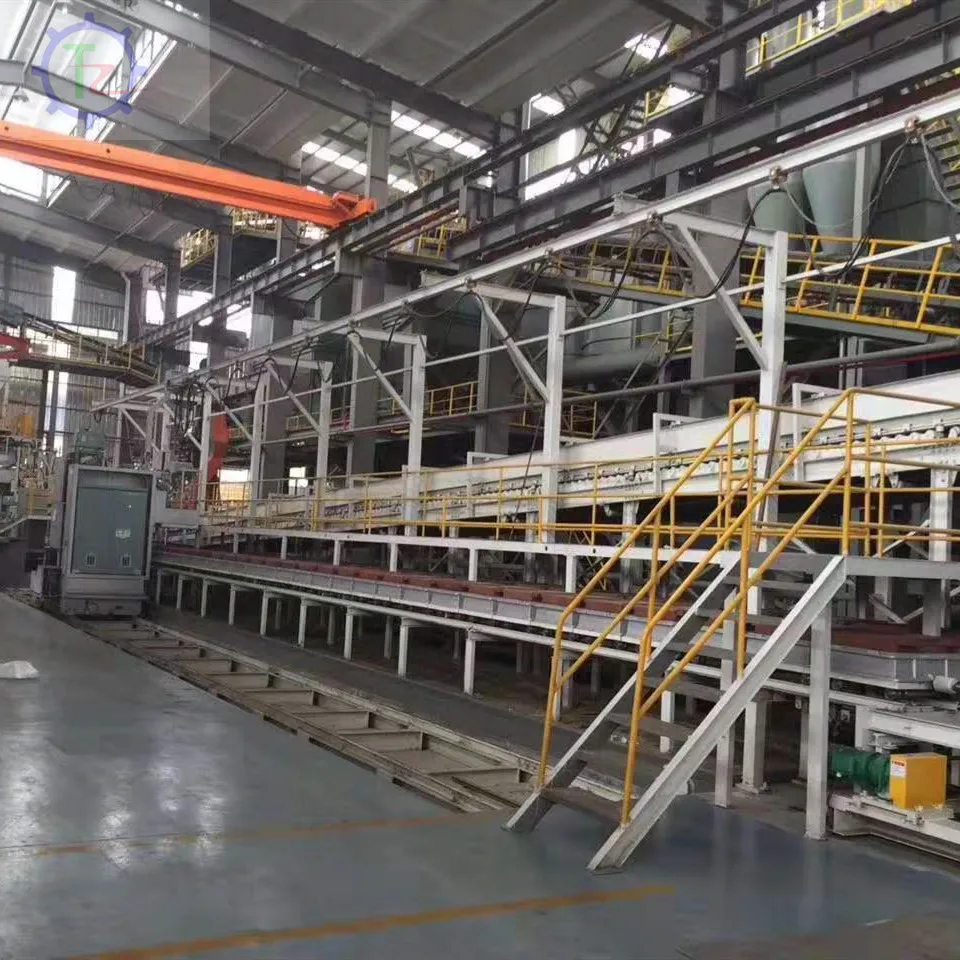

Sand treatment line

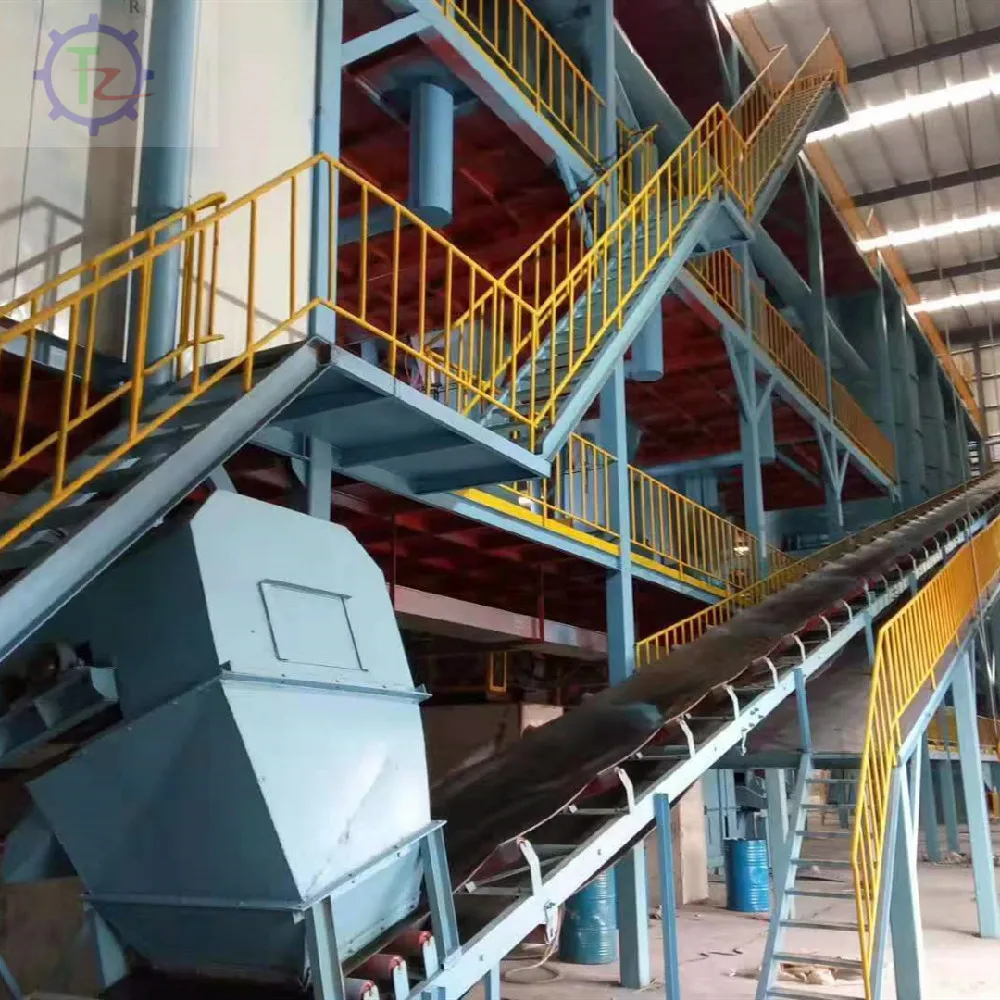

Belt conveyor

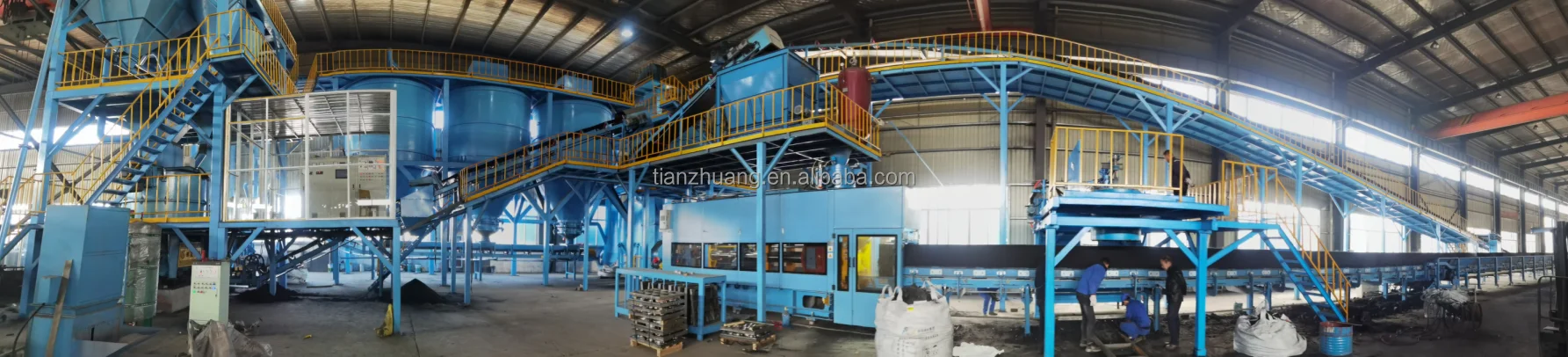

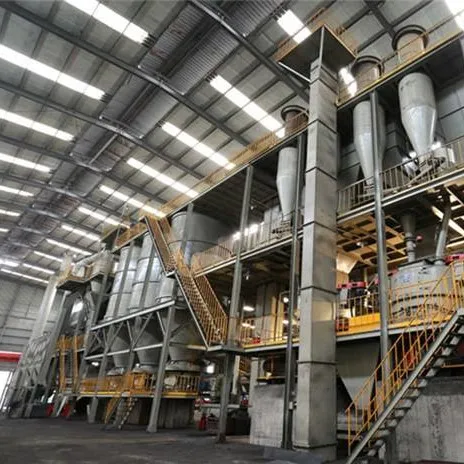

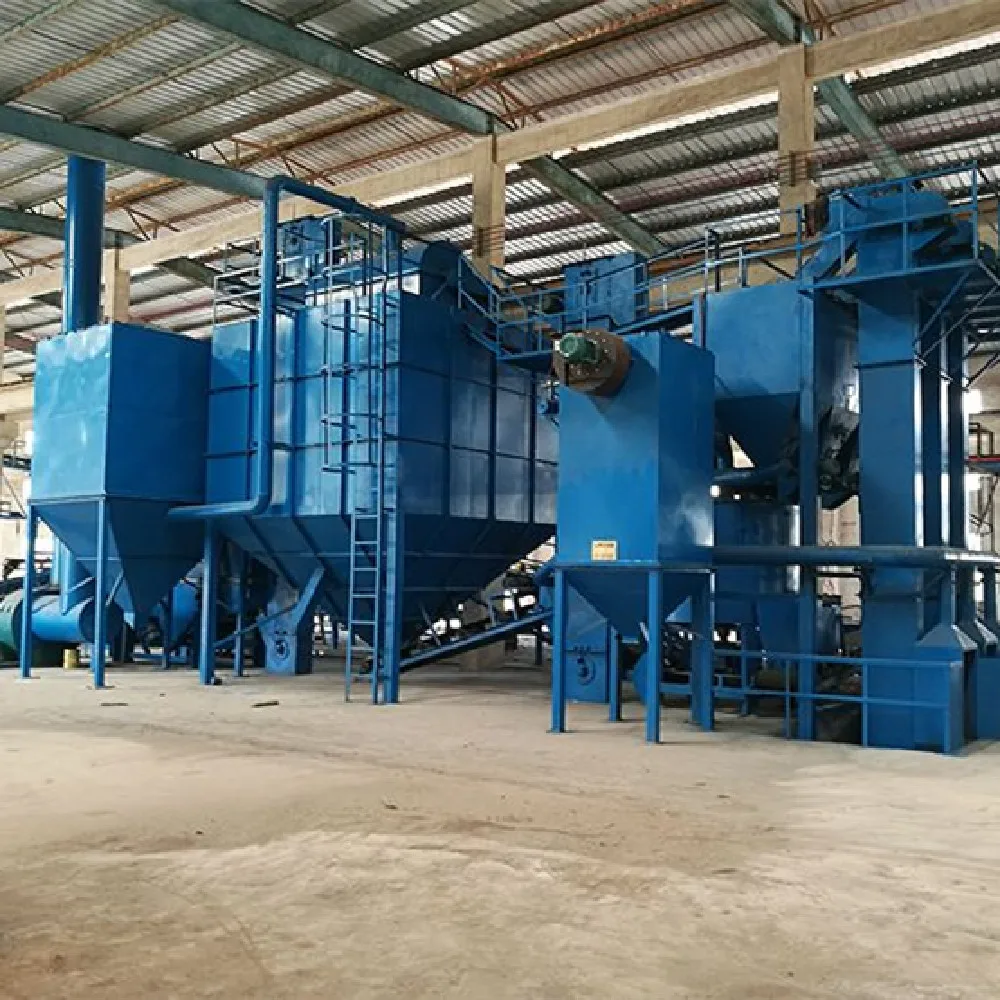

Sand treatment plant
