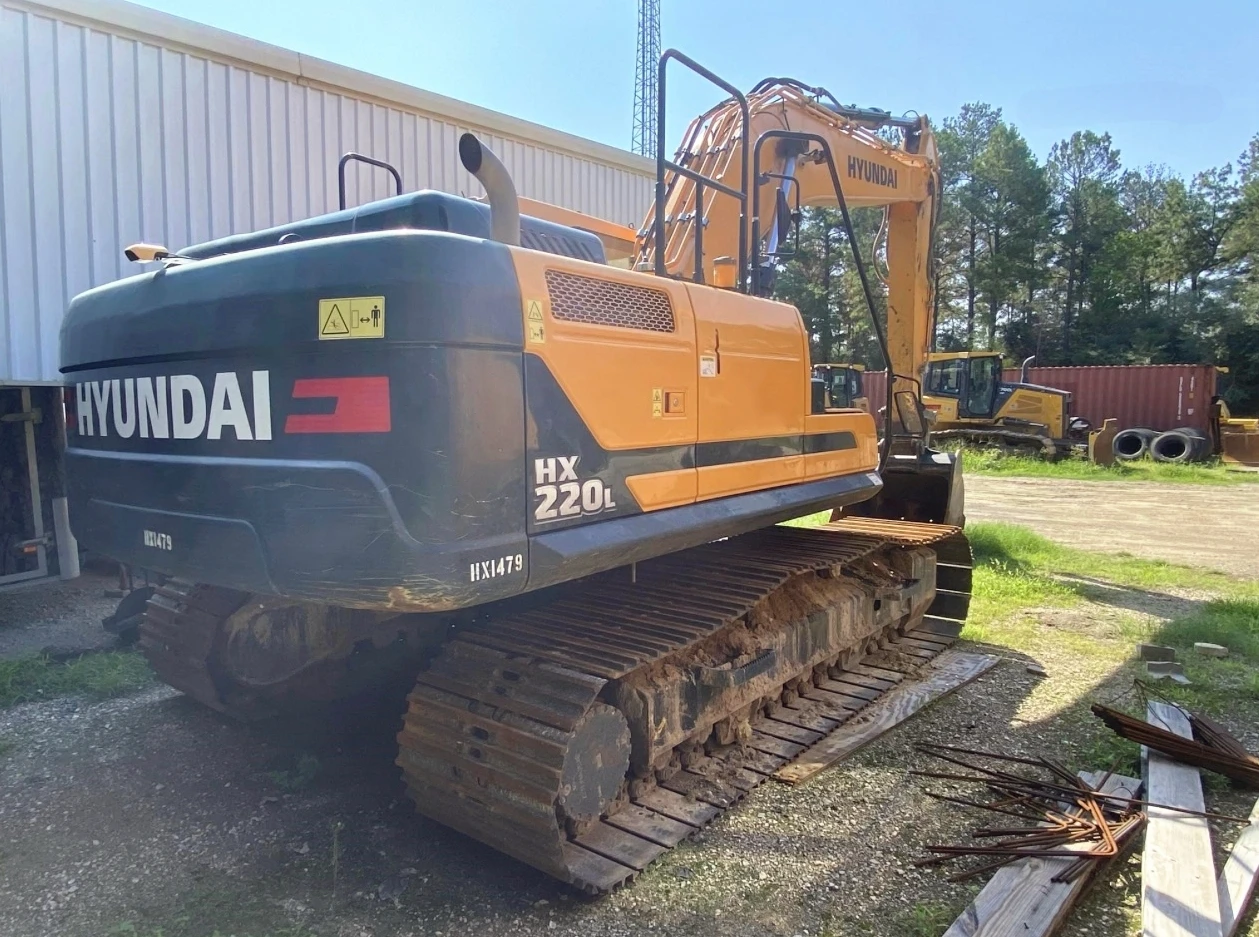

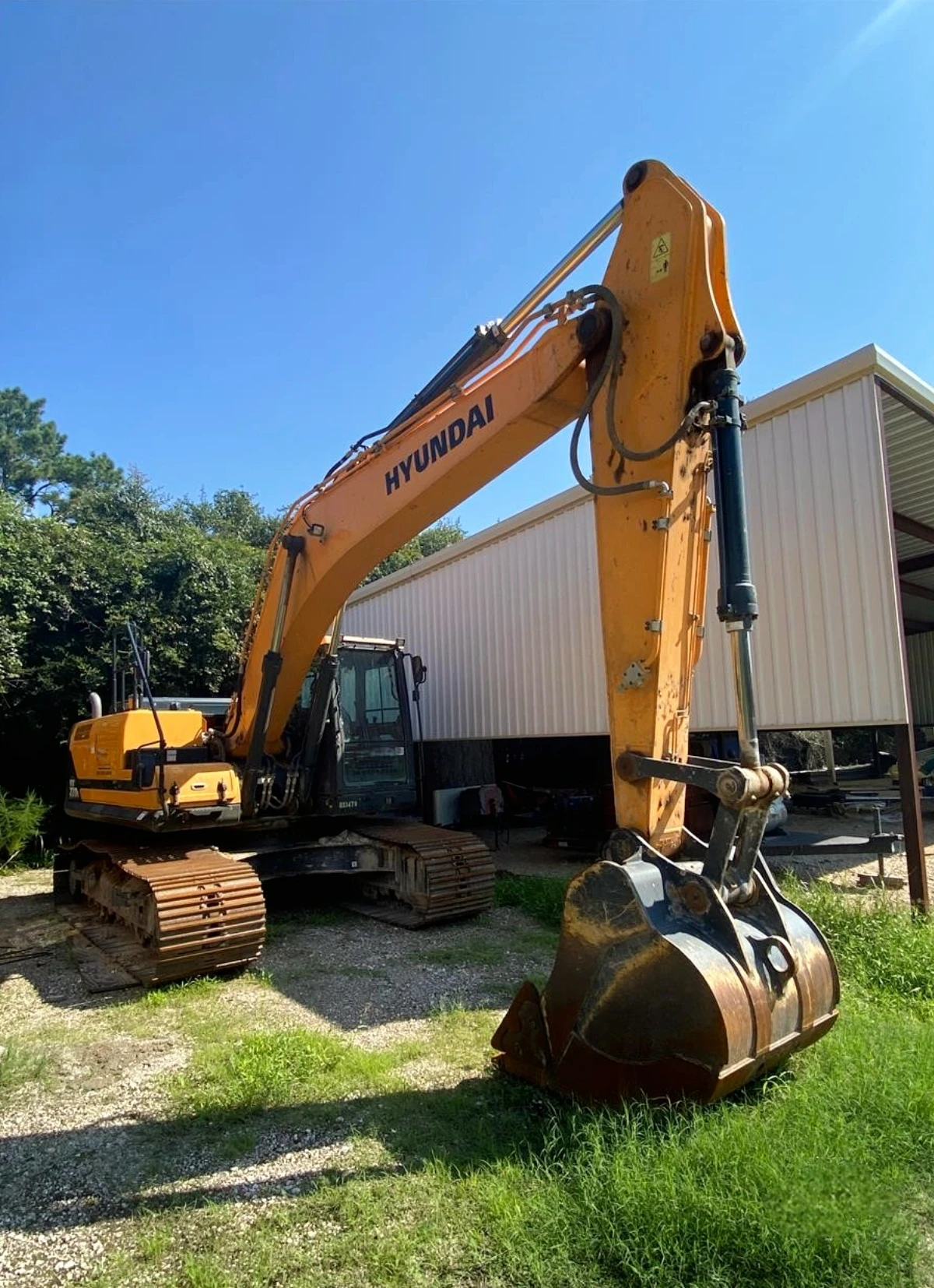

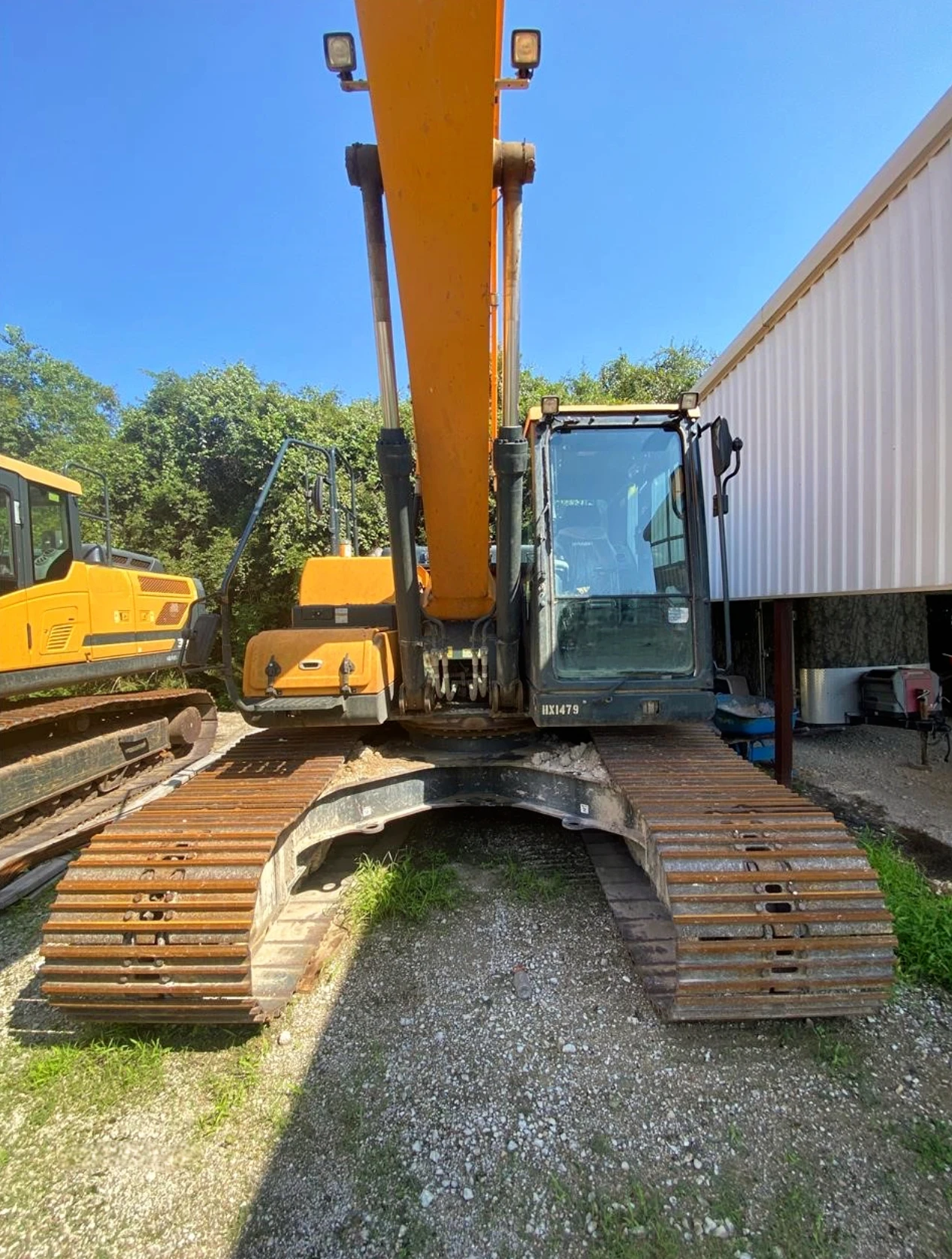

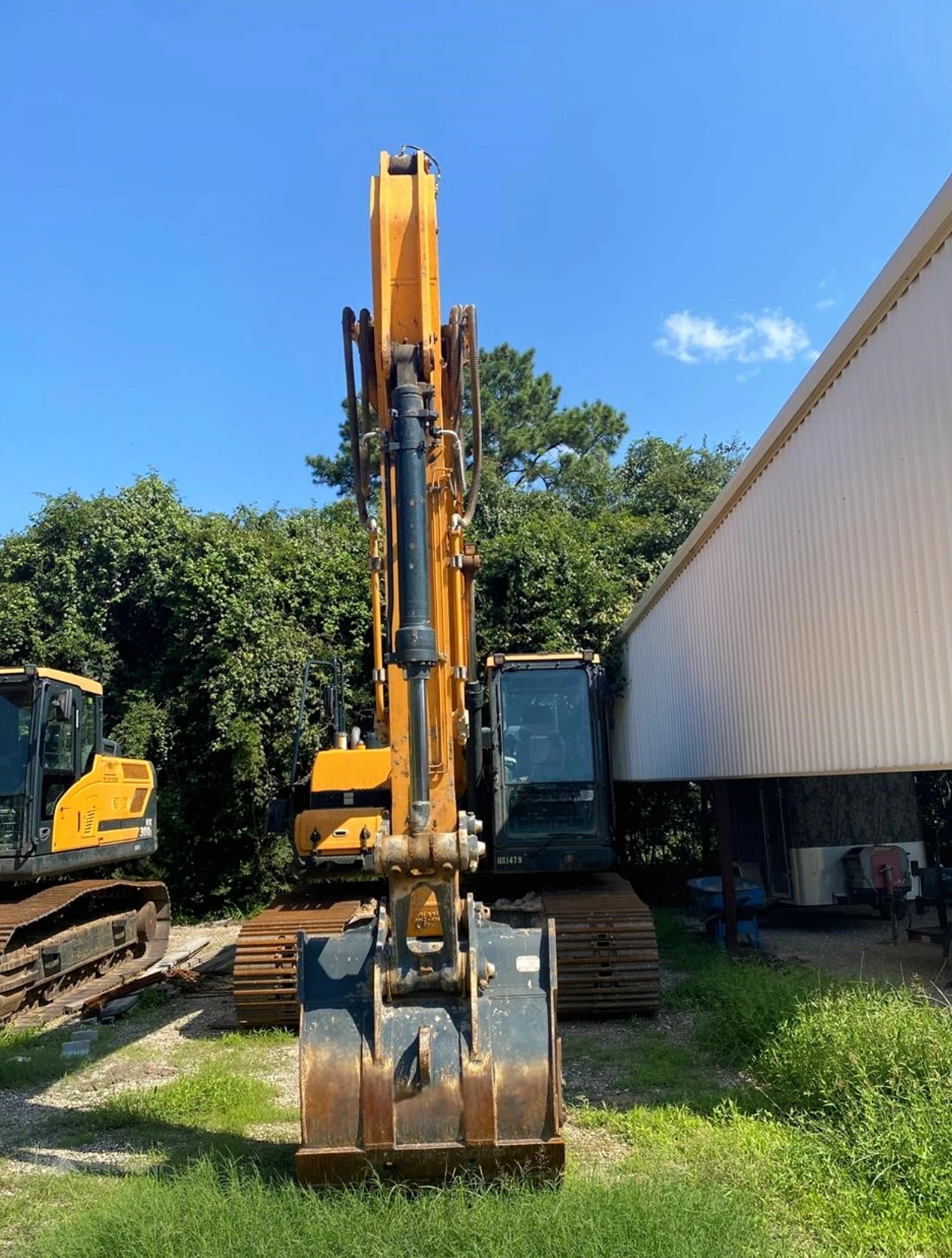

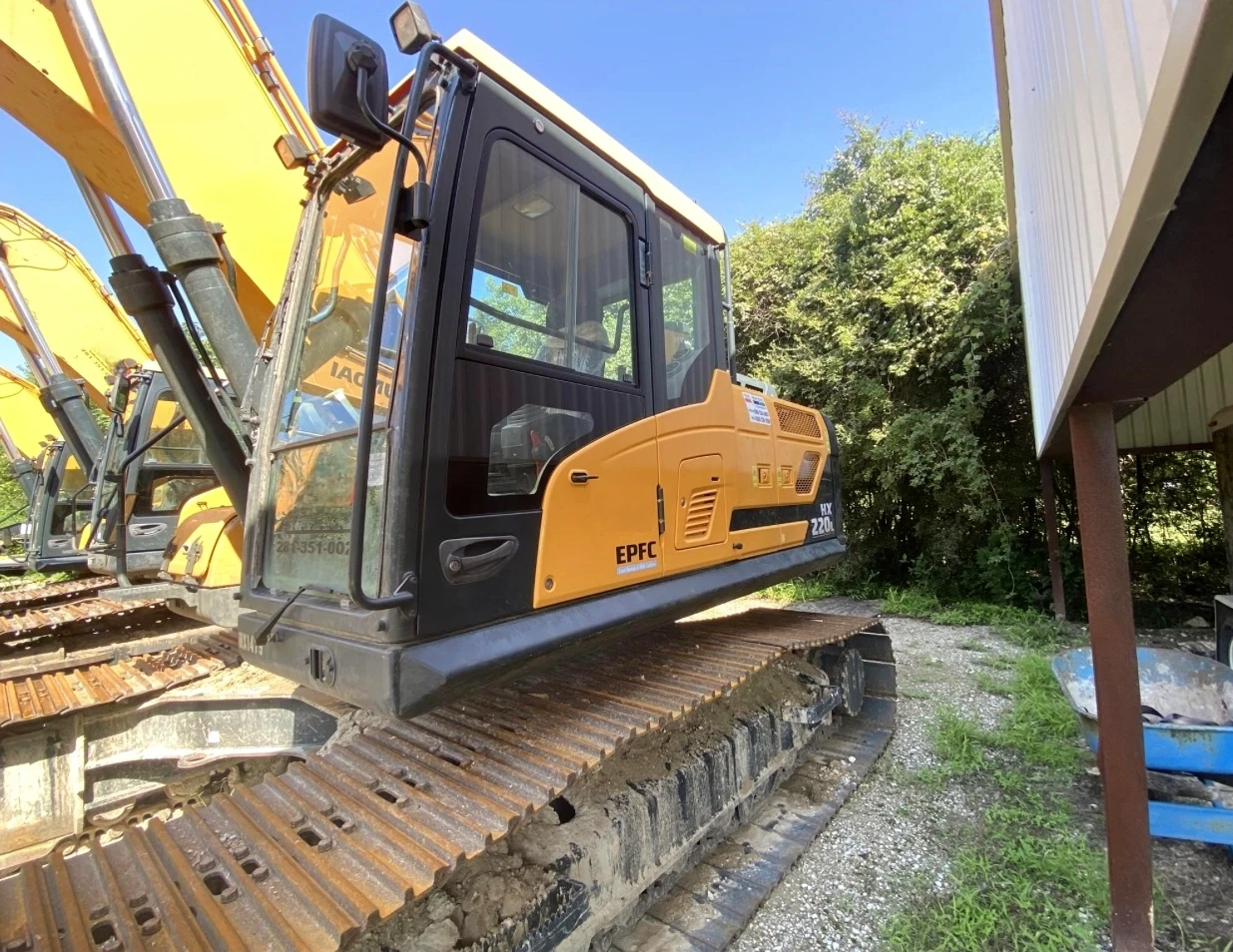

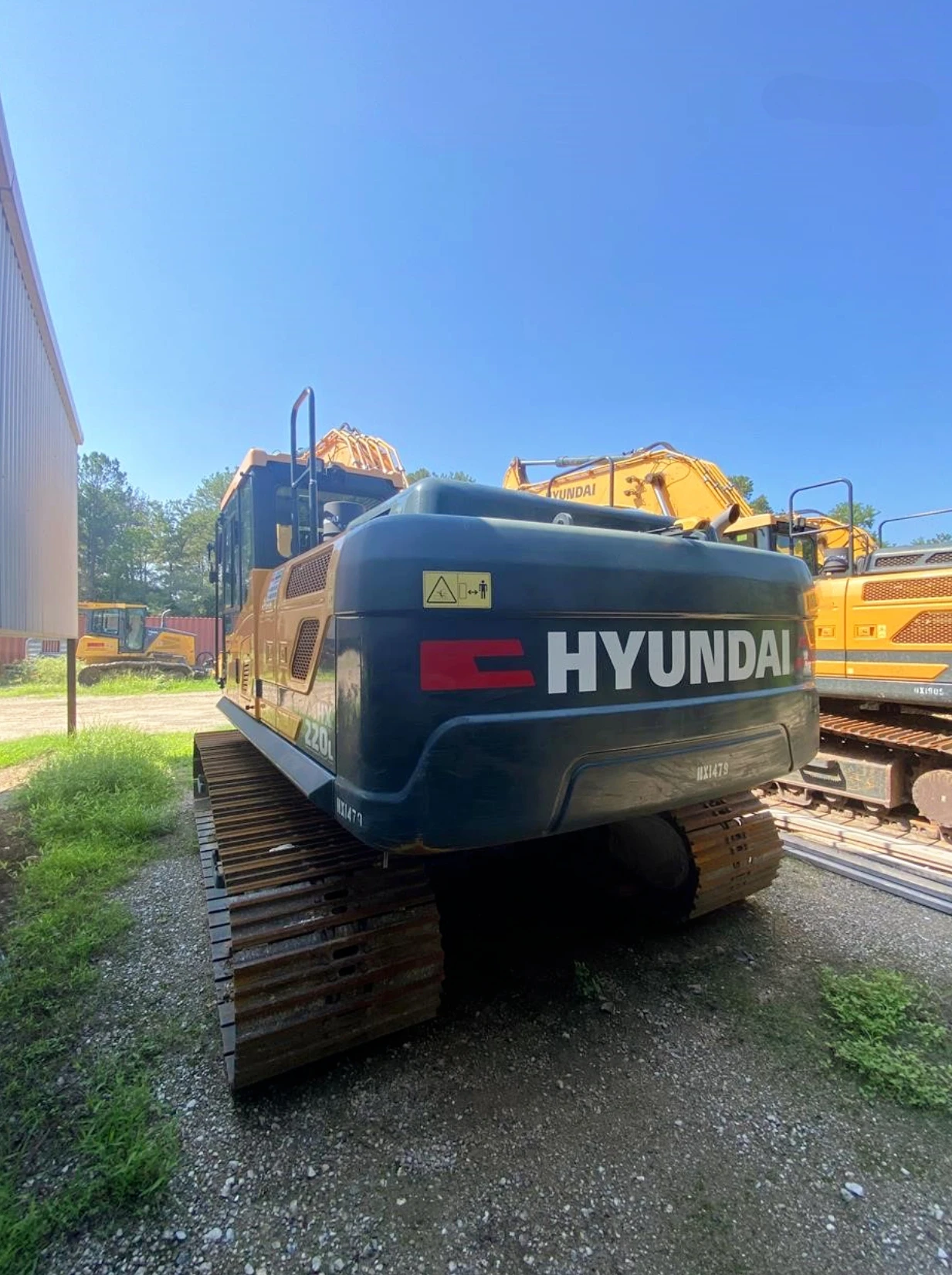

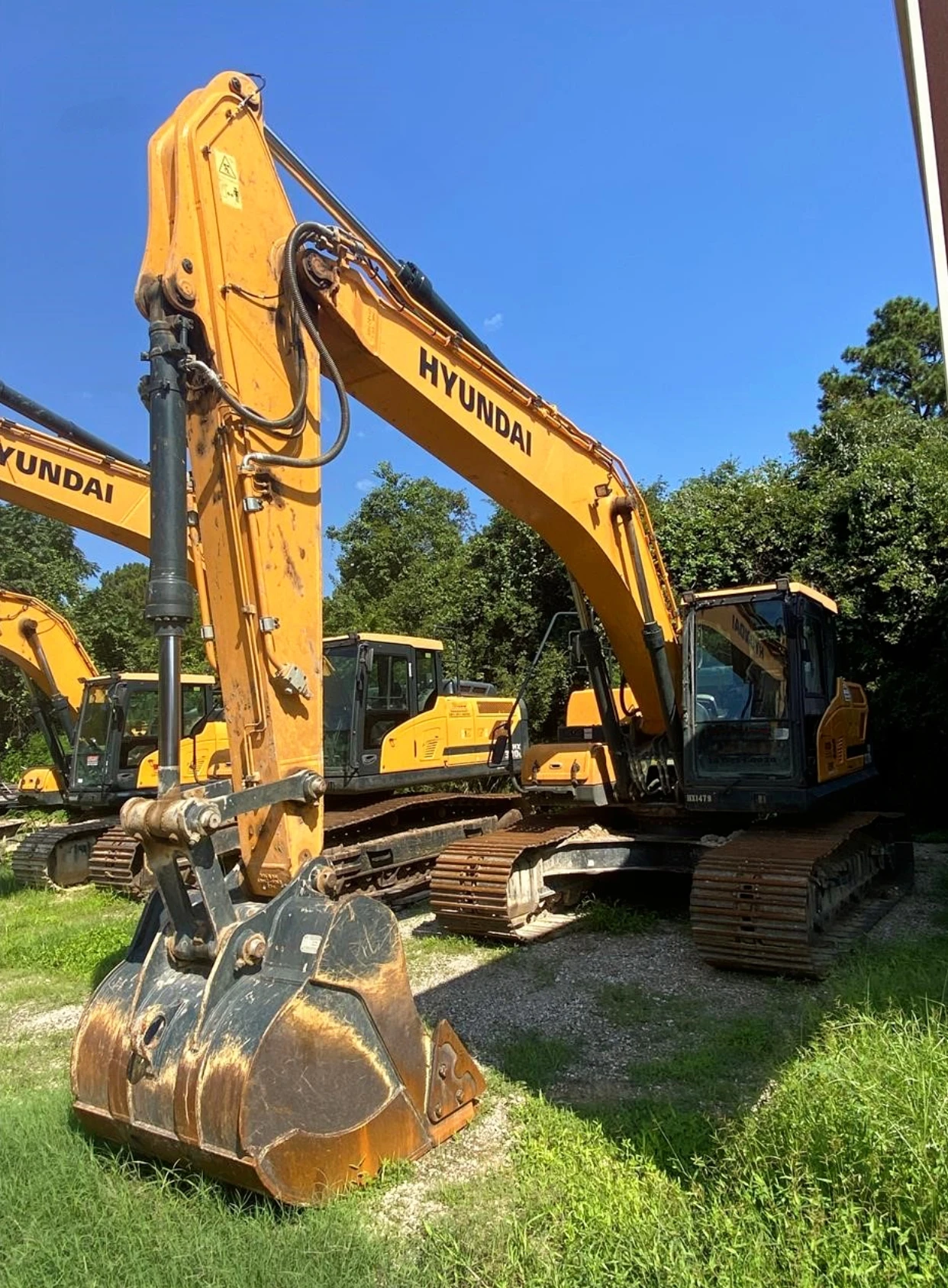

50% Off Hot Sale HX220L With Low Hours Power Quick Attach Good Tracks Fully Serviced Ready to Run And Operate
- Category: >>>
- Supplier: Senoc Point-Of-Sale Marketing
Share on (10000018573446):
Product Overview
Description
Welcome to Senoc Point-Of-Sale Marketing Philippines!
Our company is a DTI-registered with BNN 2954168 located in Terelay Industrial Estate, BO. Portland, Provincial Rd., Calabarzon, Philippines.
Our company has the widest choices of mostly second-hand original brands of heavy equipment such as: Loader Backhoes, Skid Steers(Tracked/ Wheeled), Excavators (Mini/ standard), Wheel Loaders, Forestry Equipment, Crawler Dozers, Combine Harvesters, Farm Tractors.
We guarantee the quality of our equipment by providing a detailed operating video, a notarized sales contract, basic insurance, and up-to-date inspection report.
Our incoterm is FOB and CIFdepending on buyer’s preference.
FOB is under Free On Board, we are responsible for delivering the goods to the port of departure, clearing it for export, and loading the goods on the vessel.
CIF is under Cost, Insurance and Freight, we are responsible for delivering the goods, clearing for export, onboarding the vessel at the port of shipment, paying for the transport of the goods to the port of destination, obtaining and paying for minimum insurance coverage on the goods through their journey to the named port of destination.
Our method of payment is30% deposit payment of the total amount before shipment and 70% of the remaining balance after shipping confirmation.
Selecting an Excavator for your operation is an important investment. You need a machine that provides straightforward, dependable performance to tackle any project on your farm or homestead as well as those you might want to do five years down the road.
HYUNDAI Excavators are designed to provide high performance in a variety of applications while still being user- and maintenance-friendly.
Boom/Stick Excavator Option 1
Max Cutting Height | 30 ft (9 m) |
Max Digging Depth | 19 ft (6 m) |
Max Loading Height | 21 ft (6 m) |
Max Reach Along Ground | 29 ft (9 m) |
Max Vertical Wall Digging Depth | 17 ft (5 m) |
Shipping Height of Unit | 11 ft (3 m) |
Shipping Length of Unit | 32 ft (10 m) |
Boom/Stick Excavator Option 2
Max Cutting Height | 31 ft (9 m) |
Max Digging Depth | 21 ft (6 m) |
Max Loading Height | 21 ft (7 m) |
Max Reach Along Ground | 31 ft (9 m) |
Max Vertical Wall Digging Depth | 19 ft (6 m) |
Shipping Height of Unit | 10 ft (3 m) |
Shipping Length of Unit | 31 ft (10 m) |
Boom/Stick Excavator Option 3
Max Cutting Height | 32 ft (10 m) |
Max Digging Depth | 22 ft (7 m) |
Max Loading Height | 22 ft (7 m) |
Max Reach Along Ground | 32 ft (10 m) |
Max Vertical Wall Digging Depth | 21 ft (6 m) |
Shipping Length of Unit | 31 ft (10 m) |
Boom/Stick Excavator Option 4
Max Cutting Height | 33 ft (10 m) |
Max Digging Depth | 25 ft (8 m) |
Max Loading Height | 24 ft (7 m) |
Max Reach Along Ground | 35 ft (11 m) |
Max Vertical Wall Dig Depth | 24 ft (7 m) |
Shipping Length of Unit | 31 ft (10 m) |

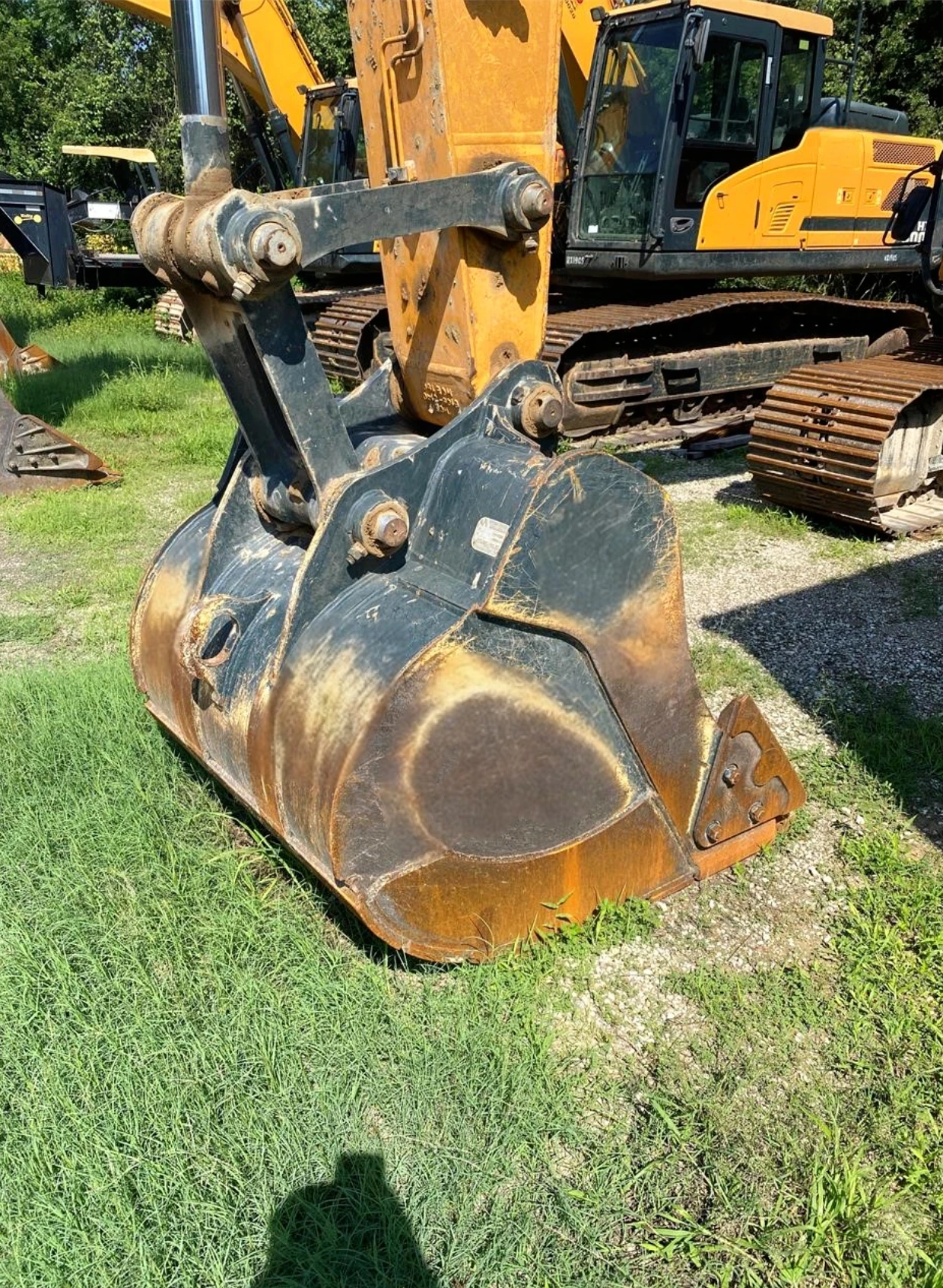

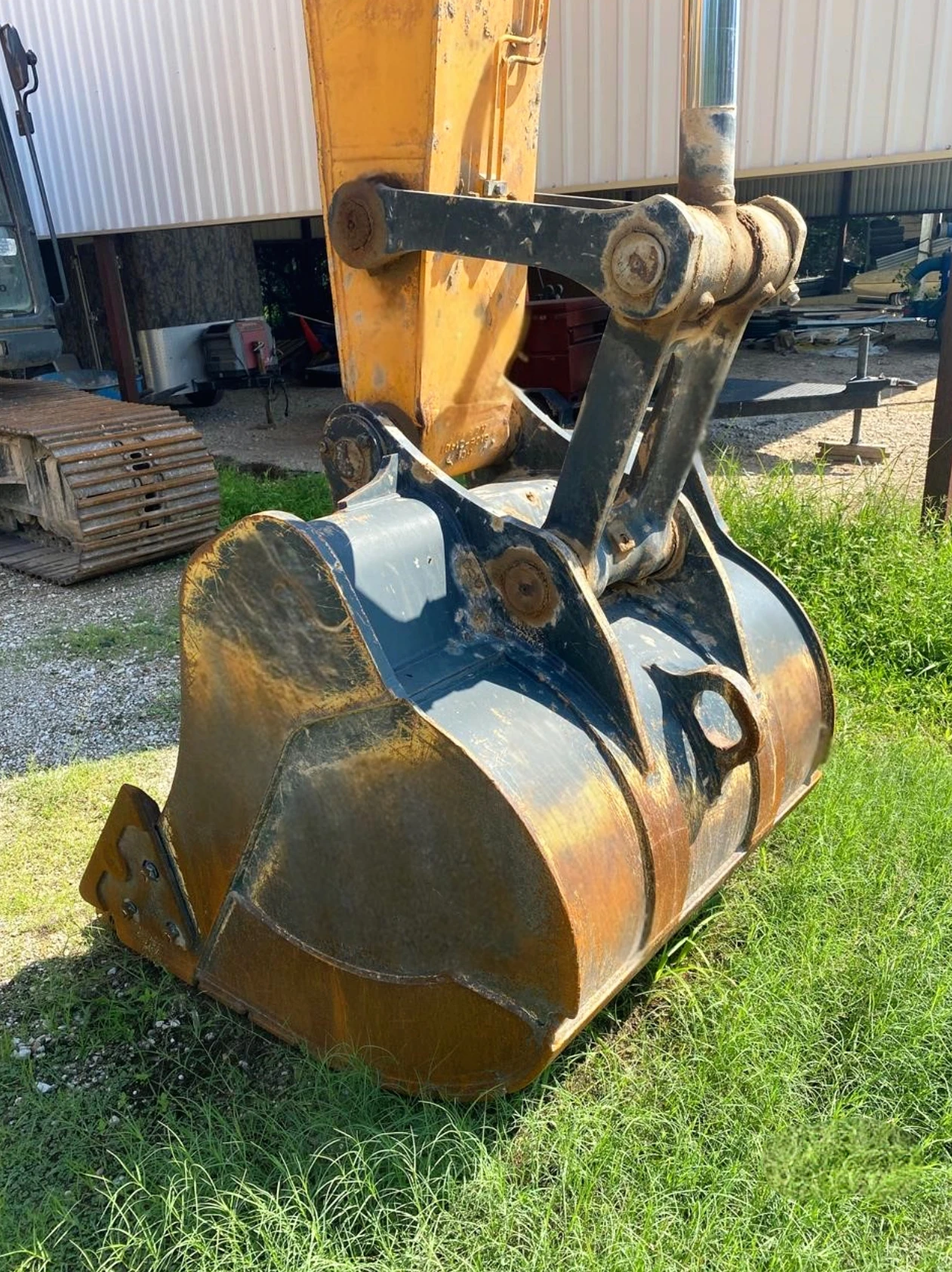

Bucket
Maximum Bucket Capacity | 1 cu yd (1 cu m) |
Dimensions
Ground Clearance | 2 ft (0 m) |
Height - Top of Cab | 10 ft (3 m) |
Length of Track on Ground | 15 ft (4 m) |
Removal Counterweight Clearance | 4 ft (1 m) |
Tail Swing Radius | 9 ft (3 m) |
Width to Outside of Tracks | 9 ft (3 m) |

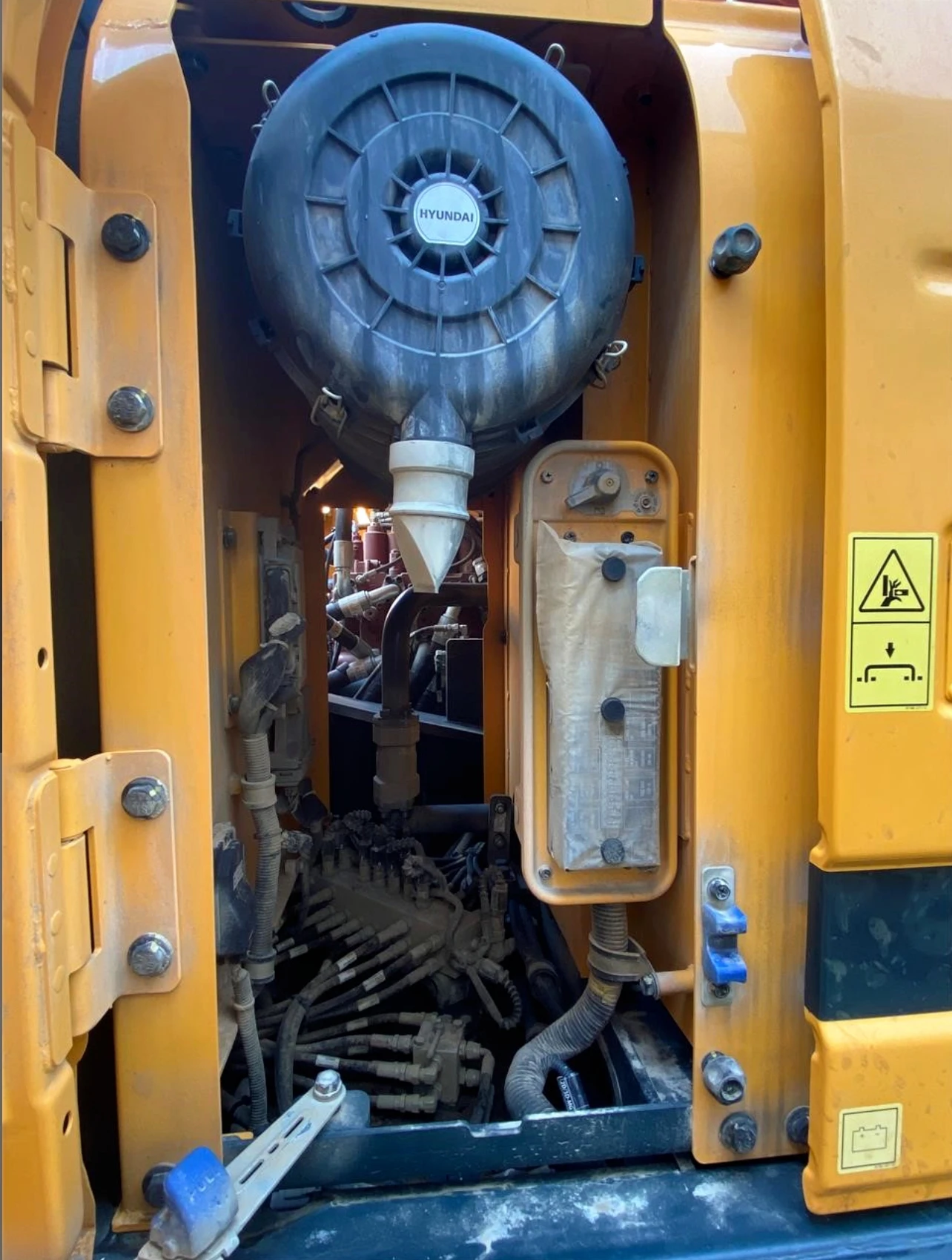

Engine
Aspiration | Turbocharged |
Displacement | 409 cu in (6,702 cu cm) |
Engine Make | Cummins |
Engine Model | QSB6.7 |
Gross Power | 183 hp (136 kw) |
Max Torque | 620 lbs ft (841 nm) |
Net Power | 173 hp (129 kw) |
Power Measured @ | 1950 rpm |
Torque Measured @ | 1500 rpm |
Operating Specifications
Alternator Supplied Amperage | 95 amps |
Cooling System Fluid Capacity | 11 gal (40 l) |
Engine Oil Capacity | 6 gal (23 l) |
Fuel Capacity | 106 gal (400 l) |
Hydraulic Pump Flow Capacity | 59 gpm (222 lpm) |
Hydraulic System Fluid Capacity | 73 gal (275 l) |
Operating Voltage | 24 volts |
Operating Weight | 52,117 lbs (23,640 kg) |
Swing Drive Fluid Capacity | 2 gal (6 l) |
Swing Mechanism
Swing Speed | 10.8 rpm |

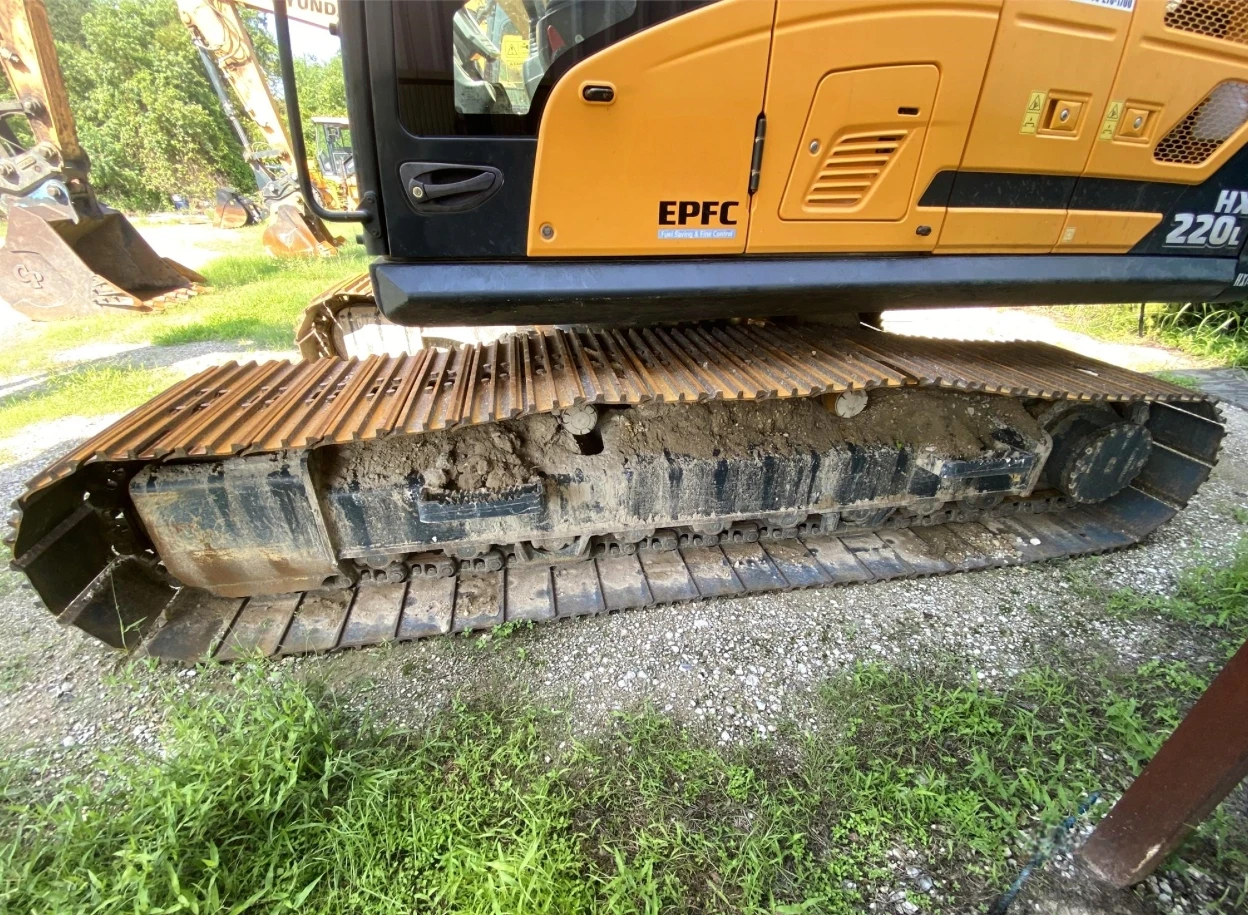

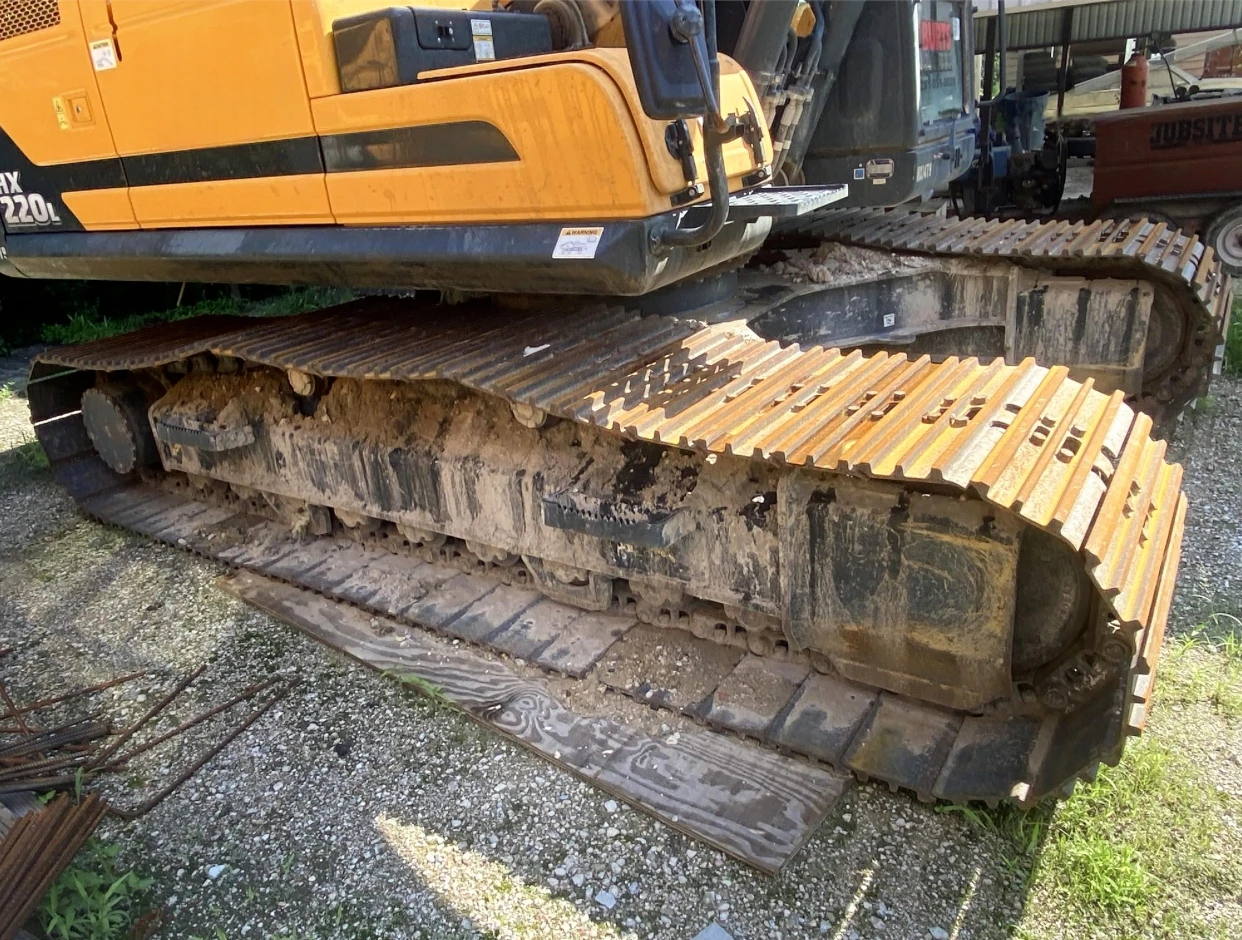

Undercarriage
Drawbar Pull | 44,530 lbs (20,198 kg) |
Ground Pressure | 4.9 psi |
Max Travel Speed | 4 mph (6 kph) |
Number of Carrier Rollers per Side | 2 |
Number of Shoes per Side | 49 |
Number of Track Rollers per Side | 9 |
Shoe Size | 36 in (90 cm) |
Track Gauge | 8 ft (2 m) |
