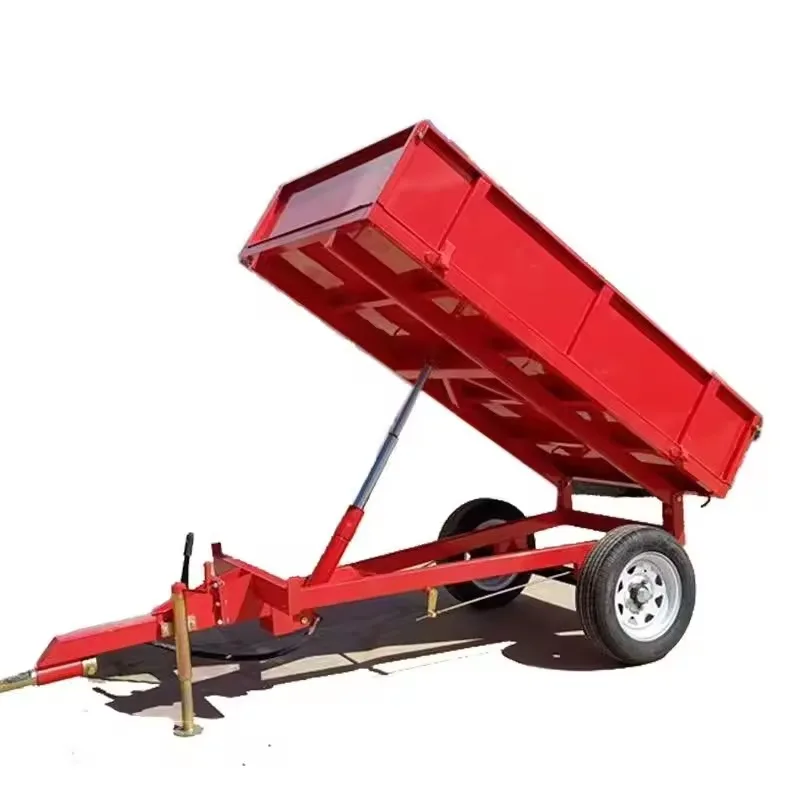

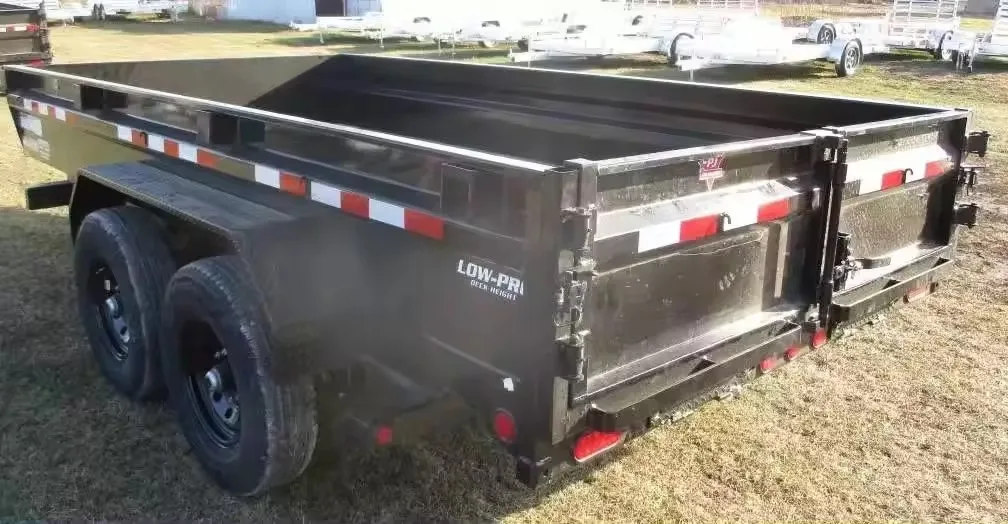

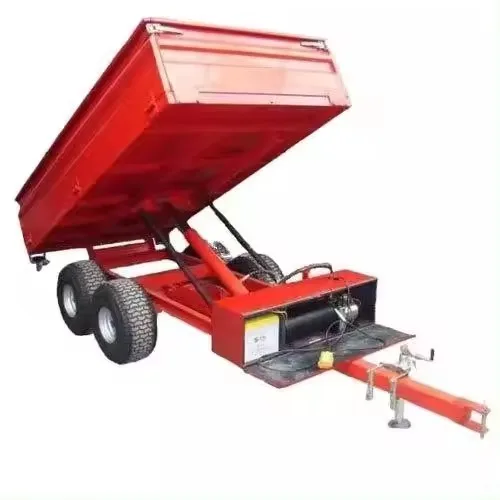

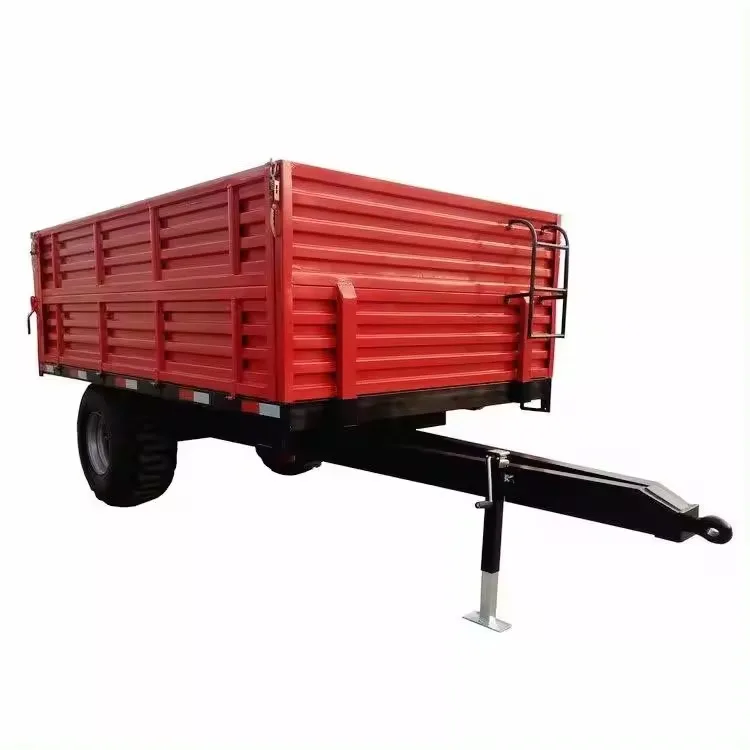

New 2 Axles Agricultural Dump Truck Dumper Truck Tipper Truck / Farm Tractor Trailer
- Category: >>>
- Supplier: Young Consulting Gmbh
Share on (10000019486779):
Product Overview
Description
| Model | Carriage Dimension(mm) | Outside Dimension(mm) | Load(KG) | Dead Weight(KG) | Matched Power(HP) | Tire model/No |
| 7C-1/7CX-1 Single axle | 2000*1000*400 | 2900*1300*1650 | 1000 | 180 | 15-20 | 6.5-14/2 |
| 7C-1.5/7CX-1.5 Single axle | 2000*1000*400 | 3000*1300*1700 | 1500 | 320 | 15-20 | 6.5-16/2 |
| 7C-2/7CX-2 Single axle | 2400*1200*400 | 3500*1500*1800 | 2000 | 390 | 20-25 | 7.0-16/2 |
| 7C-3/7CX-3 Single axle | 3000*1600*400 | 4150*1650*2000 | 3000 | 580 | 25-40 | 7.5-16/2 |
| 7C-4/7CX-4 Single axle | 3200*1900*400 | 4450*1960*1400 | 4000 | 750 | 30-50 | 8.25-16/2 |
| 7C-5/7CX-5 Single axle | 3800*1900*550 | 5100*1940*1500 | 5000 | 950 | 40-60 | 8.25-16/4 |
| 7C-5/7CX-5 Double axle | 3800*1900*550 | 5100*1940*1500 | 5000 | 950 | 45-70 | 8.25-16/4 |
| 7C-6/7CX-6 Double axle | 3900*2100*550 | 5500*2200*2100 | 6000 | 1400 | 55-100 | 9.0-16/4 |
| 7C-8/7CX-8 Double axle | 4500*2100*550 | 6200*2200*2300 | 8000 | 1750 | 65-120 | 9.0-20/4 |
| IMAGE DETAILS |
