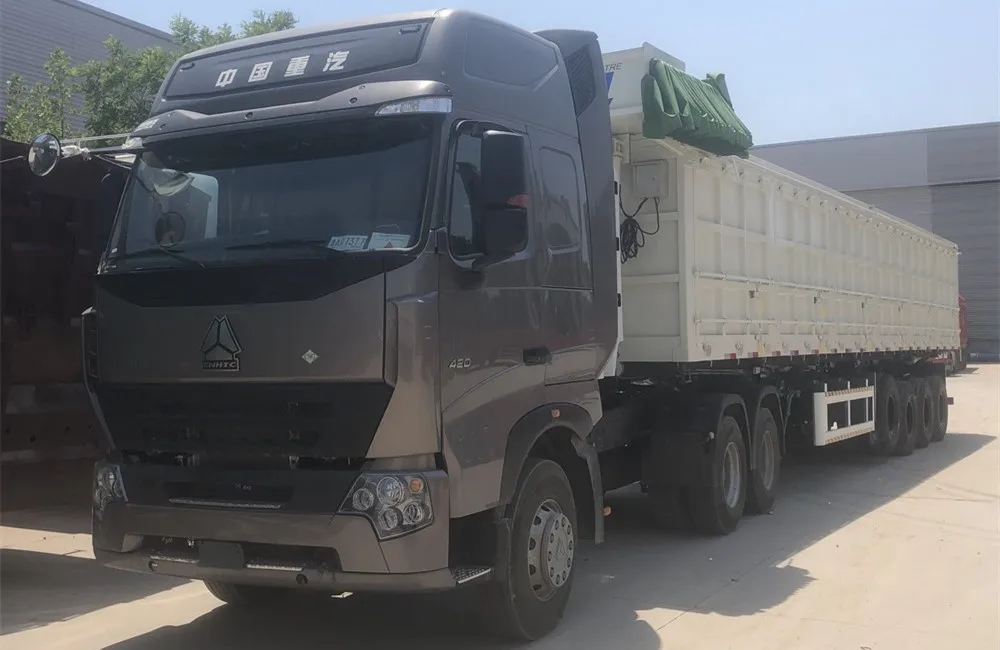

High Strength New 4 Axles U Shape Rear Dump Semi Trailer Truck For Sale
Specifications
Overall Dimension | 10300*2600*3600mm or Customized |
Curb Weight | 10,200 kg |
Loading Capacity | 80,000 kg |
Main Beam Spec. | Carbon Steel, Upper 12 mm, bottom 14 mm, middle plate 8 mm |
Side Frame | Channel Steel |
Cross Brace | Channel Steel/Bending Steel |
Bucket | Carbon Steel, Bottom 9mm, Side 6mm |
Suspension | 3 Mechanical Suspensions + 1 Air Suspensions |
Leaf Spring | 13-layers leaf spring 120mm*13mm*10pcs |
Axle Spec. | 16T * 3pcs + 1 air suspension |
King Pin | 3.5"(90mm) |
Tire | 12R22.5 |
Brake Chamber | 8 sets |
Landing Gear | 28T*2 |
Accessories | 1 Standard Tool Box |
Electric System | 24V, One Set 6-core Standard Cable |
Light | Tail lamp with turn signal,brake light & reflector,side lamp etc |
Painting | Sand blasting, prime coating, surface painting,color optional, wax polishing |
Packing | Bulk Cargo Vessel, Ro-ro Shipment or Optional |
Trailers In Storage
4 Axle Side Tipper Trailer
3 Axle Side Tipper Traier
6 Axle Rear Dump Trailer

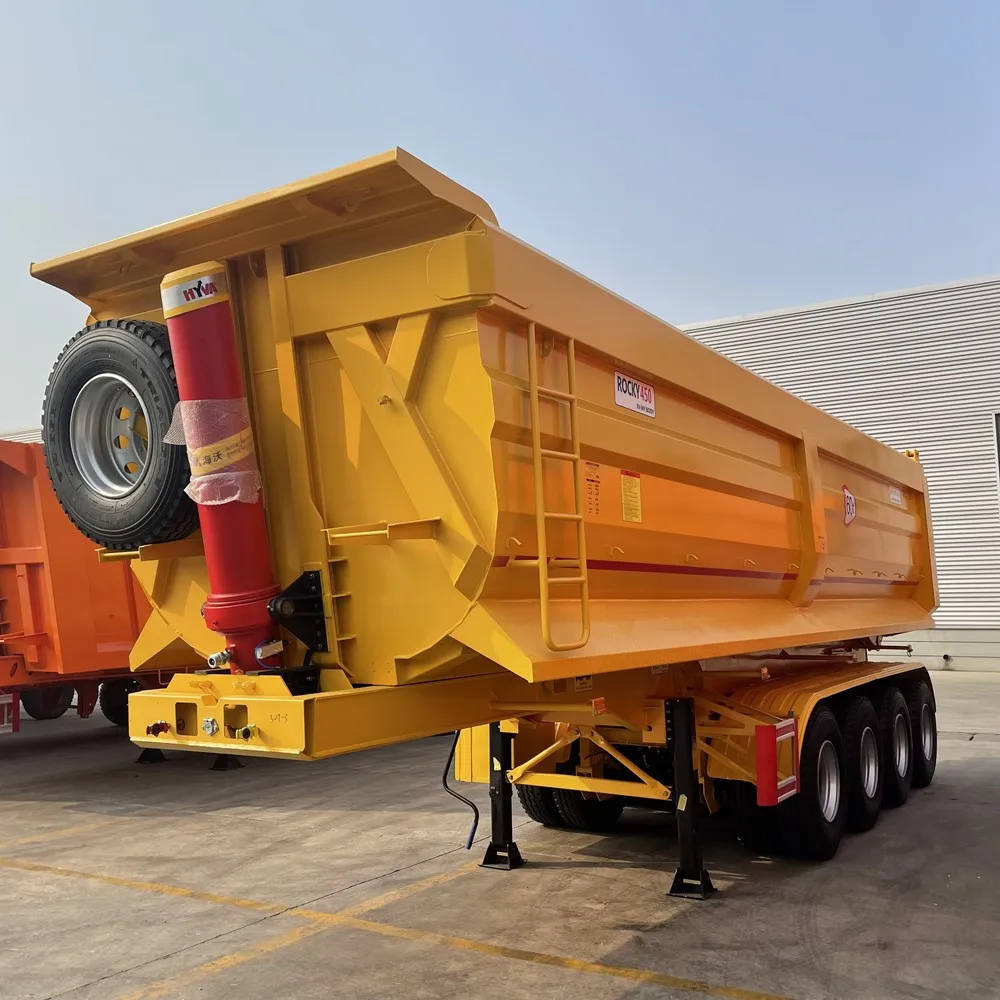

U Shape Rear Dump Trailer

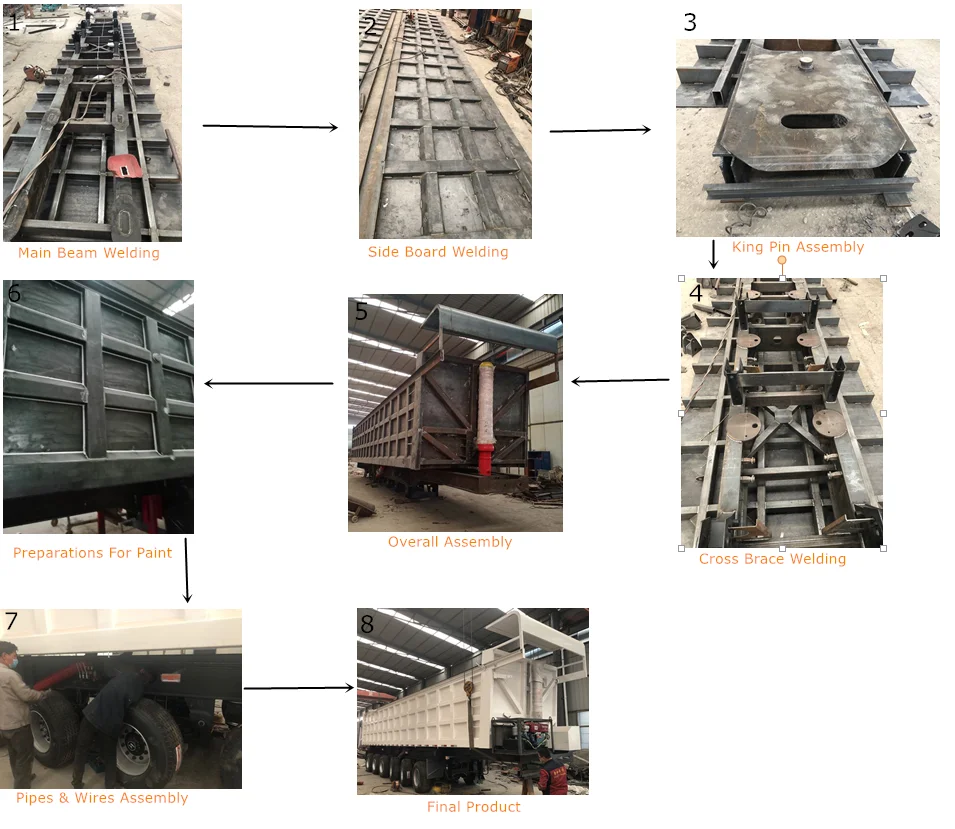

Production Process
Related Products

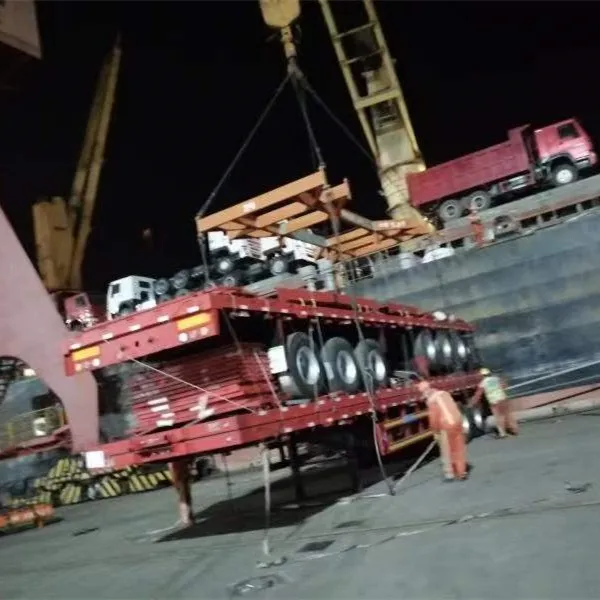

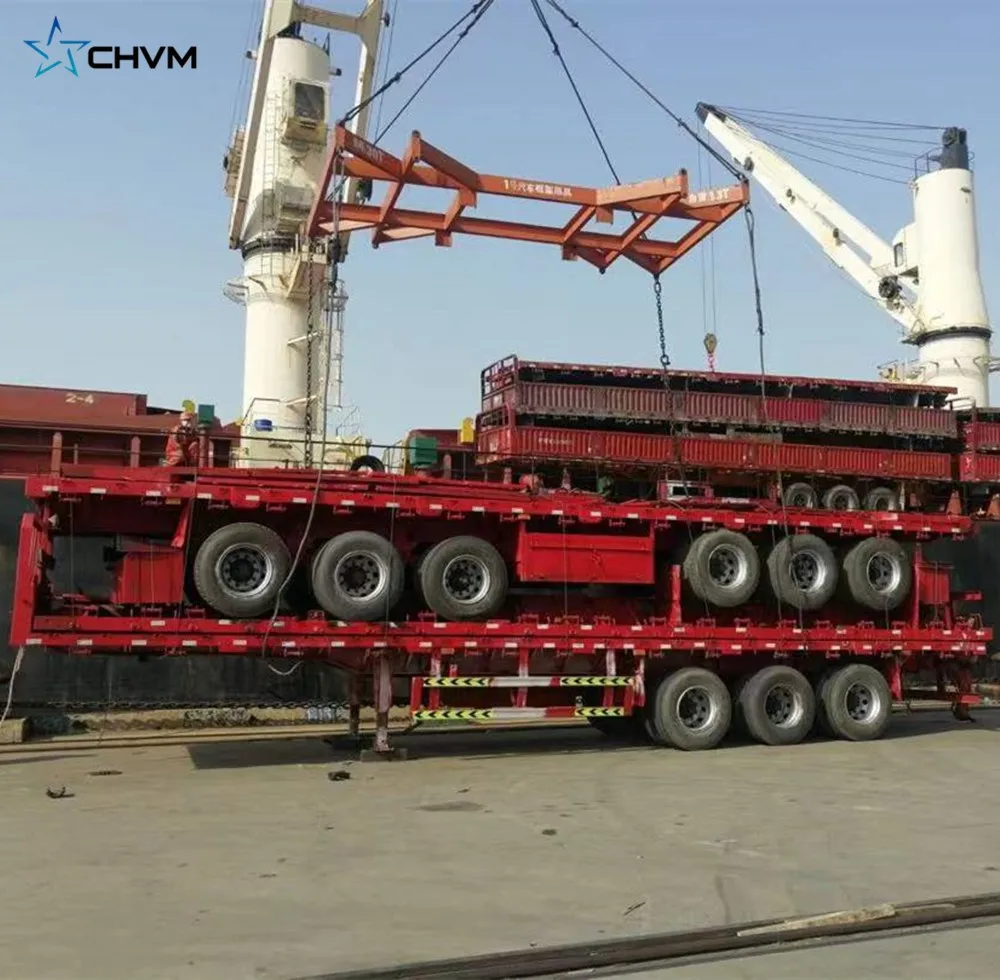

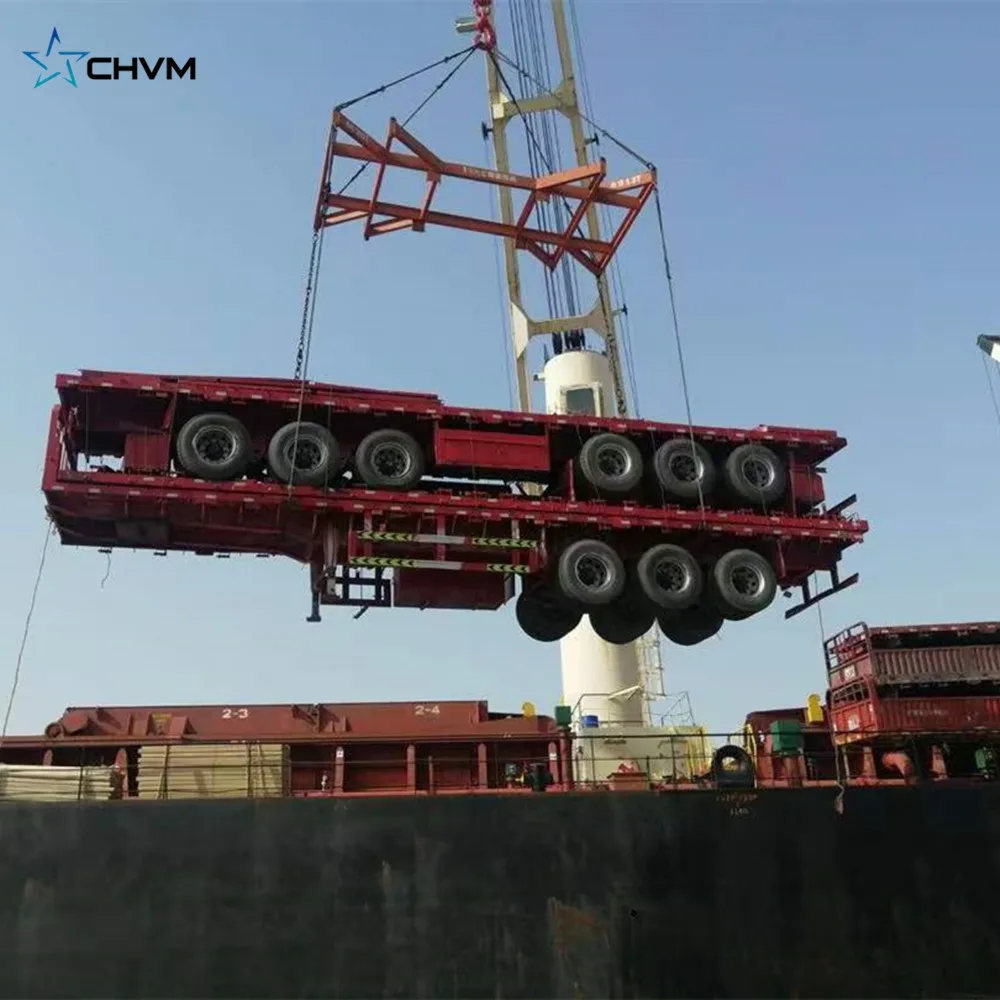

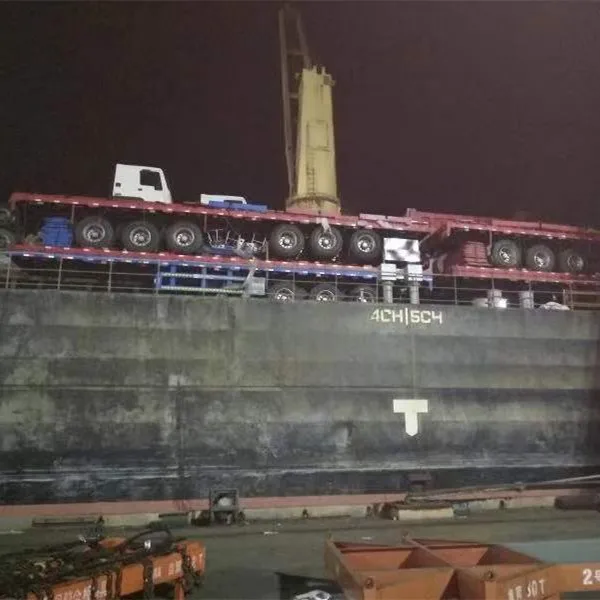

Packaging & Shipping
