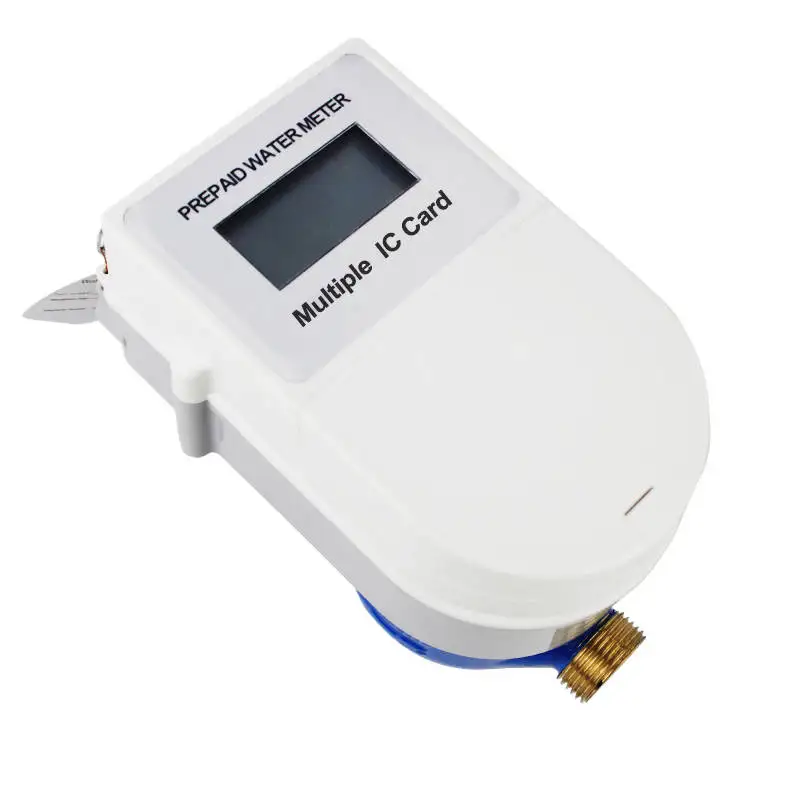

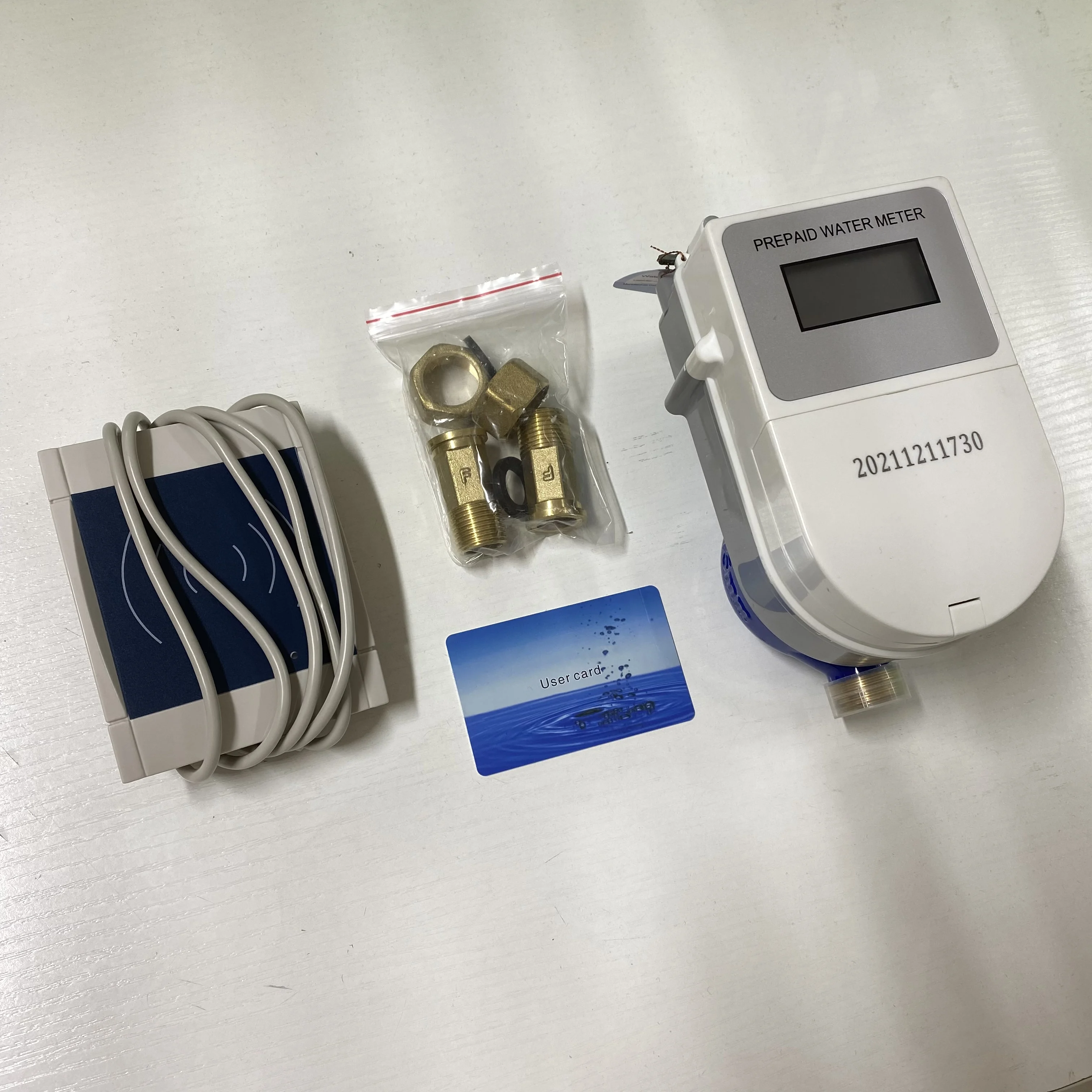

Smart IOT Lorawan IP68 Wireless Digital Display IC Card Split Type 15mm 35mm Prepaid Water Meters Price
- Category: >>>
- Supplier: Henan Dafang Dingsheng Flow Instrument Co. Ltd.
Share on (10000021764024):
Product Overview
Description

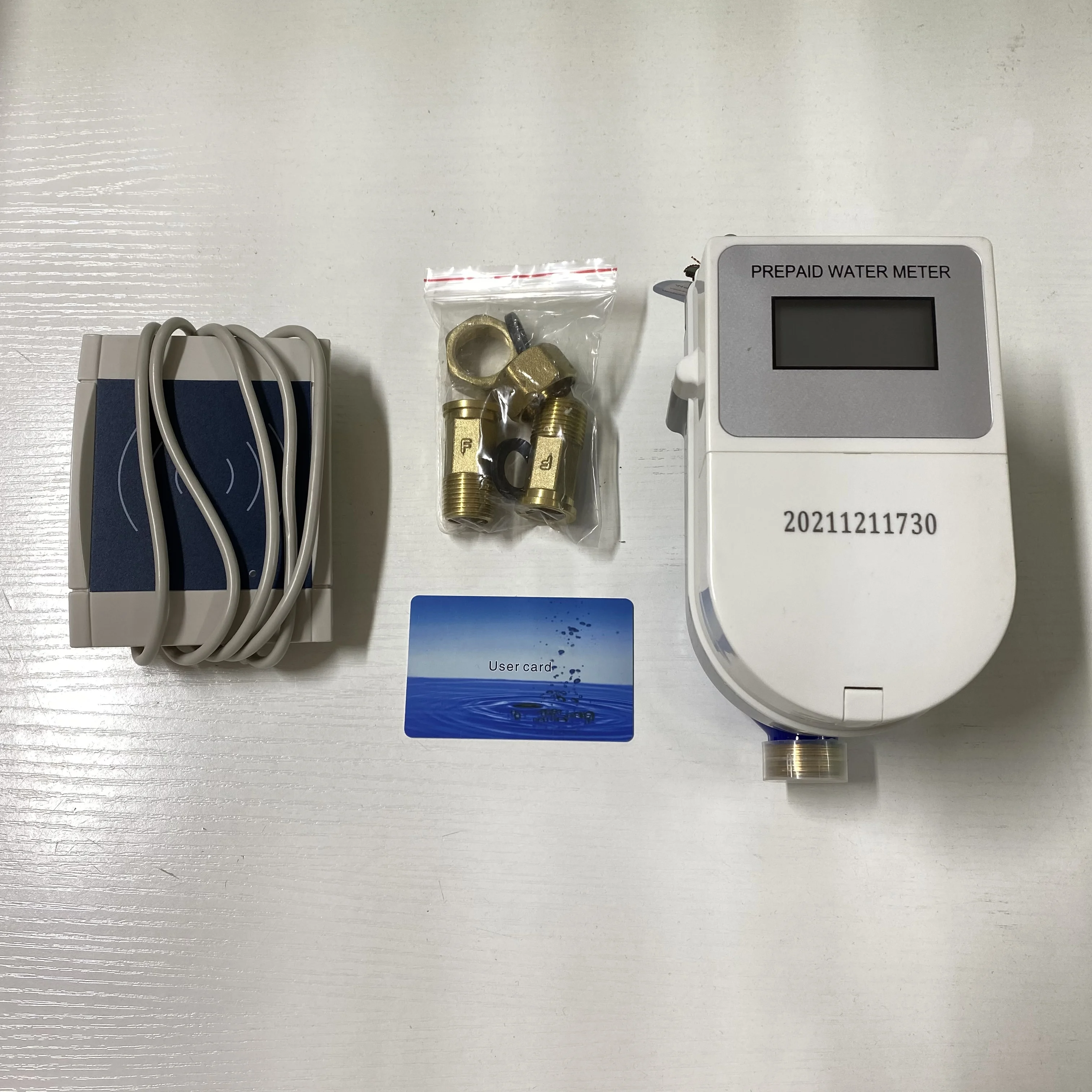

Smart IOT Lorawan IP68 Wireless Digital Display IC Card Split Type 15mm 35mm Prepaid Water Meters Price
Product Description
Characteristic

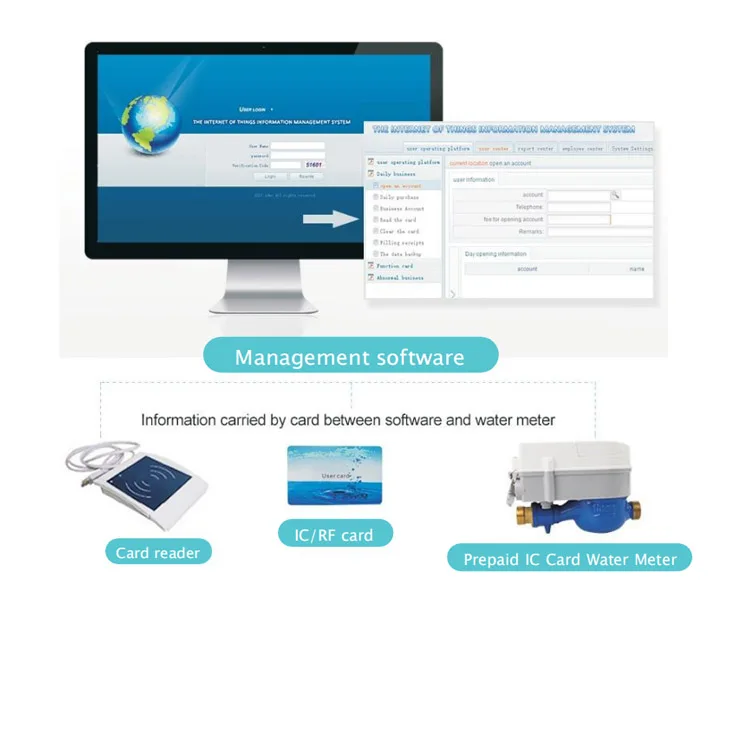

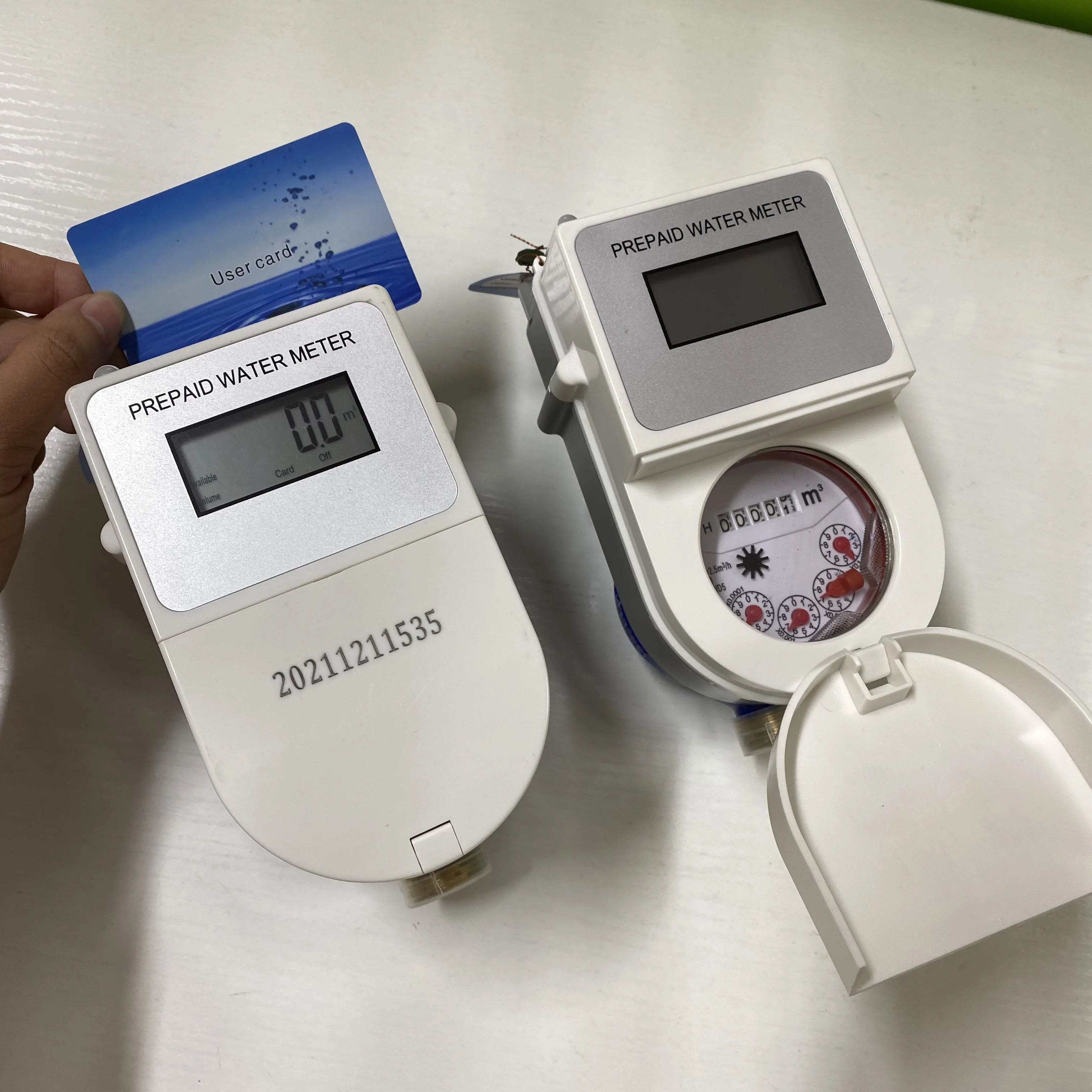

1. Non-contact IC card technology, wireless data transmission is used which make the water meter easy to operate.
2. The body of the prepaid water meter is IP68 waterproof which can be completely immersed in the water.
3. The water meter open and close the valve periodically to prevent the water meter from blocking.
4. It will make alarm or close the valve when the water volume in the water meter is insufficient to remind the user to purchase.
5. The water meter will close the valve automatically when the remaining water volume is 0, And the water meter will open the valve after swiping the card in which the user had already purchased water volume.
6. When the water meter come accoss the magnetic attack, the water meter will automatically close the valve.
7. Detailed LCD display, the data will not lost even without power and can be stored for more than 10 years.
2. The body of the prepaid water meter is IP68 waterproof which can be completely immersed in the water.
3. The water meter open and close the valve periodically to prevent the water meter from blocking.
4. It will make alarm or close the valve when the water volume in the water meter is insufficient to remind the user to purchase.
5. The water meter will close the valve automatically when the remaining water volume is 0, And the water meter will open the valve after swiping the card in which the user had already purchased water volume.
6. When the water meter come accoss the magnetic attack, the water meter will automatically close the valve.
7. Detailed LCD display, the data will not lost even without power and can be stored for more than 10 years.
8. High temperature resistance, low power and low pressure loss; 9. The battery life of the water meter is more than 6 years and can be replaced. When the battery power is insufficient, the display of the water meter have alarm indication.
Specification
| Main Technical Data | ||||||||

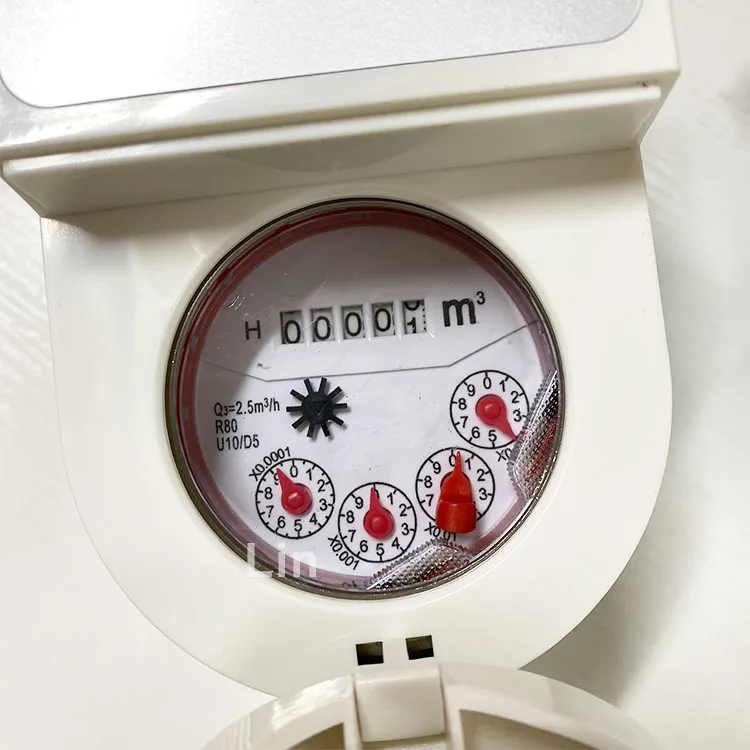

Meter Size (mm) | Flow range | Q4 | Q3 | Q2 | Q1 | Min Reading | Max Reading
| |
Q3/Q1 | Q2/Q1 | m³/h | m³ | |||||
| 15 | 80 | 1.6 | 3.125 | 2.5 | 0.05 | 0.03125 | 0.0001 | 999999 |
| 20 | 80 | 1.6 | 5.0 | 4.0 | 0.08 | 0.05 | 0.0001 | 9999999 |
| 25 | 80 | 1.6 | 7.875 | 6.3 | 0.126 | 0.07875 | 0.0001 |
9999999 |
| 32 | 80 | 1.6 | 12.5 | 12 | 0.2 | 0.125 | 0.0001 | 9999999 |
| 50 | 80 | 1.6 | 31.25 | 25 | 0.5 | 0.3125 | 0.0001 | 99999999 |
Why Choose Us
Why Choose US
• We will reply to you within 1 hour.
• Offer professional solutions and product selection advice.
• Online / Wechat / Skype / WhatsApp / email are all available according to your preference.
Click "Chat Now" to get our quotation
*What liquid do you measure?
--- Water, Slurry, Beer, or...
*The pipe DN/Inch?
----DN50, DN200 or...
*Voltage?
---110~220V, 12~24V or 3.6V
*If any special requirement, pls advise us.
About US
About Us

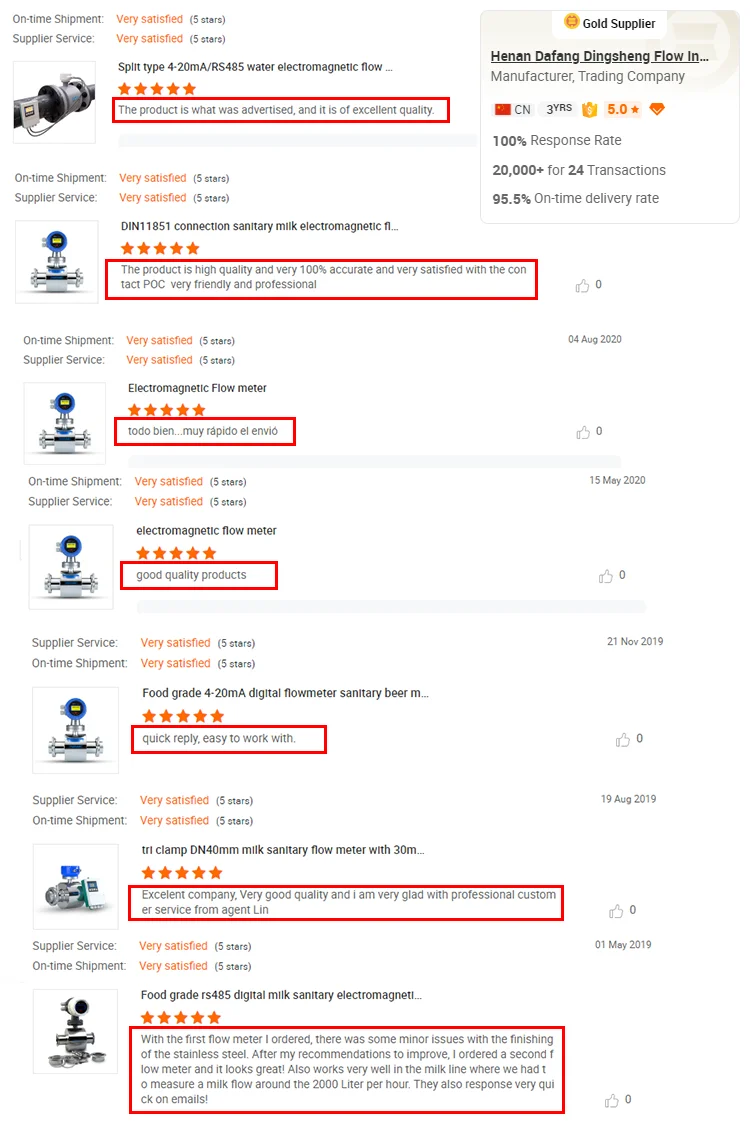

Buyers' Feedback
