TinS 17 robot platform chassis with handheld remote controller for industry robot
- Category: >>>
- Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co. Ltd.Zhengzhou Ltd.
Share on (10000022256695):
Product Overview
Description

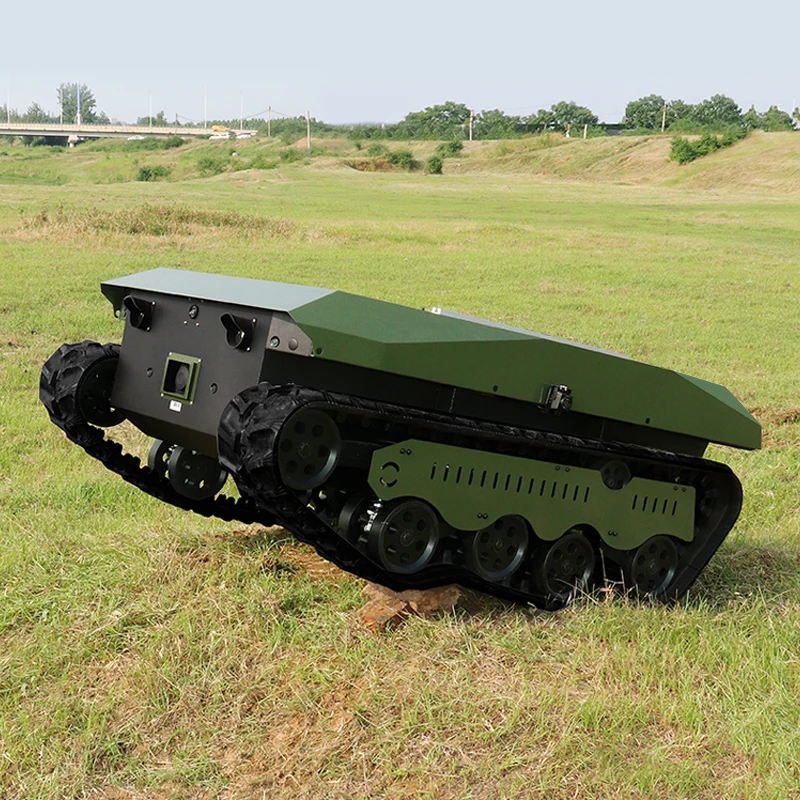

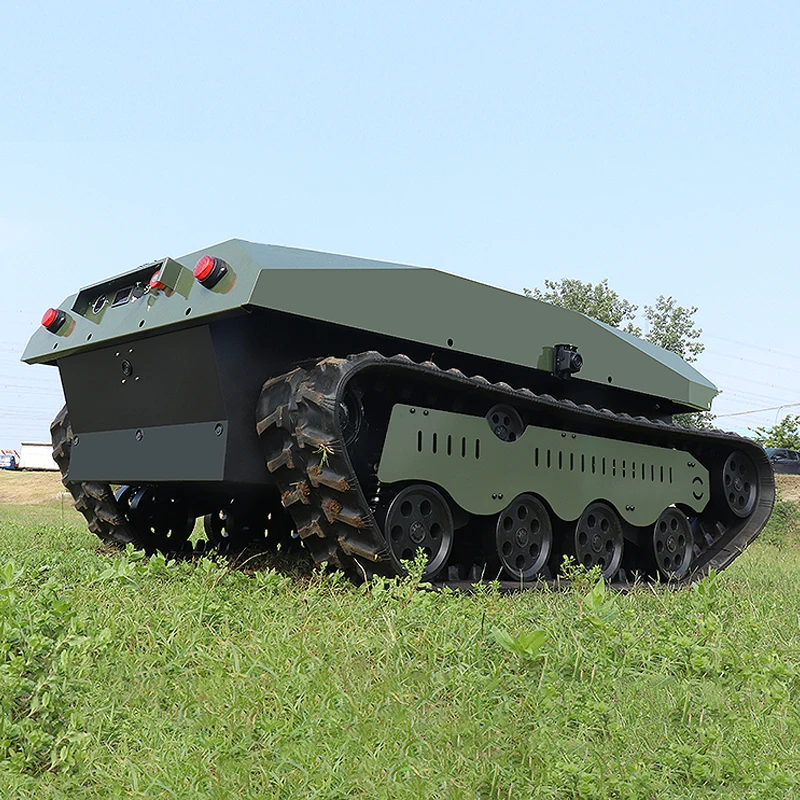

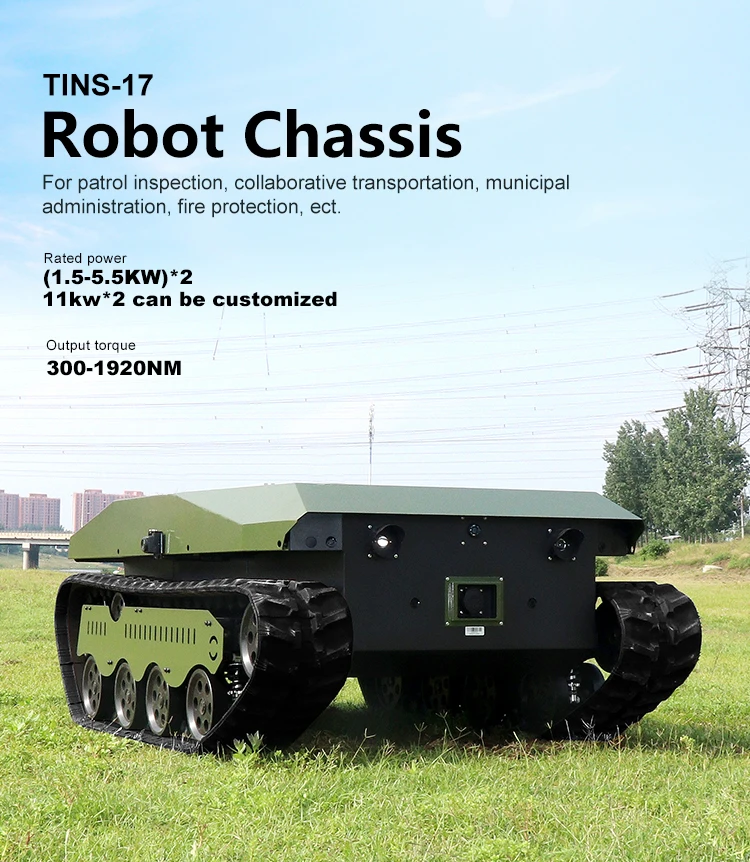

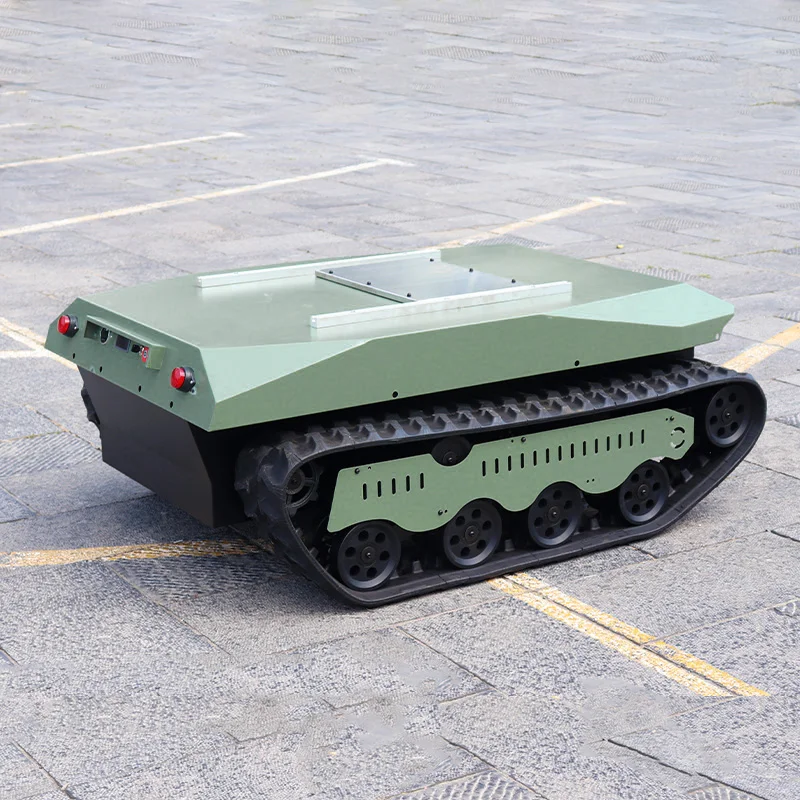

TinS-17 can be equipped with a variety of equipment, such as camera, water gun, etc., which is widely used in patrol inspection, collaborative transportation, municipal administration, fire protection and other industries.
Parameters | ||||||

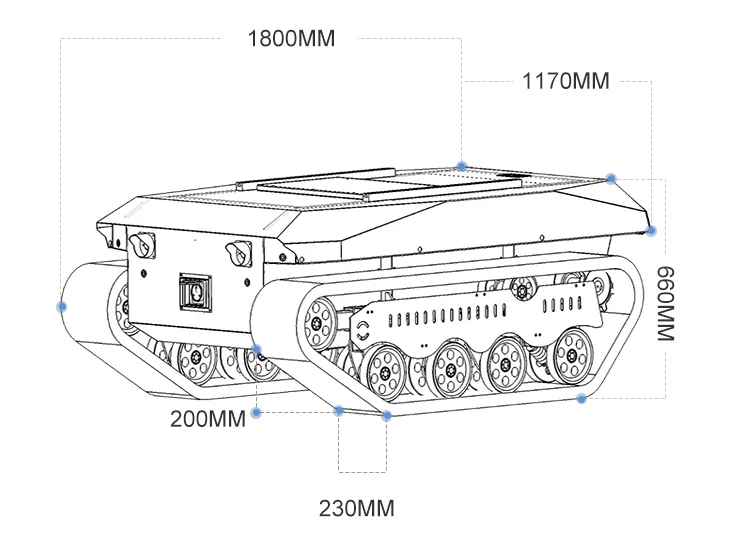

Dimension: | 1800*1170*660mm | Speed: | 2.5-12km/h (<60km/h high speed can be customized) | |||
Self Weight: | 400kg | Designed Load: | 300-700kg | |||
Waterproof: | IP65 | Rated Torque: | 300-1920NM | |||
Track Width: | 230mm | Reducer Efficiency: | 65-85% | |||
Gear Ratio: | 1:10-1:40 | Suspension System: | Matilda | |||
Moto: | (1.5-5.5KW)*2, (11kw*2 can be customized) | Climbing Ability: | ≤30°(can climb stairs) | |||
Motor Rated Speed: | 1500r/min | Maximum Span: | 740mm | |||

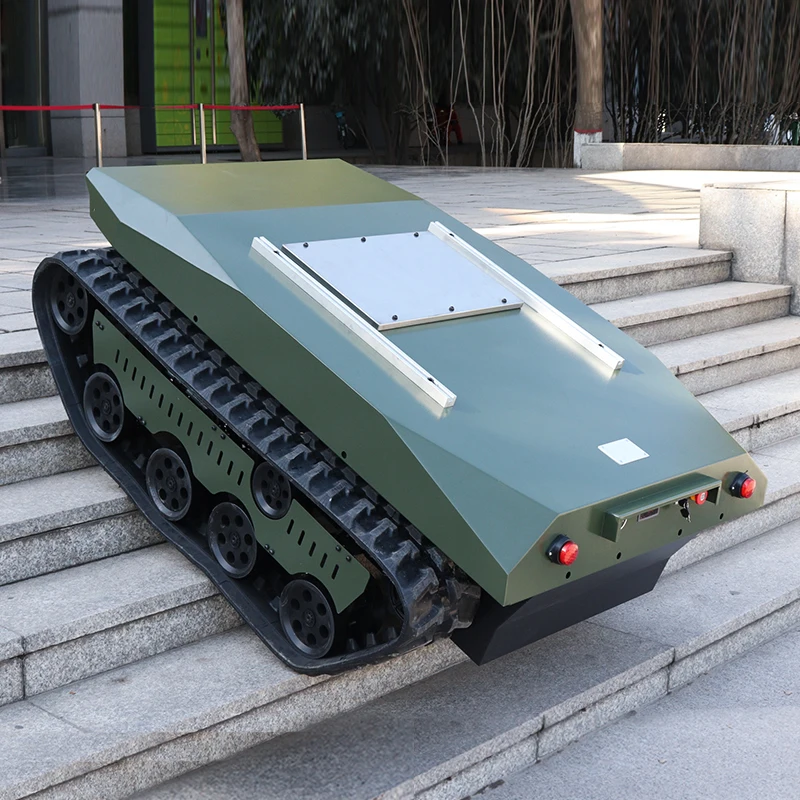

Ground clearance: | 200mm | Over-Obstacle Capacity: | 260mm | |||
Application:
It is widely used in patrol inspection, collaborative transportation, municipal administration, fire protection and other industries. We also produce customized product applications: Fully automatic lawn mower, intelligent agricultural machinery, Fruit Picking Transport Robot ect.
It is widely used in patrol inspection, collaborative transportation, municipal administration, fire protection and other industries. We also produce customized product applications: Fully automatic lawn mower, intelligent agricultural machinery, Fruit Picking Transport Robot ect.
Advantage:
1. Standard frame body design, light weight and high strength. The profiled steel and sheet metal skin structure ensures the rigidity and strength of the machine and the airtightness of the machine body.
2. The expansion platform on the machine adopts T-slot and nut sliders, which can carry a variety of equipment.
3. Electronic stepless speed change, large axle torque and high speed.
4. Externally expand the power output and can also be used as a mobile power station.
5. Front high-power LED lights and back turn lights, convenient for night driving and operation.
6. Matilda suspension system can buffer the impact of steps, fit the undulating terrain, has an excellent low-speed shock absorption effect. The two wheels share the absorbing spring, with less wearing parts and high reliability.
7. Optional generator and lithium battery power source.

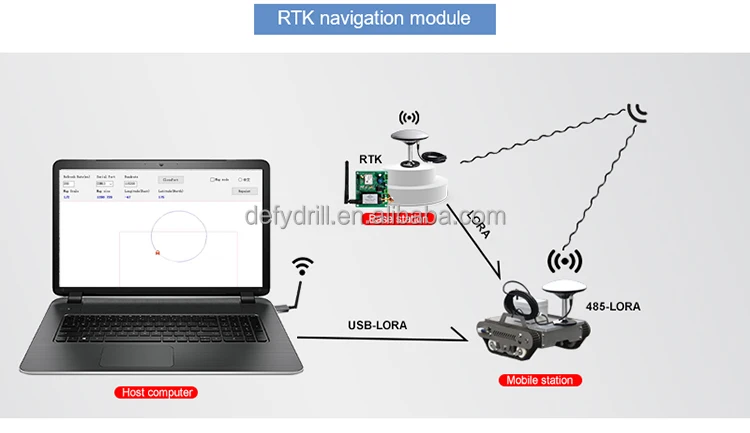

8. Speed closed-loop and displacement closed-loop control can realize precise autonomous navigation.
9. Power conversion module with multiple protections for overvoltage, overcurrent, and undervoltage.

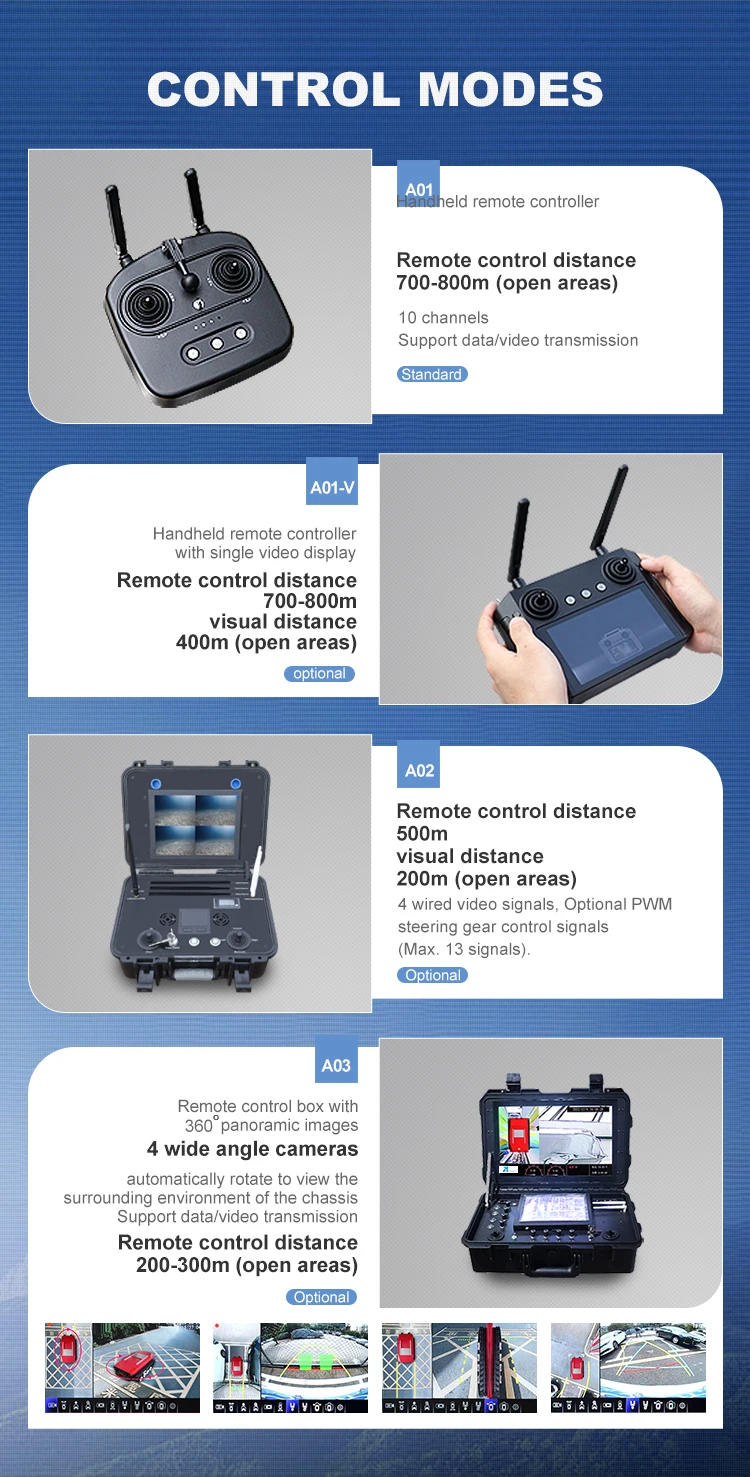

10. 3 control modes: Handheld remote controller mode (standard), Visual control box mode (optional), Network control mode (optional).
1. Standard frame body design, light weight and high strength. The profiled steel and sheet metal skin structure ensures the rigidity and strength of the machine and the airtightness of the machine body.
2. The expansion platform on the machine adopts T-slot and nut sliders, which can carry a variety of equipment.
3. Electronic stepless speed change, large axle torque and high speed.
4. Externally expand the power output and can also be used as a mobile power station.
5. Front high-power LED lights and back turn lights, convenient for night driving and operation.
6. Matilda suspension system can buffer the impact of steps, fit the undulating terrain, has an excellent low-speed shock absorption effect. The two wheels share the absorbing spring, with less wearing parts and high reliability.
7. Optional generator and lithium battery power source.
8. Speed closed-loop and displacement closed-loop control can realize precise autonomous navigation.
9. Power conversion module with multiple protections for overvoltage, overcurrent, and undervoltage.
10. 3 control modes: Handheld remote controller mode (standard), Visual control box mode (optional), Network control mode (optional).
Packing and Shipping
Within 3-5 working days
Services | ||
1 year warranty for main parts | During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight. | |
Spare Parts | most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients. | |
Operation and Maintenance | we will offer you detailed operation manual, ensuring you can use it perfectly. | |
Online support | Video technical support | |
Online Service | your question will be answer within 24 hours during working days, 48 hours during holiday. | |
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
FAQ：
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
