2023 Thread Screw Perfection of Pointed Tail Forming
$19.00-20.00
Round thread roller die with long serve roller wheel Reticulated thread roller for rebar rolling threading machine
- Category: >>>
- Supplier: Zhengzhou Ruizuan Diamond Tool Co. Ltd.Zhengzhou Ltd.
Share on (10000023782208):
Product Overview
Description
Products Description
Thread Rolling Machine Mould
Thread rolling is an integral cold-forming process, used to produce a variety of threads, knurls and helical gears. The process involves deforming a metal blank by rolling it through a die. This process forms external threads along the surface of the metal blank. Internal threads can be formed using the same principle. In contrast to other widely applied threading operations such as thread cutting, thread rolling is not a subtractive process. That means it doesn’t remove metal from the stock. Rolled threaded fasteners offer advantages such as stronger threads, precise final dimensions, good surface finish, and a lower coefficient of friction.
Outside diameter | 45-260mm |
Inside diameter | 25.4-100mm |
Thickness | 30-150mm |
Material | Cr12MoV |
Hardness | 58-62 HRC |
Thread type | Metric, UNC, UNF, BSW |
Thread angle | 55/60 degree or customized |
Application machine | Thread rolling machine |

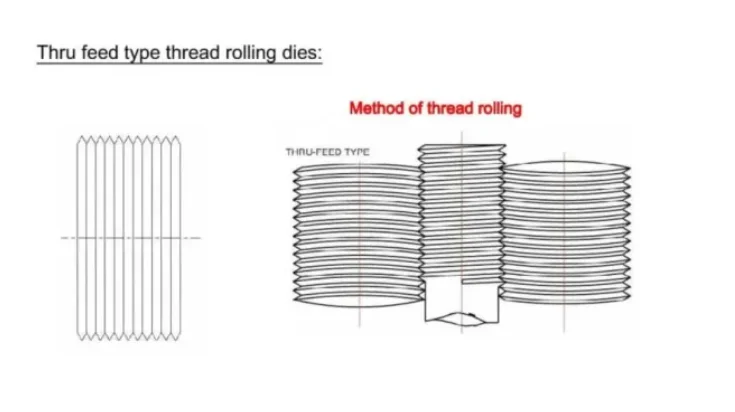

Thru-feed rolling is used for rolling threads that exceed the maximum face width of the dies, as well as for continuous rolling of long threaded bars. Here, the rolling dies have grooves with no pitch; the groove cross-section is that of the standard flank profile. The thread pitch is produced by skewing the die axes by the pitch angle of the thread. This means the workpiece is given an axial thrust and moves one pitch length in the axial direction for every full revolution.

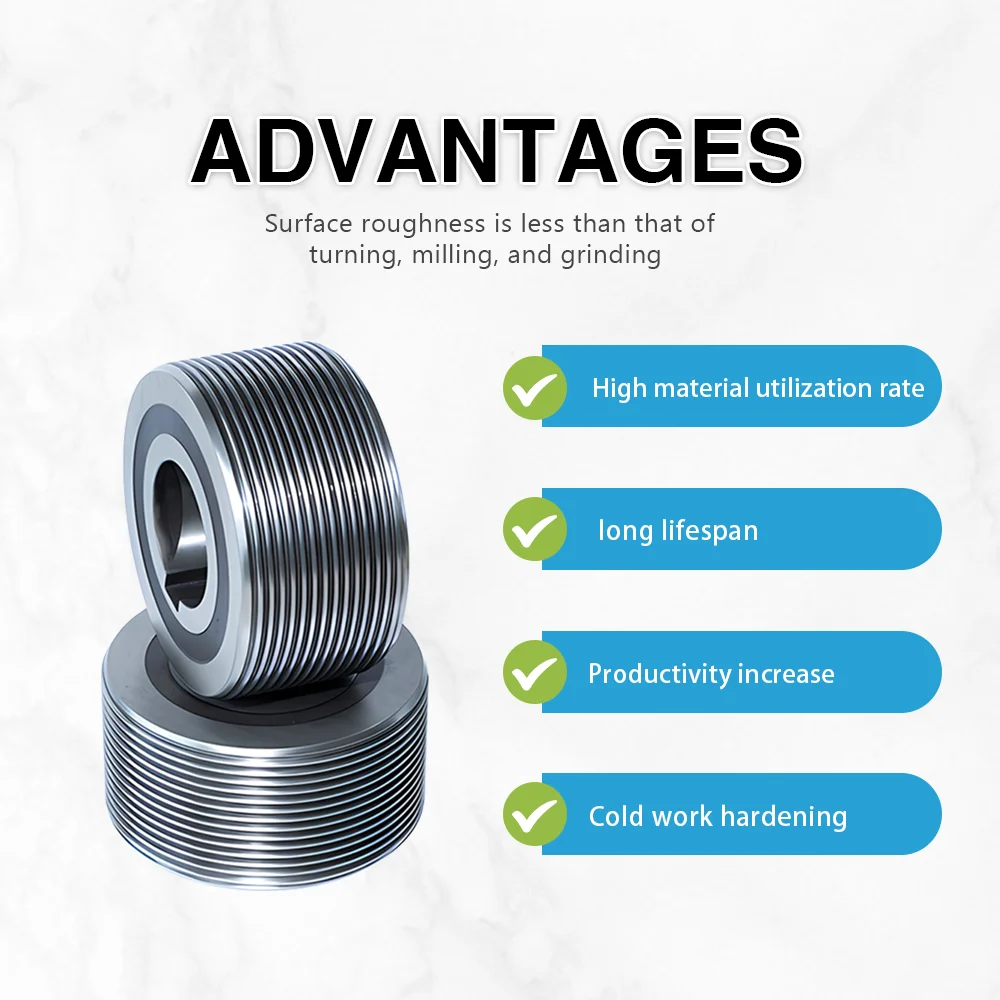

The advantages of thread rolling dies including:
1.Surface roughness is less than that of turning, milling, and grinding.
2.The surface of the thread after rolling can improve strength and hardness due to cold work hardening.
3.High material utilization rate.
4.Productivity is significantly higher compared to cutting, and it is easy to achieve automation.
5.The lifespan of rolling molds is very long.
2.The surface of the thread after rolling can improve strength and hardness due to cold work hardening.
3.High material utilization rate.
4.Productivity is significantly higher compared to cutting, and it is easy to achieve automation.
5.The lifespan of rolling molds is very long.

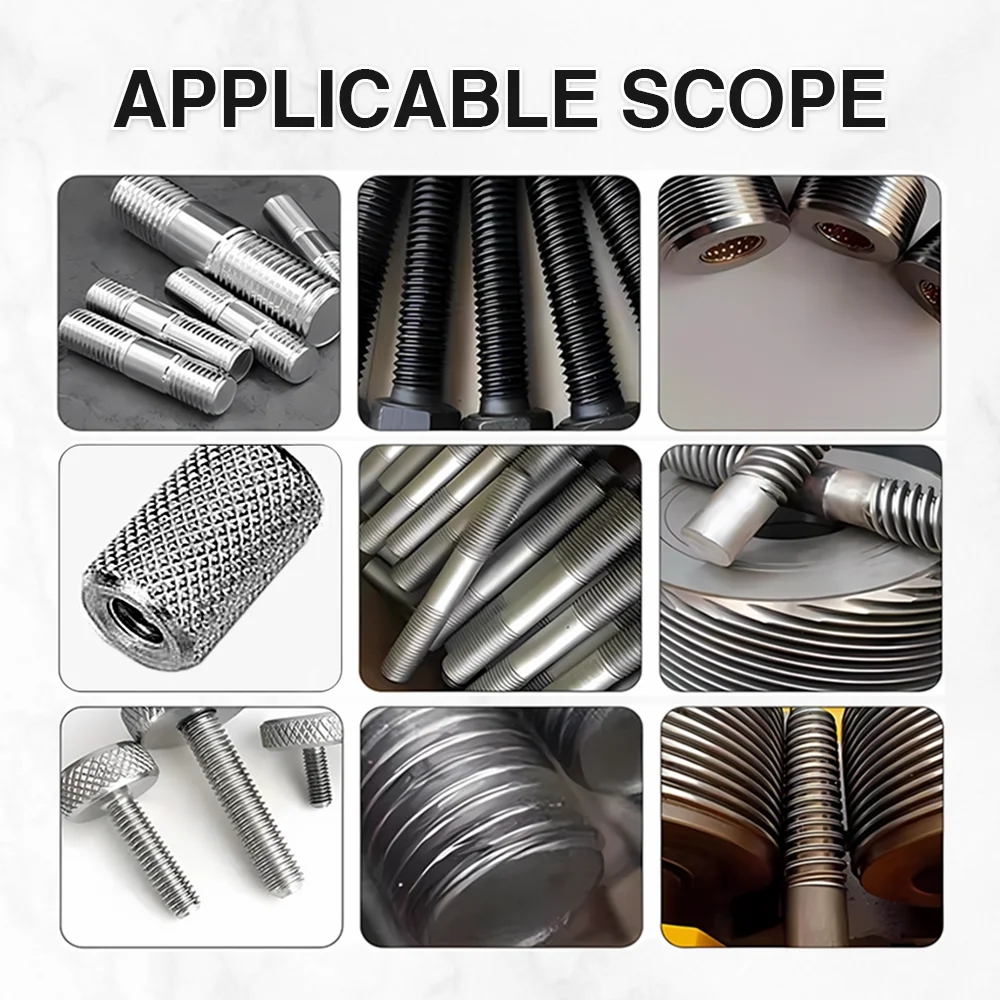

Thread Rolling Applications
Our components can be used in factory applications, equipment, and commercial or residential settings. Some of the most popular applications for thread-rolled parts include the following:
Aerospace parts,Automotive parts,Oil & gas parts,Medical parts,Plumbing parts,Fasteners,Fittings,Fluid connectors.
Aerospace parts,Automotive parts,Oil & gas parts,Medical parts,Plumbing parts,Fasteners,Fittings,Fluid connectors.
Why Choose Us
Company Profile
Zhengzhou Ruizuan Diamond Tools Co..Ltd. is committed to providing customers with tools for
grinding,cutting,turning,millingdrilling,and reaming.It includes abrasive tools&wheelsdiamond/CBN wheels
&toolsPCD/PCBNinserts&toolstungsten carbide inserts &toolsand HSS steeltools &cutters. Our tools are applied in many different
industries.Our customers find good applications in woodworking, metalworking,AutomotiveStoneGlassesgemstonesIndustrial ceramic,
oil & Gas drilling and Constructions industries. In these industriesour products are performing well on long
lifetimehigh-efficiency and lessunit-cost.
grinding,cutting,turning,millingdrilling,and reaming.It includes abrasive tools&wheelsdiamond/CBN wheels
&toolsPCD/PCBNinserts&toolstungsten carbide inserts &toolsand HSS steeltools &cutters. Our tools are applied in many different
industries.Our customers find good applications in woodworking, metalworking,AutomotiveStoneGlassesgemstonesIndustrial ceramic,
oil & Gas drilling and Constructions industries. In these industriesour products are performing well on long
lifetimehigh-efficiency and lessunit-cost.
Packing & Delivery
PACKAGE:
SINGLE BOX PER WHEEL,
10 to 20 WHEELS PER CARTON
DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
SINGLE BOX PER WHEEL,
10 to 20 WHEELS PER CARTON
DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
