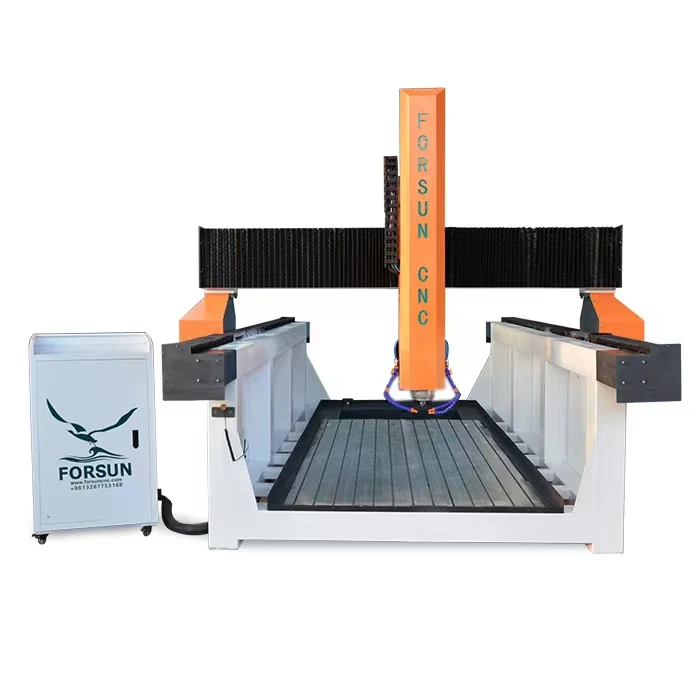

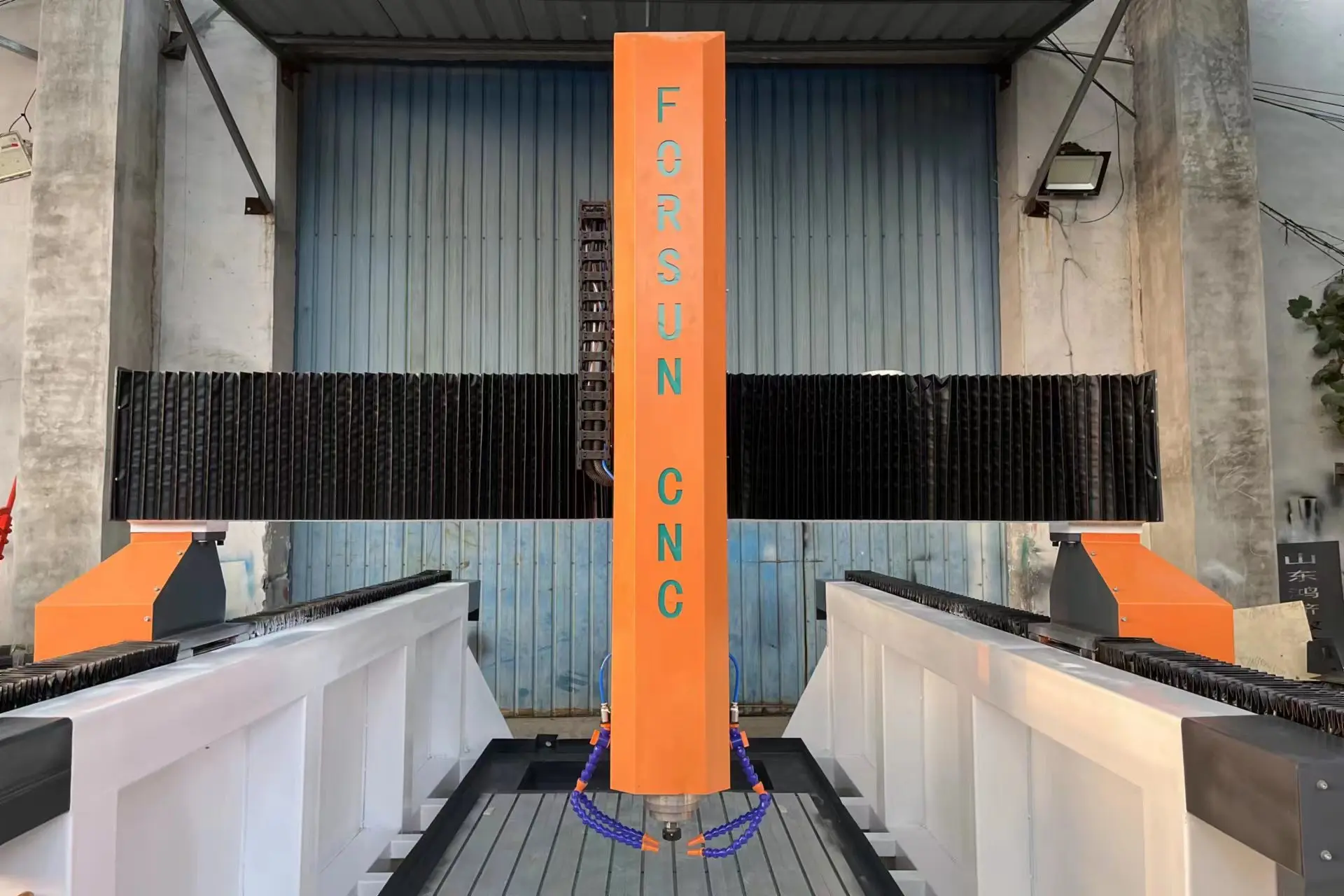

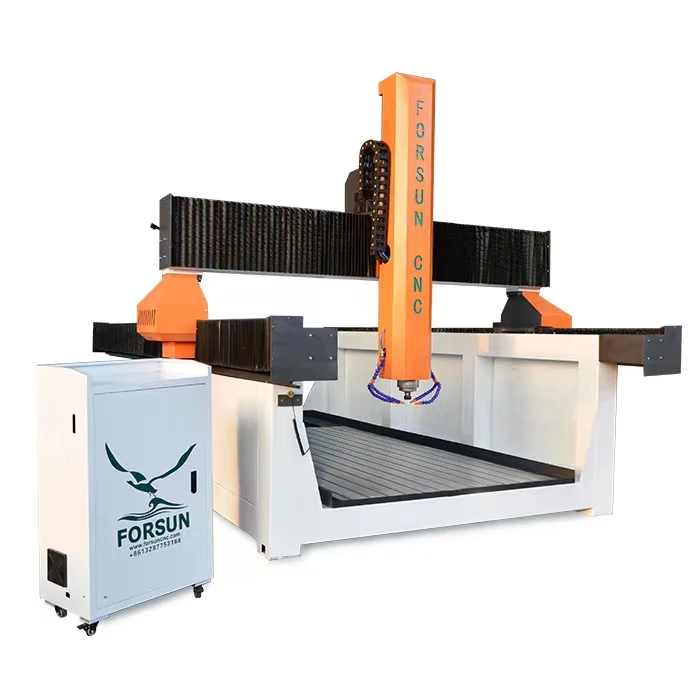

25% discount! 1530 1325 Stone engraving machine CNC headstone impact engraving machineimpact engraving machine for marble stone

Product Overview

Description

25% discount!  1530 1325 Stone engraving machine CNC headstone impact engraving machineimpact engraving machine for marble stone

Ø Effective working area: 1300*2500mm*300mm

Ø 5.5kw water cooling spindle

Ø 7.5kw Taiwan Delta inverter

Ø English version NC Studio control system

Ø stepper motors with strong Anti-jamming

Ø Linear 10 PCS Tool Magazine

Ø Steel & T-slot working table

Ø Taiwan TBI Ball Screw,Helical Rack and Pinion

What's the technical data of our Marble Stone Engraving Cutting CNC Router Machine ?



Technical Data of our cnc milling machine
NO	Description	Parameter
1	Positioning Accuracy	±0.03/300mm
2	Max. Rapid Travel Rate	80000mm/min
3	Max. Working Speed	45000mm/min
4	Spindle Speed	0-24000RPM
5	Command Language	G Code
6	Flash Memory	512M
7	Collet	ER32
8	X,Y Resolution	<0.03mm
9	Running Environment Temperature	0 - 45 Centigrade
10	Relative Humidity	30% - 75%
11	Packing Size	3520*2280*2100mm
12	N.W.	1500KG
13	G.W.	1700KG

Spindle	Italy HSD Air Cooling Spindle  Top brand of the world. Spindle speed: 0-24000RPM.
Inverter	Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control.
Motor	German SIEMENS servo motor high working efficiency and stable running promised
Control system	SIEMENS 808D Controller Thanks to its panel based design philosophy, and IP65’s protection level, the SINUMERIK 808 series is ideal for harsh environments.
Working table	T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.
Tool magazine	Linear 10 PCS Tool Magazine The use of an 10 Tool Rotary speeds up tool changes assuring faster times increasing production throughput.

1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair,

doors and windows.

2) The wood products: voice box, game cabinets, computer tables, sewing machines

table, instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body

of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other

carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and

soft metals such as copper, aluminum plate engraving and milling process.



Q1:How long is the delivery time of this cnc milling machine?

For standard machines, it would be 7-15 days;

For non-standard machines and customized machines according to client s specific requirements,

it would be 15 to 30 days.

Q2: What mode of payment for this cnc milling machine?

T/T, 50% deposit and the balance 50% should be paid before shipment.

Q3: If some problems happened to this cnc milling machine during warranty

period, what should i do?
