ANSHI 1200 пар, 1600 пар, 2400 пар, 3200 пар, основная распределительная рама МДФ, корпус из металла кроны

Product Overview

Description

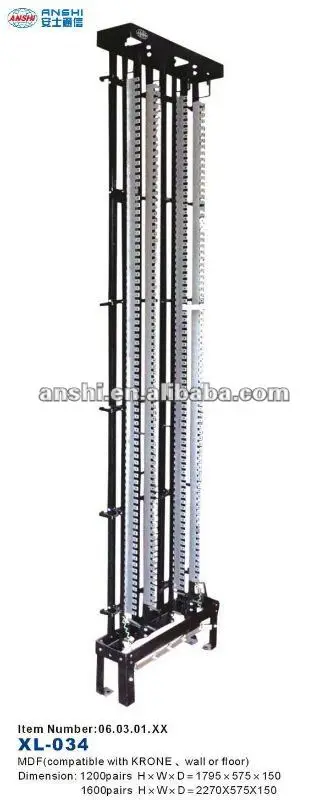

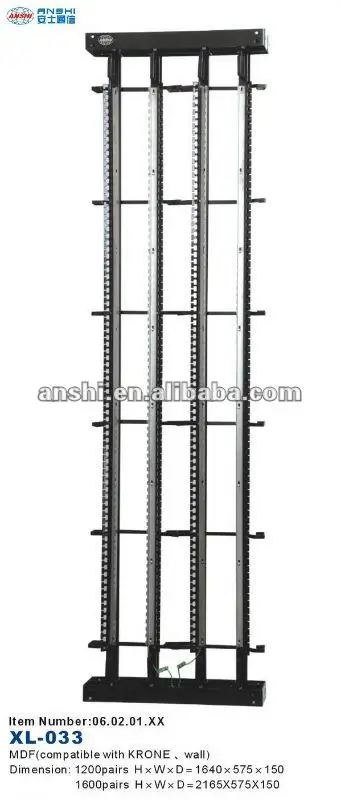

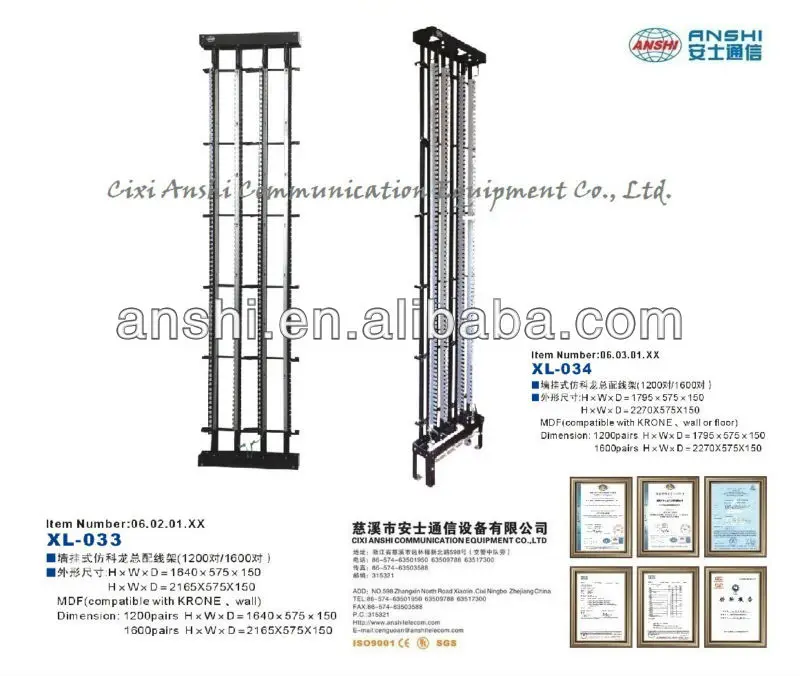

ANSHI 1200 Pair 1600 pair 2400 pair 3200 pair Main Distribution Frame MDF Krone Type Metal Frame



1,The frame is made of shaped alloy aluminum , it looks nice in shape and construction;

2,Perfect and reliable over-voltage and over-current protection with sound and light alarm, and self resulming fail protection.

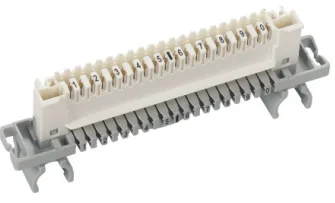

3,Both security block and test block are equipped with dualclip, terminals, when cutover outside lines mat be not disconnected, clipping wires and cutting lines will be finished at the same time, the connecting is quick and reliable.

4, The performance of anti-burn: PPT(UL94V-0) or anti-burn ABS(UL94V-0), combustibility achieved GB/T 5169.7-1985 standard

5,DC puncture voltage: 190-260V

6,Pulse puncture voltage: ≤800V(1KV/us  voltage increasing rate)

7,Insulation resistance: 1000MΩ(between any two separable modules)

8,Normal temperature resistance: ≤22Ω(R≤2Ω(over-current protection)

9,Contact resistance: ≤3mΩ

10, Contact resistance between reeds: ≤7mΩ

11,Normal temperature current: I=falling from 500mA to 150mA  t<20s

I=falling from 1A to 500mA     t<1.3s

I=falling from 2A to 500mA     t<0.5s

I=falling from 3A to 500mA     t<0.2s

12,Sactive time: I=2.5A  t<15s(220V/AC)

13,resistance to voltage: ≥1000V(AC)/1min without breakdown or arc

14,Clip-on life: >200 times



MODULAR DISTRIBUTION FRAMES, WHICH CAN EITHER, BE WALL MOUNTED OR INSTALLED BACK-TO-BACK FOR FREE STANDING APPLICATIONS. THESE FRAMES ARE AVAILABLE IN SINGLE AND DOUBLE VERTICAL VERSIONS. THE FOLLOWING FEATURES ARE OFFERED WITHIN THE FRAME CONSTRUCTION :

- HIGH DURABLE, RIGHT FRAME FACTORY ASSEMBLED FROM COATED STEEL
- BACK-MOUNT FRAMES MANUFACTURED FROM STAINLESS STEEL
- HARD WEARING, COATED STEEL JUMPER RINGS, WIRE GUIDES AND FANNING STRIPS FOR EFFICIENT CABLE MANAGEMENT-FRAME DESIGN ALLOWS EASY ACCESS TO TOP JUMPER RINGS
- FULLY EARTH BONDED. MEETING IEC REGULATIONS. EARTH BAR AND CLIP SUPPLIED
- ADJUSTABLE FEET, WHICH CAN BE REMOVED TO REDUCE HEIGHT FROM 2000mm TO 1850mm
