Mining Oscillating Feeder is widely used in mineral processing industry, coal industry, build materials industry, chemical industry and other industries. It is fit for feeding small particle materials in ore bin, especially fit for the feeding process of ball mill with belt conveyor. It is able to deliver blocky and granular materials from storage silo to receiving device evenly, regularly and continuously in the production process.
Working Principle of Mining Oscillating Feeder
The machine is installed beneath the discharging opening of ore bin. Minerals fall in the ore feeding box from ore bin. When it works, via coupler, electric motor drive turbine reducer to operate; the pendulum plate of chute begin the reciprocal movement through eccentric wheel on the output shaft of turbine reducer. So, the mineral feeding process is finished. The mineral feeding quantity can be controlled by adjusting eccentric wheel or regulating the revolving speed of motor.
Structure of Mining Oscillating Feeder

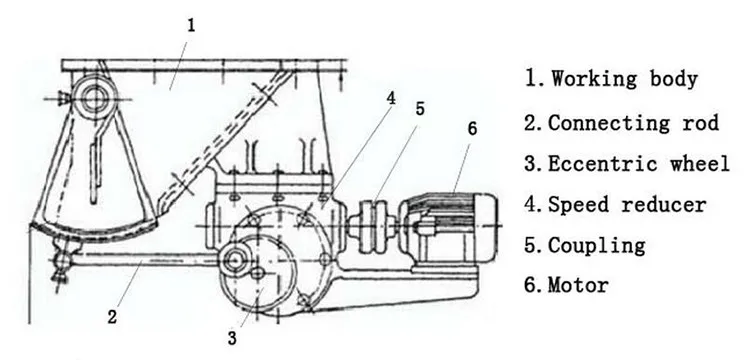

The structure of Mining Oscillating Feeder is as below:
Technical Specification of Mining Oscillating Feeder
Modell
Motor
Max Feeding
Size
(mm)
Swaying
Capacity
(t/h)
Dimension
(mm)
Weight
(kg)
Model
Power
(kw)
Frequency
(t/min)
Stroke
(mm)
300×300
Y90S-4
1.1
25
68
0-90
0-8
950×455×435
200
400×400
Y90S-4
1.1
35
47
0-120
0-12
1050×550×560
260
600×600
Y90S-4
1.1
50
45
0-220
0-25
1295×820×745
560
Application

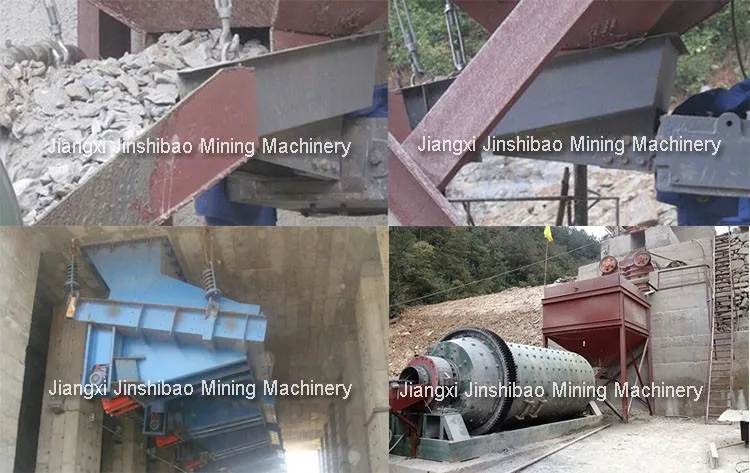

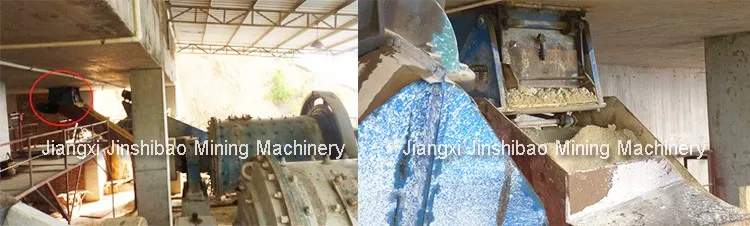

The Mining Oscillating Feeder is suitable for feeding various kinds of mineral ores smaller than 50mm. It is always applied to feed ball mill evenly in mining industry.
There are also other feeders for your option:
(1) ZSW series Grizzly Mining Oscillating Feeder
(2) DZ series Vibrating feeder
(3) Chute feeder which is usually applied to feed large sized stones for crushers or other equip.

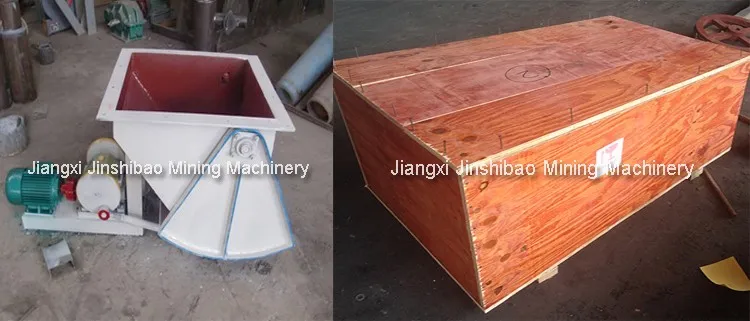

Small model Mining Oscillating Feeder is packed in plywood box;
Large model is packed in steel frame inside and plywood outside.
