2020 Chute Feeder Large capacity Mine Stone Feeding Machine specification price for sand and gravel (1700003398904)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


2020 Chute Feeder Large capacity Mine Stone Feeding Machine  specification price for sand and gravel





Product Introduction

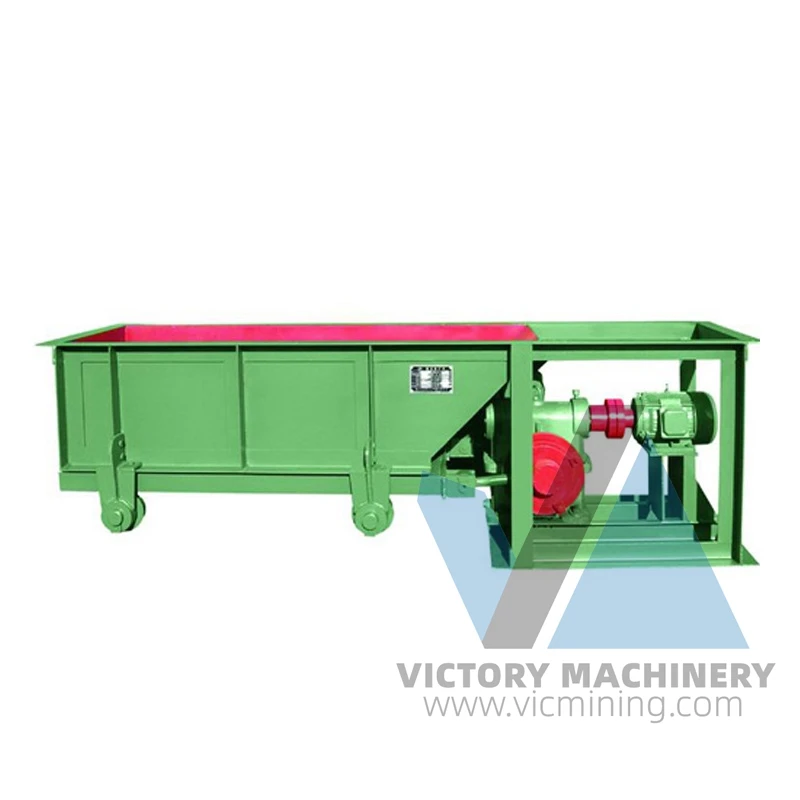

The machine is usually installed under the discharge opening of the ore box. Minerals fall into the bush. The bushing is located at the bottom of the chute, configured on the free wheel and via an eccentric device connected with a reducer that is connected to the electric motor by coupler. When it works, the electric motor drives the reducer via a coupler; The eccentric disc and the drain cover that are located between the bottom of the gutter structure and the roller begin to make a reciprocal and linear movement in order to feed minerals uniformly.


1 (1).jpg








Advantages






  • Simple structure.

  • Change and control flow and feeding volume anytime.

  • Stable transmission, high efficiency.

  • Compact structure, reasonable design.

  • Excellent quality, wide application.







Working principle





1. Vibrating feeder is designed based on the vibration principle.
2. It creates vibration when the materials are passed into the funnel and screen. Vibrating feeder is made up of vibrating frame, vibrator, spring, motor, and motor vibrating accessory.
3. The vibrator contains two fixed eccentric shafts with jogged gears. And they create a high aptitude to vibrate the equipment.






Application












The vibrating feeder is Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine selection, building materials, chemicals, etc.





Technical Data of Vibrating Feeder





























































Model



Outlet Dimension (W X H) (mm)



Max. Feed Size (mm)



Feed Capacity (t/h)



Motor Model



Motor Power
(kW)



Weight
(kg)



CG300X300



300X300



50



10~20



Y90L- 4



1. 5



265



CG400X400



400 X400



100



10~30



YCT160-4A



2. 2



640



CG600X500



600 X500



200



10~50



Y112M- 4



4



1045



CG700X500



700 X500



200



10~60



1100



CG1240X980



1240X980



350



36~90



Y160M- 6



7. 5



1710






Customised processing plant





 Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business,Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Costs.






Completed projects






Vietnam sand production line project


Argentina river pebble sand production line project


Nigeria limestone sand production line project


Peru cobble sand production line project








Our Factory





Henan Victory Machinery Co., Ltd is located in the important central hub city of China – Zhengzhou. It is a high-tech enterprise provides "environmental mine construction and operation" as the main and integrates design and development, machinery manufacturing, equipment procurement, management services, mine operations, mining materials procurement management and industry resource integration. The company's business scope covers all over the world. So far, it has completed more than 100 mining and mining industry chain service projects, with more than 40 kinds of ore mining technology and experience.



Our company is committed to providing "environmental mine construction and operation", that is, "design and research - complete equipment manufacturing and procurement - commissioning and delivery" of the concentrator. It mainly covers the following contents: EPC general contracting project of sand and gravel production line, EPC general contracting project of sand washing production line, EPC general contracting project of sewage treatment, etc. It is a professional product and solution provider integrating R&D, production and sales.





FAQ








Q: Are you trading company or manufacturer ?


A: We are factory.





Q: How long is your delivery time?


A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.





Q: What is your terms of payment ?


A: 30% advanced payment by T/T, balance paid before shipment.





Contact us





Are you want more detail of this machine? Please send your inquiry details in the below for free sample, Click "send" Now! The best price you may get early.





Henan Victory Mchinery Co.,Ltd


Sales:Rita


TEL:0086 15514506568
Web:www.vicmining.com
Mob/WhatsApp/WeChat:0086 155 1450 6568
