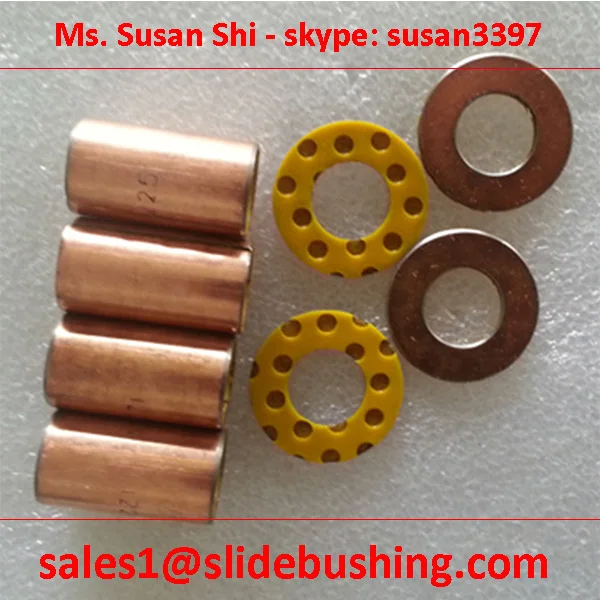

Excavator Du Bushing

Product Overview

Description

Feature

1).Good load capacity and anti-wear.

2).It is in high load capacities and low speed with rotational,oscillationg or frequent stop-start motion.

3).It can work for a long time without oil in the condition of boundary lubrication,under oil or grease lubrication interval, the working-life will be longer.

4).It is machinable for the thicker of PTFE.

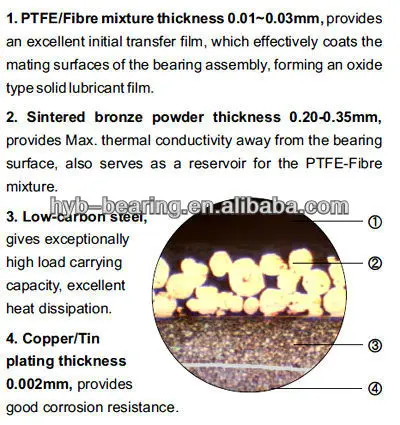

• Layers sturcture of DU(SF-1) bushing

• Technical Date

Max.load	Static	250N/mm²
	Lower speed	140N/mm²
	Roatating oscillating	70N/mm²
Max.PV(dry running)		3N/mm².m/s
Temp.limit		-40°C to+ 110°C
Friction coefficient		0.05~0.20
Max.speed	Grease Lubrication	2m/s
	Oil continued to	>2m/s
Thermal condustivity		50W(m.k)`1
Coefficient of thermal expansion		11X10` .K`1
Initial assembly must be painted in the oil hold in the grease

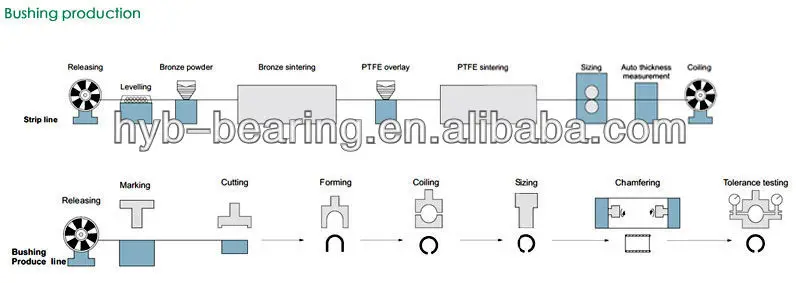

• Production flow

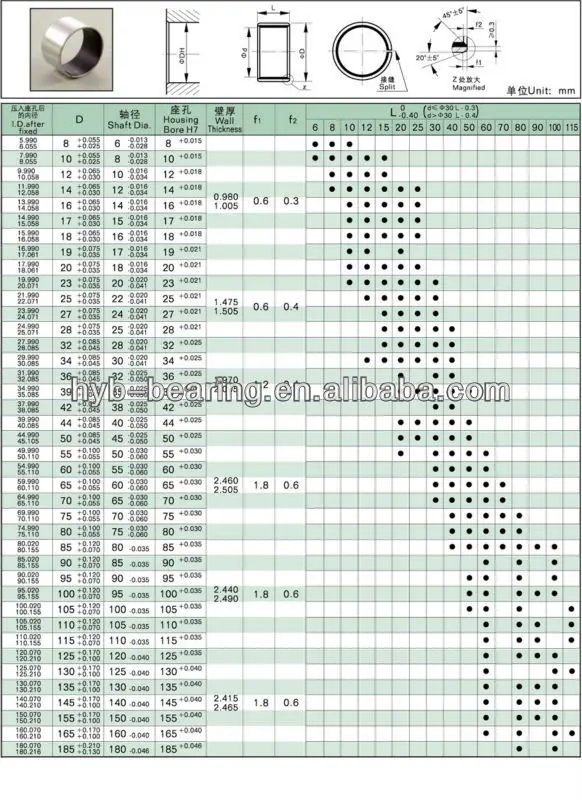

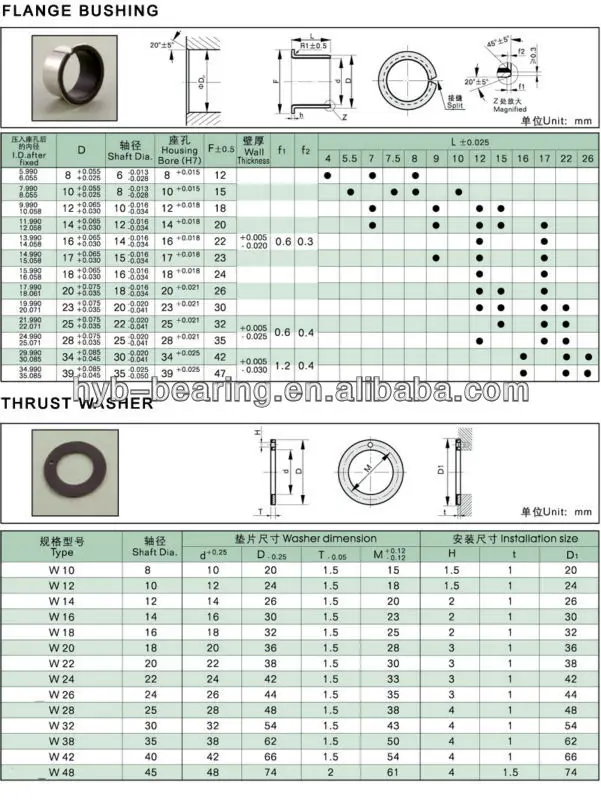

• Size list

• Application



• Factory informtion

Admin Office

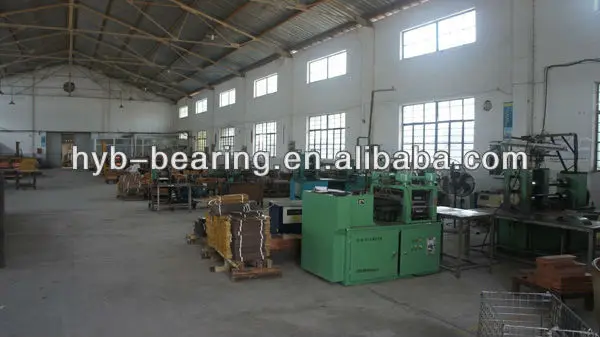

workshops

Inspection

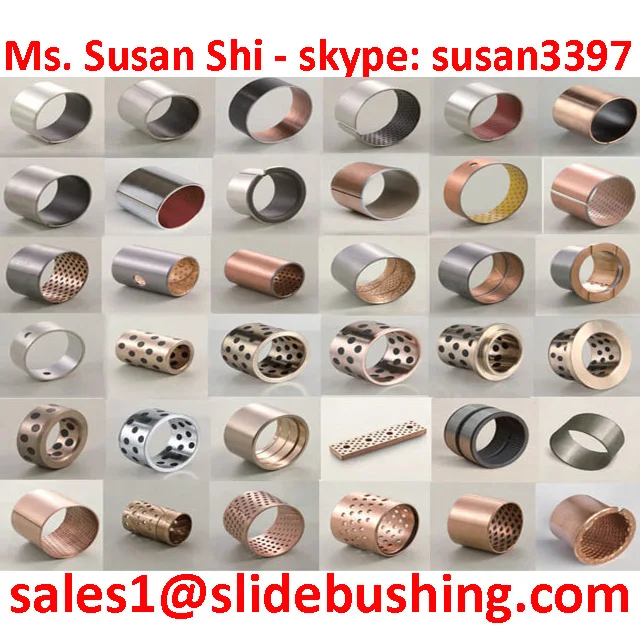

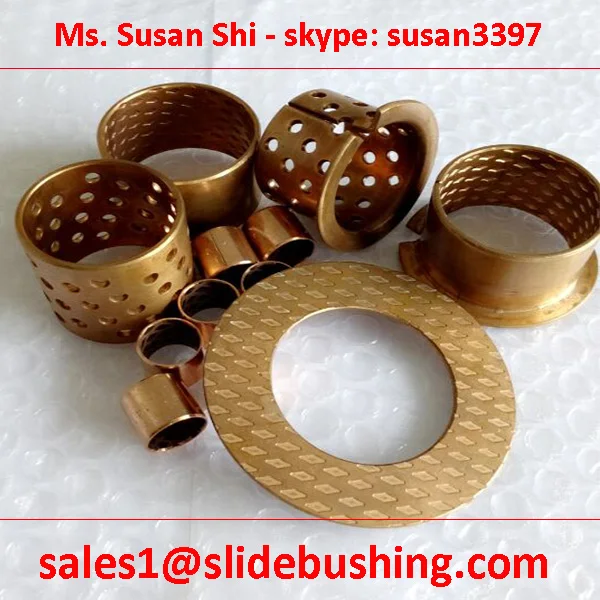

• We are supplying full lines of slide bushings:



SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2(dx) slide bearing bushing (POM Composite)

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



• ISO/TS16949 certification
