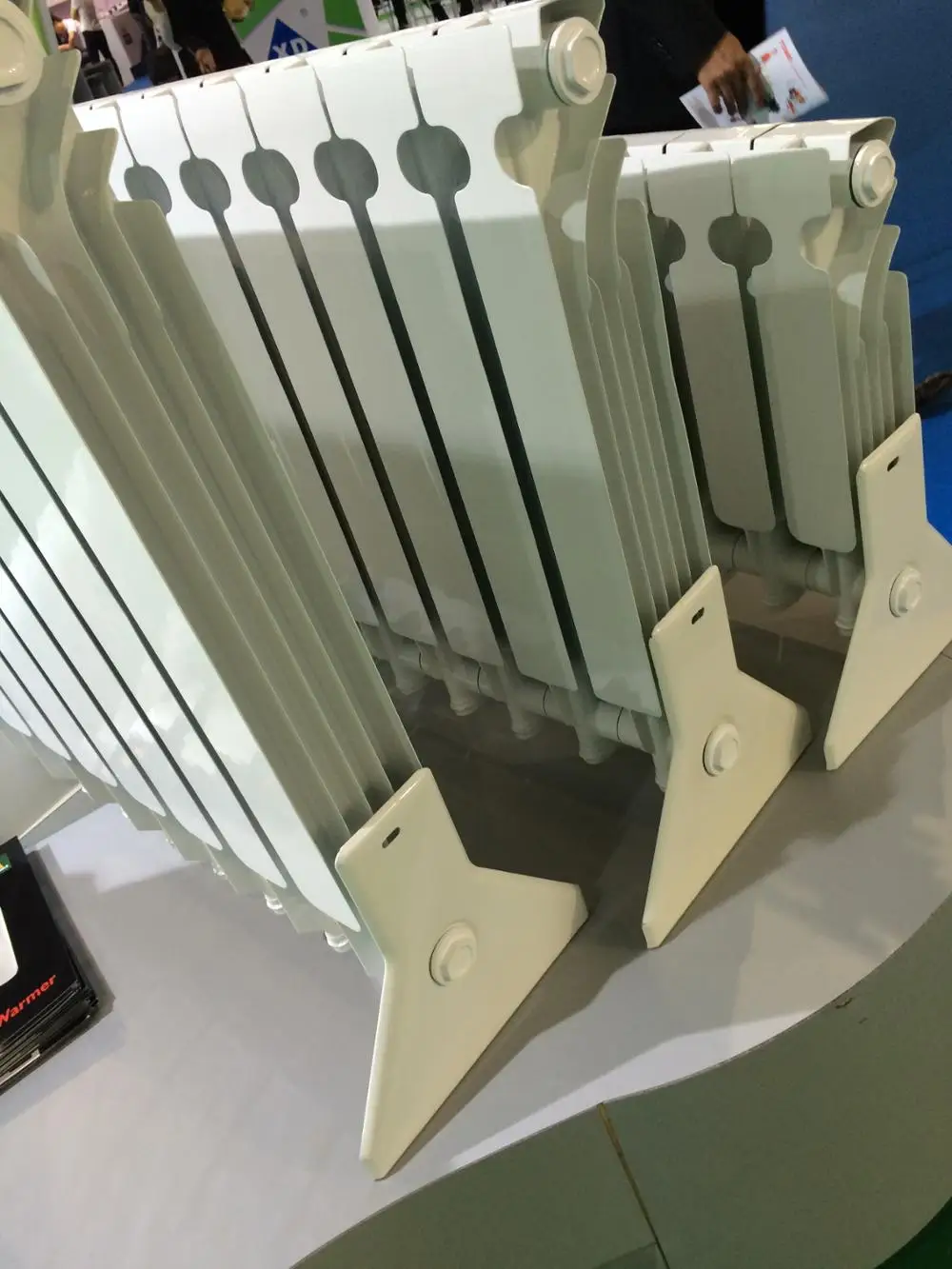

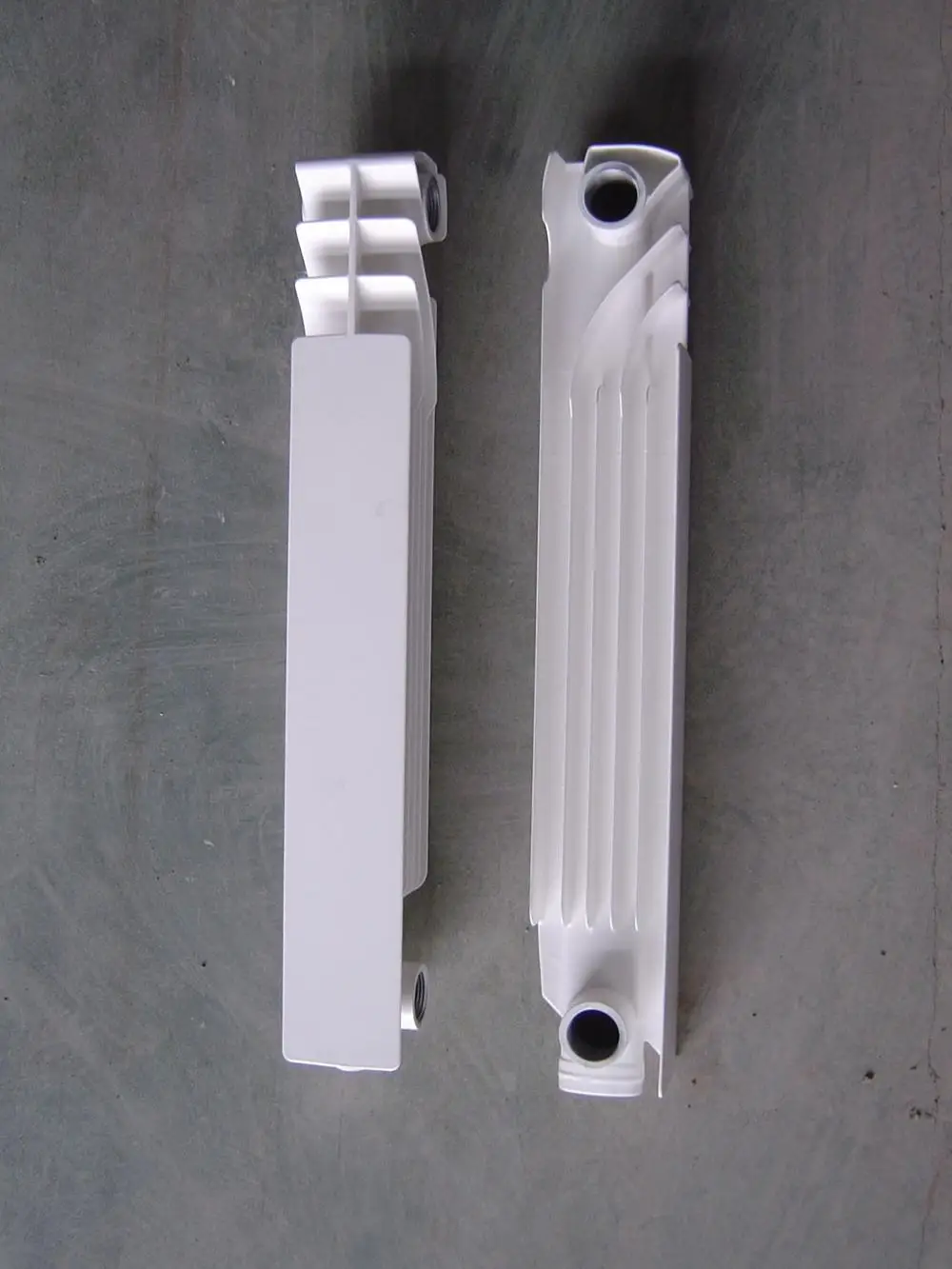

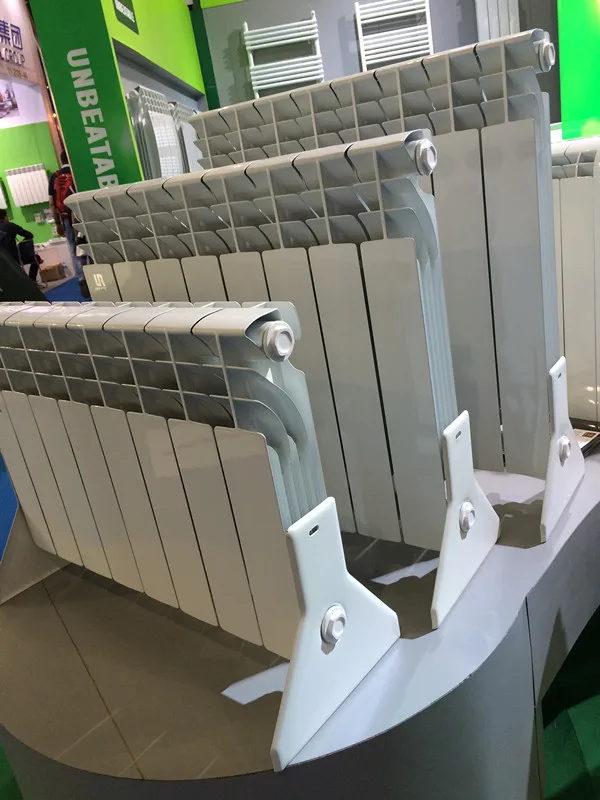

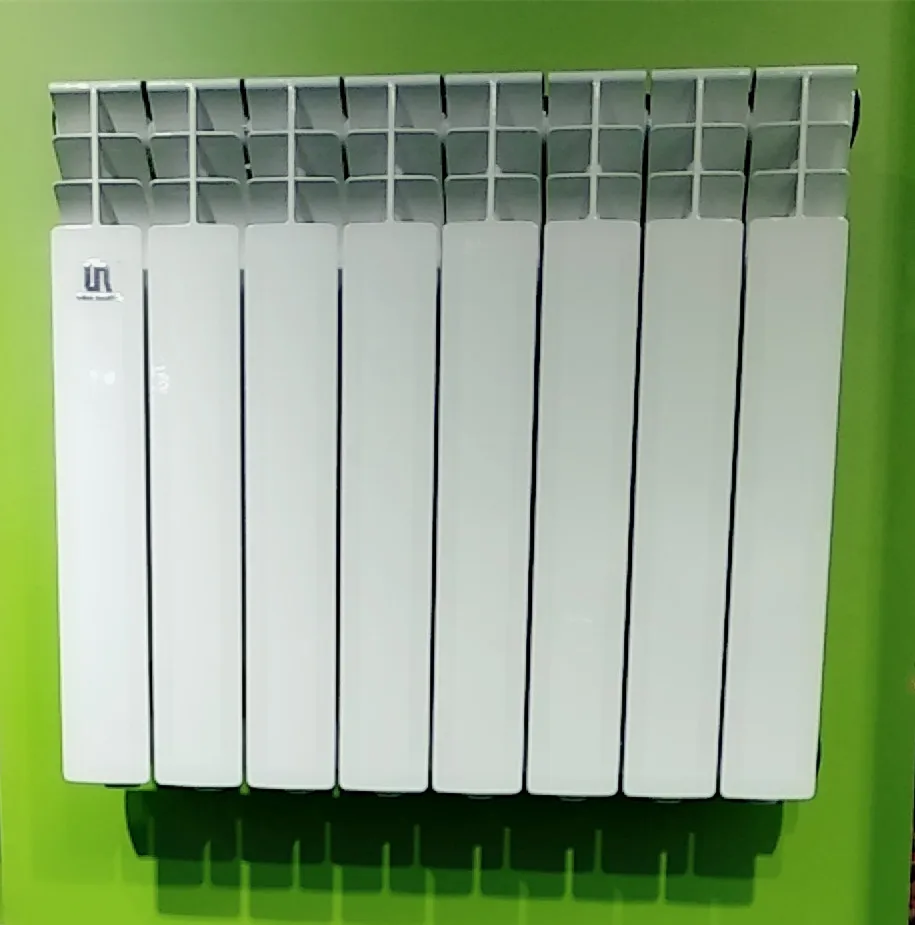

HVAC System CE RoHS New Style small Die Casting Aluminum radiator

Name

Aluminum Radiator

Working Pressure

1.5 MPa

Water Capacity

0.27-0.39L

Weight

0.93-1.48Kg

Installation

Wall mounted

Color

International standard color #RAL 9016

Delivery Time

15 days after the prepayment

Advantages

International standard raw material ADC 12 die casting machine gives radiator outstanding performance with good conductivity, anti-corrosion and stability.

Three times pressure test at 2.0 MPa ensures no leakage

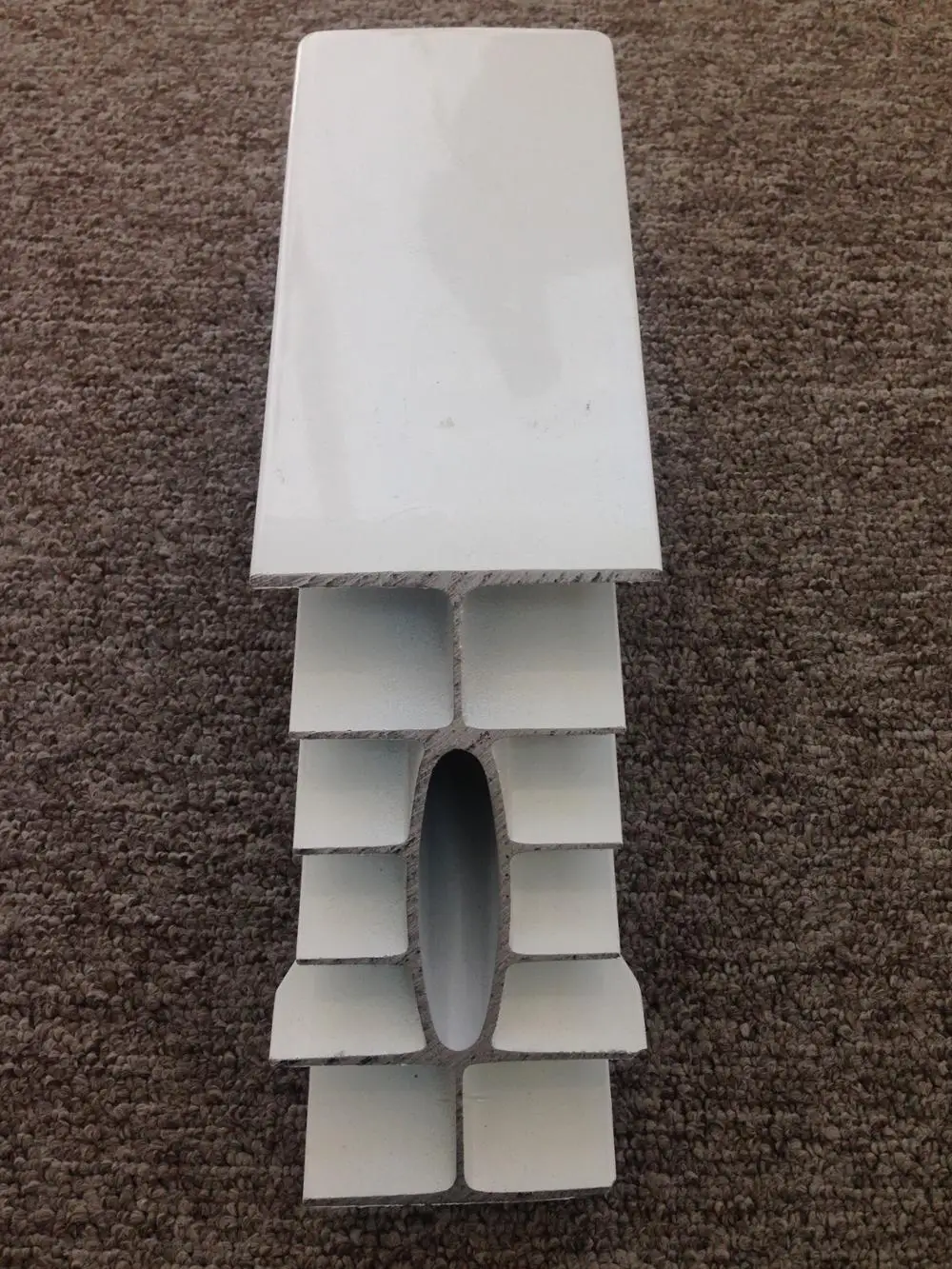

Hidden water channel prevents children from being hurt

Easy to adjust the element quantity for different room size and temperature request.

Thanks to automatic pretreatment procedure and electrophoresis painting line, color on surface is perfect.

Efficient heating and high thermal output helps energy saving and environmental protection

Model

Dimension

H*L*D

(mm*mm*mm)

Central

distance

( mm )

Water

capacity

( L )

Thermal Output

Δt=50℃

( w )

Thermal Output

Δt=64.5℃

( w )

Weight     (Kg)

UR1001-300

380*80*85

300

0.27

84

140

0.93

UR1001-350

432*80*85

350

0.31

90

158

1.01

UR1001-500

582*80*85

500

0.36

128

196

1.24

UR1001-600

685*80*90

600

0.39

138

216

1.48

MOQ

1*20'ft

Port

Shanghai

Payment

L/C, T/T, Western Union, MoneyGram

Delivery Detail

20 days after the order confirmed

Terms of Payment

1) L/C at sight 2) 30% prepayment by T/T ,70% rest amount before shipment

Packing

Thermal Film, Master Carton, 1set/carton.
