Product Overview
Description
Product Description
01) Basic information:

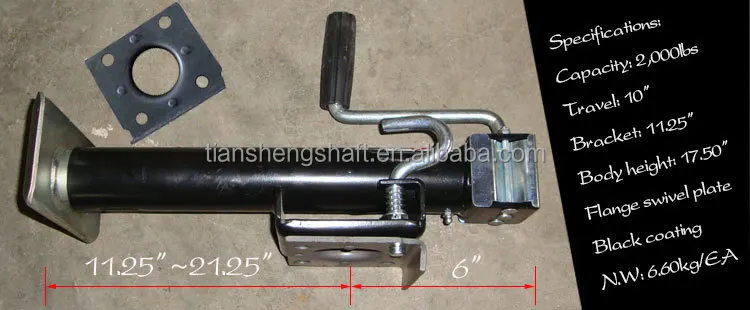

| P/N | TJB2001SB |
| Capacity | 2,000lb. |
| Travel | 10" |
| Bracket height | 11.25" |
| Body height | 16.90" |
| Bracket style | L-bend swivel plate |
| Handle | Side |
| Surface treatment | Black |
02) Product descriptions:
| P/N | Capacity | Travel | Out./Inn.tube size (mm) | Bracket height | Body height | N.W (kg) | Packing (Qty per crate) | Foot (mm) | Bracket style | Coating |
| TJB2001SB | 2,000lb. | 10" | Φ57/ Φ51 | 11.25" | 16.90" | 7.00 | 130EA per crate | 190*100 | L-bend swivel plate | Black |
| TJB2001SZ | 2,000lb. | 10" | Φ57/ Φ51 | 11.25" | 16.90" | 7.00 | 130EA per crate | 190*100 | L-bend swivel plate | Zinc |
03) How to make sure the correct sizie of the Jack stands
Here is some important points to make sure you buy the correct size of Jack to fit your lovely Trailer or equipment.
| Capacity | contain Static capcacity/ lift capacity |
| Travel | the length of the Jack remove in vertical direction (or call that the lenght of the screw can move) |
| Bracket height | measure from the center of the bracket to the ground(foot),should notice the retracted and extended height |
| Body height | measure form the top of jack to the ground (foot),should notice the retracted and extended height |
| Salt spray testing | standard requirement of anti-corrosive. the units is: hour |
| Life Cycle | means how many times you can use this Jack |

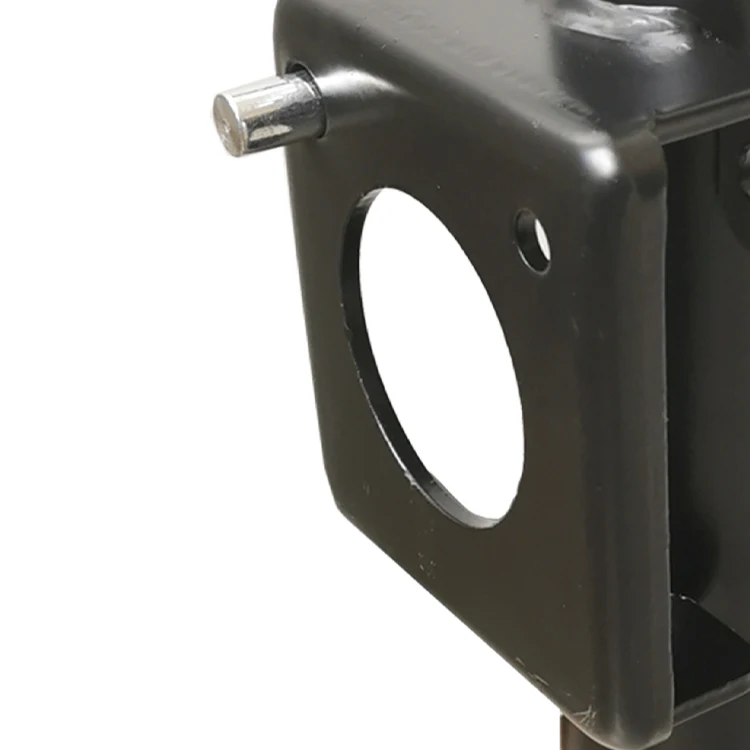

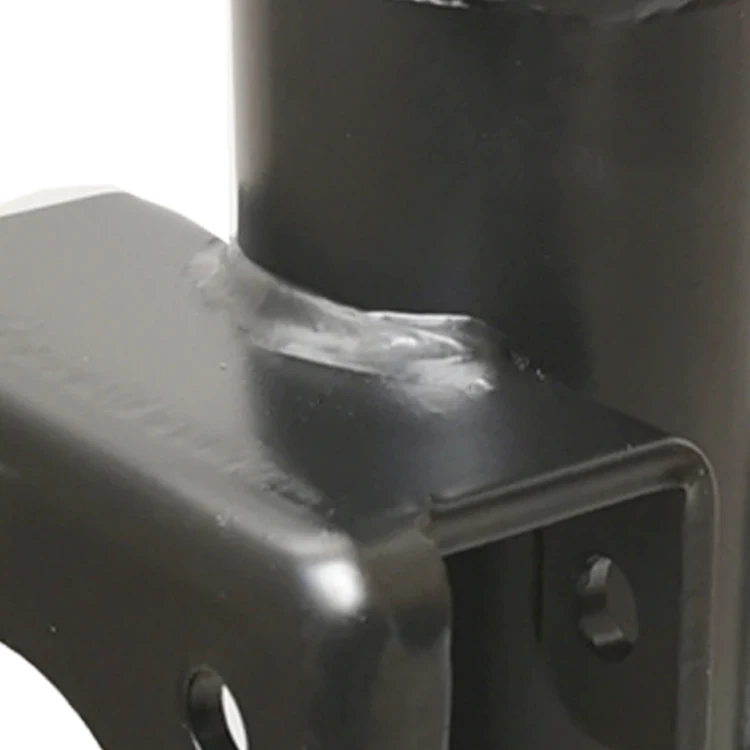

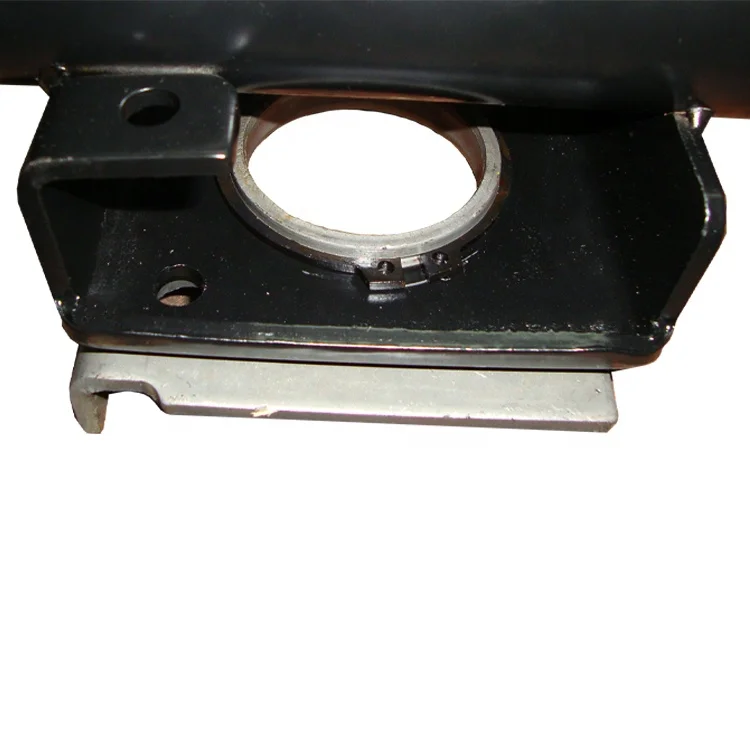

04)Product detailed viewing:
Product detailed viewing:
Shipping quantity:
| Quantity in one skid | 130pcs | Metal Skid size | |
| Quantity in 20ft container | 22 skids | Packing in iron skid | 1200x900x860mm |
| Quantity in 40ft container | 40 skids |
Optional treatment:
| Optional treatment |
| 1.) Black outer/ inner tube 2.) Galvanized outer/ inner tube 3.) Yellow galvanized |
