Forestry machinery manufacturer (CE No.OSE 11 0804/01) wood chipping machine

Product Overview

Description



Weifang Runsing Machinery Co.,Ltd

Runsing Machinery are experts in and manufacturer of forestry machinery and agricultural machinery in China for years. And Runsing Machinery dedicate to the international market research and development of forestry equipment. After 17 years of research, development, after-sale and customer accumulation, Runsing Machinery are be a great many changes in its business, its products, its services, Change always comes with opportunity, and Runsing has never outgrown, nor forgotten, its founder's original core values: integrity, quality, commitment and innovation, Those values determine the way we work, the quality we offer, and unsurpassed treatment you get as a customer, investor, employee.



Wood chips: Initially, wood chipping was mainly used for the efficient removal of branches and green waste in areas such as parks and woodland, but as wood chip came to be regarded as an important natural resource, wood chipping has taken on a new, ecomomic dimension. Wood chip is valuable if the quality is consistent and meets designated requirements. DWC wood chippers ensure these requirements are met. Our entire product range is designed to deliver high quality wood chip and on many of our machines the knives can be adjusted to produce different sizes, depending on what the wood chip wii be used for. Large quantities of wood chip are already being used as a fuel supply for energy and heating, and for industrial purposes such as MDF board and paper production. In addition, wood chip is extensively used as ground cover or as surfacing material for paths as an environment-friendly weed killer, which reduces or eliminates the need for chemical sprays.

Main models:

DWC-18hp, DWC-22hp, DWC-40hp engine wood chipper.

Features:

-CE approved (Reference No.: OSE-11-0804/01)

-Power: Yanmar diesel engine (18hp and 22hp), Changchai diesel engine (40hp)

-Max. diameter wood chipping: 200mm

-High speed tyre: Max. speed 140km/hour

-The wood chips are highly suitable for making wood pellets and heating purposes

-Round flywheel hourse, easy to change blades. The blades can use 24 months continuous.

Testing video:

//youtu.be/eq0jm6sLh4w

//youtube.com/watch?v=3rk_-j5FkDc&feature=youtu.be

Specifications:

Model	DWC-18	DWC-22
Engine	18hp Yanmar diesel engine	22hp Yanmar diesel engine
Chipper capacity	8"/200mm	8"/200mm
Feed method	Hydraulic feed	Hydraulic feed
Rotor disk diameter	640mm	640mm
Rotor disk weight	85kg	85kg
Knives number	1 stationary, 2 rotor knives	1 stationary, 2 rotor knives
Hopper discharge dimension	1200x1400x1100mm	1200x1400x1100mm
Feed hopper inner opening	200x220mm	200x220mm
Discharge hood height	1800mm	1800mm
Rated RPM	1080	1080
Weight	630kg	690kg
Efficiency	9-11 cbm/hour	10-13 cbm/hour
Tyre	high speed tyre	high speed tyre
Chips size	2-20mm adjustable	2-20mm adjustable
Discharge hood rotates	360 degrees	360 degrees

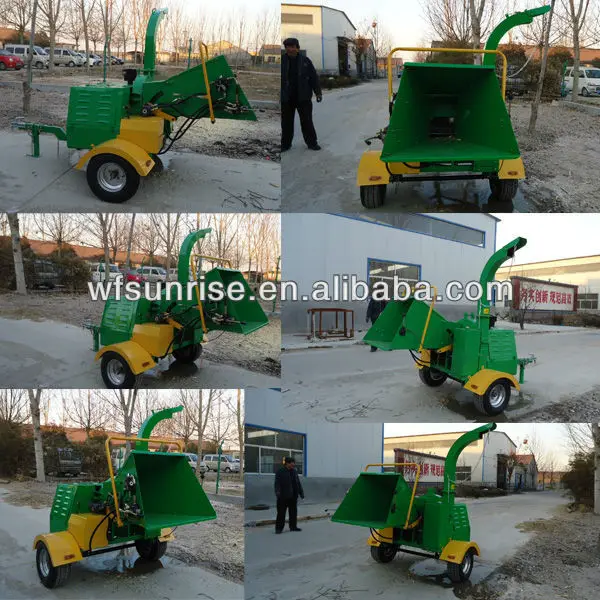

Reference photos

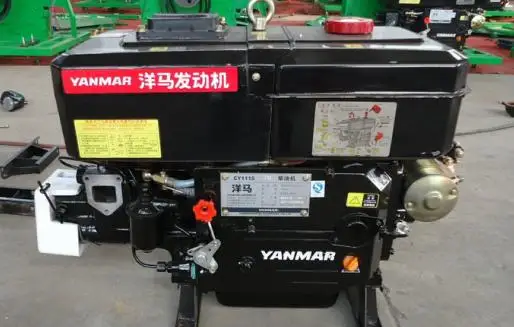

Engine & Power:

Model	CY-1115 Yanmar diesel engine(Made in Japan)
Aspiration	NA
No. of cylinders	Single cylinder
Cyl.borexstroke	70x74mm
Displacement liter	0.854
Rated output	13.3(18)/3600 kw(hp)min-1
Cooling system	Radiator
Start method	Electric start
Dry mass (back plate)	87kg
Reference photos



-Delivery method: by sea

-Packing: Iron crate with film covering

-20GP container can loading 20 units DWC-18/DWC-22 or 12 units DWC-40 wood chipper

-Runsing Machinery Co., Ltd allow third party (such as BV. SGS. COI etc.) to test the machine before shipping.

-OEM accepeted, customized available.

-Sample possible, engineer overseas available for wholesaler.

-Warranty: 24 months guarantee, if problem caused by quality factor, we will send you free parts by air within one week.

-Lead time: we will deliver within 25 days after getting deposit.

-Dealership: we search for long-term dealership, price and quality are good, enough spare parts can be provided.

-We accept FOB, CIF, DDU & DDP, we can helping shipping.

1. How to order?

-After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 26 days after we getting the deposit, we will send to the port and deliver to you by sea.

-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.

-If you still don't understand, please do not hestitate to ask me.

2. Related products?

-We have 18HP, 22HP, 30HP, 40HP and PTO version wood chipper.

3. Can i order only 1 set for sample?

-Yes, sample possible. You can test the quality of sample.

4. How do we visit you and your factory?

-First of all, welcome you or any appointed agent to vist and inspect our factory.

-You can fly to Shanghai airport, then come from Shanghai railway station to Weifang city. (3 hours)

-You can fly to Qingdao airport, then come from Qingdao railway station to Weifang city. (45 minutes)

-We can pick up you at Qingdao airport or Weifang railway station.

-Please kindly let us know your schedule in details, so that we can arrange everything for you.

5. Why you choose us?

-As manufacturer, our products have excellent quality and competitive price.

-Good after-sales services and 24 months warranty are visible.

-Strictly testing and checking before shipping.

-17 years experience in manufacturing and 6 years exporting experience in Alibaba and Made-In-China.

-Doing OEM for many famous brand.

6. How to contact with me?

-Sales director: Ms. Sharon Geng

-Mob: 86 15064613979

-Skype: runsing machine

-Address: Gudi Industry Park, Hanting District, Weifang city, Shandong province, China.

Weifang Runsing Machinery Co., Ltd
