round pin header

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description





































round pin header



→Specification←



Mechanical life



Min. 500 cycles



Rated current



3A



Contact Resistance



Max.10mΩ



Dielectric strength



Min.1000V RMS



→Material←



Insulator:



PPS+30%G.F(UL94V-0)



Sleeve



Brass



→Package←



Inner Packing:PVC tube,Outside Packing: Standard export carton

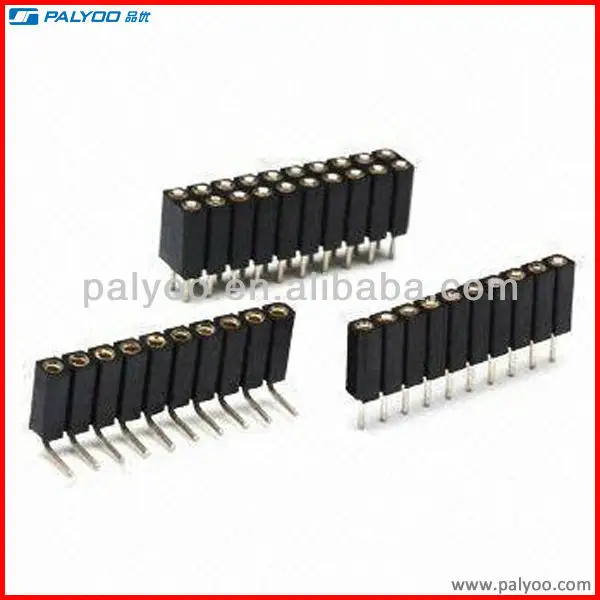

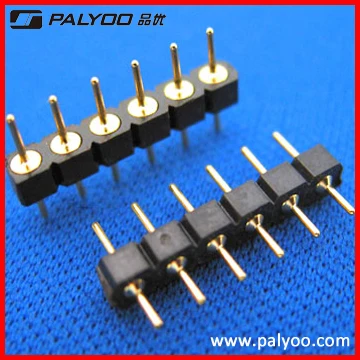

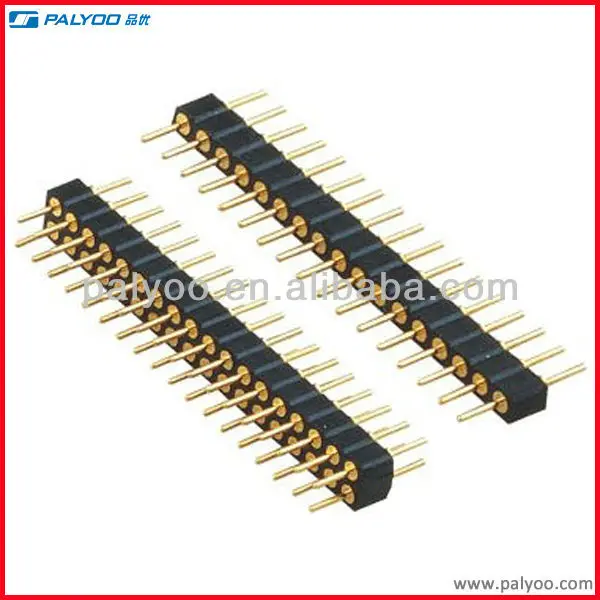

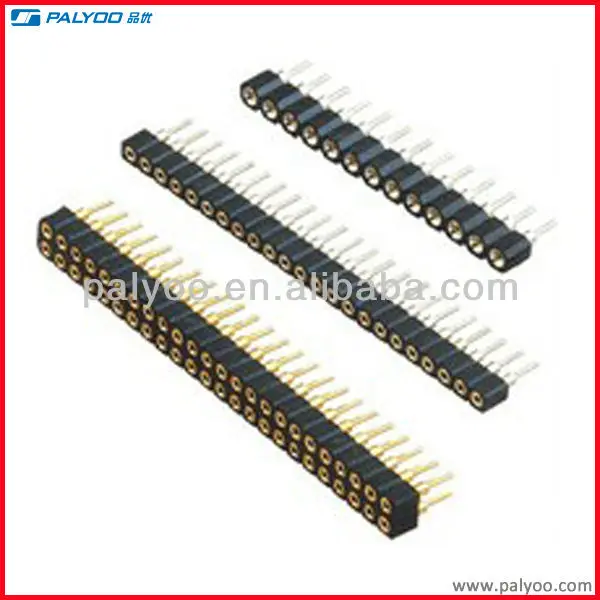

2.54mm round pin female header2.jpground pin header.jpground female header 21.jpground female header.jpg


Round Pin Header Product index:





1.  Pitch  Series: 1.00/1.27/2.00/2.54mm





2.  Insulator Height: 2.50mm/3.0mm etc





3.  DIP Spacing:  Single/Doublel row





4.  Number of contacts: range from 1 up to 80 pins





5. Contact Plated:Gold flash/Gold 3u/ Gold 5u/ Gold 10u/ Gold 15u/ Gold 30u/Tin





6. Material Type: PPS/PBT/LCP/Nylon-66/Nylon-6T/PA46





7. Tires of Body: Single/Double/Triple tier











  round pin header connector





Specifications











Current rating: 3AMP











Contact resistance: 20MΩ Max











Insulation resistance: 1000 MΩ Min











Withstand voltage: AC 500V

















Operation temperature:











Gold plated, from -55°C to +105°C











Tin plated, from -40°C to +105°C











Contact material: Brass/Phosphor Bronze











Contact plating: Au or Sn over 50 u" Ni











Insulator material: Polyester (UL94V-0), Nylon-66/PBT











Color:Black/Blue/Red/White/Yellow/Grey

















Advantage





1.All kinds of products 100% tested before delivery..





2.Well-equipped testing facilities and strong technical force.





3. Prompt delivery and competitive price and quality.





4. Used in the most of home appliances,computer,PCB,LCD,TV.





5.Our factory has nearly ten years manufacturing experience.











We provide many kinds connectors, such as pin header ,female header, box header, ejector header, ic socket, d-sub connectors ,sockets,switches, cables etc,and promise all products are ROHS with high quality, if you have any need or question,please don't hesitate to contact us.
