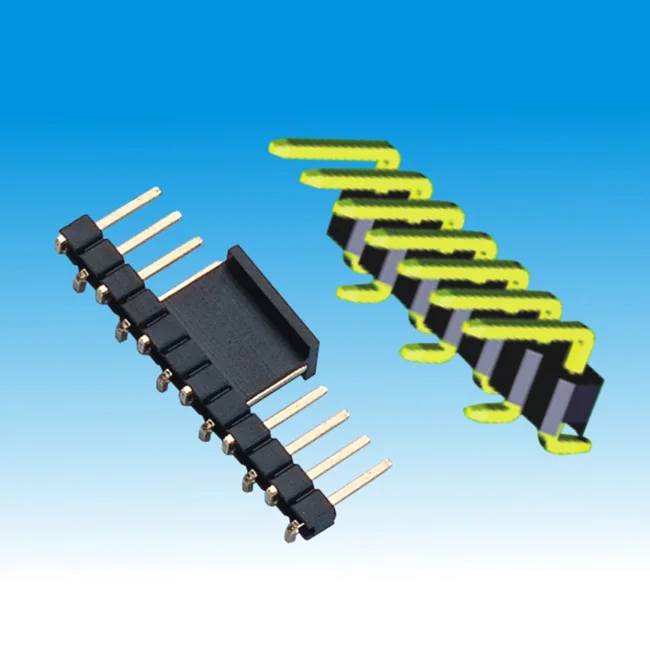

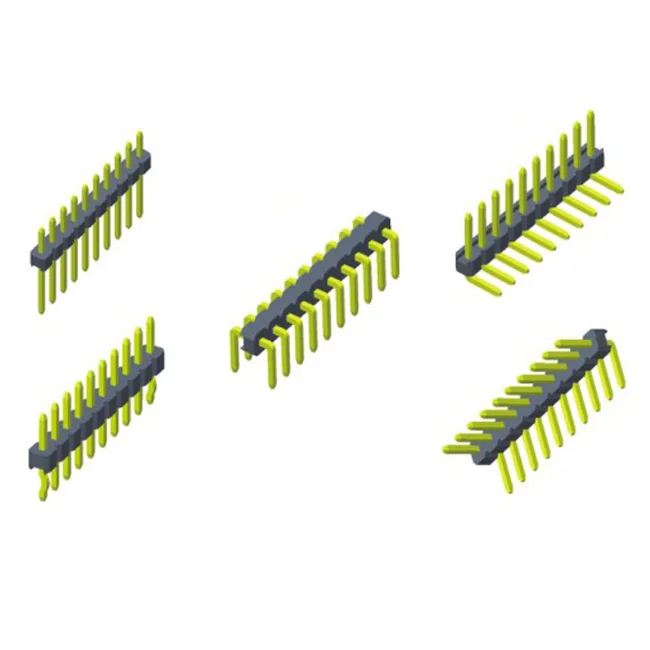

Gold Finish 2.54mm pitch smt single row pin header connector

Share on:


Price:RUB 3.04 - RUB 30.33
Price in USD:Details

Quantity:


Product Overview

Description

Gold Finish 2.54mm pitch smt single row pin header connector





Product description:

Specifications:
Current Rating: 3MP
Max Processing Temperature: -40°C to + 105° C
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000mΩ Min
Withstanding Voltage: AC 1000v
Insulator Material: High Temperature Thermoplastic(UL94V-O)
Contact Material: Brass
Finish: Au or Sn over Ni
Packing: Tube
Contact Type: Smt

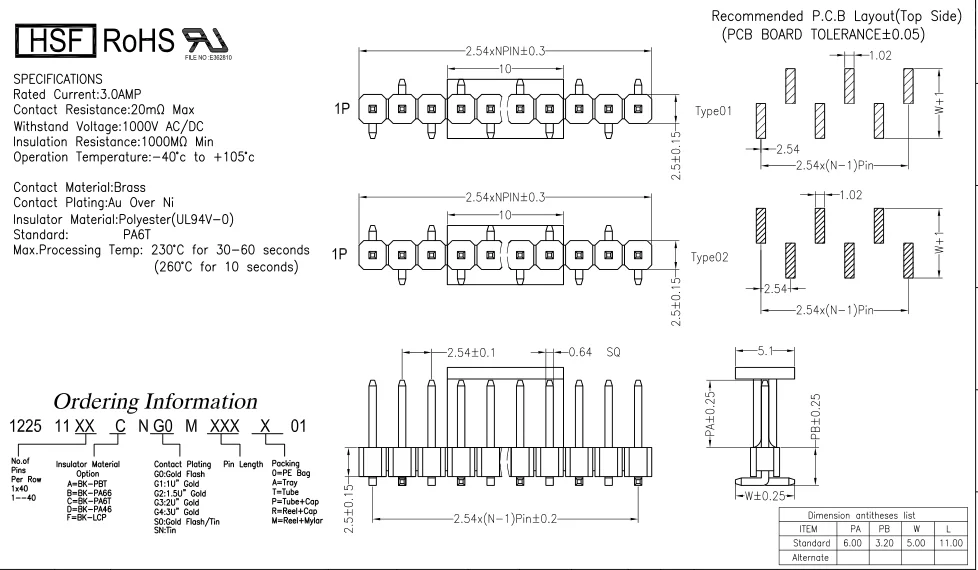

  • Engineering drawing:


Company Information:



Shenzhen Jinling Electronics Co.,Ltd , Which is Global designer and manufacturer of industry standard and custom connectors,was established 2001 and specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.We always follow the guideline of specialization and automatization since the establishment.

company information

Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

production equipment Workshop

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

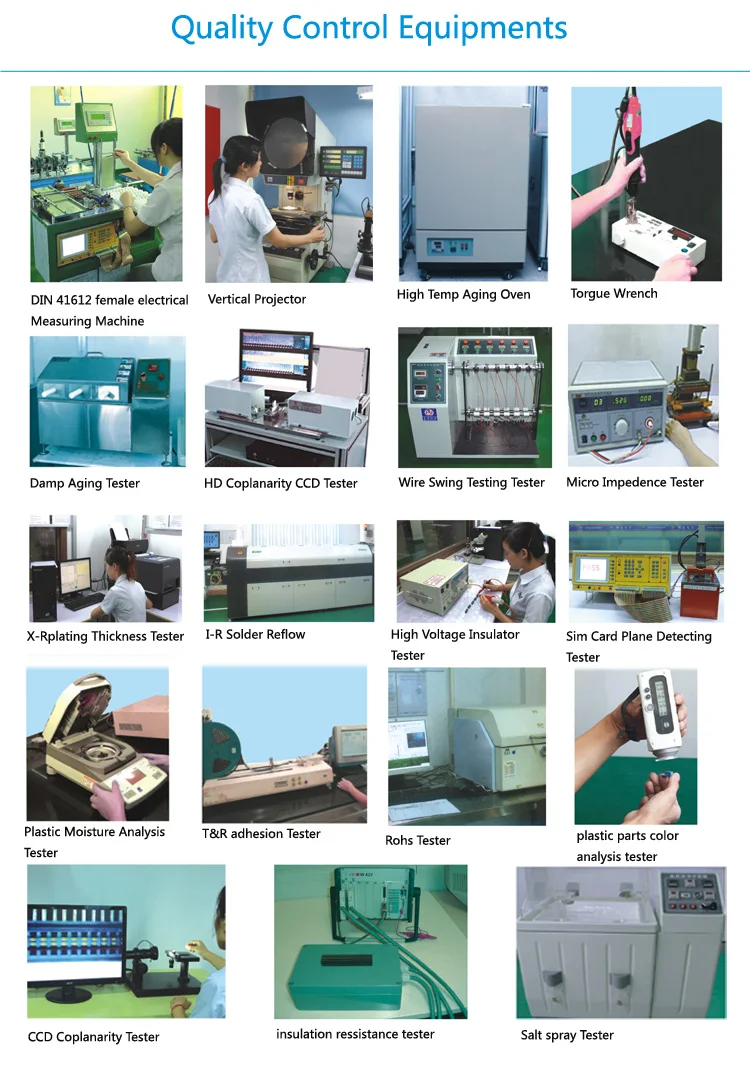

Quality Control Equipments

Certifications:

The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements

Certifications



FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).




Packing & shipping
