Стандартная газовая панель для огнетушителя европейского стандарта FM200 (11000000015607)

Share on:

Price:275,00 $ - 285,00 $
Price in USD:Details


Product Overview


Product Description

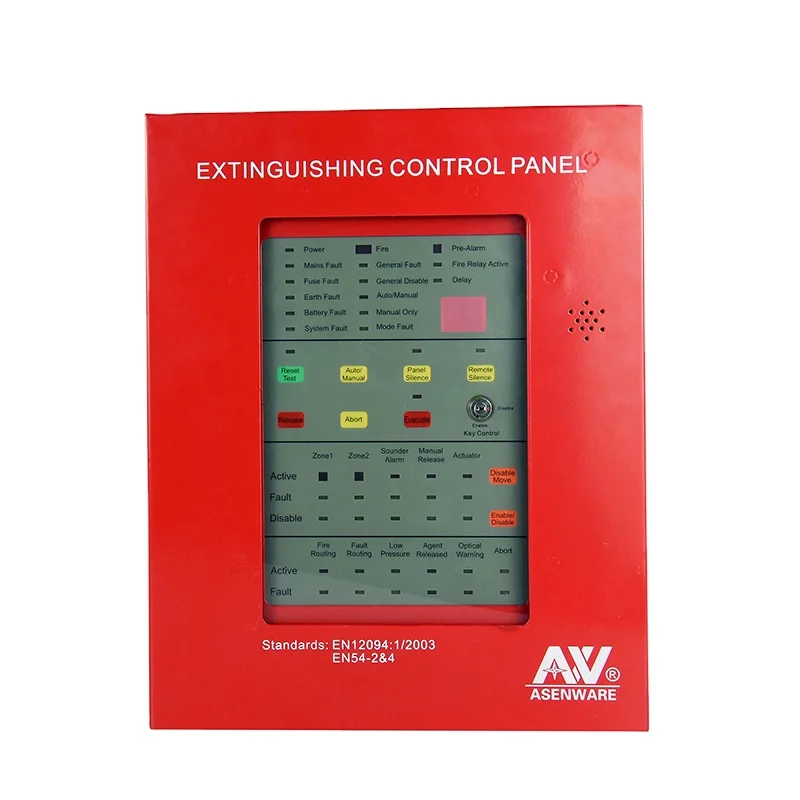

★AW-GEC2169 with a new design, easy to operate, metal box opening and closing door with visible glass window, make the Panel running more safe.

AW-GEC2169 extinguishing control panel is designed in compliance with the requirements of European standards of EN54-2, EN54-4 AND EN12094-1.

This panel can be used in FM200, CO2, IG541, Novec1230 and other gas fire extinguishing systems.

Place of Origin
Brand Name
Model Number
Main Voltage
220VAC 50HZ
2*12V/ 2.3Ah sealed lead acid gel, self-regulated
Battery low-voltage protection
Detectors connection allowed each zone
Detectors connection allowed each zone
Alarm terminal output current
200mA maximum
EM valve output current
1.2A maximum
Relay contacts rating
1A @30VDC
Communication protocol
2 wires RS485 bus system
Auxiliary power output
24VDC, 0.2A max, current limited
Temperature range: -5 to 40°C (23~104°F)
Humidity: 5 to 95% RH, non-condensing
