Полипропиленовая пескоструйная ловушка 1650*900*200 мм OVP 150 (B) серии «Cleaning PM» для очистки сточных вод
- Category: Filtration Equipment >>>
- Supplier: StroiSnabResurs LLC
Share on (11000000026038):
Product Overview
Description
Product Description

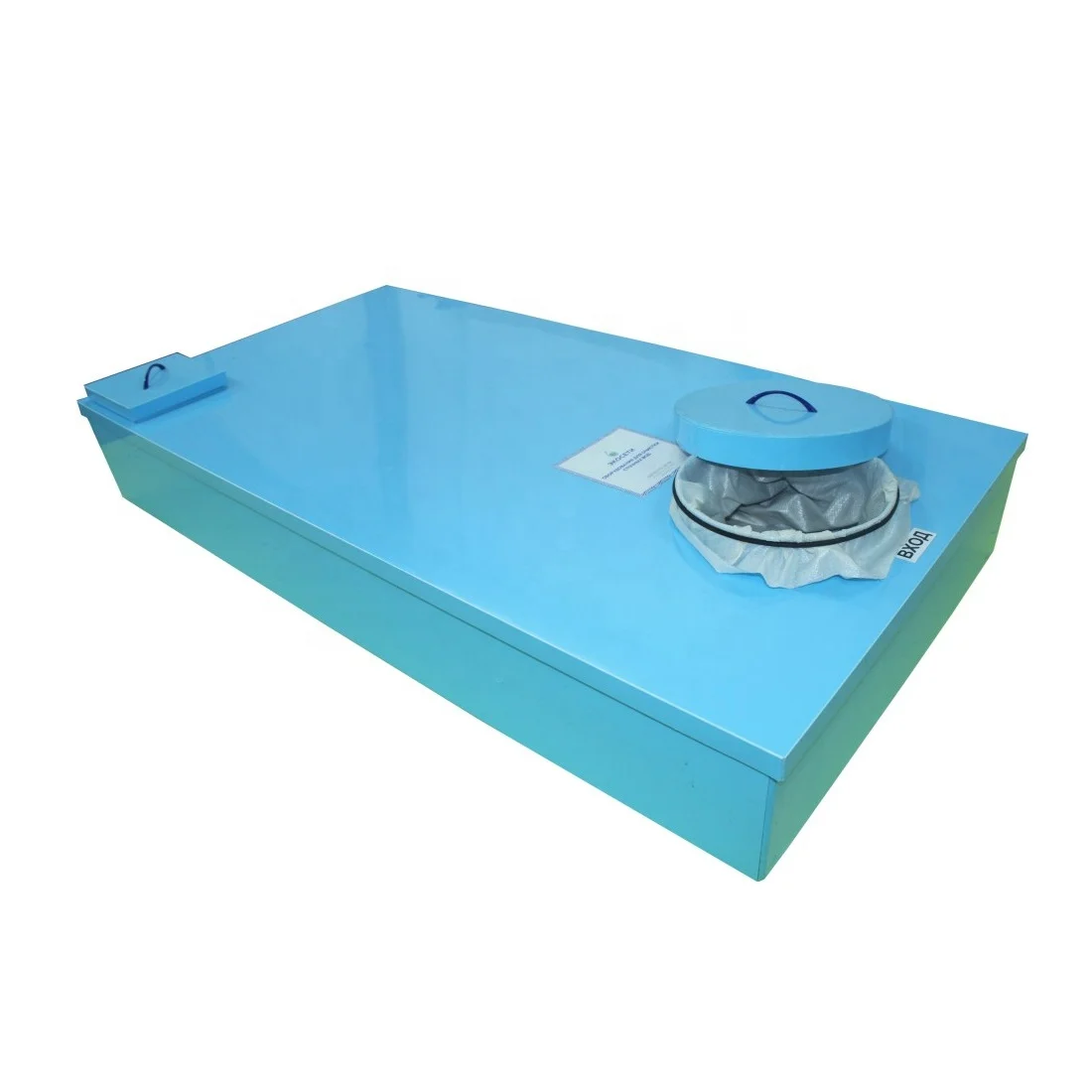

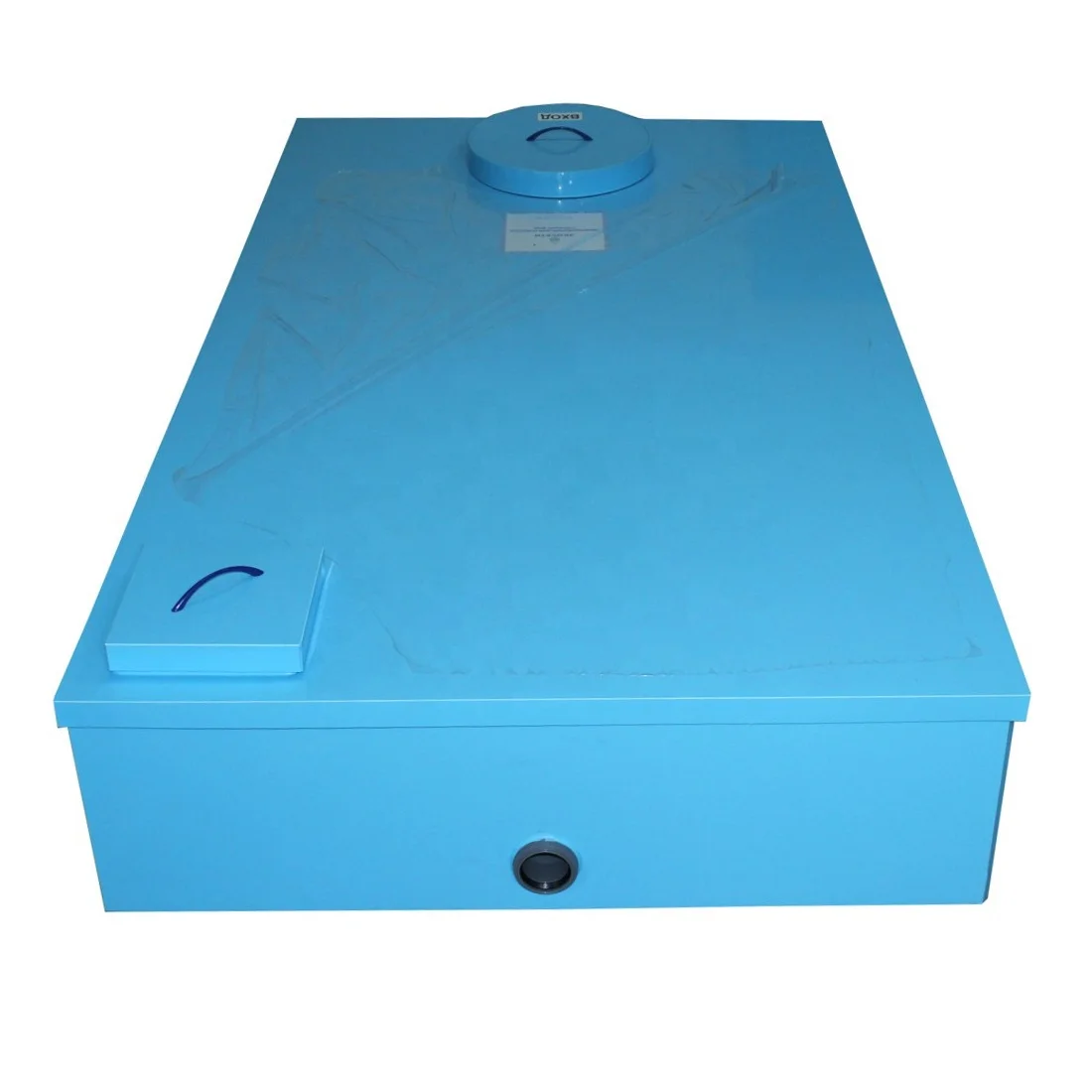

Cleaning-PM OVP 150 (B) sand catcher
The "Cleaning-PM" series sand catcher for machine cleaning of premises is the first in the line of portable sand catcher of this series. The sand catcher is optimally suited for small floor cleaning machines with a salvo discharge of waste water no more than 40 liters. Small dimensions allow installation in any convenient place.

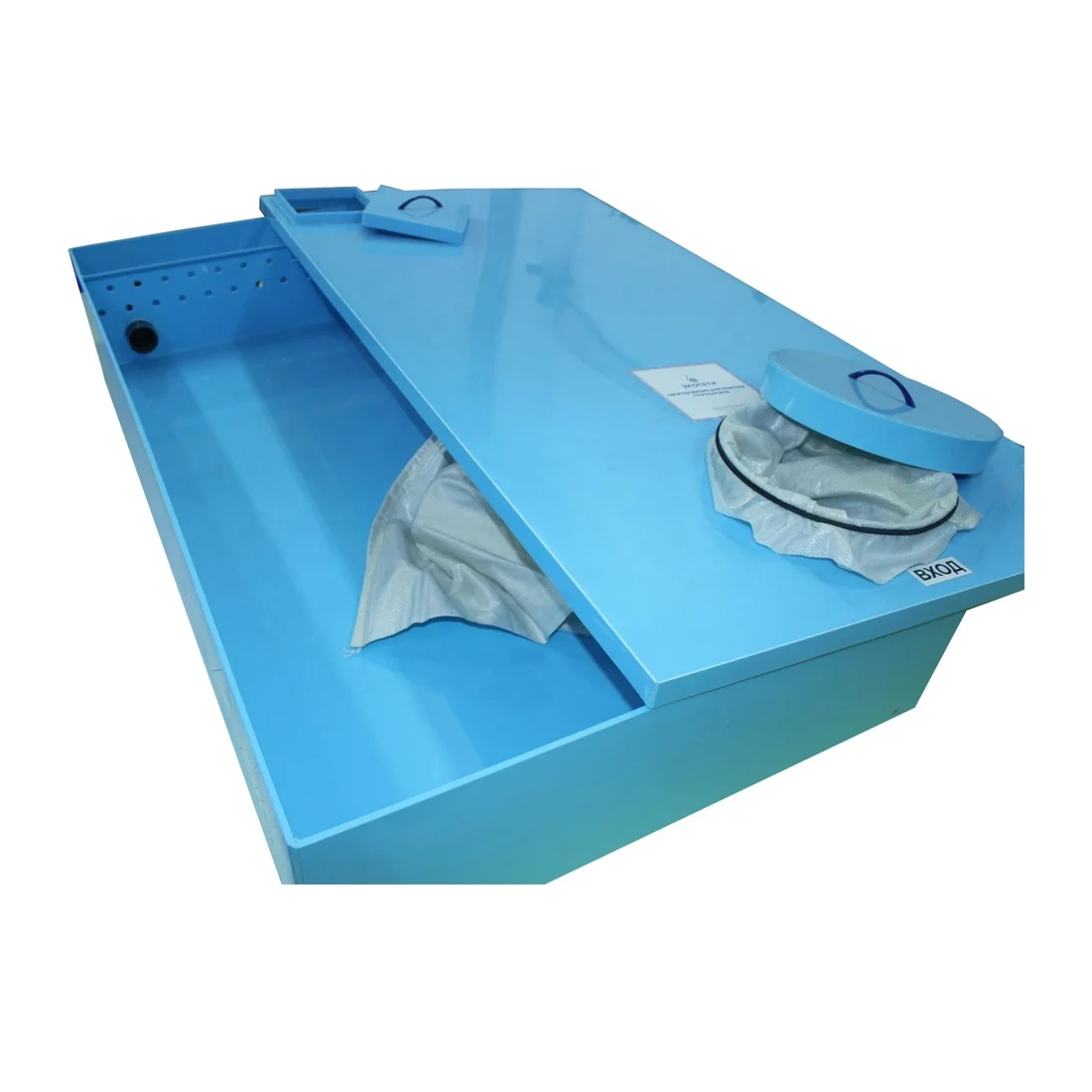

The newly supplied water displaces an equal volume of previously settled water into the small chamber, for secondary, final settling, before being discharged into the sewer network.
Trash box "Cleaning-PM" series for floor scrubber driers of the largest volume. The maximum allowable salvo discharge is up to 200 liters! Execution B - for scrubber driers with a low drain connection. Sand traps of this type are effective when cleaning large areas, providing simultaneous treatment of significant volumes of water.
It is mainly used in underground parking lots of shopping centers and large stores - in cases where the installation of an industrial sand trap is impractical, due to the impossibility of access for special equipment (sludge pump).
To ensure the simultaneous discharge of large volumes, special bags of increased volume and strength are required (3 pieces per set) Due to the high density and strength of the filter bags, they can be reused, which allows you to minimize the costs of sand trap maintenance.
How do sand catchers works?
To drain the waste water, the operator needs to roll the scrubber drier to the sand catcher, remove the cap from the filler neck, drain the waste water and close the cap - you can continue working!
A flow restrictor with a specially selected perforation ensures smooth discharge of contaminated water into the sewer, to prevent sand and small debris from being carried out of the bags by the flow of incoming water. Each next reset can be done in 4-5 minutes!
As the filling progresses, the bags are removed through the filler neck and new ones are inserted. The rubber clamp can be easily put on the neck, inserted into a special locking groove and firmly fixes the bag, protecting it from "breakdown" during salvo discharge of water into the sand catcher.
High-strength PP bags are used as filter bags, allowing one bag to be used up to 100 times. The bag is cleaned once every few days, thus a set of 3 bags (supplied with the desander) can last for several years. You can always purchase additional bags on your own or by contacting Econet.
All sand catchers of the Cleaning-PM series are equipped with a water seal, which excludes the penetration of unpleasant odors from the sewage system.
The equipment is made of high-quality Czech polypropylene with UV-stabilization - a high-strength, non-corrosive material, inert to aggressive media (it can even withstand the storage of concentrated sulfuric acid at temperatures up to 60 degrees!). The service life of such sand catchers is not limited.
Additionally, sand catchers of the Cleaning-PM series with a salvo discharge of 150 liters or more are reinforced with steel stiffeners around the perimeter, which allow them to withstand high shock loads during operation.
The height of the filler neck of the sand catcher is selected taking into account the height of the drain pipe of scrubber driers with salvo discharge up to 150 liters.
Specification
Peak discharge, L | 150 |
Exit height (in a center), mm | 65 |
Diameter of the pipes | 50 mm |
Length, mm | 1600 |
Width, mm | 900 |
Height, mm | 200 |
The list of equipment
* Removable filler cap
* Perforated restriction plate (flow restrictor)

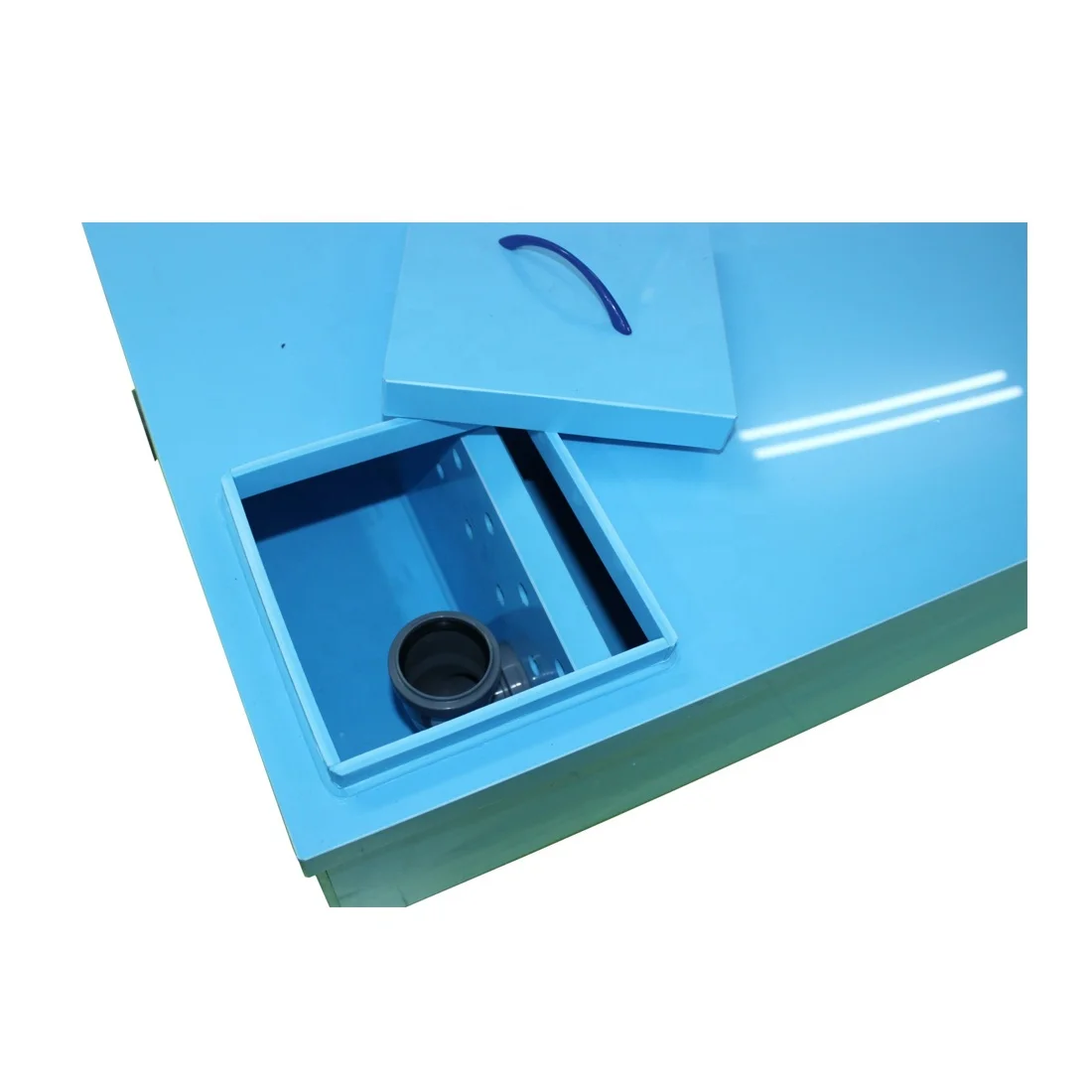

* Odor trap
* High-strength filter bags - 3 pcs.
* Fixing clamp - 2 pcs.
* Stiffeners around the perimeter
* Perforated restriction plate (flow restrictor)
* Odor trap
* High-strength filter bags - 3 pcs.
* Fixing clamp - 2 pcs.
* Stiffeners around the perimeter
Title goes here.

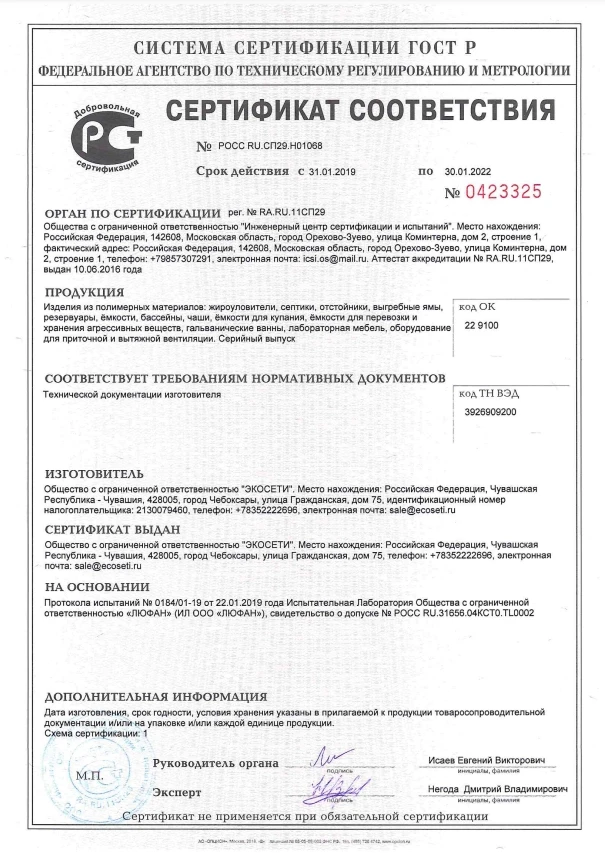

The equipment is certified in accordance with the legislation of the Russian Federation The quality control system is certified
according to GOST ISO 9001 - 2011
The warranty is 5 years.
The equipment is certified in accordance with the legislation
of the Russian Federation
The quality control system is certified according to GOST ISO 9001 - 2011
The warranty is 5 years.
Recommend Products
Company Profile
"Ecoseti" LLC - is a manufacturer of sewage treatment equipment. We produce oil and sand catchers, sorption filters for gas stations, shopping centers and car washes. We offer a range of grease traps for public catering facilities: from small traps that is beneath your sink to industrial ones. Since last year we've been successfully manufacturing aeration and sewage stations, septic tanks for private households, which purify up to 95%. We also produce plastic swimming pools, fully equipped cellars, tanks for storing liquids and caissons.
The production of equipment began in 2014. Over the years we have been able to gain a reputation not only as a reliable supplier of plastic products, but also as a qualified manufacturer. Therefore, we carefully monitor both the process of goods production and test samples in our own laboratory, but also guarantee the high quality of raw materials because we have been cooperating only with reliable suppliers for years.
Eco-networks. Manufacturer of grease traps, septic tanks, plastic products
The production base of the Ecoset company is located in the city of Cheboksary, Chuvash Republic at the address: 75 Grazhdanskaya str – it is a modern and technological extrusion equipment, processing machines (cutting, welding, extrusion), as well as production including:
- extrusion welding site;- heat treatment site;
- more than 5 assembly sites;
- storage facilities;
- the laboratory.
