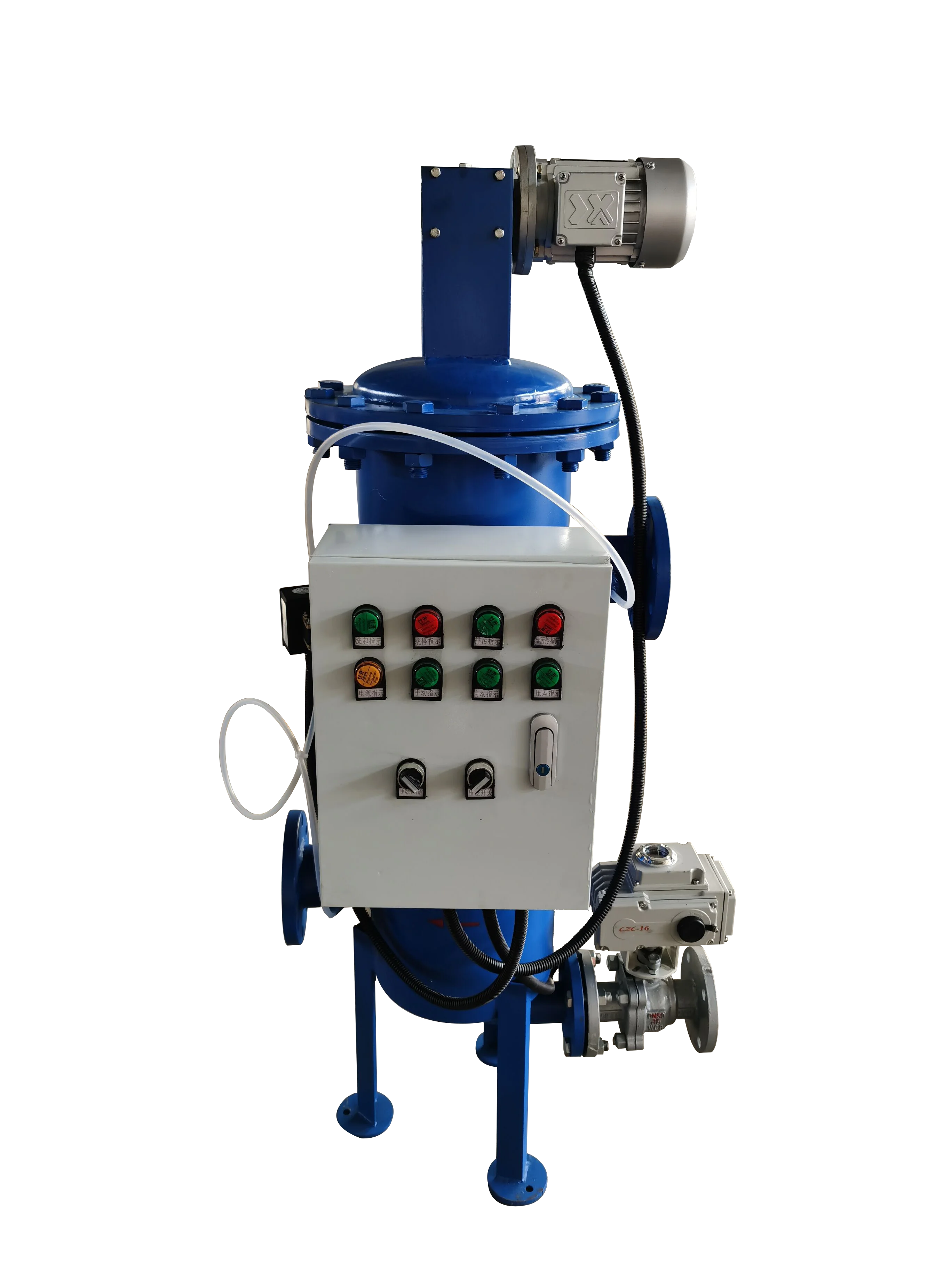

1 Year Warranty Online Support for Cooling Water Purifying 20-1500 M3/h Automatic Self Cleaning Water Filter
Products Description
When water runs through the water inlet into the filter element, the impurities were intercepted on the inner wall of the filter element, and the clean water flows out of the outlet. As the impurities in the inner surface of the filter tube piles up, the differential pressure between the inlet and outlet runs up to the preset value, the self-cleaning process will begin.
The self-cleaning process can also begin when it reaches the washing time or manual prefabrication.
And it includes two steps: Open the automatic drain valve on the filter; the cleaning brush inside the filter mesh is driven by the motor, and the impurities stopped by the filter mesh will be discharged from the drain valve.
When cleaning, the system does not cut off; the whole operation process of the filter is controlled by an intelligent control box which is equipped with the filter.
Control mode consists of differential pressure, time and manual control.
333
Product Name | Self cleaning water filter |
Applicable liquid | Water and viscous liquids(˂800,000cps) |
Filter precision | 10-5,000μm |
Design temperature | 0-200°C(It depends on seals.) |
Single filtering area | 0.14m2-1.45m2 |
Cleaning Pressure Drop | 0.05MPa |
Connection Standard | Flange(HG20592-2009) |
Filter elements | wedge mesh filter element |
Filter element material | SS304/SS316L/Duplex 2205 |
Housing material | SS304/SS316L/Carbon Steel/Duplex 2205 |
Brush material | SS304/SS316L/Duplex 2205 |
Housing seal material | NBR Nitrile Rubber(Standard)/viton (FKM) fluoro rubber |
Discharging valve | Electric ball valve, protective grade IP65 |
Facility supply | 380V 3 phase 50Hz |
Product Details
Recommend Products
Company Profile
Zhengzhou Fluidguard Machinery Equipment Corp.
Zhengzhou Fluid guard is a leading manufacturer of various filtration and purification products and equipment. Having been in this industry for more than 15 years, our product line has been greatly expanded.
Now our main products include: hydraulic filters, compressor filters, water treatment equipment and oil purifiers.
In our company, we always adhere to the principle of "Quality First" to provide the best service to customers around the world.
Over the years, our products have been sold to more than 50 countries in the world, and have won the trust of all customers with the best quality and best service.
But we know this is not the end. Every day is a new beginning!
We put more energy into work, consider more for customers, and are committed to providing better products and services to all customers in the future，
We are always ready to serve new customers. Our greatest joy is to bring our best quality products to more customers, so that more customers can enjoy our best quality products and warm service.
Over the years, our products have been sold to more than 50 countries in the world, and have won the trust of all customers with the best quality and best service.
But we know this is not the end. Every day is a new beginning!
We put more energy into work, consider more for customers, and are committed to providing better products and services to all customers in the future，
We are always ready to serve new customers. Our greatest joy is to bring our best quality products to more customers, so that more customers can enjoy our best quality products and warm service.
Buyer Feedback
Application
Package and Shipping
FAQ
1.What products do you have?
Our products are mainly including 4 series:
Hydraulic filters used from many industries such as coal industry, power plant, steel mill etc.
Air compressor parts( Air oil separator, oil filter, air filter, line filter, cooler etc. )
Water treatment equipments
Oil filtration equipments.
2.Are you a manufacturer or a trading company?
We are a manufacturer with good reputation in China as well as many other countries.
3.The filters you provide are original or replacement?
The filters we provide are not original, but good replacement for the big brands in the Hydraulic and Air Compressor industries.
4.How is your quality and price?
We know the market competition is fierce, so we are trying our best to lower the cost; but at the same time, quality is always the
First priority in our company.
We will never sacrifice quality for any reason, this is our bottom line.
5.What's your lead Time?
Around 7-10 days for most filter elements
Around 15 days for water treatment equipments and small oil filter cart
Around 25-30 days for the Oil Coalescer purifier and Vacuum oil purifier
Our products are mainly including 4 series:
Hydraulic filters used from many industries such as coal industry, power plant, steel mill etc.
Air compressor parts( Air oil separator, oil filter, air filter, line filter, cooler etc. )
Water treatment equipments
Oil filtration equipments.
2.Are you a manufacturer or a trading company?
We are a manufacturer with good reputation in China as well as many other countries.
3.The filters you provide are original or replacement?
The filters we provide are not original, but good replacement for the big brands in the Hydraulic and Air Compressor industries.
4.How is your quality and price?
We know the market competition is fierce, so we are trying our best to lower the cost; but at the same time, quality is always the
First priority in our company.
We will never sacrifice quality for any reason, this is our bottom line.
5.What's your lead Time?
Around 7-10 days for most filter elements
Around 15 days for water treatment equipments and small oil filter cart
Around 25-30 days for the Oil Coalescer purifier and Vacuum oil purifier
