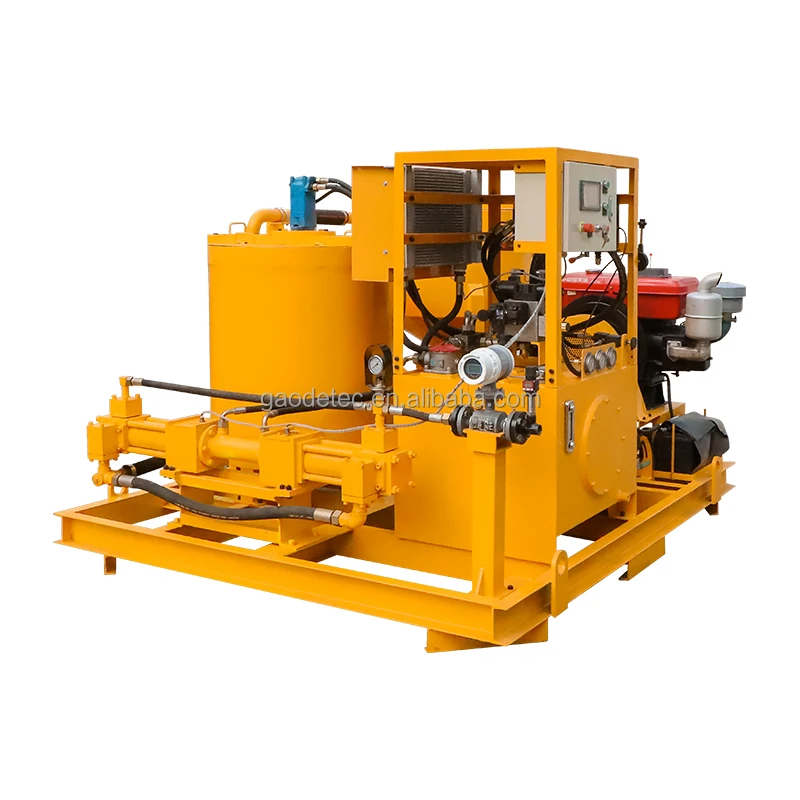

Diesel driven grouting injection foundation grout mixing plant grout mixing and pumping unit for sale
- Category: Concrete Machinery >>>
- Supplier: Zhengzhou,Gaode,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Application
Grout station application
Grout station is mainly used to be made and grouted the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.
Products Description
Gaodetec grout station
We are a professional manufacturer of grout station/ grout plant/ grout mixer pump. Now we have developed full series of grout plant and grout station, pump including piston type, plunger type, double piston type, double plunger type, three cylinders mud pump type and hose pump type. Mixer volume from 200L to 1200L, agitator volume from 300L to 3000L, pump flow from 1 to 300L/min and pressure from 1 to 100 bar. Electric power and diesel power are available for customization.
Hot Sale
Grout station model | GGP300/300/75PI-E | GGP100/150/20PI-E |
Mixer capacity | 300L | 100L |
Agitator capacity | 300L | 150L |
Pump type | Vertical piston grout pump | Vertical piston grout pump |
Pump output and pressure | Low pressure: 0-38L/min, 0-100bar. High pressure: 0-75/min, 0-50bar. | 20L/min @ 43bar 10L/min @ 100bar |
Grout station model | GGP400/700/80DPL-E | GGP400/700/80PL-E |
Mixer capacity | 400L | 400L |
Agitator capacity | 700L | 700L |
Pump type | Double plunger pump | Vertical plunger grout pump |
Pump output and pressure | Low pressure: 0-80L/min, 0-25bar. High pressure: 0-58L/min, 0-40bar. | Low pressure: 0-80L/min, 0-25bar. High pressure: 0-55/min, 0-45bar. |
Grout station model | GGP500/700/100PI-D | GGP220/300/300PI-E |
Mixer capacity | 500L | 220L |
Agitator capacity | 700L | 300L |
Pump type | Piston pump | Piston pump |
Pump output and pressure | 0-100L/min, 0-50bar. | 50L/min, 15bar. |
Grout station model | GGP400/700/320/100TPI-E | GGP800/1200/130H-E |
Mixer capacity | 400L | 800L |
Agitator capacity | 700L | 1200L |

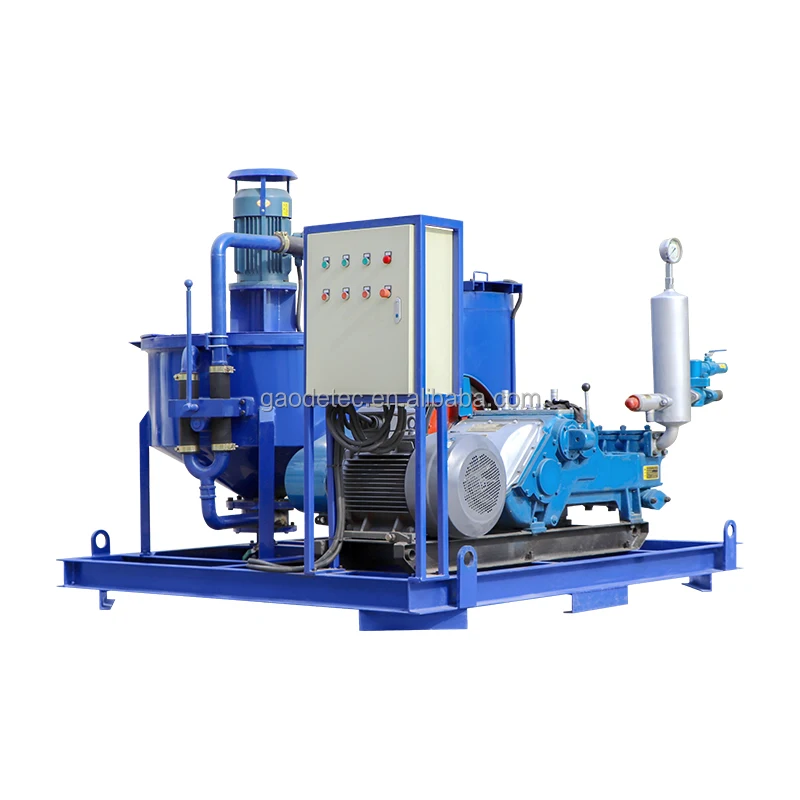

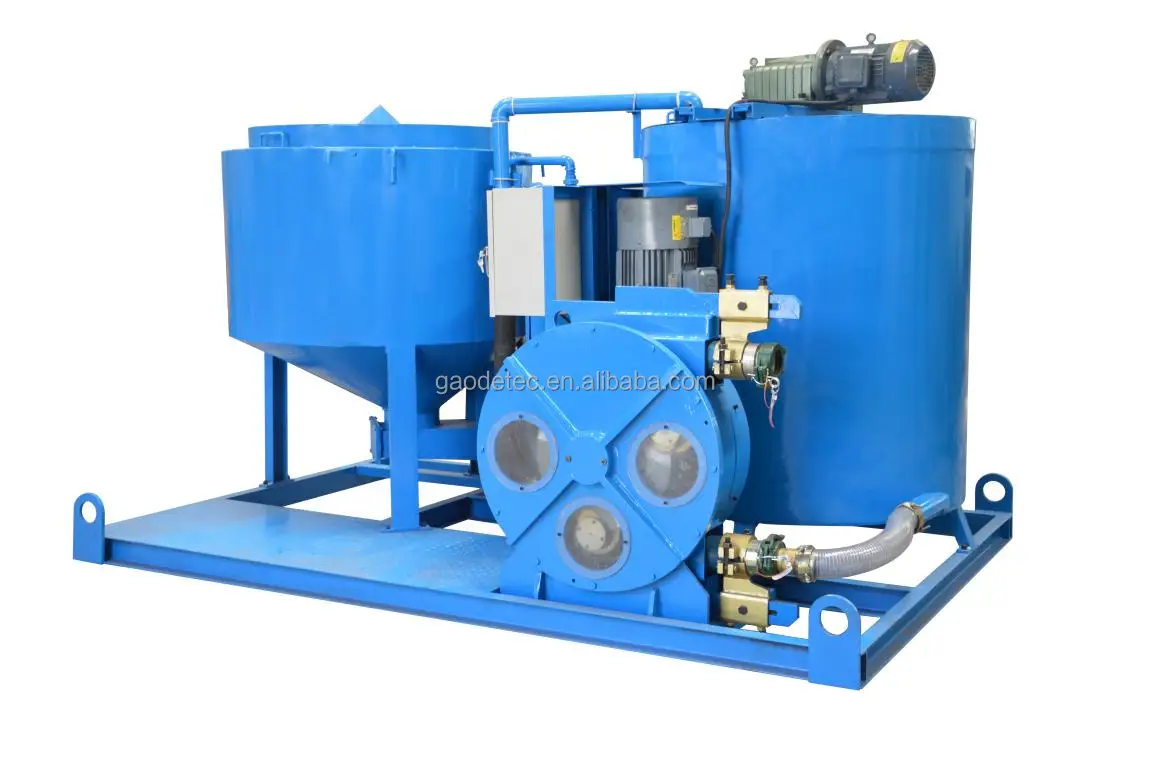

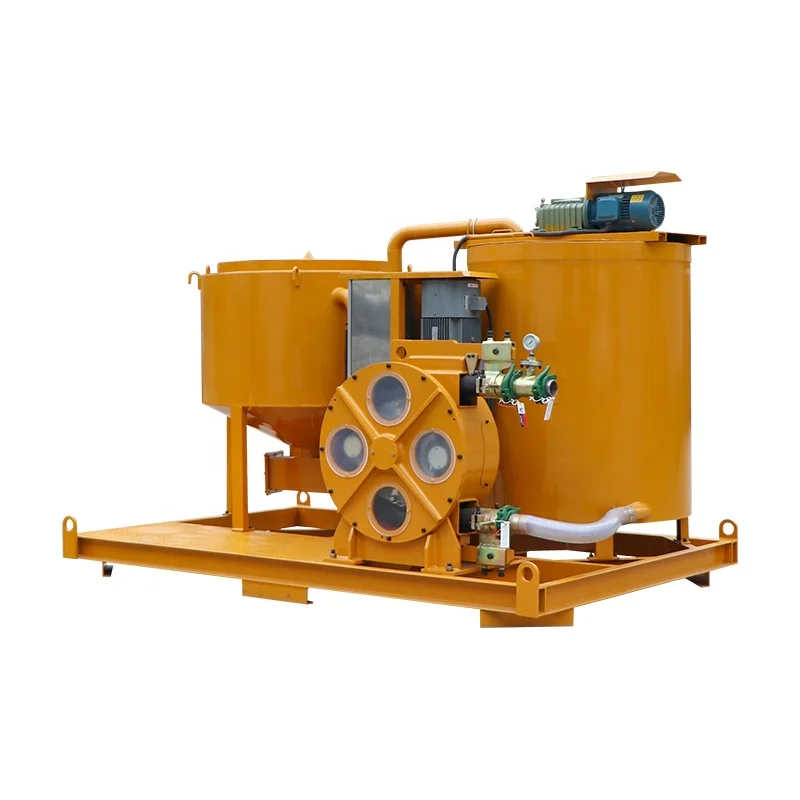

Pump type | Three cylinders mud pump | Hose pump |
Pump output and pressure | 118-320L/min, 22-100bar | 30-130L/min, 15bar |
Grout station model | GGP1200/3000/300H-E | GGP220/350/50DPI-D |
Mixer capacity | 1200L | 220L |
Agitator capacity | 3000L | 350L |
Pump type | Hose pump | Double piston pump |

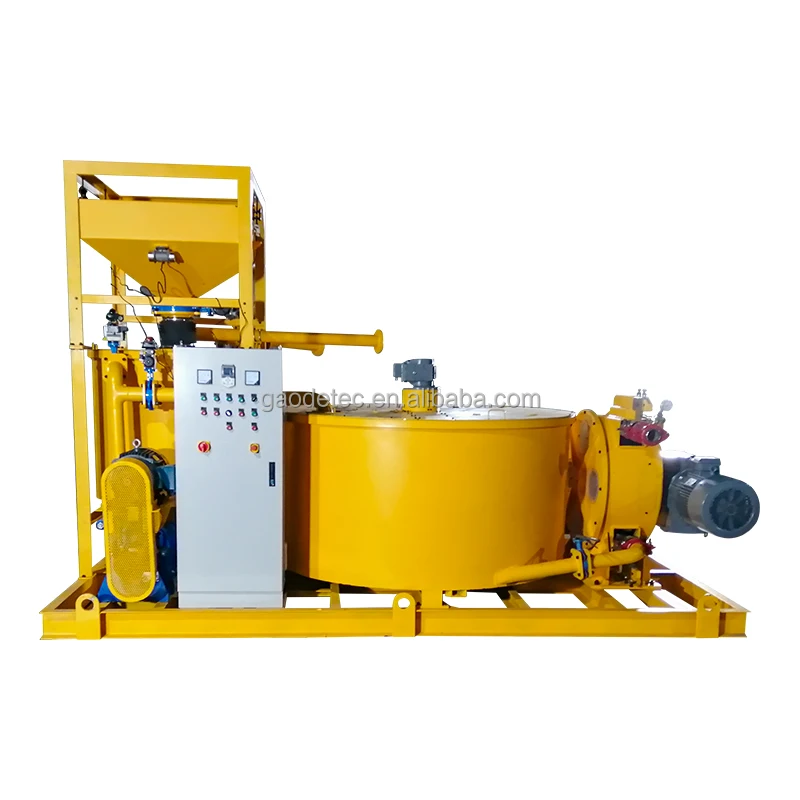

Special custom | Automatically batching and automatically mixing system. | The grouting/ injection recorder with computer is optional. |
Pump output and pressure | 300L/min, 16bar | 0-50L/min, 0-30bar |
Grout station model | GGP250/350/100DPI-D | GGP400/700/80/100DPI-D |
Mixer capacity | 250L | 400L |
Agitator capacity | 350L | 700L |
Pump type | Double piston pump | Double piston pump |
Special custom | PLC and HMI (Human Machine Interaction) control | Hanging bracket, Beinei diesel engine |
Pump output and pressure | 0-100L/min, 0-100bar | 80L/min @ 40bar, 40L/min @ 100bar |
Grout station model | GGP800/1200/200PI-D | GGP200/300/100PI-D | |
Mixer capacity | 800L | 200L | |
Agitator capacity | 1200L | 300L | |
Pump type | Piston pump | Piston pump | |
Pump Max. output | 200L/min | 100L/min | |
Pump Max. pressure | 50bar | 100bar | |
Contact us for grout station price
If you want us to help you recommend a suitable grout station, please let me know the following question:
1. What is the project you will do?
2. How about the flow and pressure of the pump you want, please?
3. How about the water and cement ratio, does any sand in?
4. Regards the engine, would you like electric motor or diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
2. How about the flow and pressure of the pump you want, please?
3. How about the water and cement ratio, does any sand in?
4. Regards the engine, would you like electric motor or diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
We also can customized grout station according to your requirements, please contact us directly: [email protected].
Packaging&Shipping

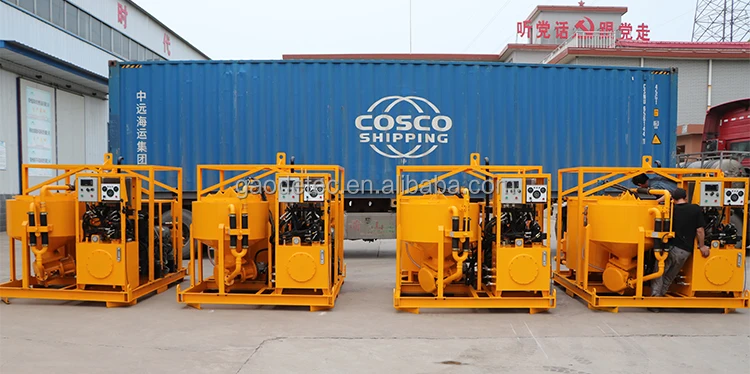

1. Nude package.

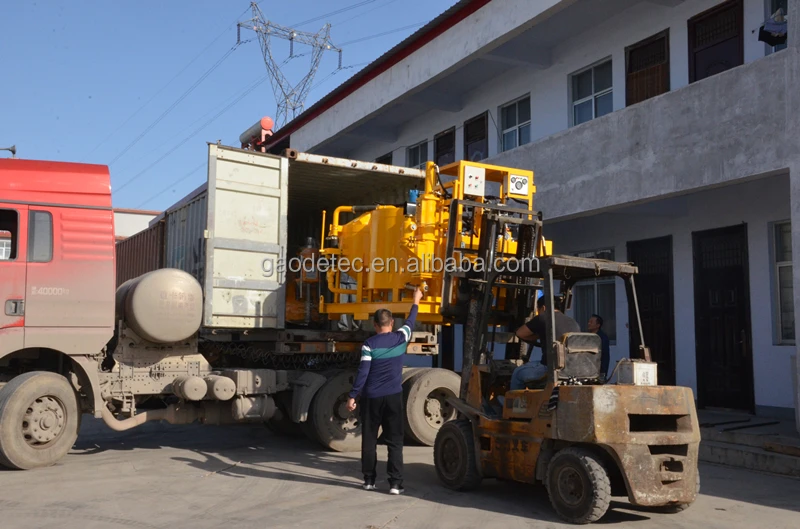

The machine has the forklift position and also has hoisting position. 2 sets in a 20GP container.
2. By pallet.
3. By plywood box. If transshipment will be occur, plywood box will be used.
The machine has the forklift position and also has hoisting position. 2 sets in a 20GP container.
2. By pallet.
3. By plywood box. If transshipment will be occur, plywood box will be used.
