Product Overview
Description

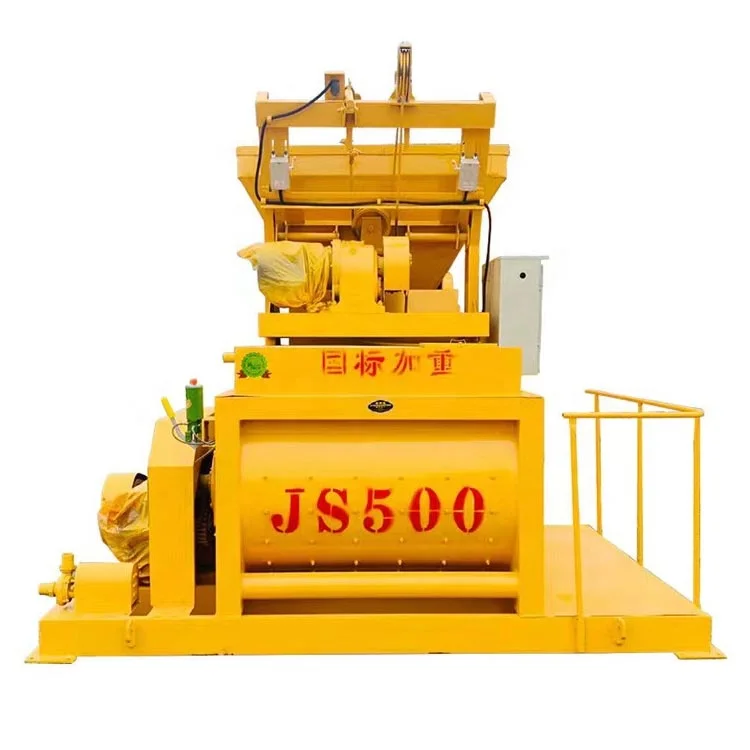

JS500 Mixer Product Introduction

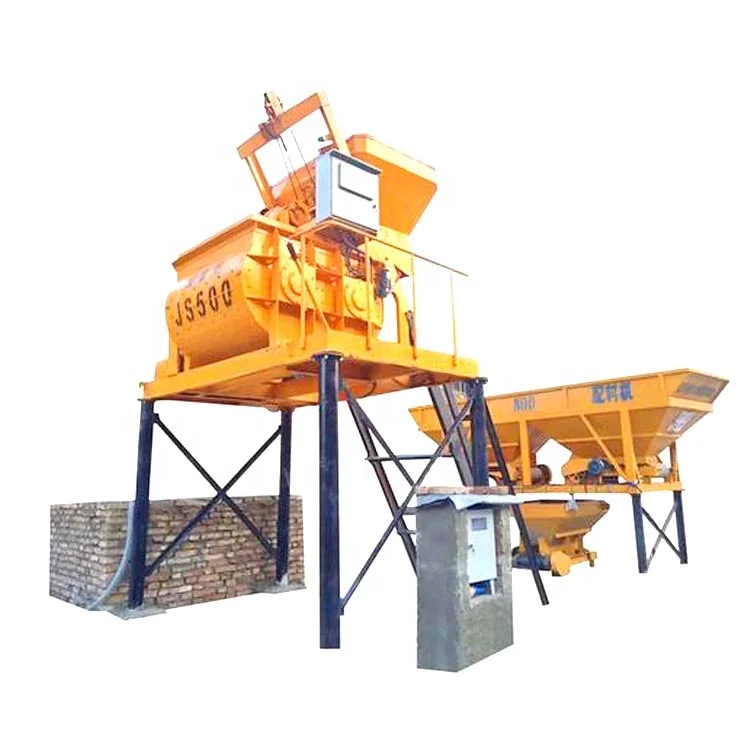

JS500 strong standard concrete mixer, 0.5 square per discharge, also known as 0.5 square concrete mixer, hourly productivity of 25m3/h, mostly used as the main machine of HZS25 mixing station, It can also have the dual advantages of single independent operation and PLD series concrete batching machine (also known as concrete batching station, concrete distribution bin) to form a simple concrete mixing station.
JS500 mixer product details
Mixing system:
●JS500 concrete mixer mixing system is composed of motor, pulley, reducer, open gear, mixing drum mixing device, oil supply device and other components.
● When working, the motor drives the two-stage gear reducer, and the two axes of the reducer drive the two horizontal mixing shafts to reverse and rotate at the same speed through the two pairs of open gears.
● When working, the motor drives the two-stage gear reducer, and the two axes of the reducer drive the two horizontal mixing shafts to reverse and rotate at the same speed through the two pairs of open gears.
Water supply system
●JS500 concrete mixer water supply system is composed of water pump, throttle valve, cleaning, spraying device.
● Throttle valve can adjust the flow of water, the total water supply is adjusted by the time relay.
Feed system:
●JS500 concrete mixer charging system is composed of hoist, charging frame, hopper, feed nozzle and other components.
● The brake motor ensures that the hopper is reliably stopped at any position when running at full load, and the size of the brake torque is adjusted by the large nut of the motor back seat.
● The brake motor ensures that the hopper is reliably stopped at any position when running at full load, and the size of the brake torque is adjusted by the large nut of the motor back seat.
Electrical system:
●JS500 concrete mixer electrical control line is equipped with air switch, fuse, thermal relay, with short circuit protection, overload protection functions.
● All control buttons, air switch handles and indicators are arranged on the distribution box door, and a door lock is provided.
● Electrical components in the distribution box are installed on a edge plate, safe and reliable, easy to operate and maintain.
● All control buttons, air switch handles and indicators are arranged on the distribution box door, and a door lock is provided.
● Electrical components in the distribution box are installed on a edge plate, safe and reliable, easy to operate and maintain.
JS500 mixer product parameters
Model number | JS500 | ||
Discharge capacity | 500L | ||
Feed capacity | 800L | ||
Theoretical production (based on mixing plant) | ≈25m³ /h | ||
aximum aggregate size (pebble/gravel) | ≤40/50 | ||
Working cycle time | 72s | ||
Machine weight | 4000kg | ||
Overall dimensions (L*W*H) | Transport condition | 3050X2530X2680mm | |
Mixing blade | Rotational speed | 35r/min | |
number | 2X7 | ||
Mixing motor | model | Y180M-4 | |
Power | 18.5kw | ||
Winch motor | model | YEZ132S-4 | |
Power | 5.5kw | ||
Water pump motor | model | BL12-12-1.1 | |
Power | 1.1 | ||
JS500 mixer product advantages
Mixing evenly: there are several groups of mixing arms and blades on the two mixing shafts to ensure that the mixture in the barrel can be fully mixed longitudinally and horizontally in a short time to achieve the purpose of full mixing.
Good sealing :JS500 concrete mixer adopts Haolu machinery advanced technology, multi-channel shaft end seal and hydraulic system for oil pump, good sealing can effectively prevent the mixing shaft from being rapidly worn out.
High cost performance: JS500 concrete mixer produced by Zhengzhou Haolu Machinery can meet the production needs and personalized requirements of customers, and pay attention to reducing the indirect use cost of customers, long service life of wearing parts, low energy consumption, high cost performance.
Durable: the tank and the frame are fixed, and the mixing shaft is no longer subject to the pressure of the material and the tank's own weight, which extends its service life; Liner and blade made of high chromium alloy material, durable.
JS500 mixer work site
JS500 is a widely used high-efficiency concrete mixer, which adopts mechanical discharge and can be used with the dump truck. It is mainly composed of mixing drum, hopper loading frame, hoist structure, mixing drum, mixing blade, mixing shaft, mixing arm, frame, discharging mechanism, oil supply, water supply system and electrical system. Suitable for mixing plastic, dry hard, light aggregate concrete and all kinds of mortar, mortar mixing, is an ideal machine for all kinds of construction sites.
Henan Haolu Machinery Equipment Co., Ltd. is established in 2002 located in Henan province,China.The company mainly R & D, production of concrete mixing station, concrete paving machine ,tower crane hopper, gantry lift concrete mixer, concrete batching machine.screw conveyor,cement tank and other construction machinery manufacturers.Since its establishment, adhering to the scientific management method of modern enterprises, manufacturing, continuous innovation, rapid development and growth of local star enterprises.
The company is a large joint-stock company of industry and trade, with sales all over the world. The enterprise has first-class processing equipment, perfect testing means, high-quality scientific and technological personnel, quality service. The enterprise has been awarded provincial excellent enterprise for many times. Products are sold at home and abroad.
The company can provide one-stop services of factory planning, design, construction, equipment installation, operation, after-sales etc. The products of our company are exported to dozens of countries and regions of Africa, South Asia, Southeast Asia, South America etc.
Q: What information should I provide when I ask about the product?
A: The more specific the information, the better service we can provide.
1. Tell us what you need to mix. Such as: concrete, cement, mortar, dry powder, fly ash and so on
2. Tell us what powers the blender. Such as: electric, diesel, pneumatic, hydraulic and so on.
3. Tell us how much concrete you need to mix each time. Such as 0.5m³, 0.75m³, 1m³, 1.5m³, 2m³, etc.
2. Tell us what powers the blender. Such as: electric, diesel, pneumatic, hydraulic and so on.
3. Tell us how much concrete you need to mix each time. Such as 0.5m³, 0.75m³, 1m³, 1.5m³, 2m³, etc.
Q: Are you trading company or manufacturer?
A: We are factory. We can design and manufacturer products with our patent. Welcome to visit us to check it!
Q: What are the terms of payment in your formal trade?
A:Normally we can work on T/T term ,L/C term and Alibaba Trade Assurance Order Online .
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What’s your after-sale service?
A:12 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well.
Q:What’s your delivery time?
A:The goods will be delivered in 30-45 days after the 30% of the total amout is paid as deposit, and maybe a little longer if busy in the factory.
B: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
B: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
