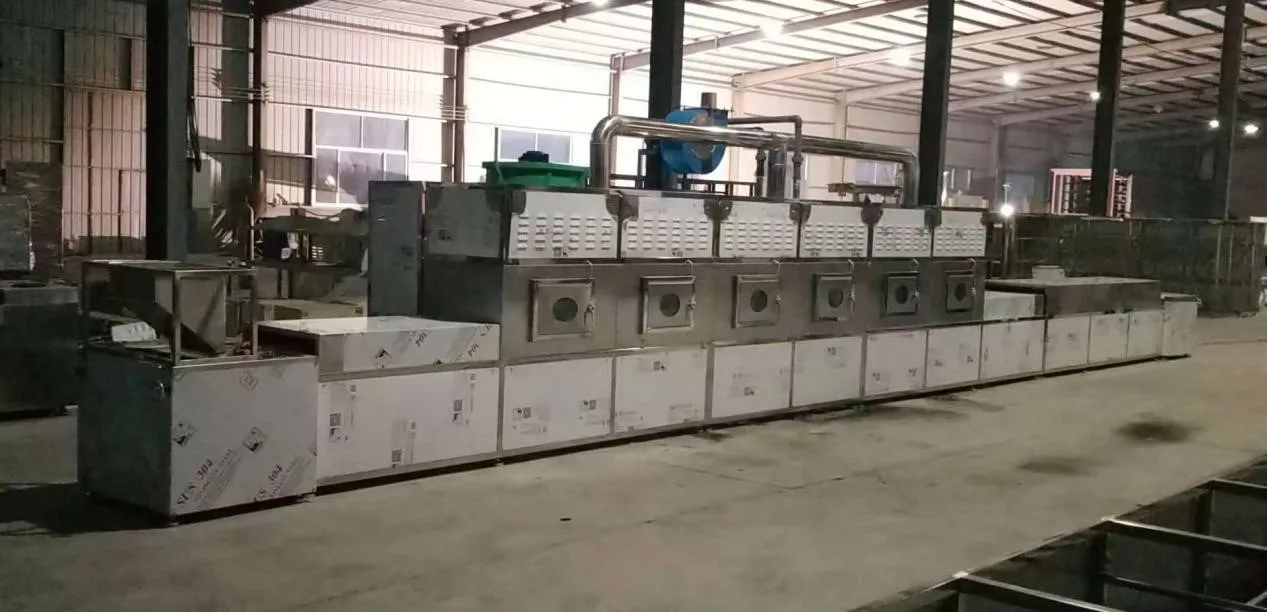

PLC controlled maca root microwave drying machine for commercial food dehydration and sterilization

Product Overview

Description

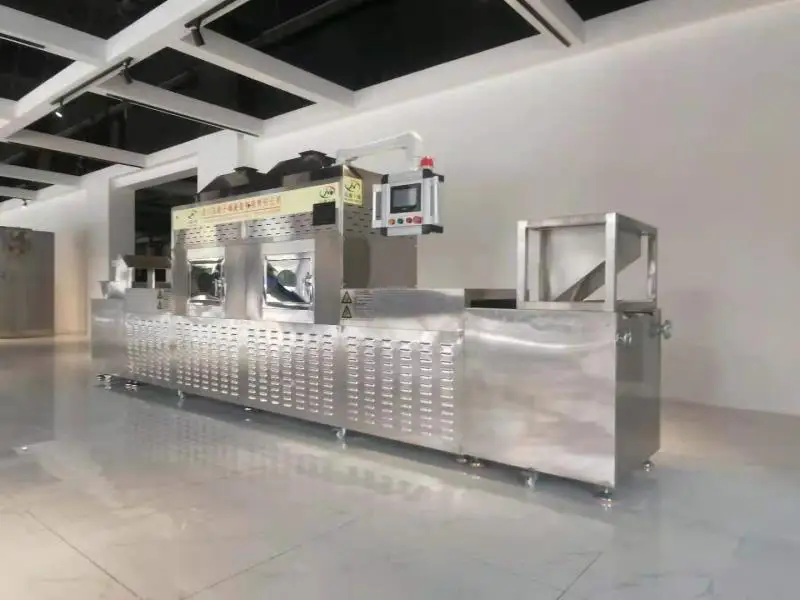

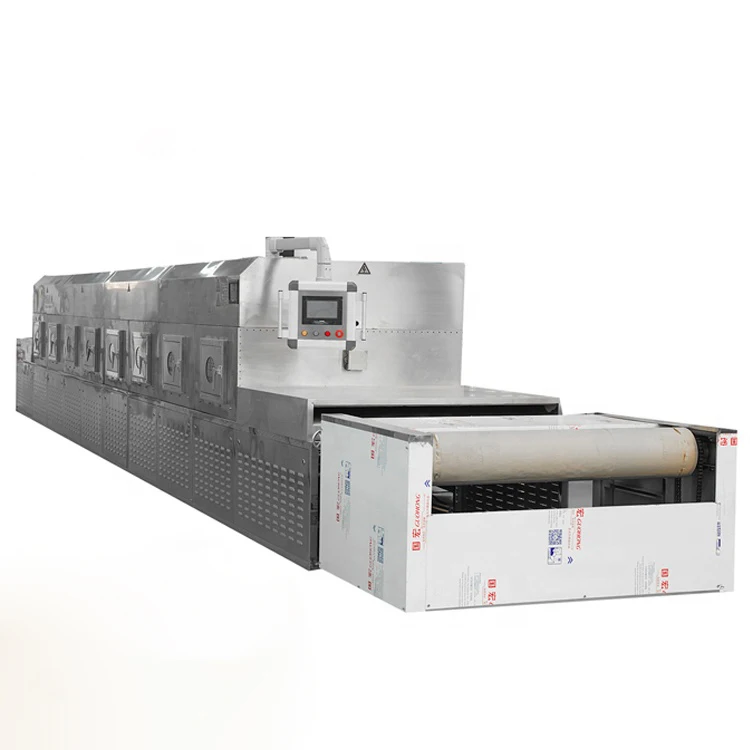

PLC controlled maca root microwave drying machine for commercial food dehydration and sterilization

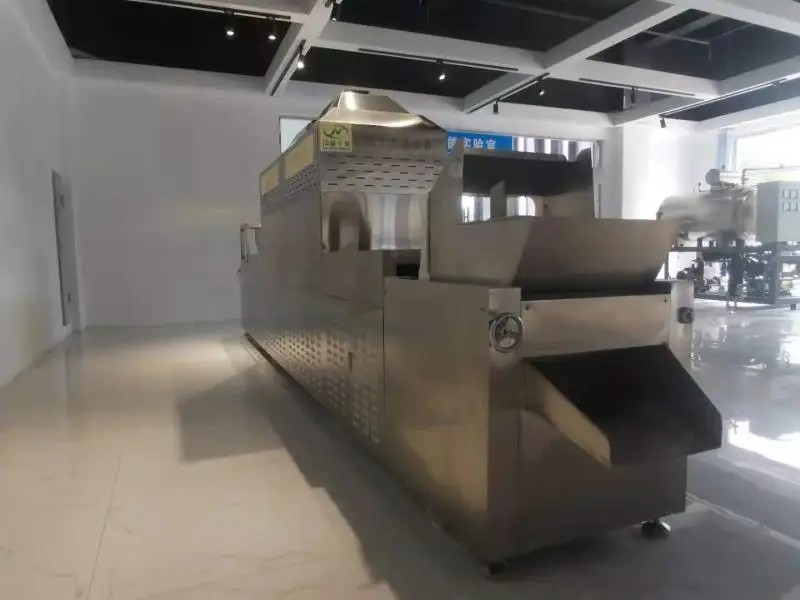

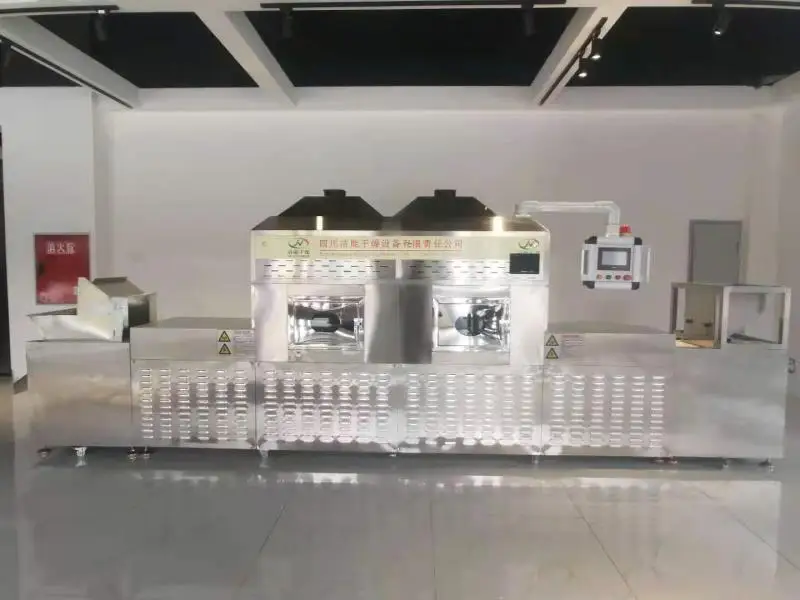

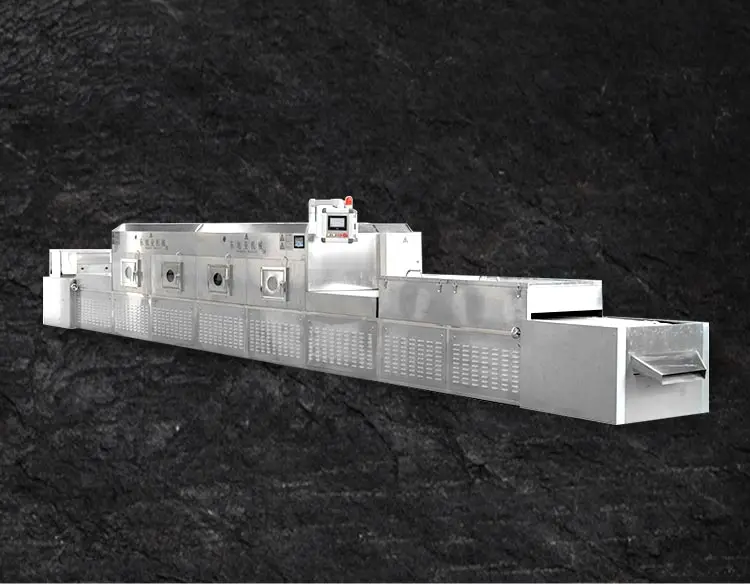

Jieneng's microwave tunnel dryer is fully automated with

a central operating system which ensures the whole dry-

ing process is safe, stable, and uniform. It guarantees the

the drying chamber is evenly heated and preserves the

product quality and flavor.



Jieneng‘s microwave dryer can largely reduce your

energy consumption and is in compliance with

                EU export standards.

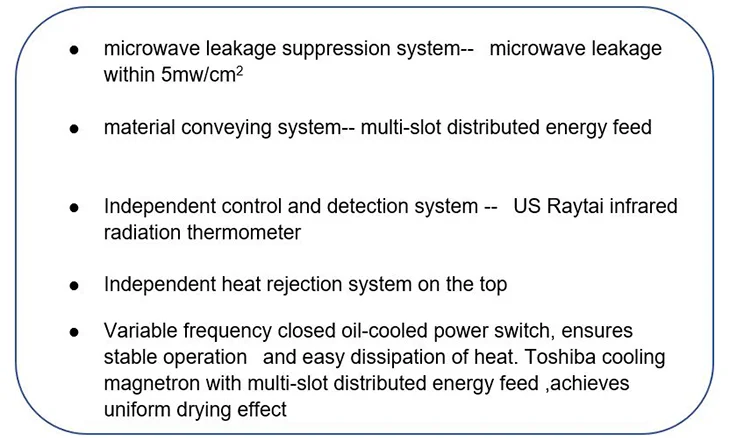

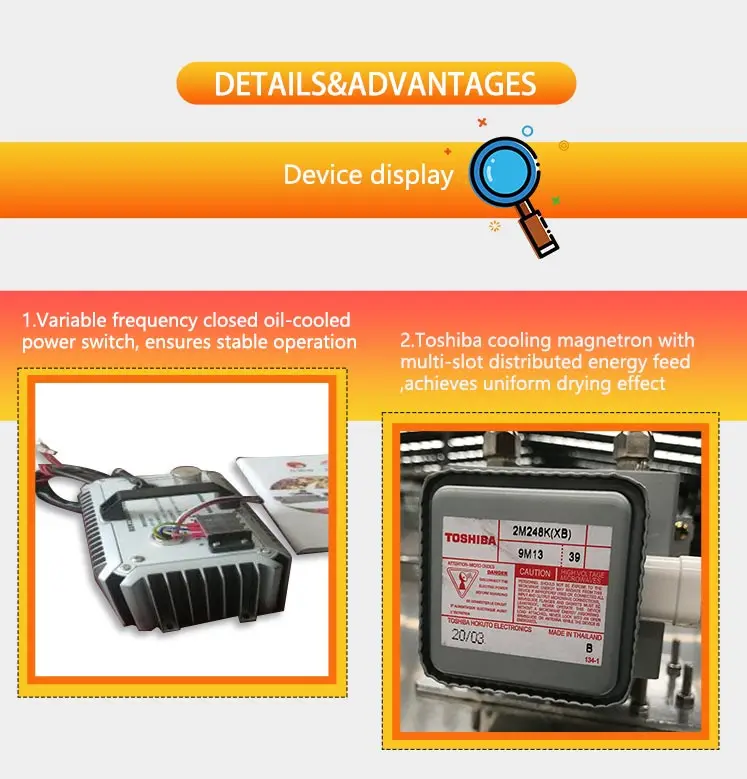

       Five independent control systems

 with Integrated design with safe and stable

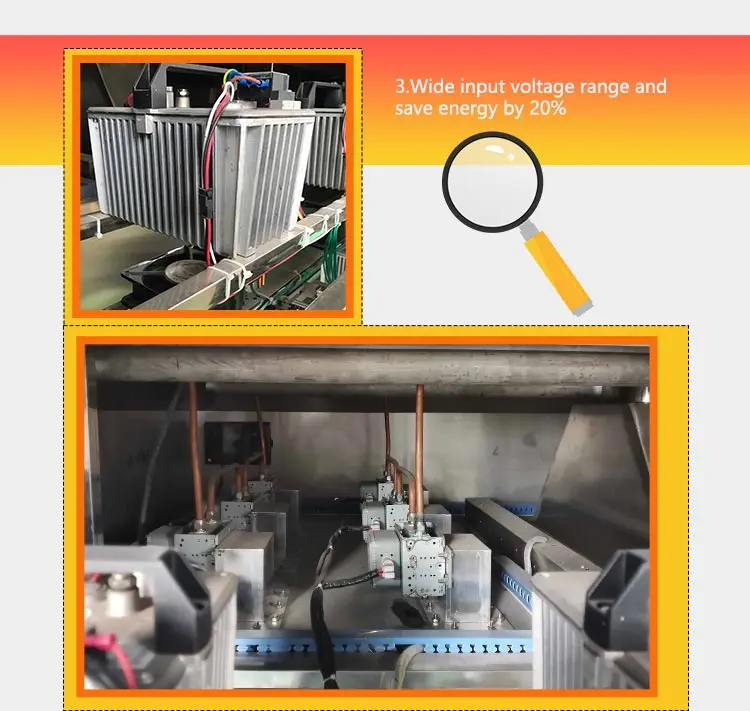

    operation & wide input voltage range

      and save energy by 20%















Mode	40KW-24H	20KW-24H
Size	L10500mm W2000mm H2300mm	L8200mm W650mm H2000mm
Operating System	PLC & LCD imaging display	PLC & LCD imaging display
input   Power	46kw	26kw
output        power	40kW (adjustable)	20kw (adjustable)
Working temperature	0~200℃	0~200℃
Energy consumption	1H/50KW
Feed-in	At the top	At the top
Drying chamber units	six	four
Conveyor belt width	750mm	500mm
Conveyor belt material	cloth	cloth
Feed-in and outlet height	80mm	60mm
Dehydration capacity (kg/h)	40kg/h	20kg/h
Sterilization capacity(kg/h)	380-450	180-250
Voltage	AC 50/60 HZ 380V	AC 50/60 HZ 380V
Frequency	2450±50 MHz	2450±50 MHz
