Product Overview
Description
Products Description

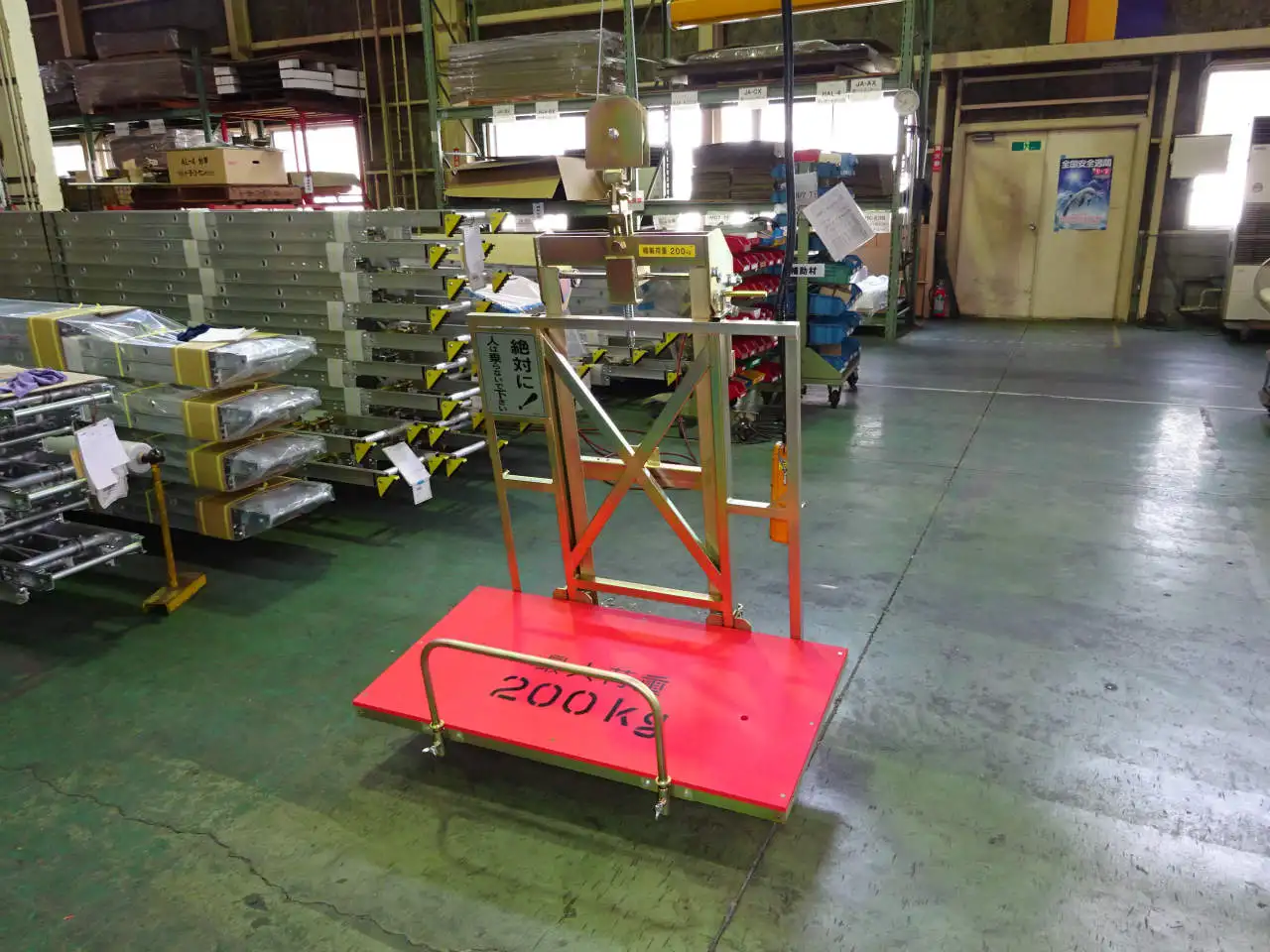

Medium and High-rise Vertical Lift for Temporary Construction ”Mighty Power”
TFBO-MD7 / TFBO-08MD7
The definitive vertical lift for medium and high rises.

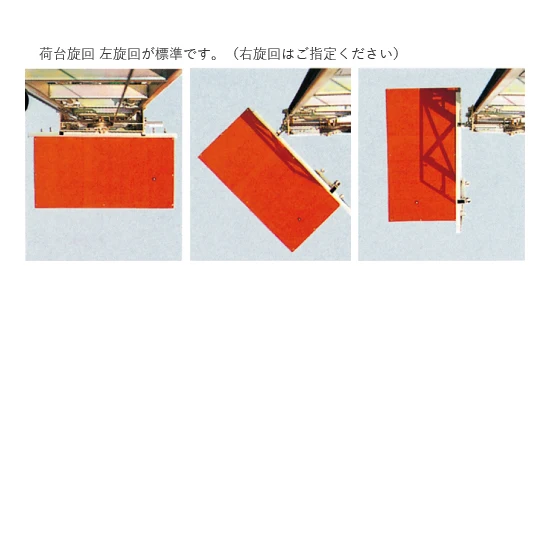

The cargo bed can be swiveled for safe loading and unloading.
The cargo bed is equipped with a fall prevention function.
Options
Retrofit limit switch
By installing the limit switch at any position, the cargo bed can always be stopped at the same position.
Automatic operation panel
When the start button is pressed, the machine runs to the target position and stops automatically.
TFBO-MD7 / TFBO-08MD7
The definitive vertical lift for medium and high rises.
The cargo bed can be swiveled for safe loading and unloading.
The cargo bed is equipped with a fall prevention function.
Options
Retrofit limit switch
By installing the limit switch at any position, the cargo bed can always be stopped at the same position.
Automatic operation panel
When the start button is pressed, the machine runs to the target position and stops automatically.
Specification
Model | Rated Load (kg) | Lifting Speed (m/min) | Ladder length (m) | Bed size | Winch | Weight (kg) | ||||||
TFBO-MD7 | 200 | 15 | 16 | W1,200×D630×H900 | MD7W2 | 266 | ||||||
TFBO-08MD7 | 200 | 15 | 8 | W1,200×D630×H900 | MD7W2 | 192 | ||||||
Power supply：AC100V 50/60Hz | ||||||||||||
Model | Rated Load (kg) | Lifting Speed (m/min) | Motor Output (W) | Wire Rope | Operating Swich | Weight (kg) | ||||
Ladder length8m | Ladder length16m | Quantity | Cord length (m) | |||||||
MD7W2 | 160 | 30 | 935 | Φ6×27m | Φ6×50m | 2 | 5, 15 | 35 | ||
Certifications
Factory Information
Company Profile
TOYO KOKEN has a history of 60 years for winches and 40 years for manipulators, and our products used by many companies in a wide range of industries such as the construction and industrial machinery industry. Our products are designed under JIS (Japanese Industrial Standards), and we provide our customers with better products under the policies of ISO90001 and ISO14001.
