Made stable performance micro mining forestry winches in JAPAN
- Category: Winches >>>
- Supplier: TOYO KOKEN K.K.
Share on (11000000251361):
Product Overview
Description
Products Description
BATTERY MIGHTY
DC Power Compact Winch
BM series
BMS series
Compact, powerful, versatile model.
Can be used with DC12V or DC24V power.
Compact, sturdy design makes it optimal for work using car batteries.
DC Power Compact Winch
BM series
BMS series
Compact, powerful, versatile model.
Can be used with DC12V or DC24V power.
Compact, sturdy design makes it optimal for work using car batteries.
Specification
Model | Rated Load (kg) | Rope Speed (m/min) | Winding Length (m) | Motor Output (W) | Rating (min) | Wire Rope (m) | Hook Type | Push Button Cable (m) | Weight (kg) | |||||||||

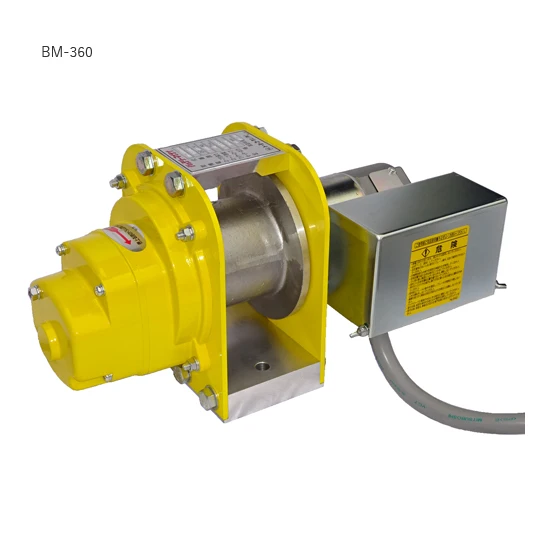

BM-360 | 450 | 3 | Φ5.56 × 12 | 300 | 15 | Φ5.56 × 8 | Swivel | 3 | 12 | |||||||||
BM-360H8 | 300 | 5 | Φ5.56 × 12 | 300 | 15 | Φ5.56 × 8 | Swivel | 3 | 12 | |||||||||
BM-360H10 | 220 | 6 | Φ5.56 × 12 | 300 | 15 | Φ5.56 × 8 | Swivel | 3 | 12 | |||||||||
BM-360H15 | 150 | 10 | Φ5.56 × 12 | 300 | 15 | Φ5.56 × 8 | Swivel | 3 | 12 | |||||||||
SPECIFICATIONS FOR DC12V TYPE | ||||||||||||||||||
Model | Rated Load (kg) | Rope Speed (m/min) | Winding Length (m) | Motor Output (W) | Rating (min) | Wire Rope (m) | Hook Type | Push Button Cable (m) | Weight (kg) | |||||||||
BM-360S | 450 | 5 | Φ5.56 × 12 | 400 | 10 | Φ5.56 × 8 | Swivel | 3 | 12 | |||||||||
BM-360SH8 | 300 | 8 | Φ5.56 × 12 | 400 | 10 | Φ5.56 × 8 | Swivel | 3 | 12 | |||||||||
BM-360SH10 | 200 | 10 | Φ5.56 × 12 | 400 | 10 | Φ5.56 × 8 | Swivel | 3 | 12 | |||||||||
BM-360SH15 | 150 | 14 | Φ5.56 × 12 | 400 | 10 | Φ5.56 × 8 | Swivel | 3 | 12 | |||||||||
SPECIFICATIONS FOR DC24V TYPE Note 1. Power cable are not included. Note 2. Models other than the BM-360 and BM-360S are special order models. | ||||||||||||||||||
Certifications
Factory Information
Company Profile
TOYO KOKEN has a history of 60 years for winches and 40 years for manipulators, and our products used by many companies in a wide range of industries such as the construction and industrial machinery industry. Our products are designed under JIS (Japanese Industrial Standards), and we provide our customers with better products under the policies of ISO90001 and ISO14001.
