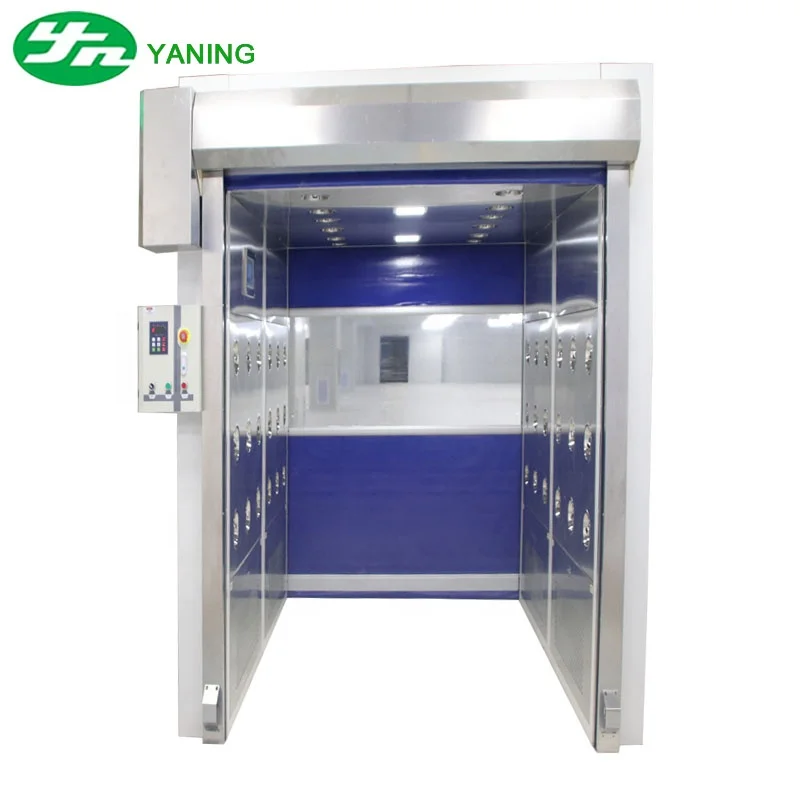

Yaning Cargo Air Shower for Warehouse Rolling Shutter Industrial Fast High Speed Factory Interior PVC Curtain Door

Share on (11000000325233):


Price:$1,999.00 - $4,200.00

Quantity:


Product Overview

Description

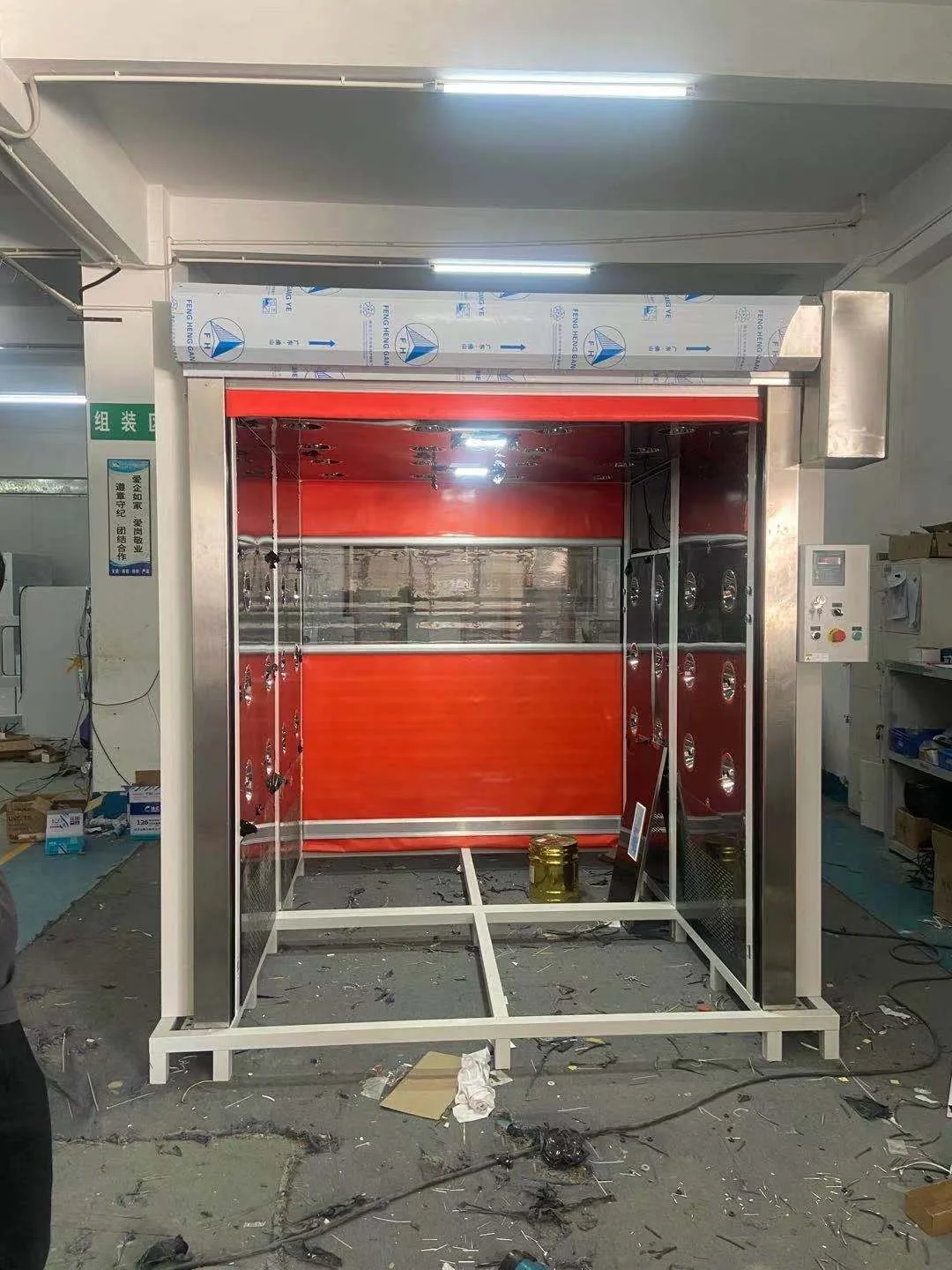

Yaning Cargo Air Shower for Warehouse Rolling Shutter Industrial Fast High Speed Factory Interior PVC Curtain Door








Product Description

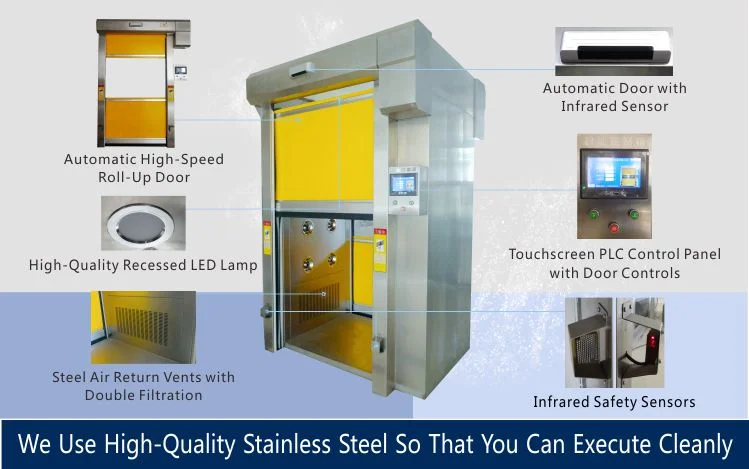

Compared with traditional cargo shower, the fast rolling curtain door cargo shower is equipped with infrared induction door closing and shutting system, the door closing switch is canceled and reach full automation function. When the showering process for person or cargo is finished, the curtain door will open and and shut after the cargo and person moving out tunnel. The two curtain door is equipped with two separate electronic interlock, played "gas chamber”,when one side door is open, the other side door will shut and locked at the same time.  It will effectively prevent the polluted air to enter purified area. The hair,dust, bacteria can be blocked outside clean workshop so the purified level in working area can be ensured.





Specifications



  • Material: Powder-Coated Steel, Stainless Steel

  • Width: 52", 58", 64", 70", 90"

  • Depth: 44", 56", 60", 72", 84", 96", 120", 144", 180", 240"

  • Height: 120"

  • Number of Blowers: 1 Blower, 2 Blowers, 3 Blowers, 4 Blowers

  • Approx. Occupancy: 1, 2, 3 - 6, 3, 4, 5, 7


curtain door


The following air shower for your option
voice identification air shower/automatic door air shower/explosion protection air shower


air shower tunnel/cargo air shower/single side blow shower/double side blow shower/three side blow shower/corner air shower...















































































































 Model  YN-AS1290/1YN-AS1290/2 YN-AS1290/3Air Shower Tunnel
External Dimension 1290×1000×20501290×1000×2050 1290×2000×20501950×5000×2050
Internal Work Zone 790×860×1910 790×860×1910790×1860×1910790×4860×1910
Suitable Number1-2 person 1-2 person2-4 personTunnel type
Noise Level(dB) <62<62<62  <62
Stainless Steel Nozzle6PCS 12PCS24PCS72PCS
Wind Speed≥25m/s≥25m/s≥25m/s≥25m/s
PrefilterSize775×380×17×1pc775×380×17×2pc775×380×17×4pc775×380×17×6pc
EfficiencyG4G4G4G4

HEPA


Filter


Size610×610×120×1pc610×610×120×2pc610×610×120×4pc610×610×120×8pc
Efficiency99.99%@0.3µm99.99%@0.3µm99.99%@0.3µm99.99%@0.3µm

Fluorescent


Lamp


20W×120W×120W×240W×4
Power Supply380V/50Hz380V/50Hz380V/50Hz380V/50Hz
Total Power780W780W780W780W
Accept customization







Product details

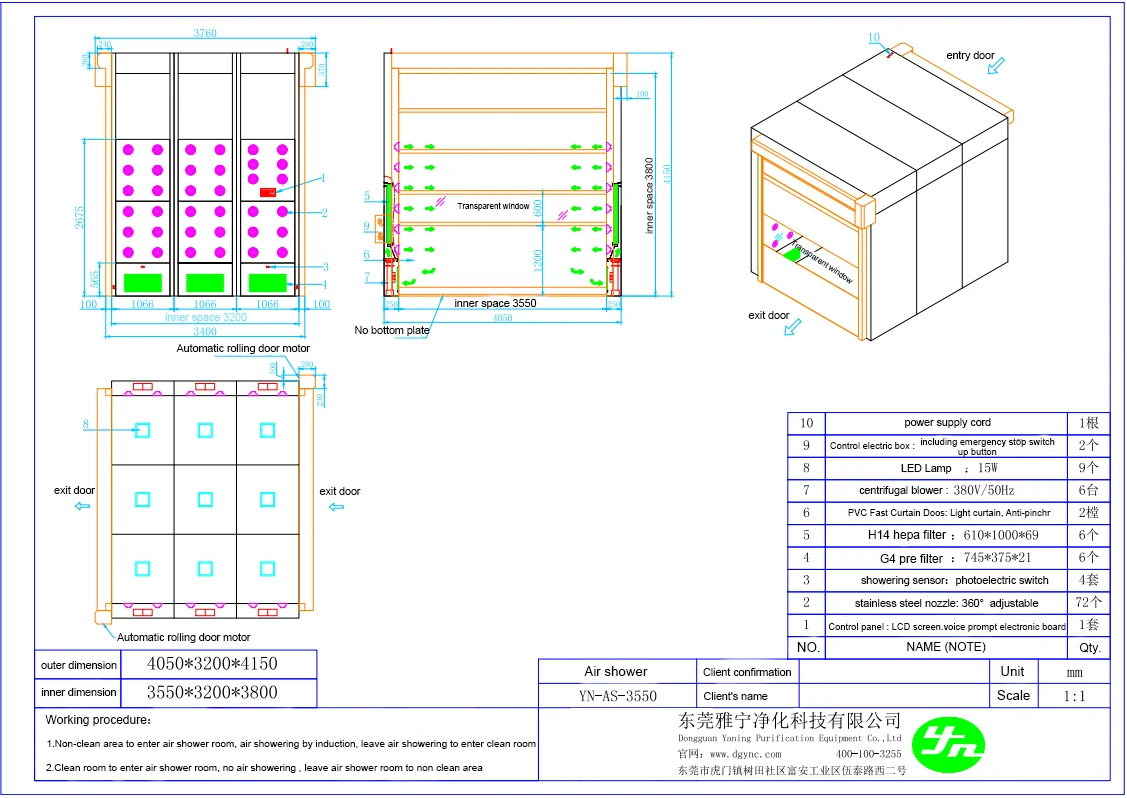

.jpg

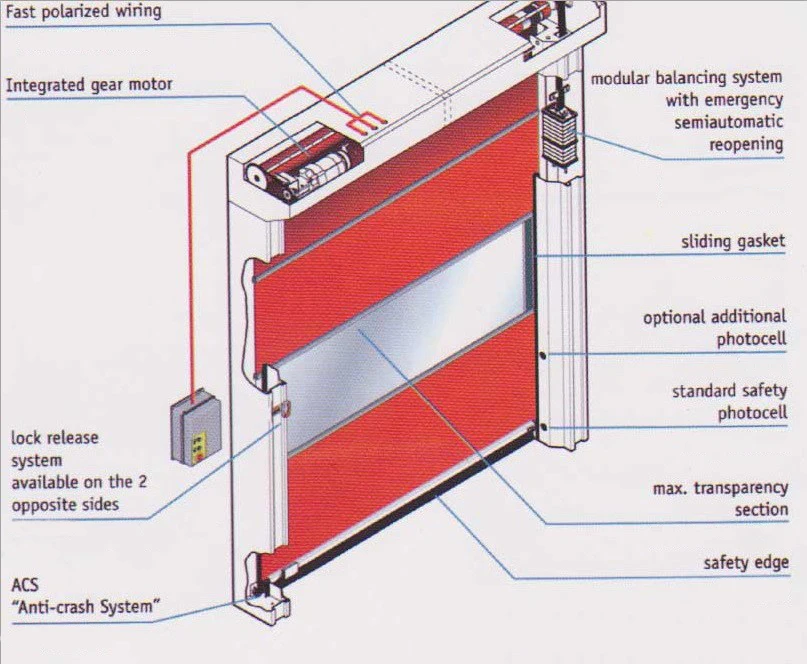

photobank (1).jpg





Successful project


 .jpg

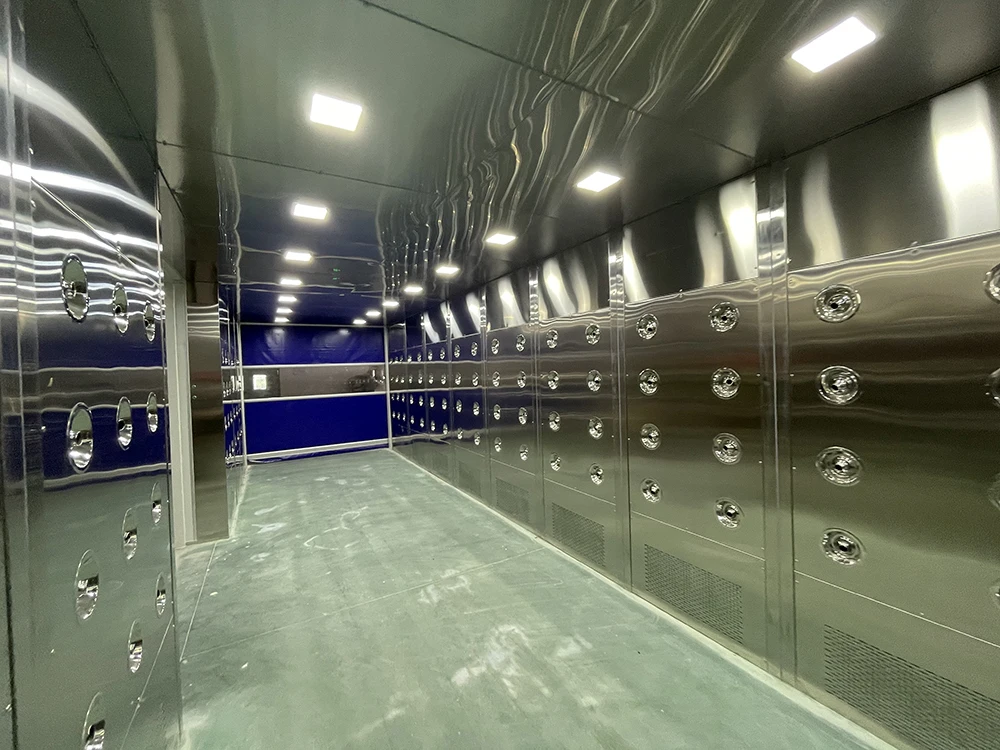

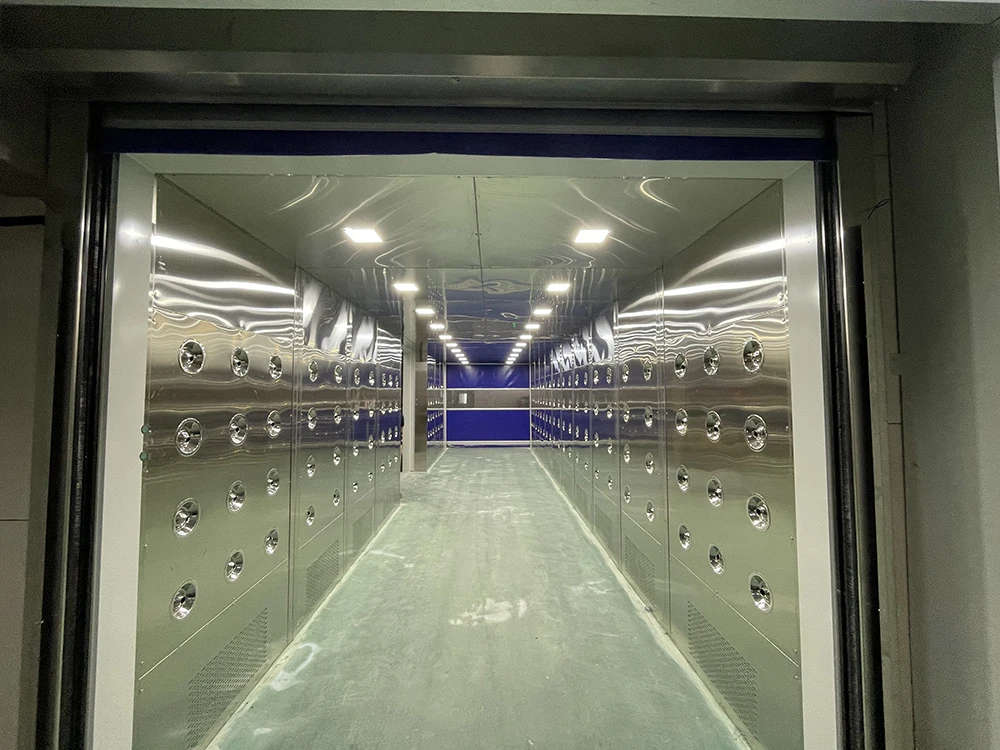

_20210919113648_20210919113652
