Clean room GMP air shower
US $1580-$5300
Laboratory Clean Room Full Stainless Steel Air Shower for Cleanroom
- Category: Air Shower >>>
- Supplier: Dongguan Yaning Purification Equipment Co. Ltd.
Share on (60861908832):
Product Overview
Description
MADE IN Yaning
Clean Room Design Factory Automatic Induction Air Cleaning Equipment Single Air Shower for Clean Rooms
Products Description
Air shower--air purification equipment,it is transit passage for person or goods to enter clean room in order to minimize the amount of contaminated particulate.
Our automatic intelligent air shower equipped with voice prompt system, it will remind the person to be showered in the whole process by voice. The feeling of intimacy will be felt when you get a purified effect through it.
Our automatic intelligent air shower equipped with voice prompt system, it will remind the person to be showered in the whole process by voice. The feeling of intimacy will be felt when you get a purified effect through it.
Product Paramenters
Material of the frame of chamber :
A3 cold rolled stainless steel plate. The bottom floor adopt sanding stainless steel plate.
It is equipped with G4 primary filter and H13 non-clapboard HEPA Filter to ensure ideal air clean class.
The shower is activated by infrared induction.
The various angle and adjustable SS nozzles are equipped on left and right side.
The outer rotor low noise fan can generate air velocity of 20-25m/s on straight direction.
Air shower time: 0-99S, LCD time indicator adjustable and it is visible and the system will remind by voice.
Power voltage: 110/220/380V, 50/60 Hz, automatic induction, friendly voice remind system.
A3 cold rolled stainless steel plate. The bottom floor adopt sanding stainless steel plate.
It is equipped with G4 primary filter and H13 non-clapboard HEPA Filter to ensure ideal air clean class.
The shower is activated by infrared induction.
The various angle and adjustable SS nozzles are equipped on left and right side.
The outer rotor low noise fan can generate air velocity of 20-25m/s on straight direction.
Air shower time: 0-99S, LCD time indicator adjustable and it is visible and the system will remind by voice.
Power voltage: 110/220/380V, 50/60 Hz, automatic induction, friendly voice remind system.
The following air shower for your option:
voice identification air shower/automatic door air shower/explosion protection air shower
air shower tunnel/cargo air shower/single side blow shower/double side blow shower/three side blow shower/corner air shower...
voice identification air shower/automatic door air shower/explosion protection air shower
air shower tunnel/cargo air shower/single side blow shower/double side blow shower/three side blow shower/corner air shower...

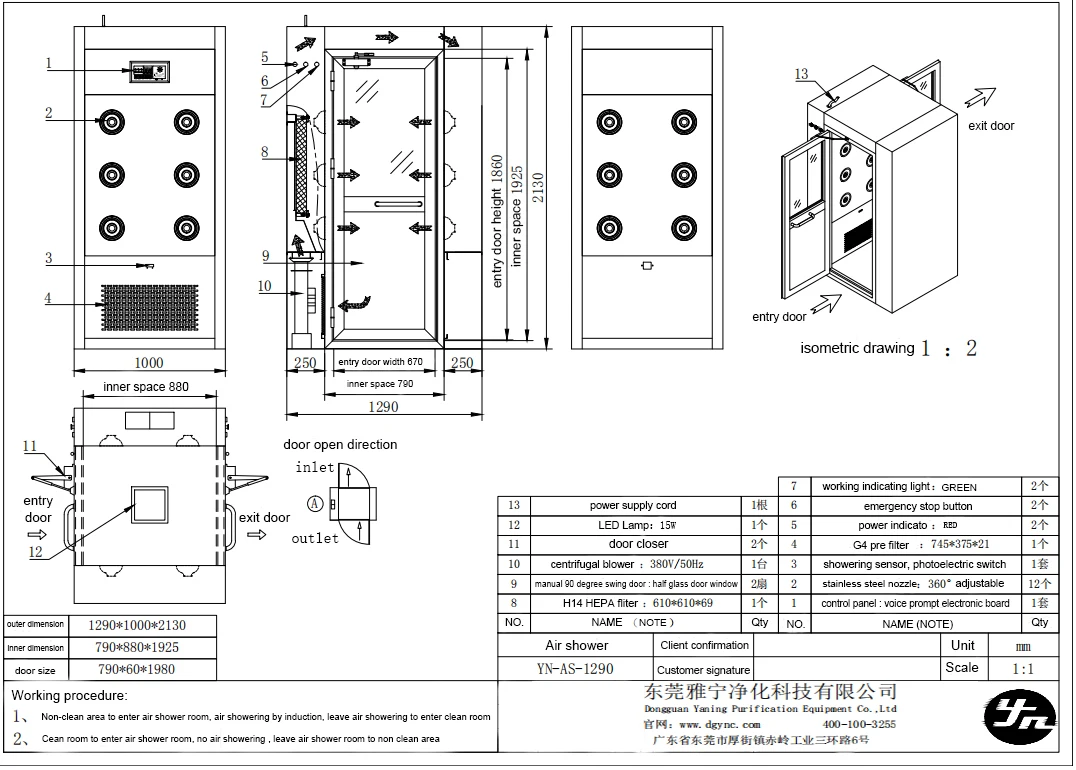

Model | YN-AS1290/1 | YN-AS1290/2 | YN-AS1290/3 | YN-AS1290/4 | ||
External Dimension | 1290×1000×2130 | 1290×1000×2130 | 1290×2000×2130 | 1950×5000×2130 | ||
Internal Work Zone | 790×880×1980 | 790×880×1980 | 790×1880×1980 | 790×4880×1980 | ||
Suitable Number | 1-2 person | 1-2 person | 2-4 person | Tunnel type | ||
Noise Level(dB) | <62 | <62 | <62 | <62 | ||
Stainless Steel Nozzle | 6PCS | 12PCS | 24PCS | 72PCS | ||
Wind Speed | ≥25m/s | ≥25m/s | ≥25m/s | ≥25m/s | ||
Prefilter | Size | 775×380×17×1pc | 775×380×17×2pc | 775×380×17×4pc | 775×380×17×6pc | |
Efficiency | G4 | G4 | G4 | G4 | ||
HEPA Filter | Size | 610×610×120×1pc | 610×610×120×2pc | 610×610×120×4pc | 610×610×120×8pc | |
Efficiency | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | ||
Fluorescent Lamp | 20W×1 | 20W×1 | 20W×2 | 40W×4 | ||
Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | ||
Total Power | 780W | 780W | 780W | 780W | ||
Details Images
Customer Photos
Quality Wins Trust
We have exported our air shower room , clean room , pass box, clean bench, fan filter unit, HEPA filter box, laminar air flow ceiling etc. to more than 50 countries.
Our purification equipment have been widely applied in Bio-pharmacy,Precise electronics,Medical healthcare,Food Chemistry,Laboratory,Farm, Aerospace, Automobile manufacturing industry and so on.
Our purification equipment have been widely applied in Bio-pharmacy,Precise electronics,Medical healthcare,Food Chemistry,Laboratory,Farm, Aerospace, Automobile manufacturing industry and so on.
