High Chemical Resistance Anti reflective Industrial Stainless Steel Belt Conveyor Machine
- Category: Conveyors >>>
- Supplier: DYMCO LTD.
Share on (11000000467358):
Product Overview
Description
Products Description
RSC stands for Regular Stainless Steel Belt Conveyor.
Since Aluminum frames are in stock, this conveyor is manufactured in shorter lead time than our custom-conveyors.
Since Aluminum frames are in stock, this conveyor is manufactured in shorter lead time than our custom-conveyors.
Product Name | Regular Steel Conveyor |
Brand Name | DYMCO RSC |
Place of Origin | Japan |

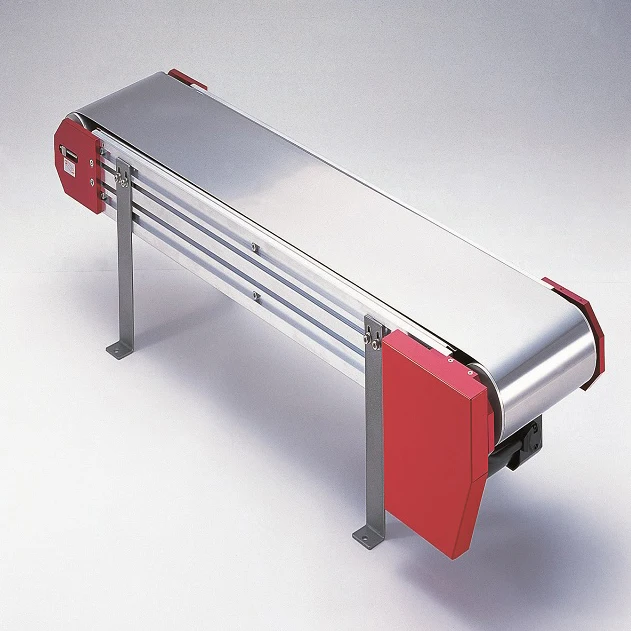

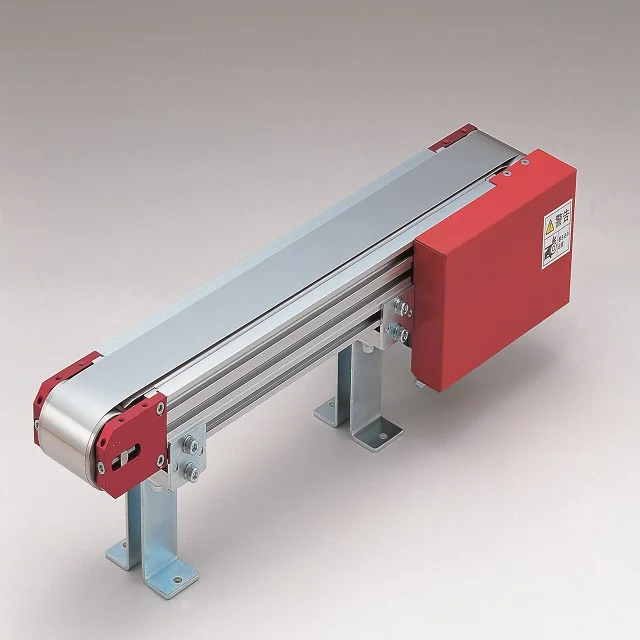

RSC conveyor employs Stainless Steel Welded Belt.
What can we expect with this metal belt conveyor?
- flat and stable transport surface with thickness uniformity of metal, minute step of the welded seam, and limited vibrations
- Stainless Steel Belt is conductive. Static electricity is minimal
- The metal belt is proof against chemical corrosion
- Fluororesin-coated belts are another option for anti-reflective effect and improved non-stick property
What can we expect with this metal belt conveyor?
- flat and stable transport surface with thickness uniformity of metal, minute step of the welded seam, and limited vibrations
- Stainless Steel Belt is conductive. Static electricity is minimal
- The metal belt is proof against chemical corrosion
- Fluororesin-coated belts are another option for anti-reflective effect and improved non-stick property
Applications
- Automatic inspection by camera or laser such as height measurement of bolts and appearance check of needles.
- Transport of rubber stoppers, medical needles, etc. that require sterilization.
- Guided transport of resin parts with a high coefficient of friction.
- Transport of electronic components, semiconductor components, and ceramics under limited static electricity
- Temporary stopping of metal workpieces on a smooth-surface metal belt
RSC typical specifications
RSC 50 stands for pulley diameter 50mm and RSC 90 for pulley diameter 90mm.
Type description example: RSC 015-50-50-1500,
indicating RSC 015(belt thickness mm) - 50 (pulley diameter mm) - 50(belt width mm)-1500 (center distance mm)
RSC 50
- belt thickness: 0.15mm
- belt width: 40, 50, 100, 150mm
- Center distance between pulley axis: range 223 to 4000mm
- Automatic inspection by camera or laser such as height measurement of bolts and appearance check of needles.
- Transport of rubber stoppers, medical needles, etc. that require sterilization.
- Guided transport of resin parts with a high coefficient of friction.
- Transport of electronic components, semiconductor components, and ceramics under limited static electricity
- Temporary stopping of metal workpieces on a smooth-surface metal belt
RSC typical specifications
RSC 50 stands for pulley diameter 50mm and RSC 90 for pulley diameter 90mm.
Type description example: RSC 015-50-50-1500,
indicating RSC 015(belt thickness mm) - 50 (pulley diameter mm) - 50(belt width mm)-1500 (center distance mm)
RSC 50
- belt thickness: 0.15mm
- belt width: 40, 50, 100, 150mm
- Center distance between pulley axis: range 223 to 4000mm
RSC 90
Secure Packaging and Worldwide Shipping
- belt thickness: 0.2mm
- belt width: 150, 200, 300mm
- Center distance between pulley axis: up to 3000mm, the minimum distance shall be discussed.
Please contact us for other size specifications.
Secure Packaging and Worldwide Shipping
Company Profile
DYMCO, LTD. has over 35 years of experience in providing stainless steel belts and conveyor systems for customers with various needs. The belt application covers electronic apparatus, aviation systems, medical appliances, food industries, general automation systems, packaging machines and an endless array of customized functions specifically designed to meet their requirements.
Our experience, quality management and proprietary technology sets us apart from any other similar equipment manufacturers in the world, producing stainless steel belts and conveyor systems that are used in top 500 companies around the world.
