Pneumatic conveying airtight carbon steel inclined air slide chute conveyor for cement transport

Product Overview

Description

                                     Good performance cement air slide conveyor

The Air-Slide System consists of a rectangular chamber separated by a permeable cloth. The chamber is inclined at a very slight angle (as low as 1.5°). Compressed air is injected into the lower chamber which then permeates through the media and "fluidises" the product. The product then behaves like a fluid and "flows" down the length of the chamber while the excess air is vented to a dust collector.

Our Air Slide sections are available in a range of standard opening sizes with lengths of up to 6 metres, but it can be manufactured to suit individual customer requirements.

Structural Drawing:

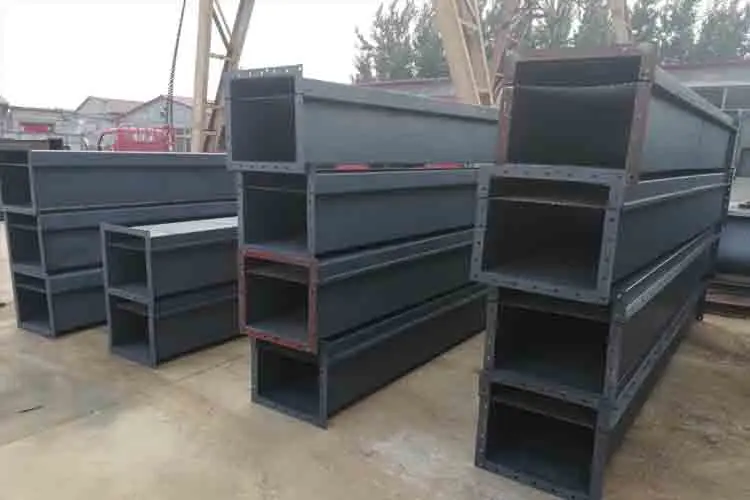

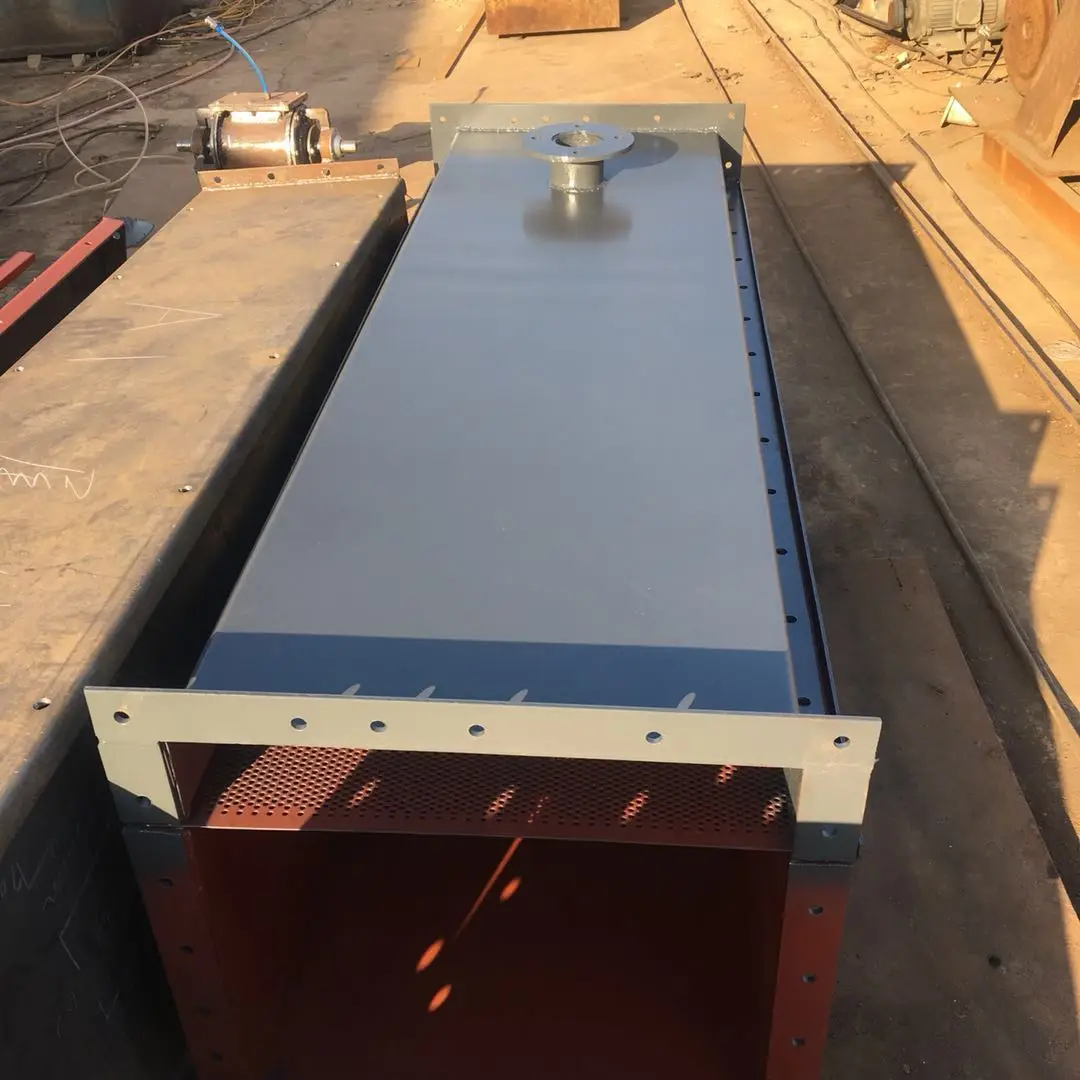

Detailed Image:

Please click to contact us for more information
